Features:

ITE and Medical applications

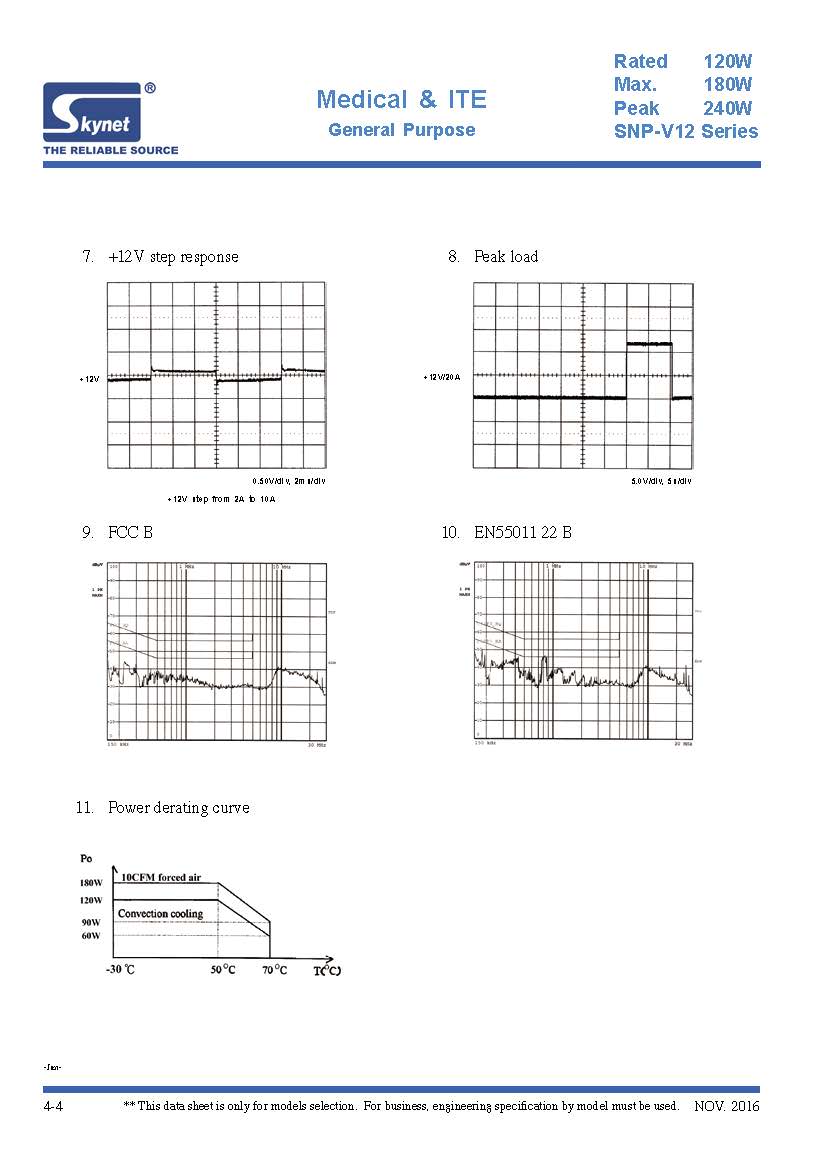

SNP-V12 (120W), SNP-V15 (150W)/(NEW)

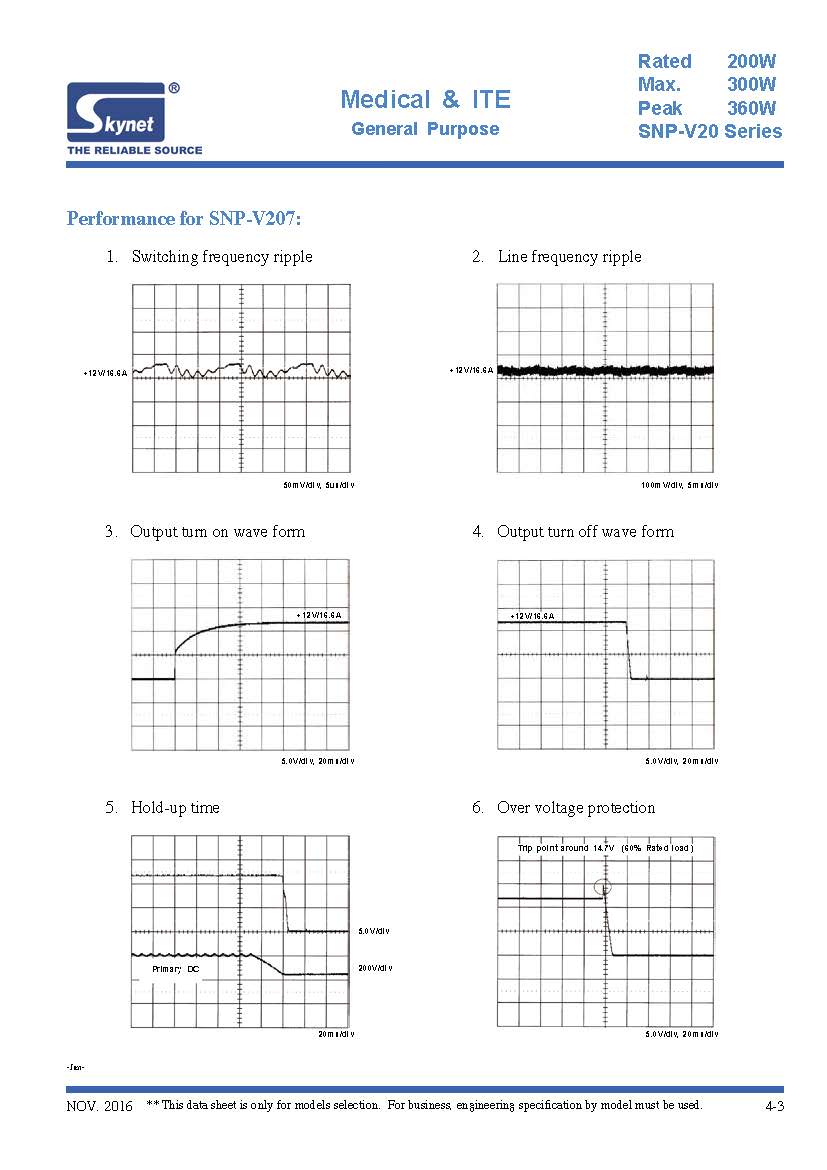

SNP-V20 (200W), SNP-V30 (300W)

Output Specifications:
Rated Power Model No. OUTPUT Size WxLxH

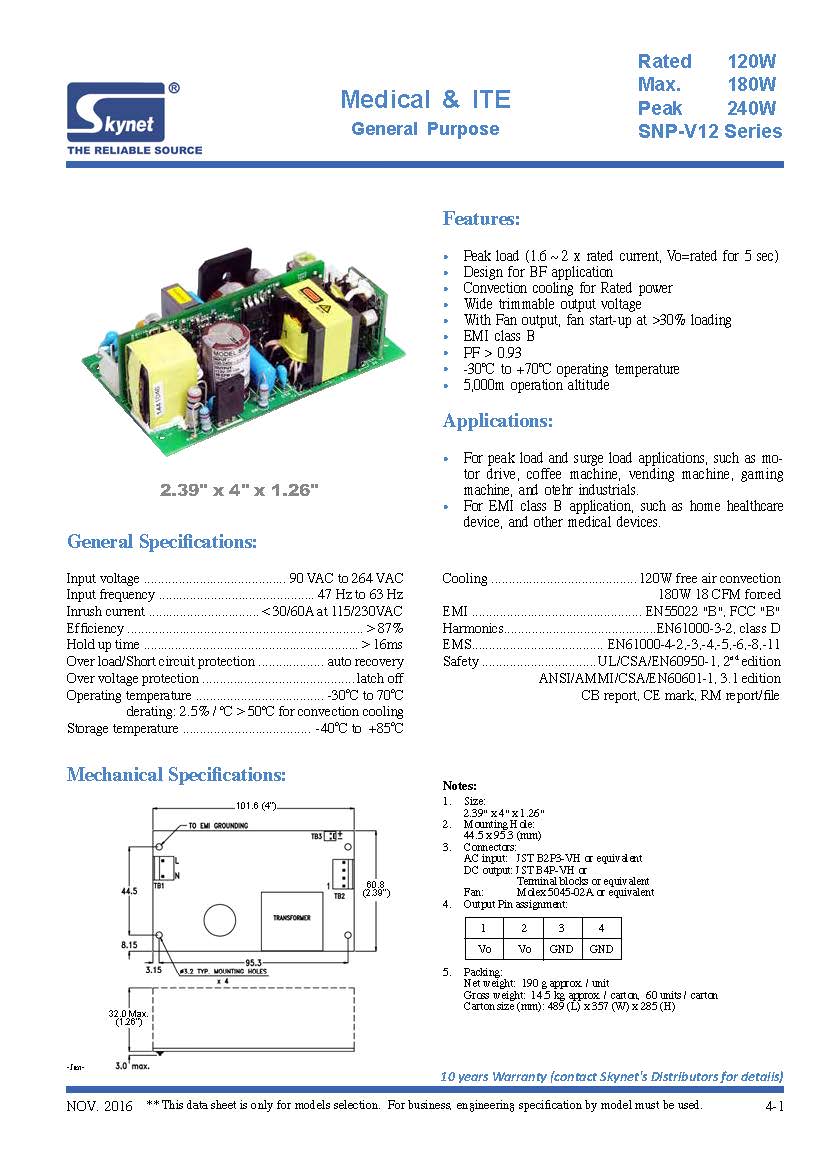

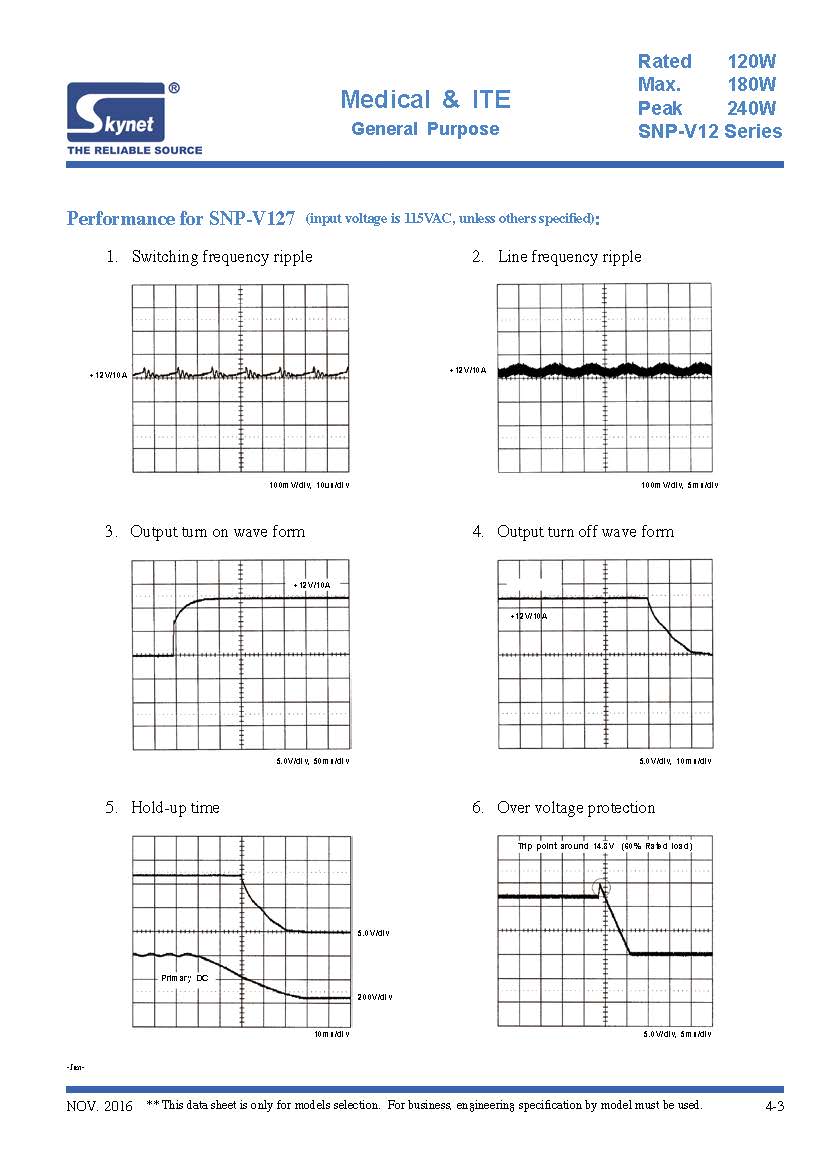

120W SNP-V127 +12V/10.00A 2.39"x4"x1.26"
120W SNP-V129 +24V/5.00A 2.39"x4"x1.26"
150W SNP-V155 (New) +18V/8.33A 76.2x127x35 (mm)
150W SNP-V157 (New) +12V/12.5A 76.2x127x35 (mm)
150W SNP-V159 (New) +24V/6.25A 76.2x127x35 (mm)

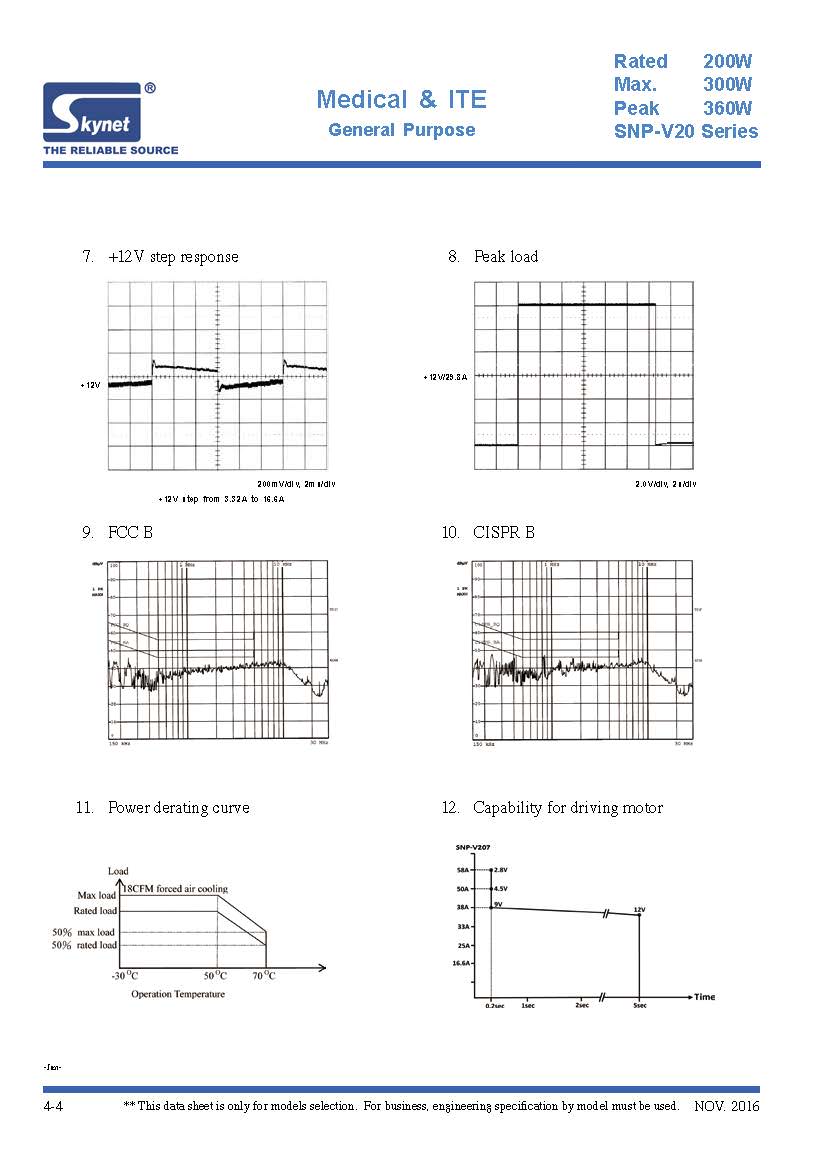

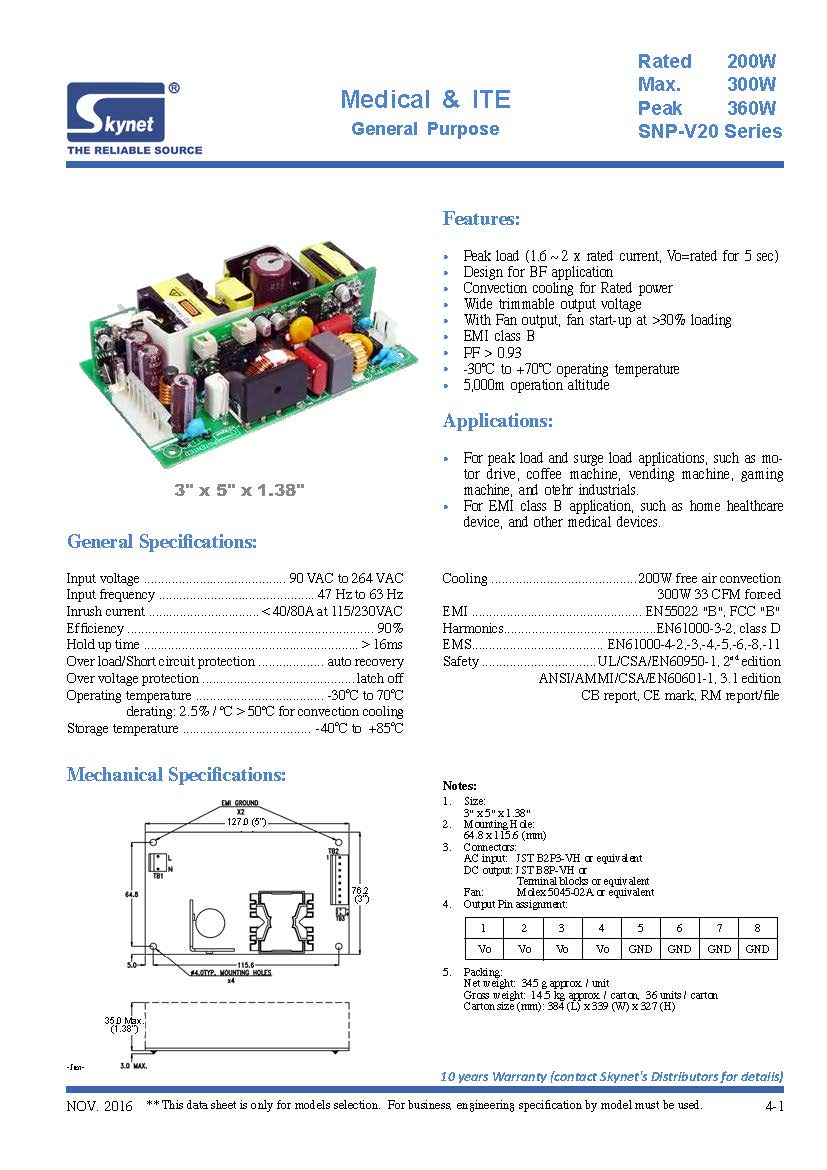

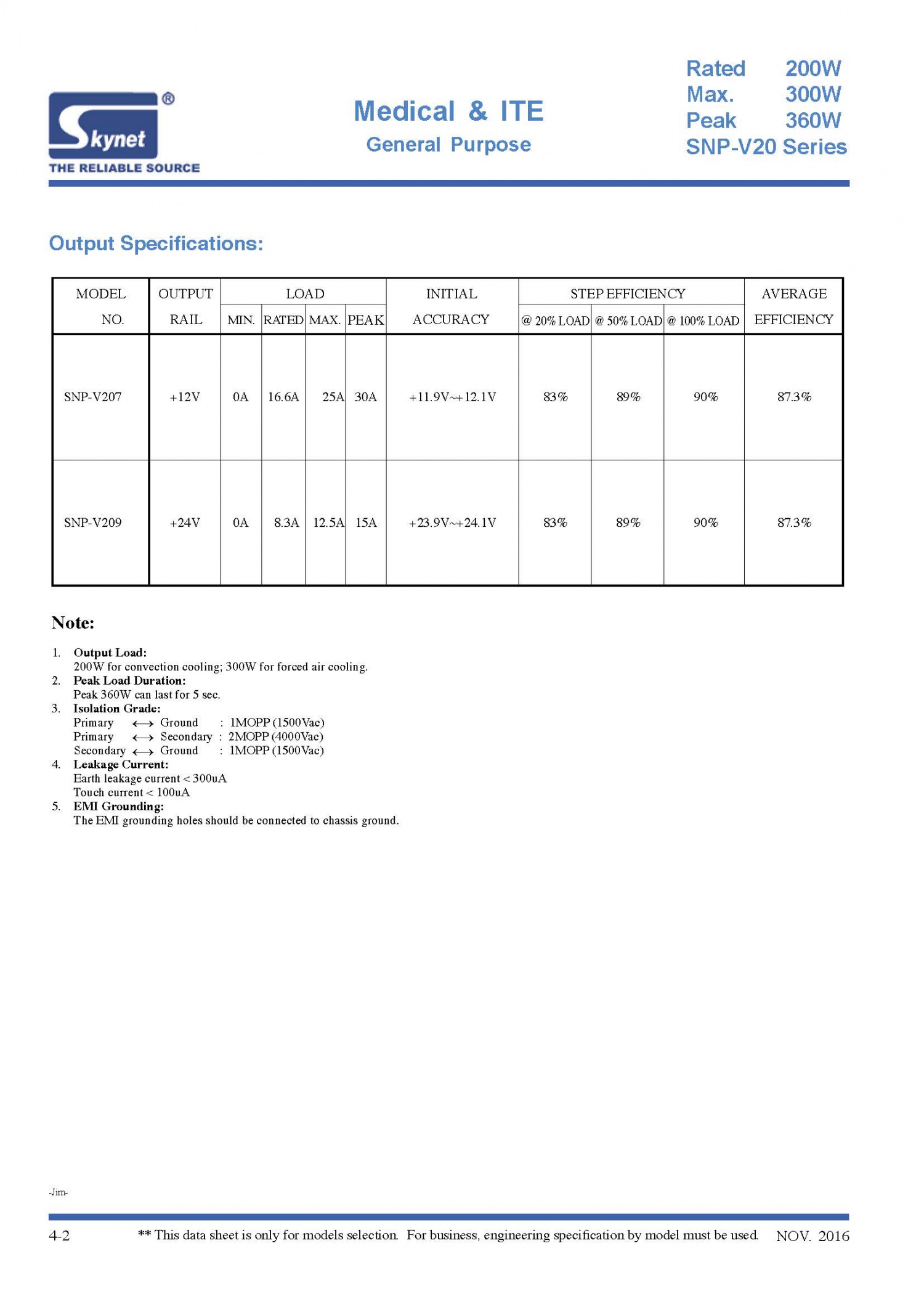

200W SNP-V207 +12V/16.60A 3"x5"x1.38"
200W SNP-V209 +24V/8.30A 3"x5"x1.38"
200W SNP-V207-U +12V/16.60A 3.3"x5"x1.7"
200W SNP-V209-U +24V/8.30A 3.3"x5"x1.7"
200W SNP-V207-C +12V/16.60A 3.3"x5"x1.7"
200W SNP-V209-C +24V/8.30A 3.3"x5"x1.7"

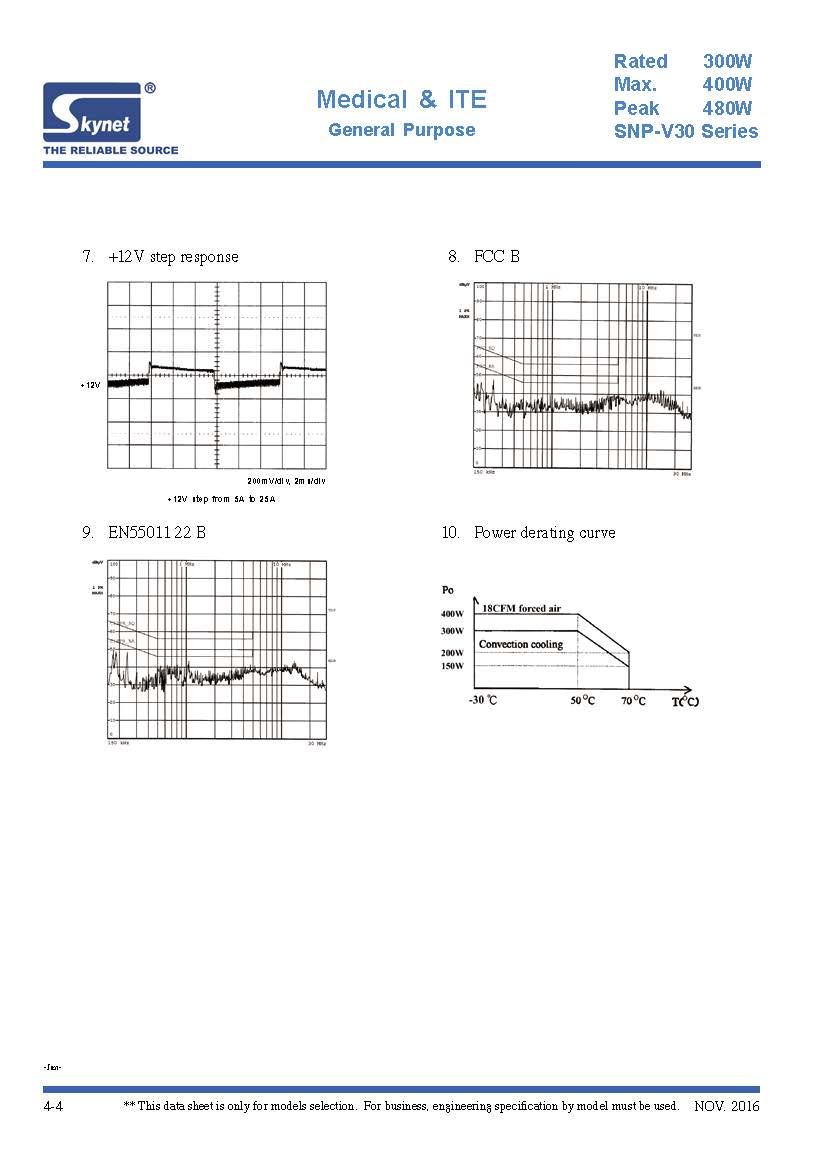

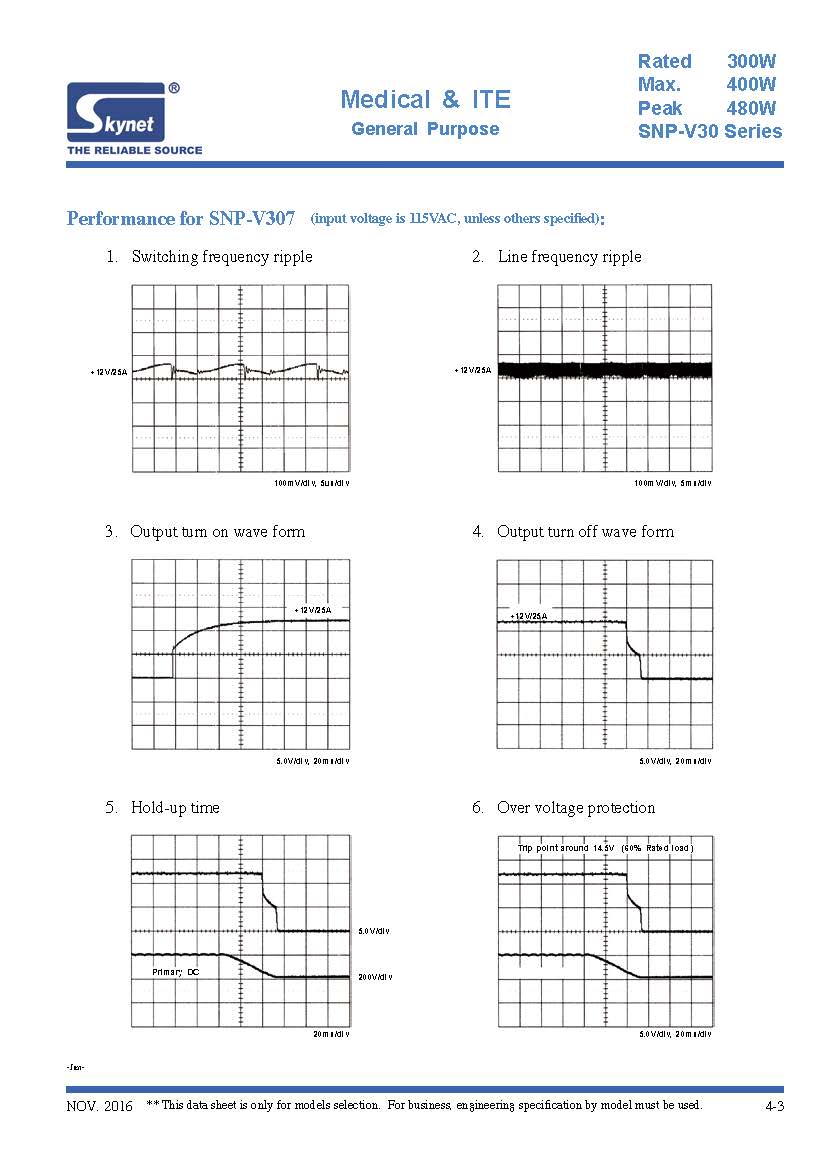

300W SNP-V307 +12V/25.00A 4"x6"x1.38"
300W SNP-V309 +24V/12.50A 4"x6"x1.38"
300W SNP-V307-U +12V/25.00A 4.4"x6"x1.7"
300W SNP-V309-U +24V/12.50A 4.4"x6"x1.7"
300W SNP-V307-C +12V/25.00A 4.4"x6"x1.72"
300W SNP-V309-C +24V/12.50A 4.4"x6"x1.72"
