Features:

Home Healthcare Devices
ITE and Medical applications

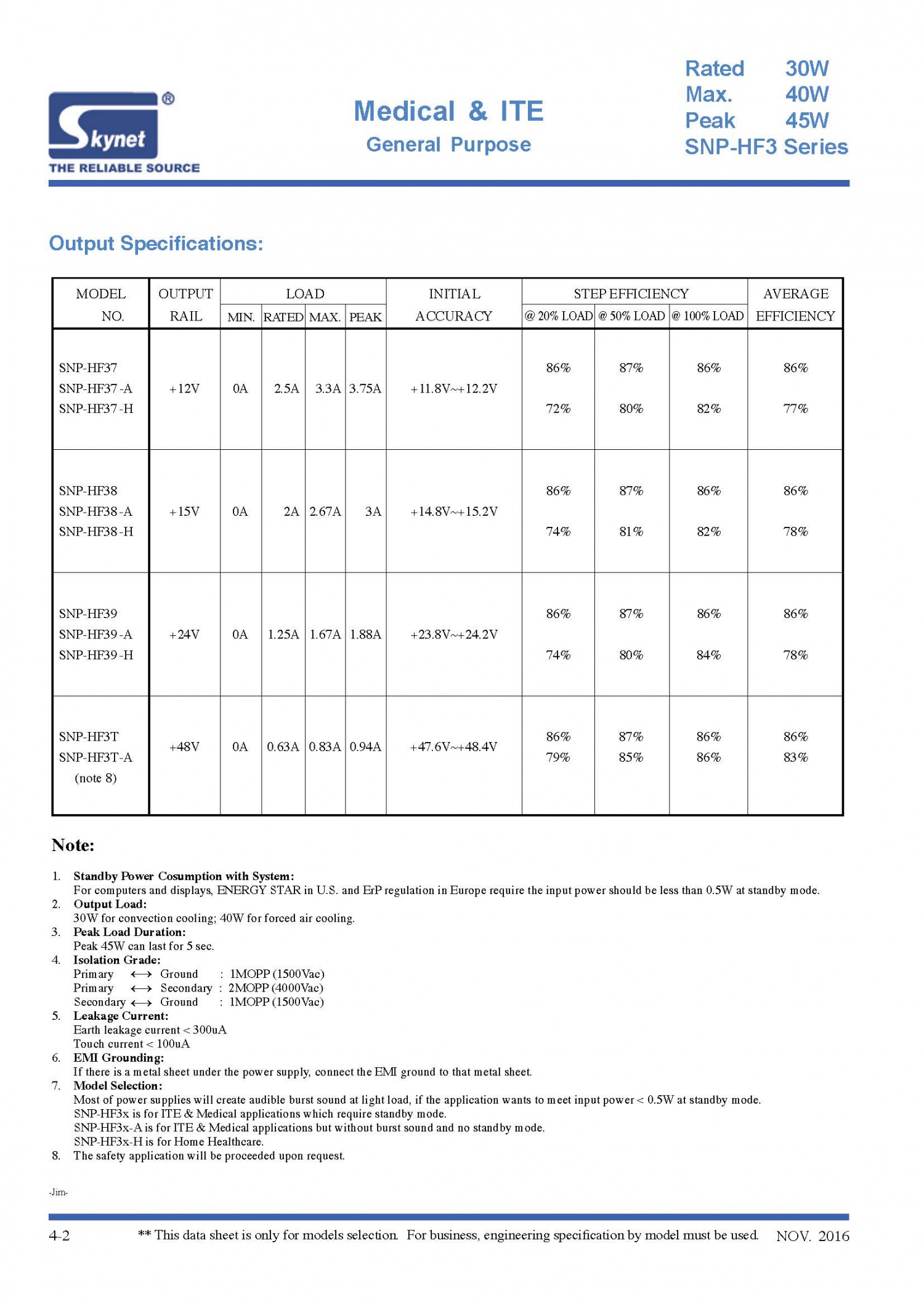

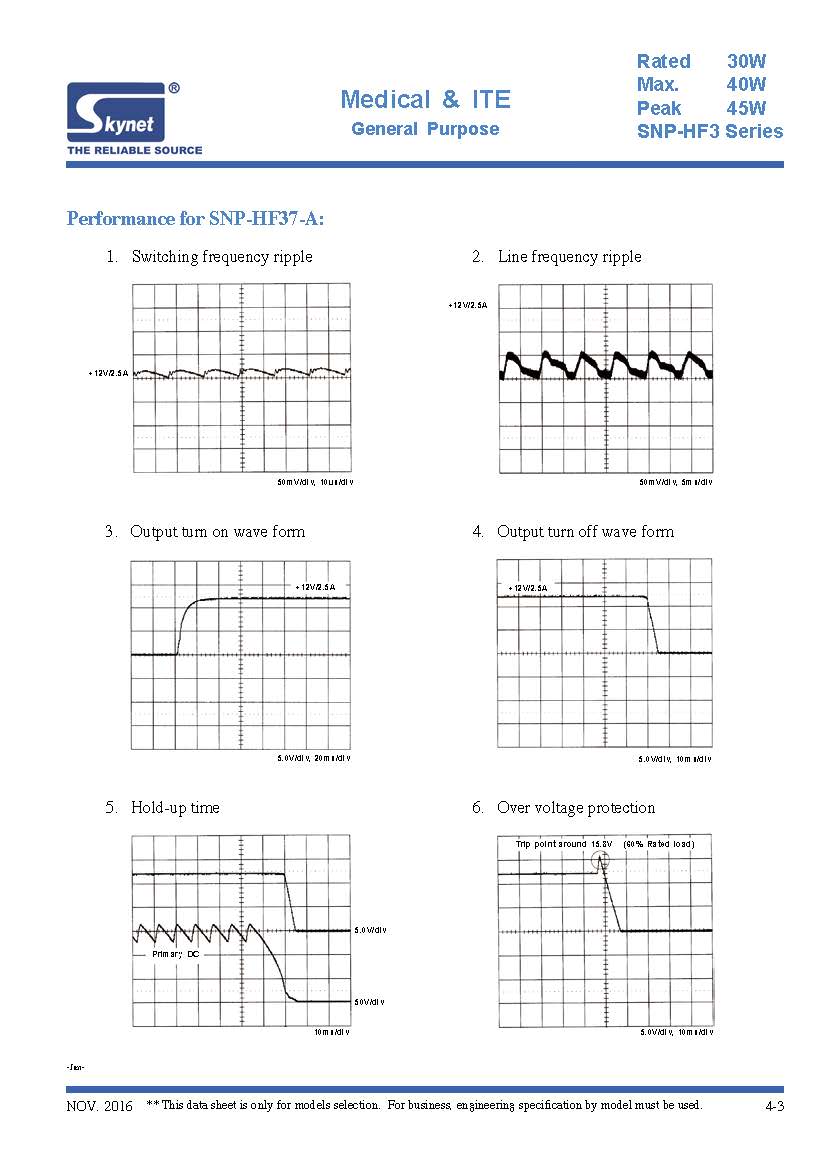

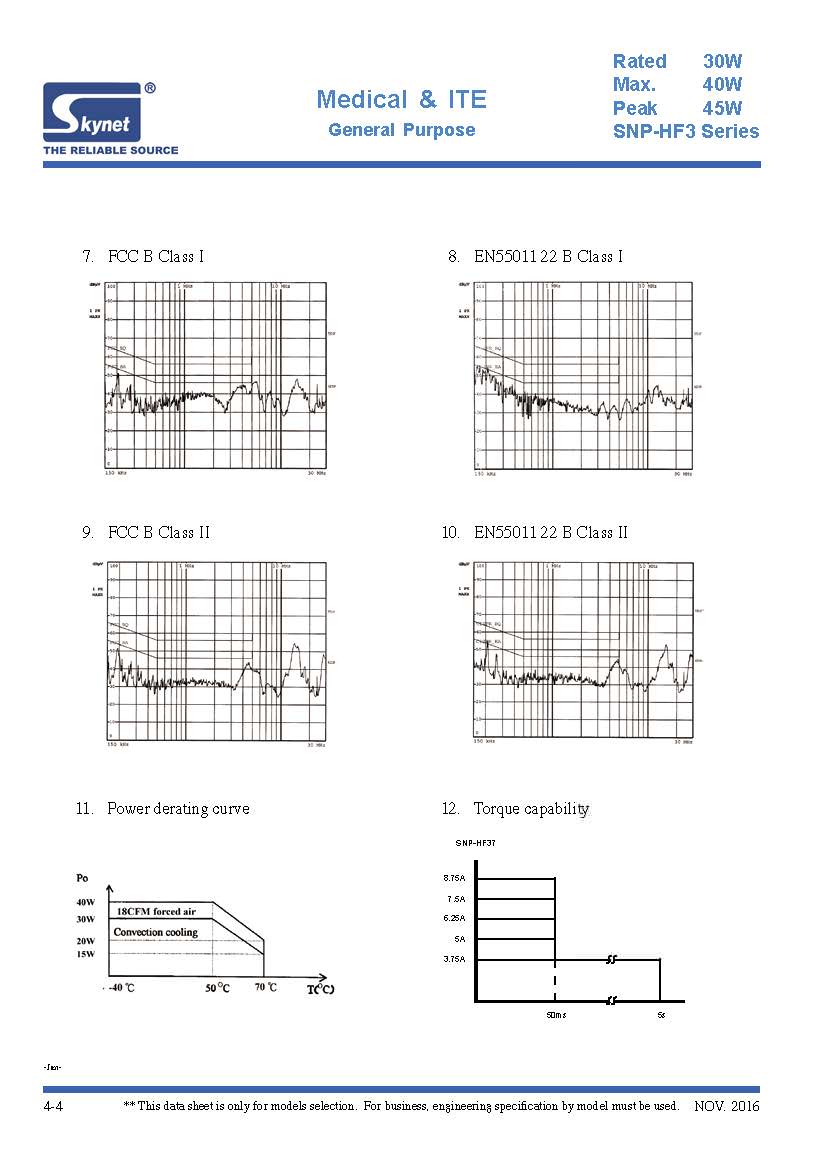

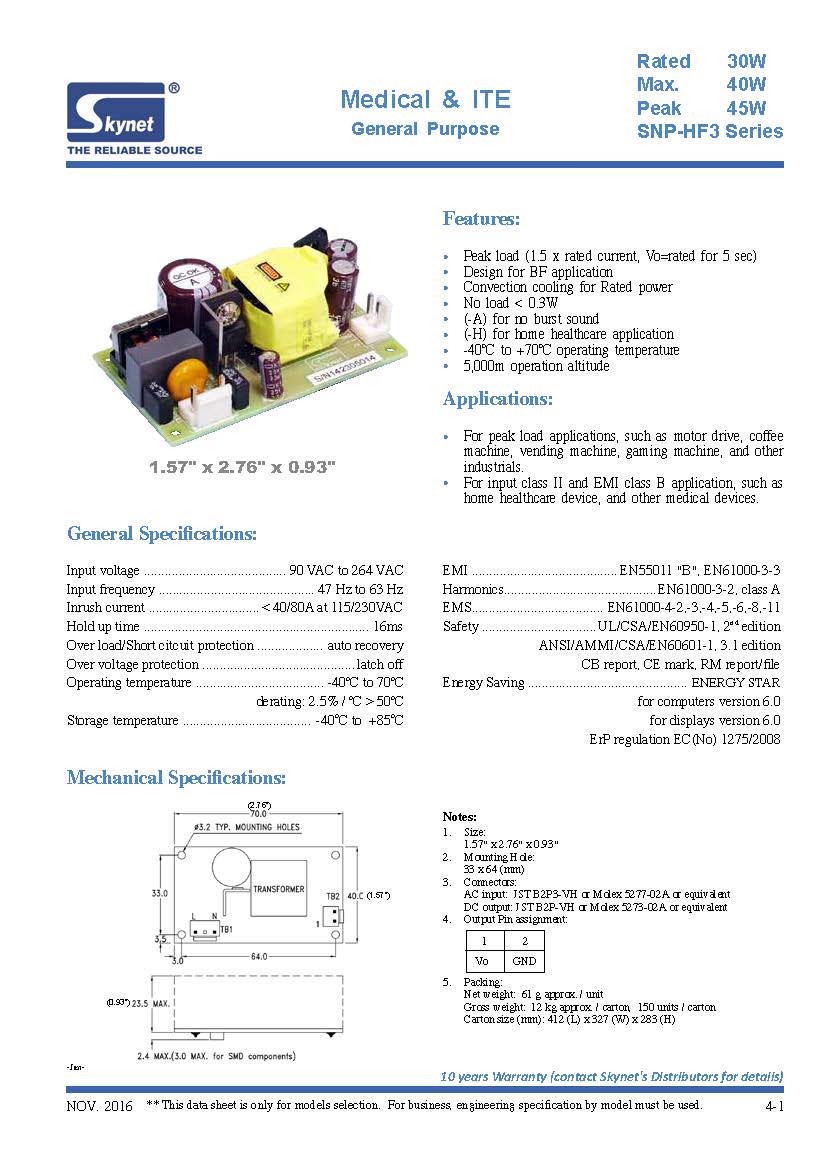

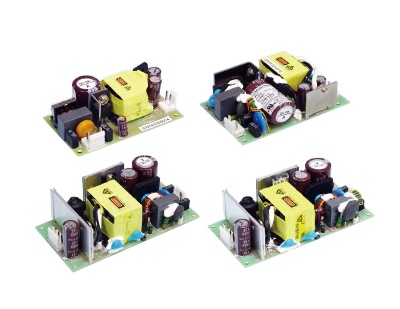

SNP-HF3 (30W), SNP-HF4 (40W),

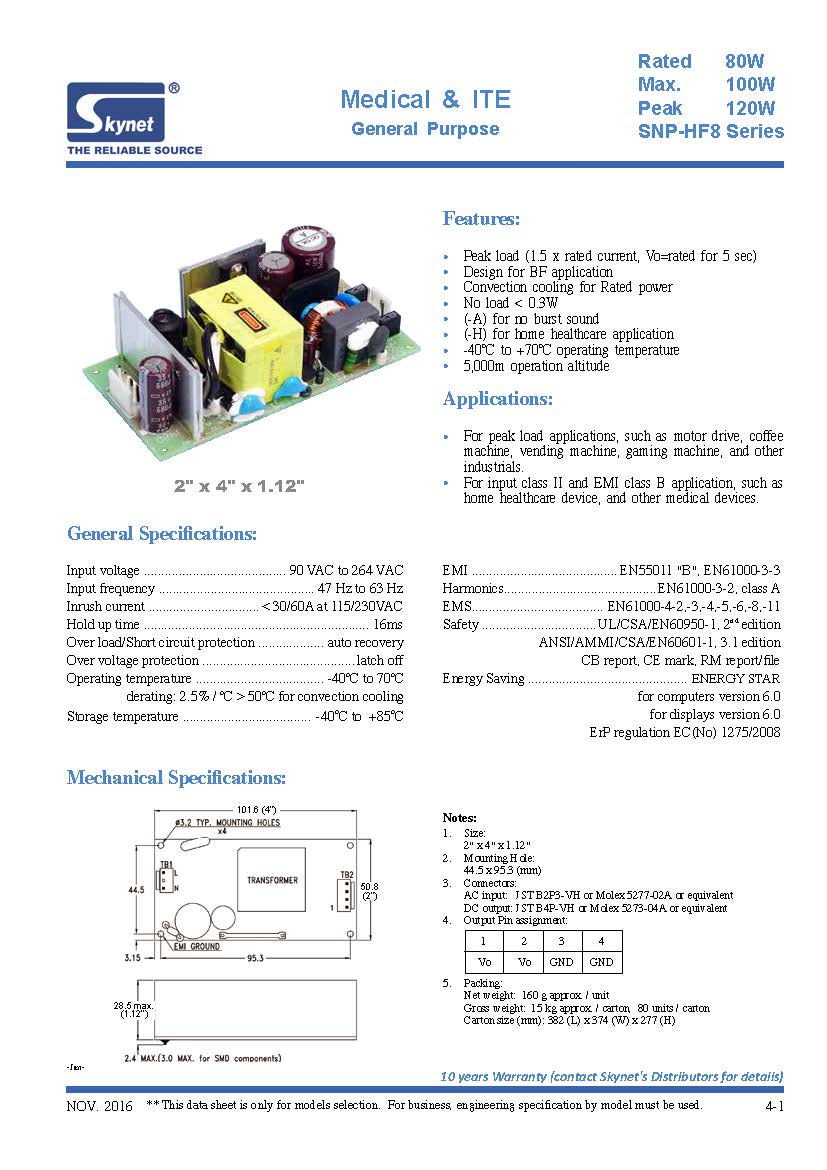

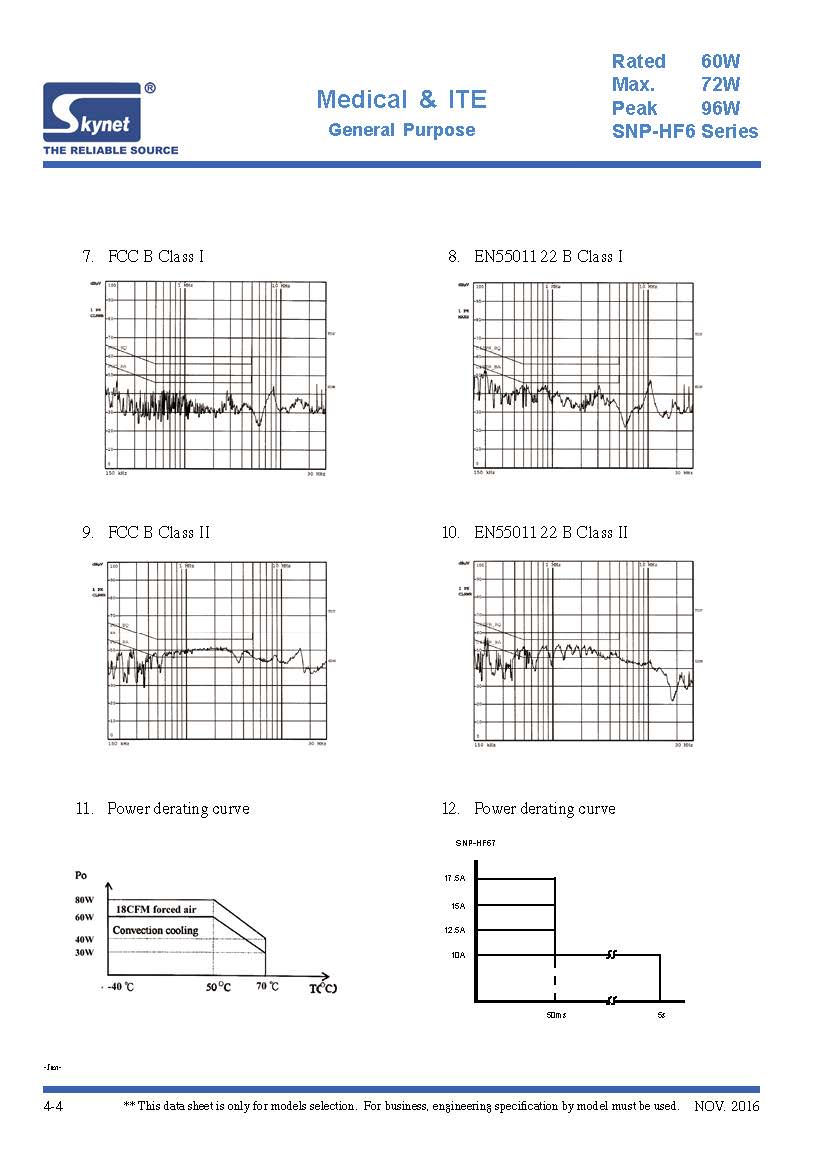

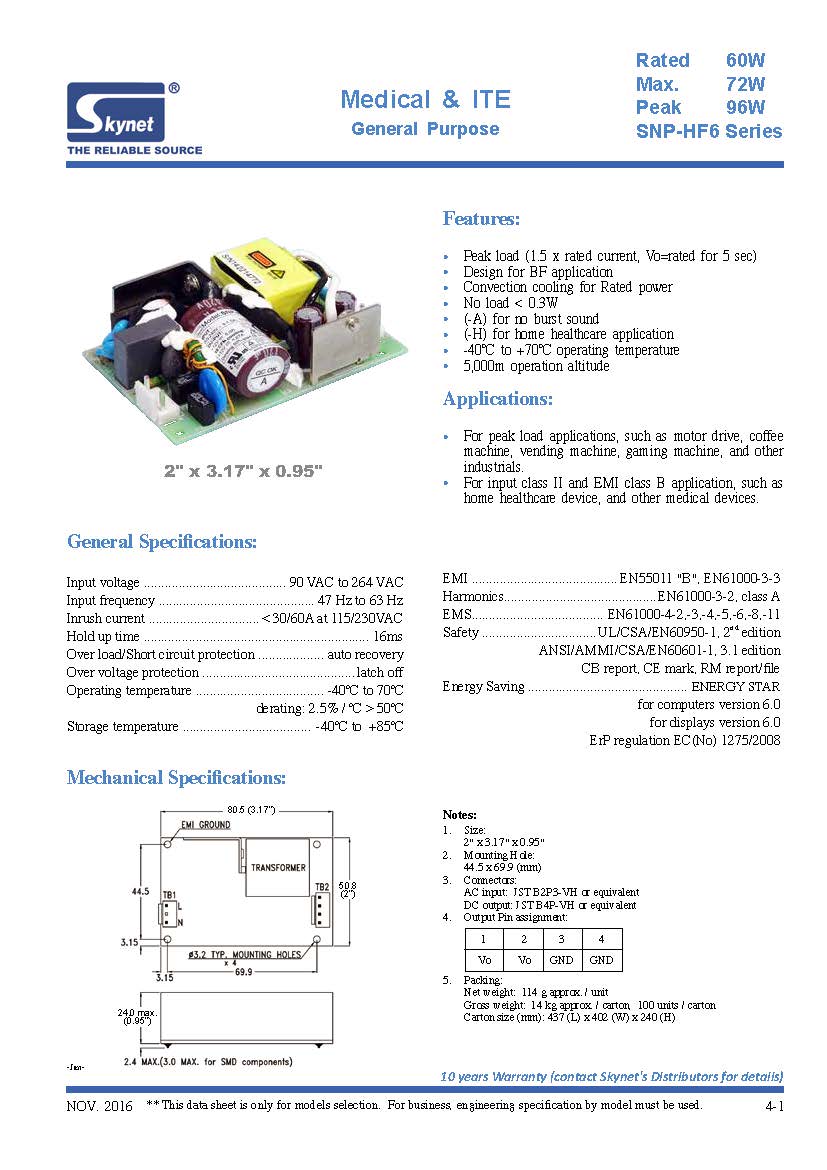

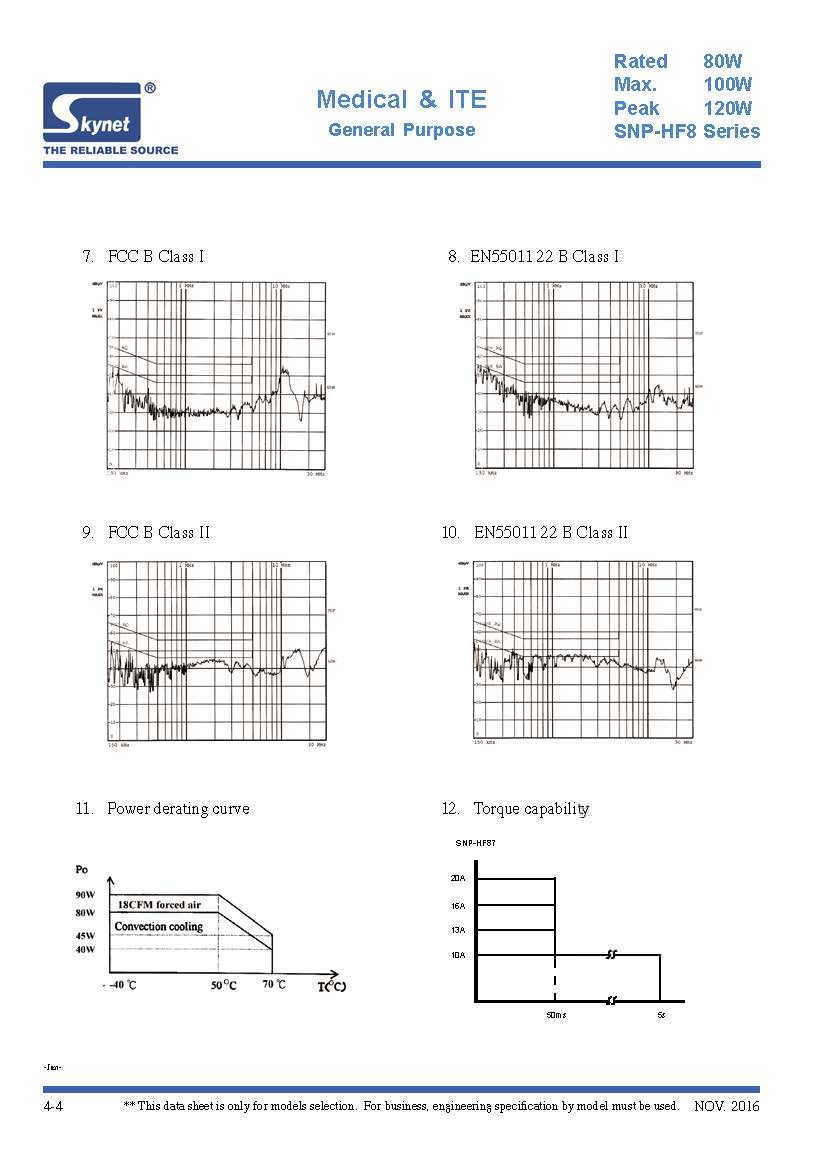

SNP-HF6 (60W), SNP-HF8 (80W),

SNP-HFA (100W)

Output Specifications:
Rated Power Model No. OUTPUT Size WxLxH
30W SNP-HF37 +12V/2.50A 1.57"x2.76"x0.93"
30W SNP-HF37-A +12V/2.50A 1.57"x2.76"x0.93"
30W SNP-HF38 +15V/2.00A 1.57"x2.76"x0.93"
30W SNP-HF38-A +15V/2.00A 1.57"x2.76"x0.93"
30W SNP-HF39 +24V/1.25A 1.57"x2.76"x0.93"
30W SNP-HF39-A +24V/1.25A 1.5'X2.76"X0.93"
30W SNP-HF3T +48V/0.63A 1.57"x2.76"x0.93"
30W SNP-HF3T-A +48V/0.63A 1.57"x2.76"x0.93"
60W SNP-HF67 +12V/5.00A 2"x3.17"x0.95"
60W SNP-HF67-A +12V/5.00A 2"x3.17"x0.95"
60W SNP-HF67-H +12V/5.00A 2"x3.17"x0.95"
60W SNP-HF68 +15V/4.00A 2"x3.17"x0.95"
60W SNP-HF68-A +15V/4.00A 2"x3.17"x0.95"
60W SNP-HF68-H +15V/4.00A 2"x3.17"x0.95"
60W SNP-HF69 +24V/2.50A 2"x3.17"x0.95"
60W SNP-HF69-A +24V/2.50A 2"x3.17"x0.95"
60W SNP-HF69-H +24V/2.50A 2"x3.17"x0.95"
60W SNP-HF6T +48V/1.25A 2"x3.17"x0.95"
60W SNP-HF6T-A +48V/1.25A 2"x3.17"x0.95"
60W SNP-HF6T-H +48V/1.25A 2"x3.17"x0.95"
80W SNP-HF87 +12V/6.66A 2"x4"x1.18"
80W SNP-HF87-A +12V/6.66A 2"x4"x1.18"
80W SNP-HF87-H +12V/6.66A 2"x4"x1.18"
80W SNP-HF88 +15V/5.33A 2"x4"x1.18"
80W SNP-HF88-A +15V/5.33A 2"x4"x1.18"
80W SNP-HF88-H +15V/5.33A 2"x4"x1.18"
80W SNP-HF89 +24V/3.33A 2"x4"x1.18"
80W SNP-HF89-A +24V/3.33A 2"x4"x1.18"
80W SNP-HF89-H +24V/3.33A 2"x4"1.18"
80W SNP-HF8T +48V/1.67A 2"x4"x1.18"
80W SNP-HF8T-A +48V/1.67A 2"x4"x1.18"
80W SNP-HF8T-H +48V/1.67A 2"x4"x1.18"
100W SNP-HFA7 +12V/8.50A 2"x4"x1.32"
100W SNP-HFA7-A +12V/8.50A 2"x4"x1.32"
100W SNP-HFA7-H +12V/8.50A 2"x4"x1.32"
100W SNP-HFA8 +15V/6.66A 2"x4"x1.34"
100W SNP-HFA8-A +15V/6.66A 2"x4"x1.34"
100W SNP-HFA8-H +15V/6.66A 2"x4"x1.34"
100W SNP-HFA5 +18V/5.55A 2"x4"x1.34"
100W SNP-HFA5-A +18V/5.55A 2"x4"x1.34"
100W SNP-HFA5-H +18V/5.55A 2"x4"x1.34"
100W SNP-HFA9 +24V/4.17A 2"x4"x1.18"
100W SNP-HFA9-A +24V/4.17A 2"x4"x1.18"
100W SNP-HFA9-H +24V/4.17A 2"x4"x1.18"
100W SNP-HFAT +48V/2.10A 2"x4"x1.2"
100W SNP-HFAT-A +48V/2.10A 2"x4"x1.2"
100W SNP-HFAT-H +48V/2.10A 2"x4"x1.2"
