Product

Features:

ITE and Medical applications

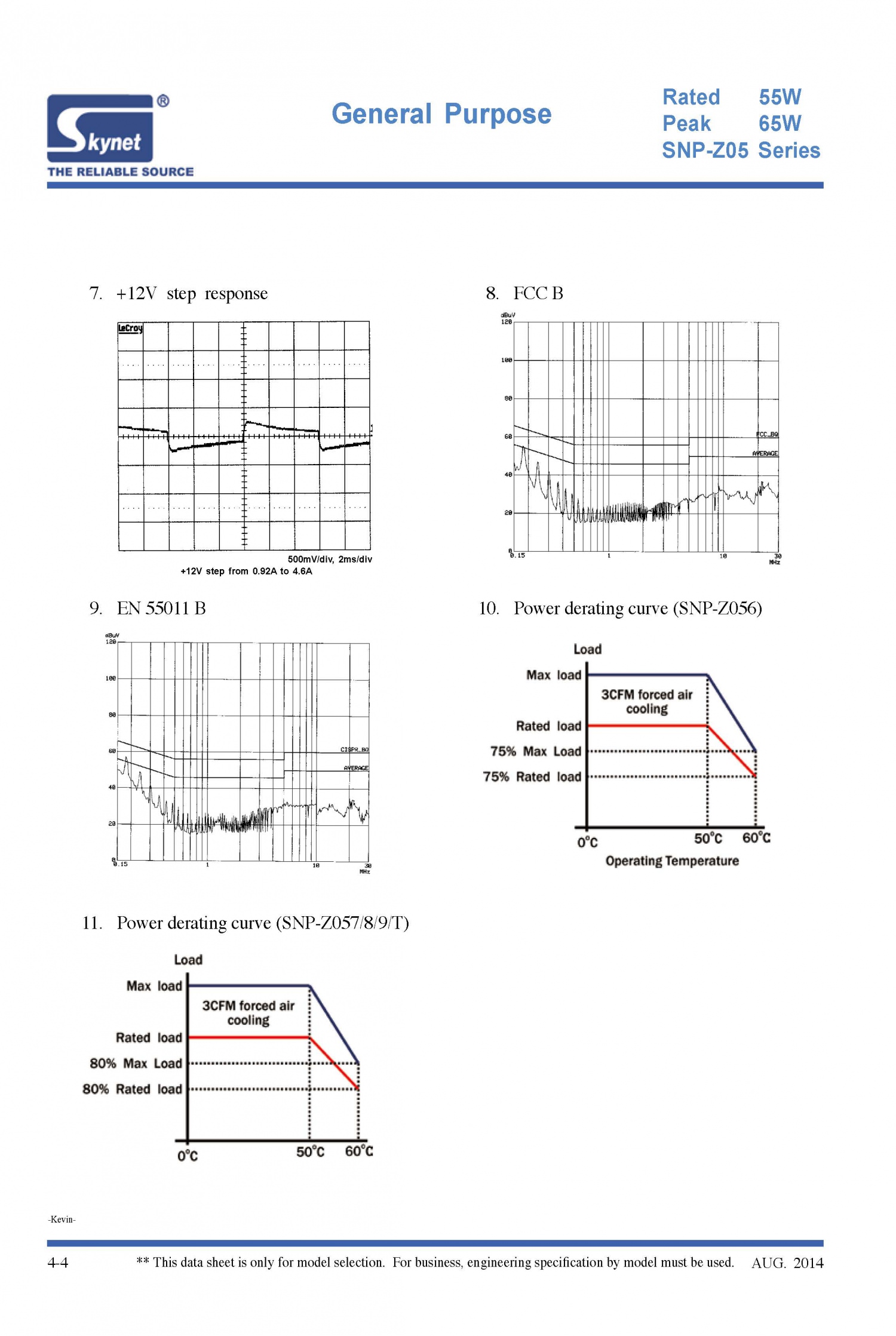

SNP-Z05 (55W), SNP-Z06 (65W), SNP-Z07 (75W),

SNP-Z08 (80W), SNP-Z10 (100W), SNP-Z10x-M (100W),

SNP-Z15 (150W), SNP-Z20 (200W), SNP-Z30 (300W)

Output Specifications:
Rated Power Model No. OUTPUT Size WxLxH

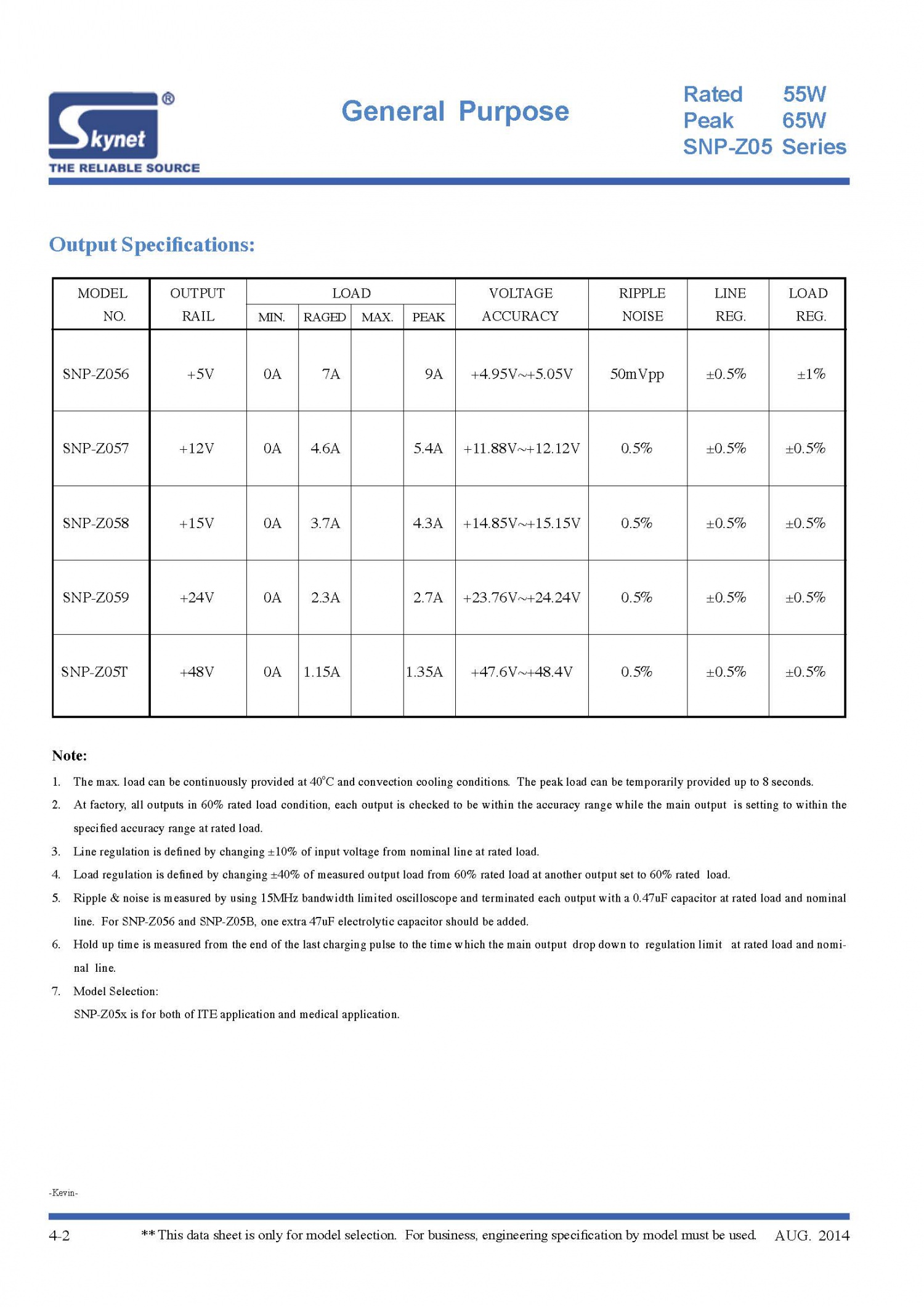

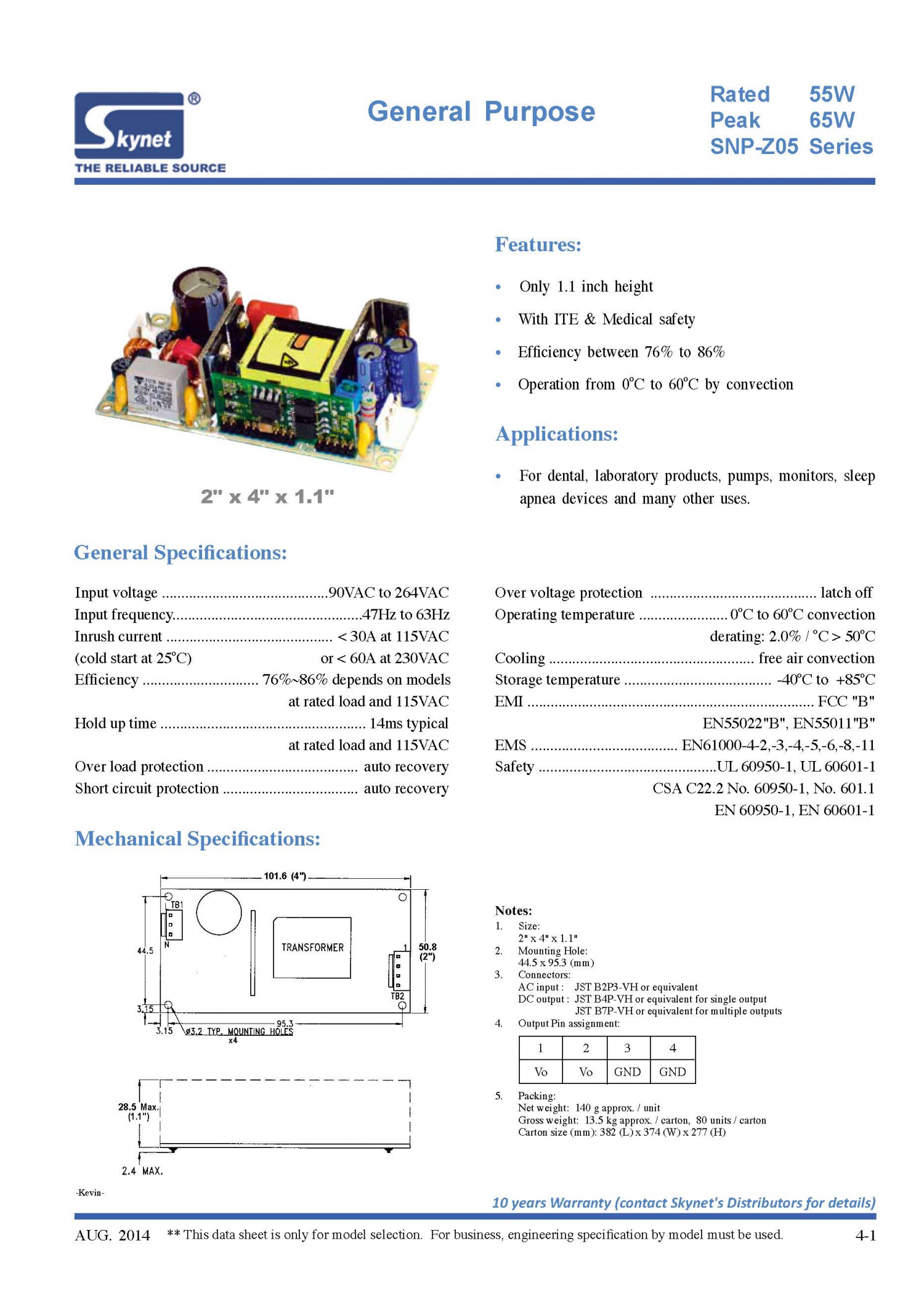

55W SNP-Z056 +5V/7A 2"x4"x1.1"

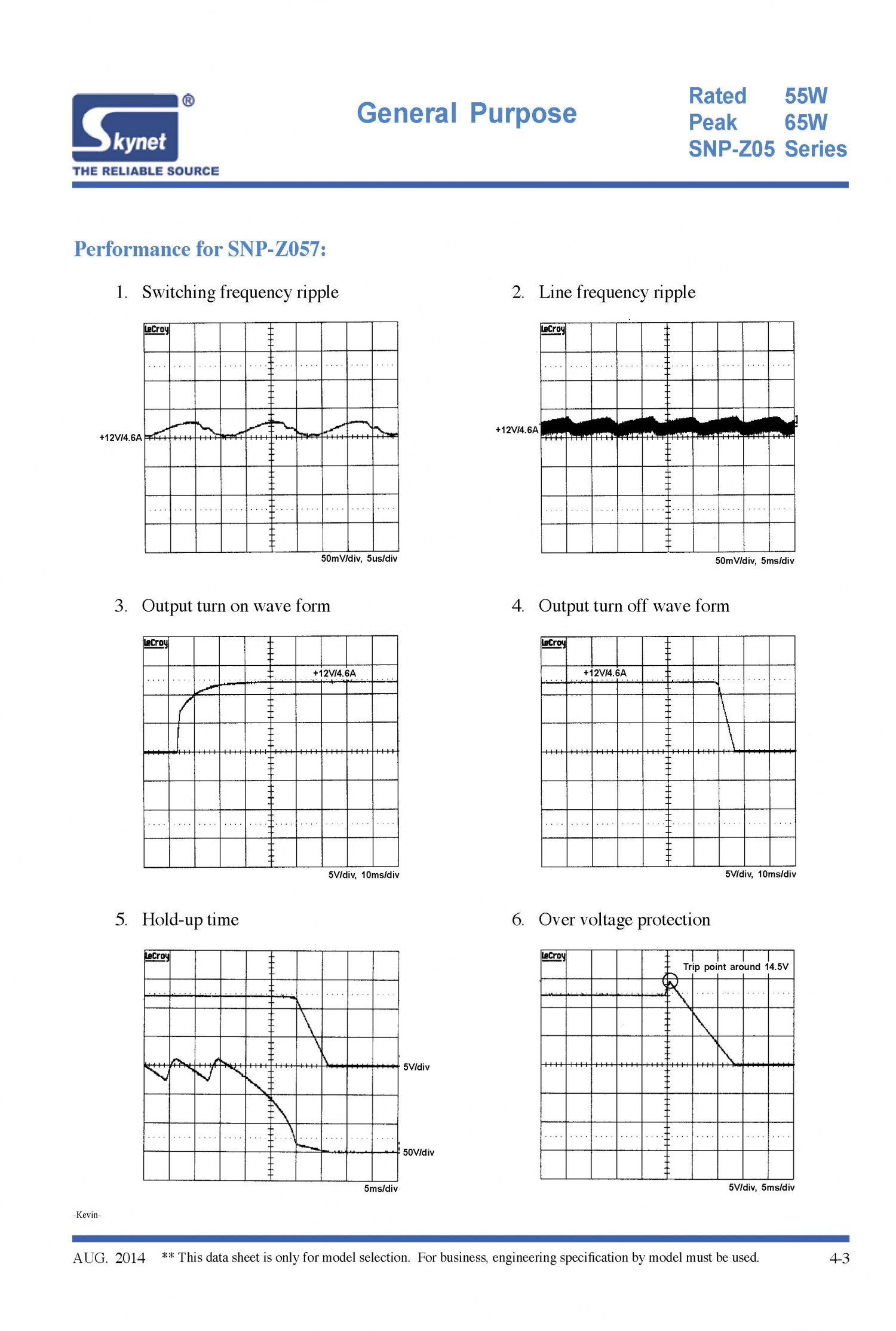

55W SNP-Z057 +12V/4.6A 2"x4"x1.1"
55W SNP-Z058 +15V/3.7A 2"x4"x1.1"
55W SNP-Z059 +24V/2.3A 2"x4"x1.1"
55W SNP-Z05T +48V/1.15A 2"x4"x1.1"

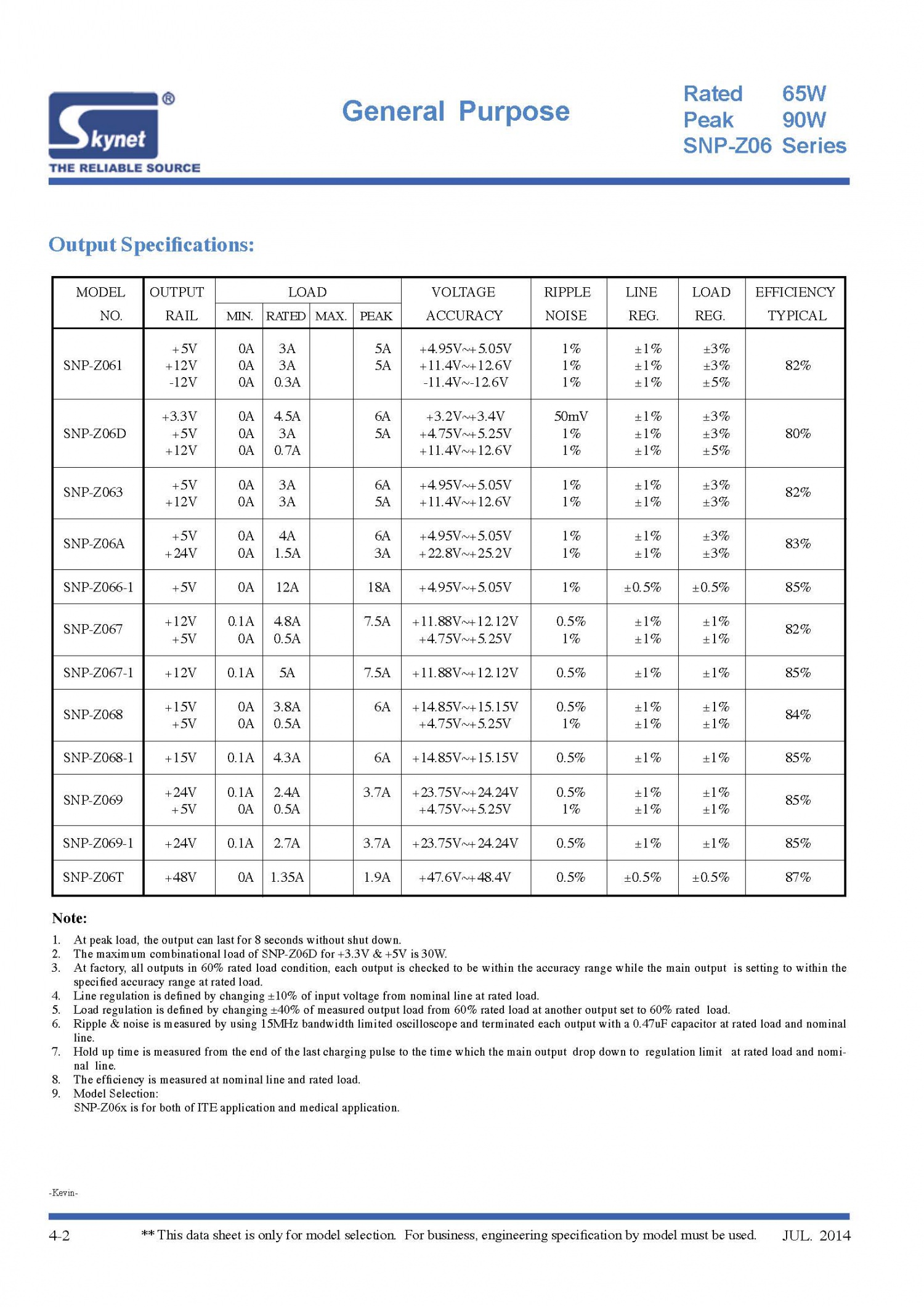

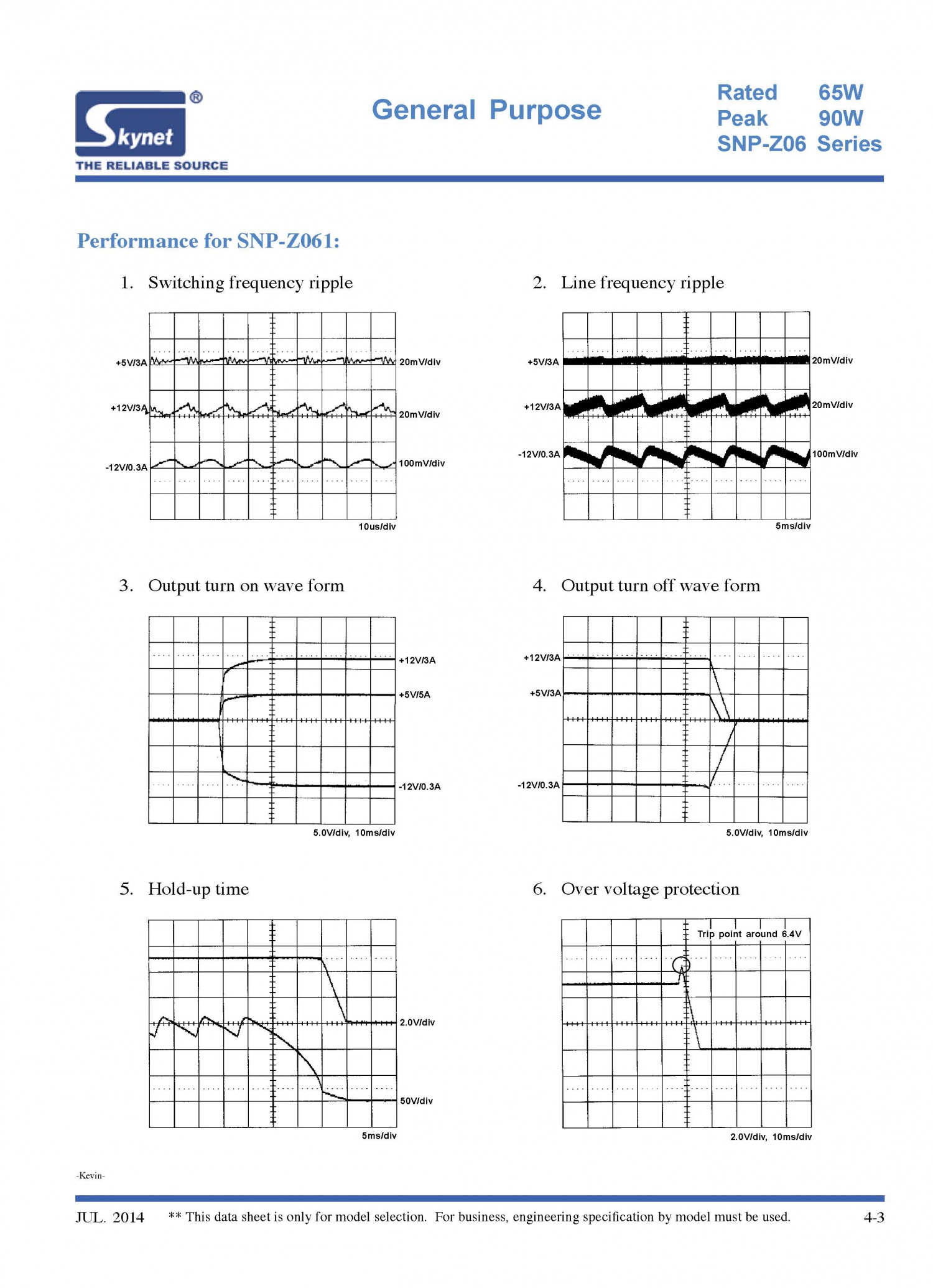

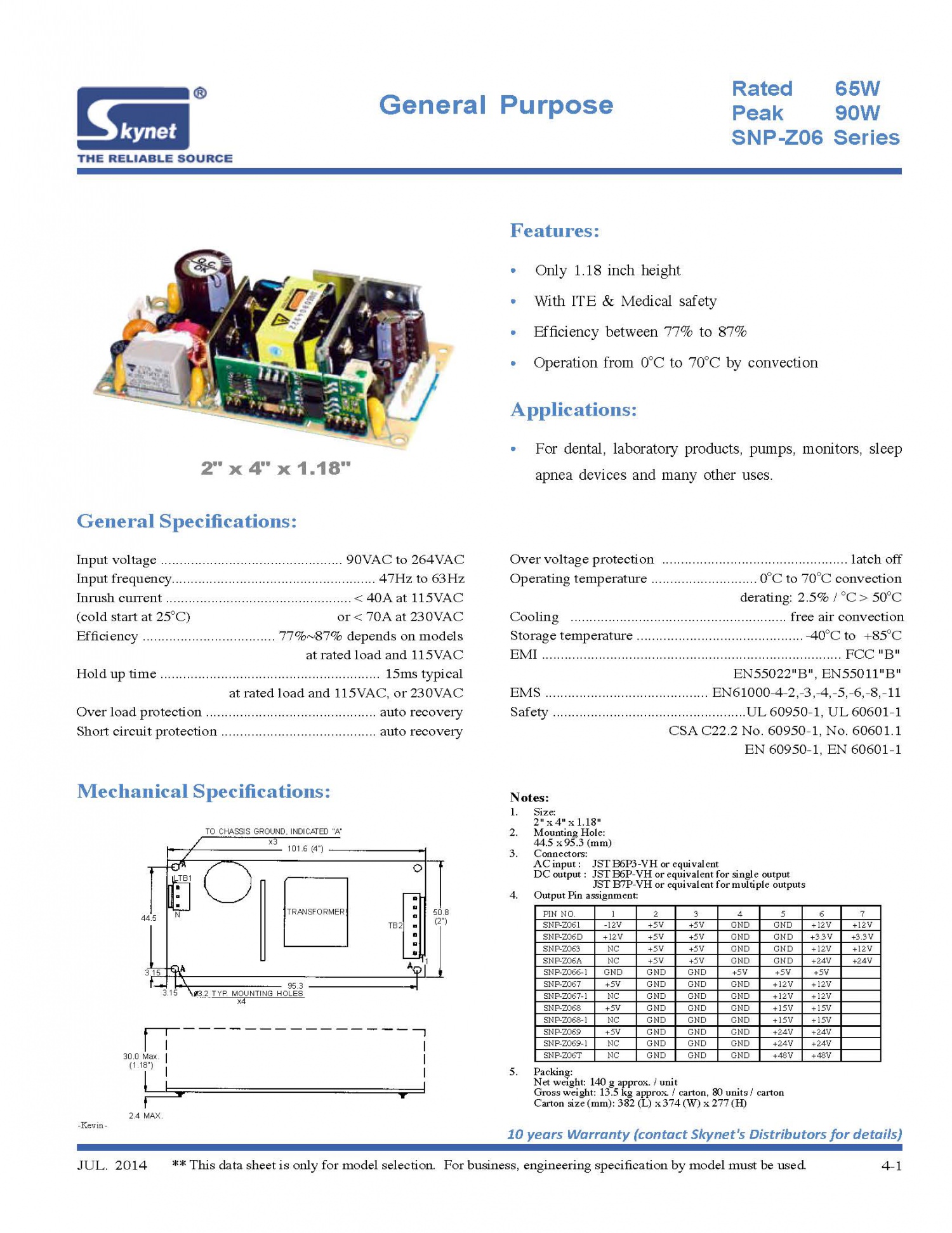

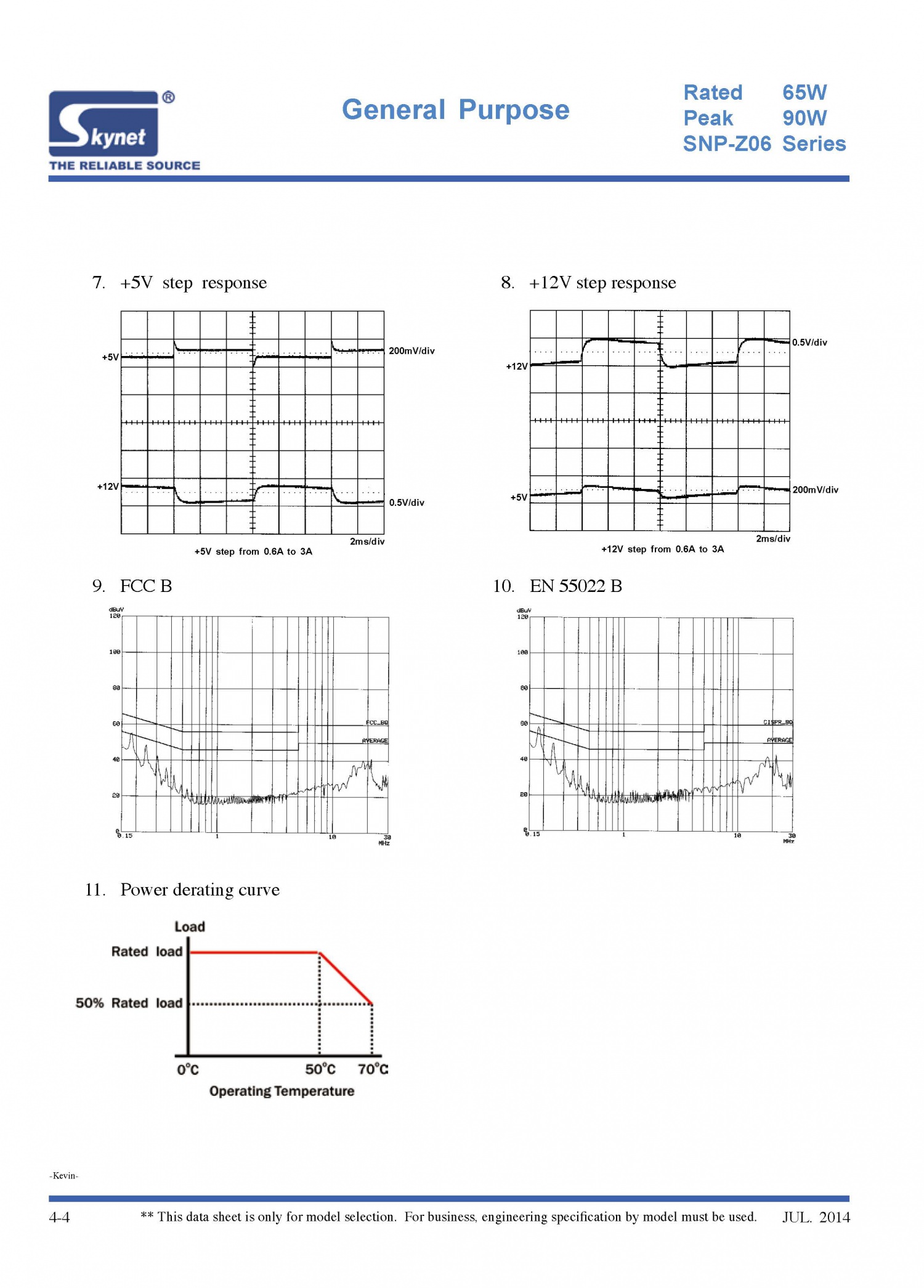

65W SNP-Z061 +5V/3A, +12V/3A, -12V/0.3A 2"x4"x1.18"
65W SNP-Z06D +3.3V/4.5A, +5V/3A, +12V/0.7A 2"x4"x1.18"
65W SNP-Z063 +5V/3A, +12V/3A 2"x4"x1.18"
65W SNP-Z06A +5V/4A, +24V/1.5A 2"x4"x1.18"
65W SNP-Z066-1 +5V/12A 2"x4"x1.18"
65W SNP-Z067 +12V/4.8A, +5V/0.5A 2"x4"x1.18"
65W SNP-Z067-1 +12V/5A 2"x4"x1.18"
65W SNP-Z068 +15V/3.8A, +5V/0.5A 2"x4"x1.18"
65W SNP-Z068-1 +15V/4.3A 2"x4"x1.18"
65W SNP-Z069 +24V/2.4A,+5V/0.5A 2"x4"x1.18"
65W SNP-Z069-1 +24V/2.7A 2"x4"x1.18"
65W SNP-Z06T +48V/1.35A 2"x4"x1.18"

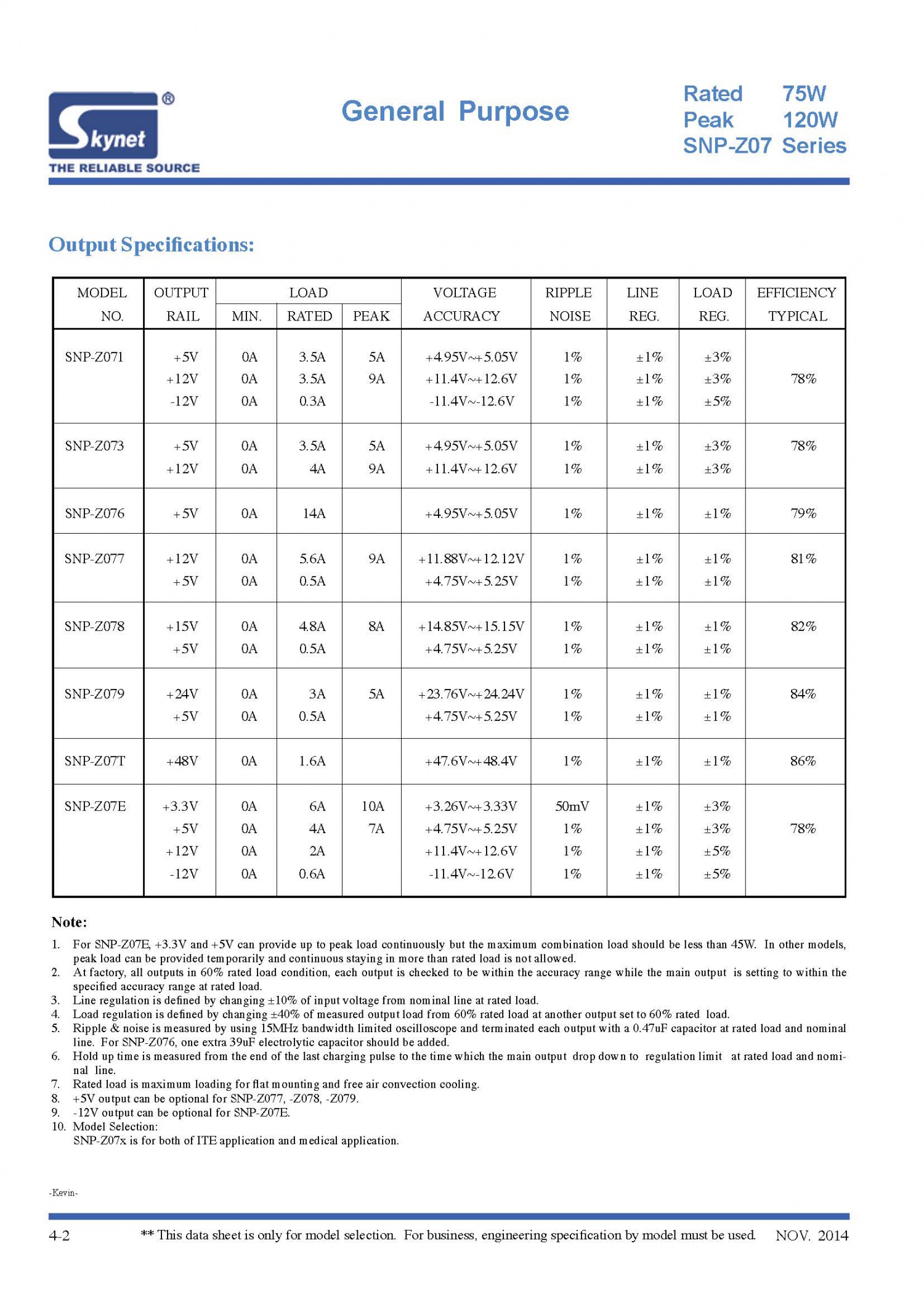

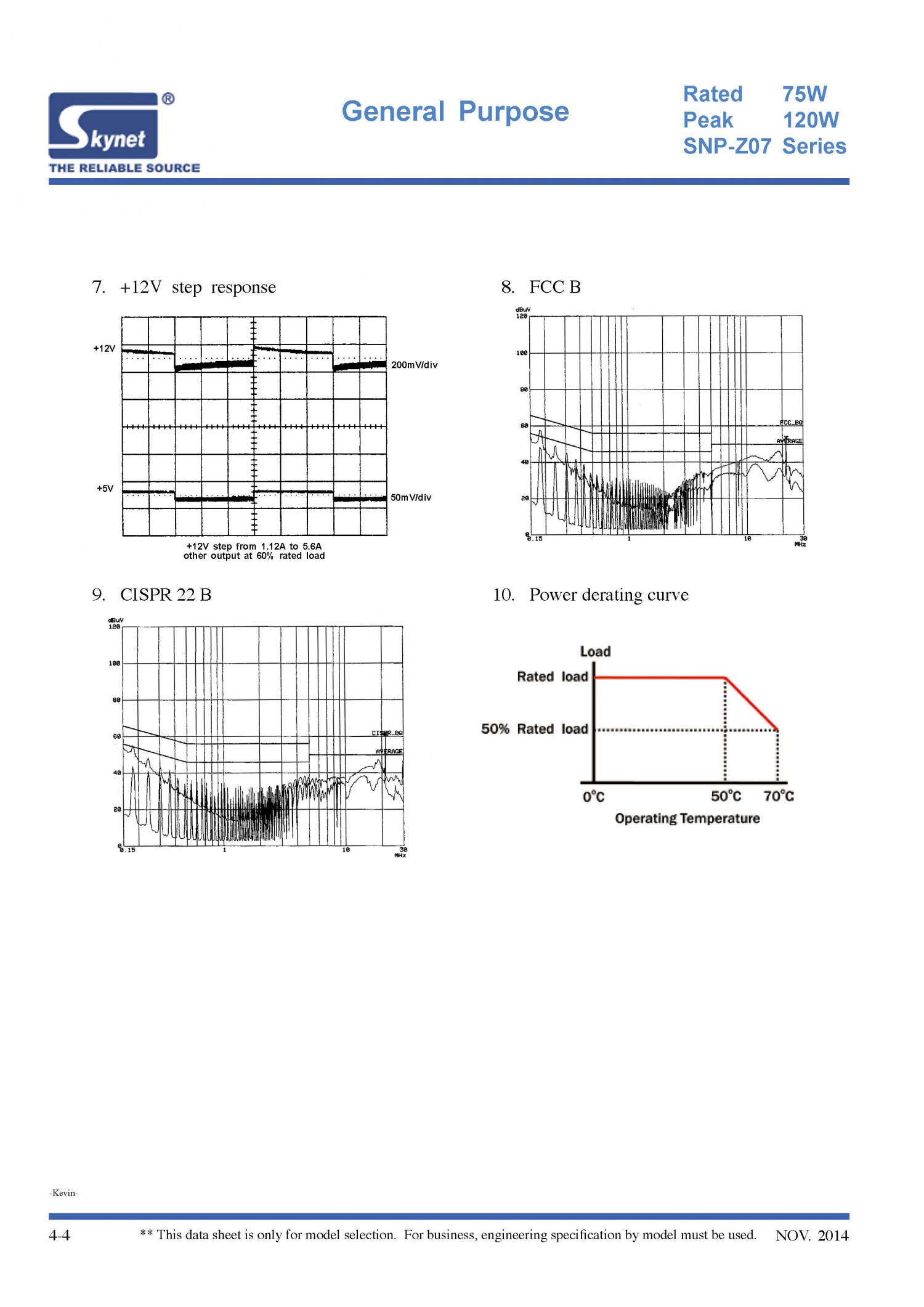

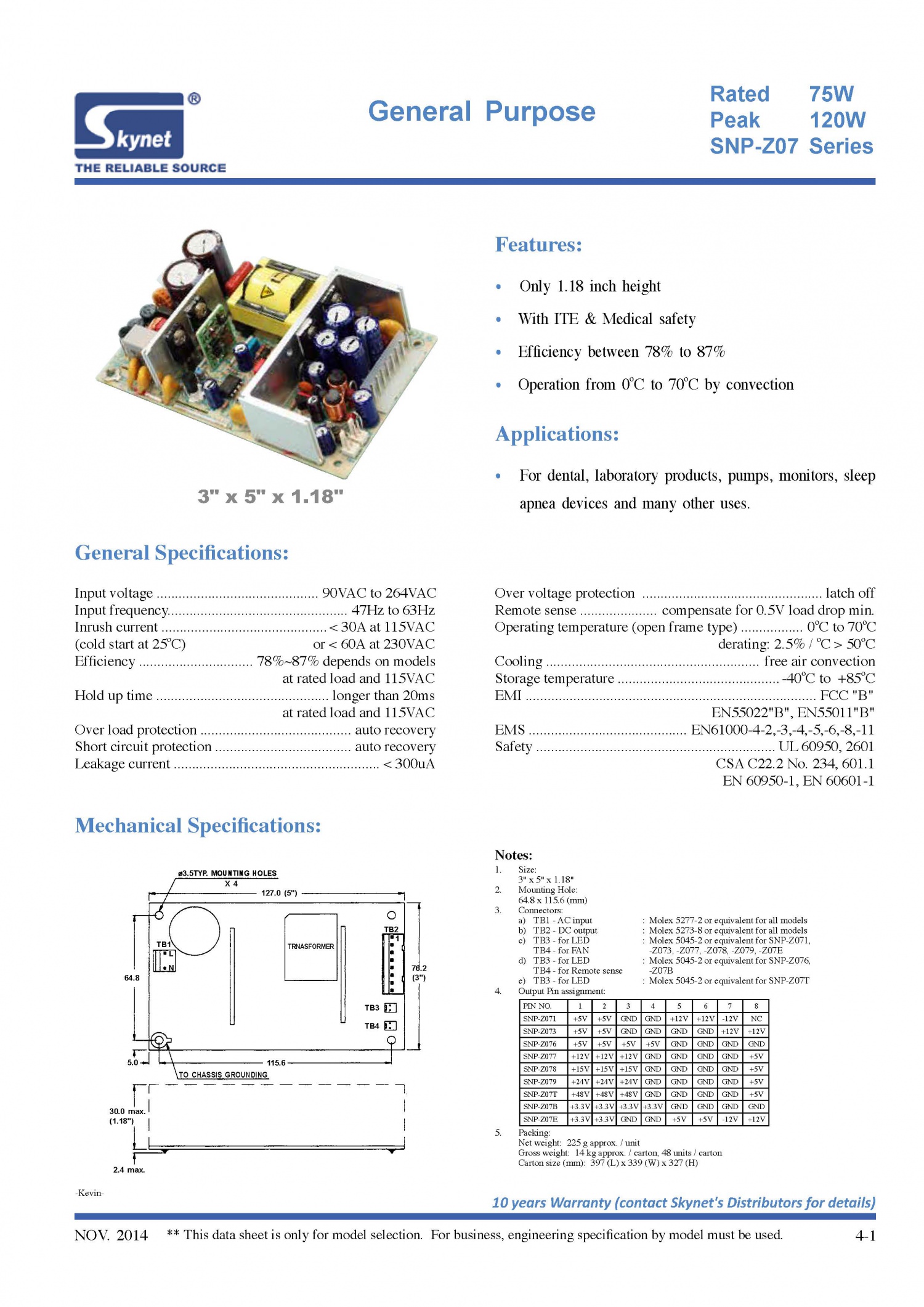

75W SNP-Z071 +5V/3.5A, +12V/3.5A, -12V/0.3A 3"x5"x1.18"
75W SNP-Z073 +5V/3.5A, +12V/4A 3"x5"x1.18"
75W SNP-Z076 +5V/14A 3"x5"x1.18"

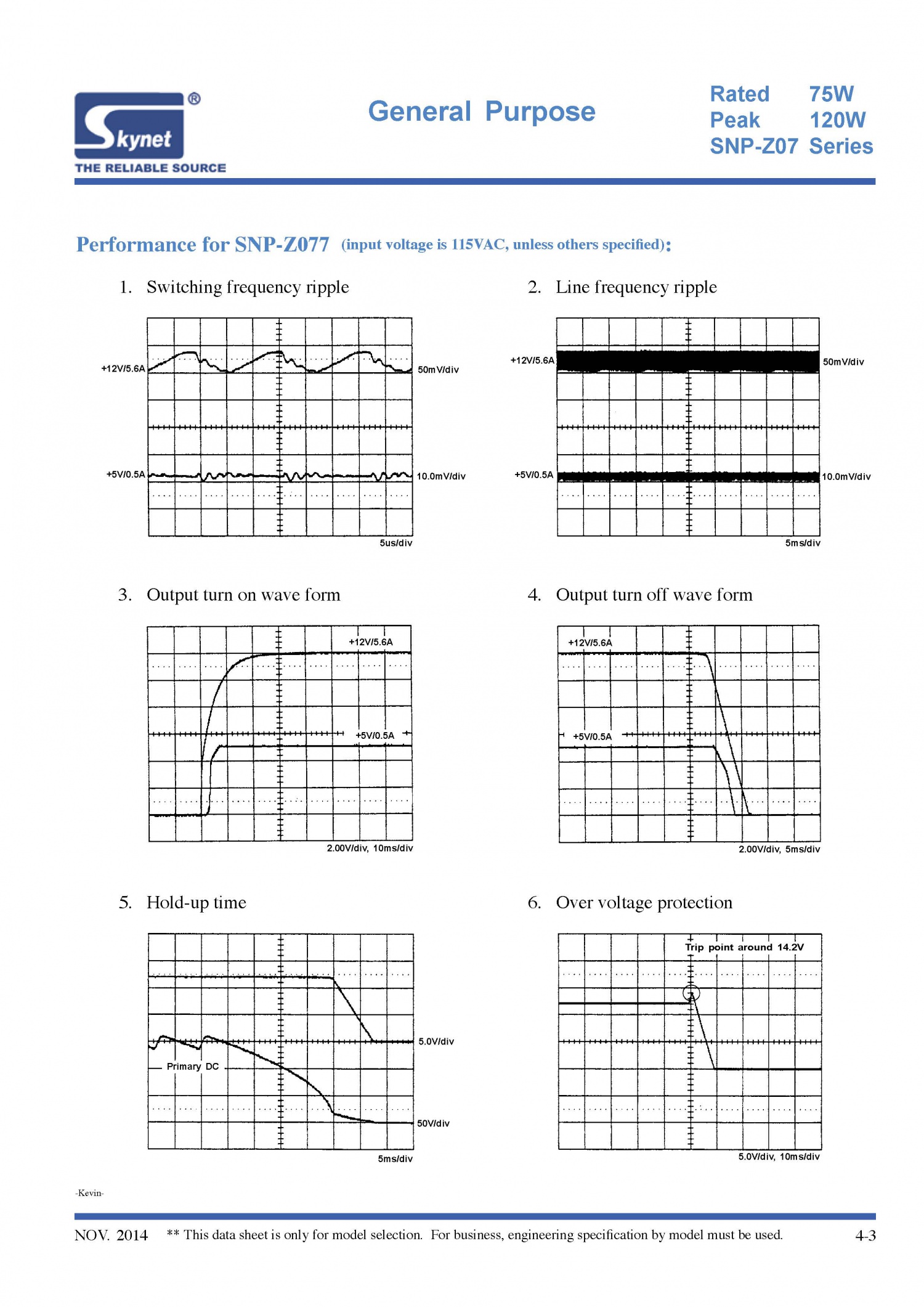

75W SNP-Z077 +12V/5.6A, +5V/0.5A 3"x5"x1.18"
75W SNP-Z078 +15V/4.8A,+5V/0.5A 3"x5"x1.18"
75W SNP-Z079 +24V/3A, +5V/0.5A 3"x5"x1.18"
75W SNP-Z07T +48V/1.6A 3"x5"x1.18"
75W SNP-Z07E +3.3V/6A, +5V/4A, +12V/2A, -12V/0.6A 3"x5"x1.18"

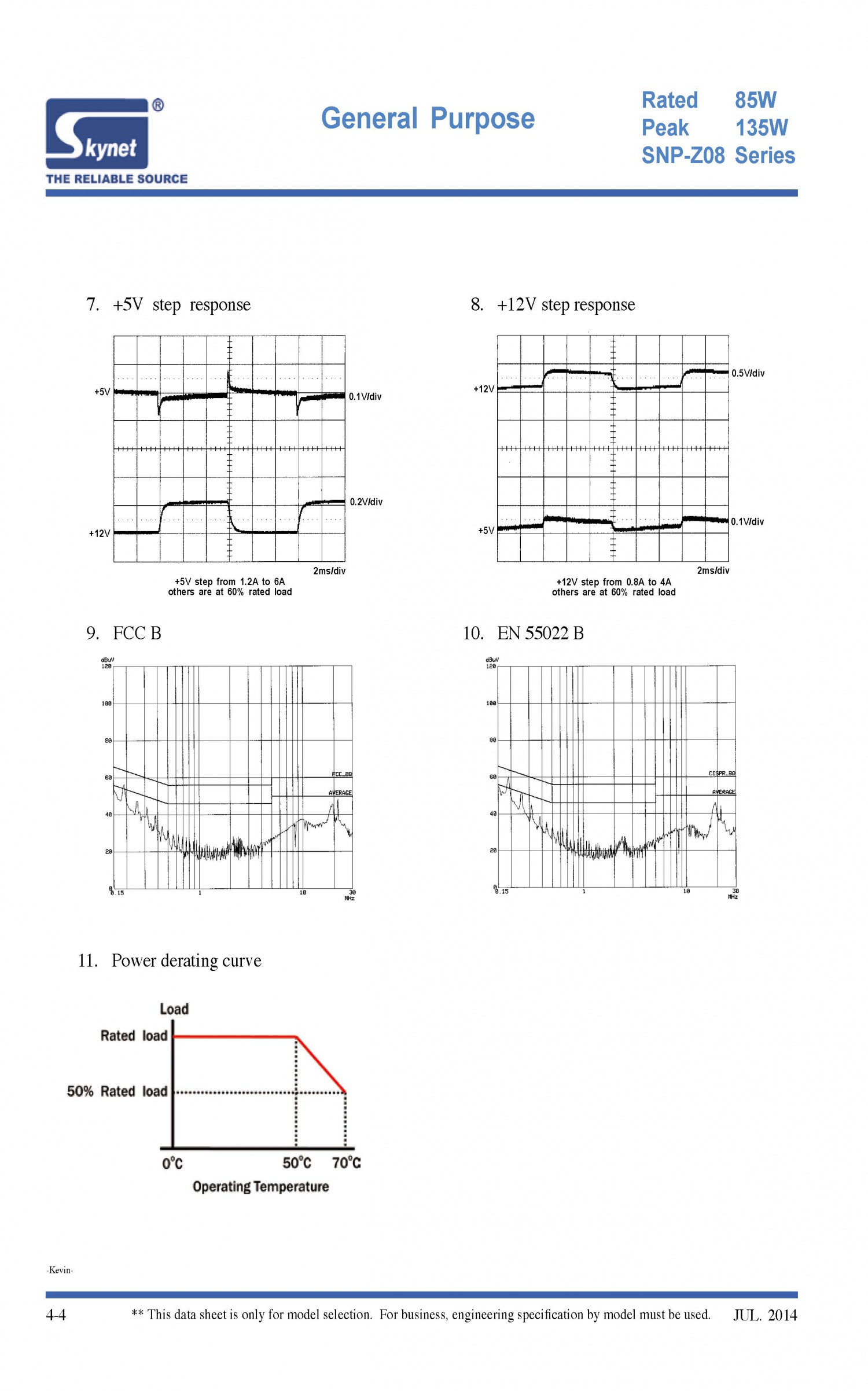

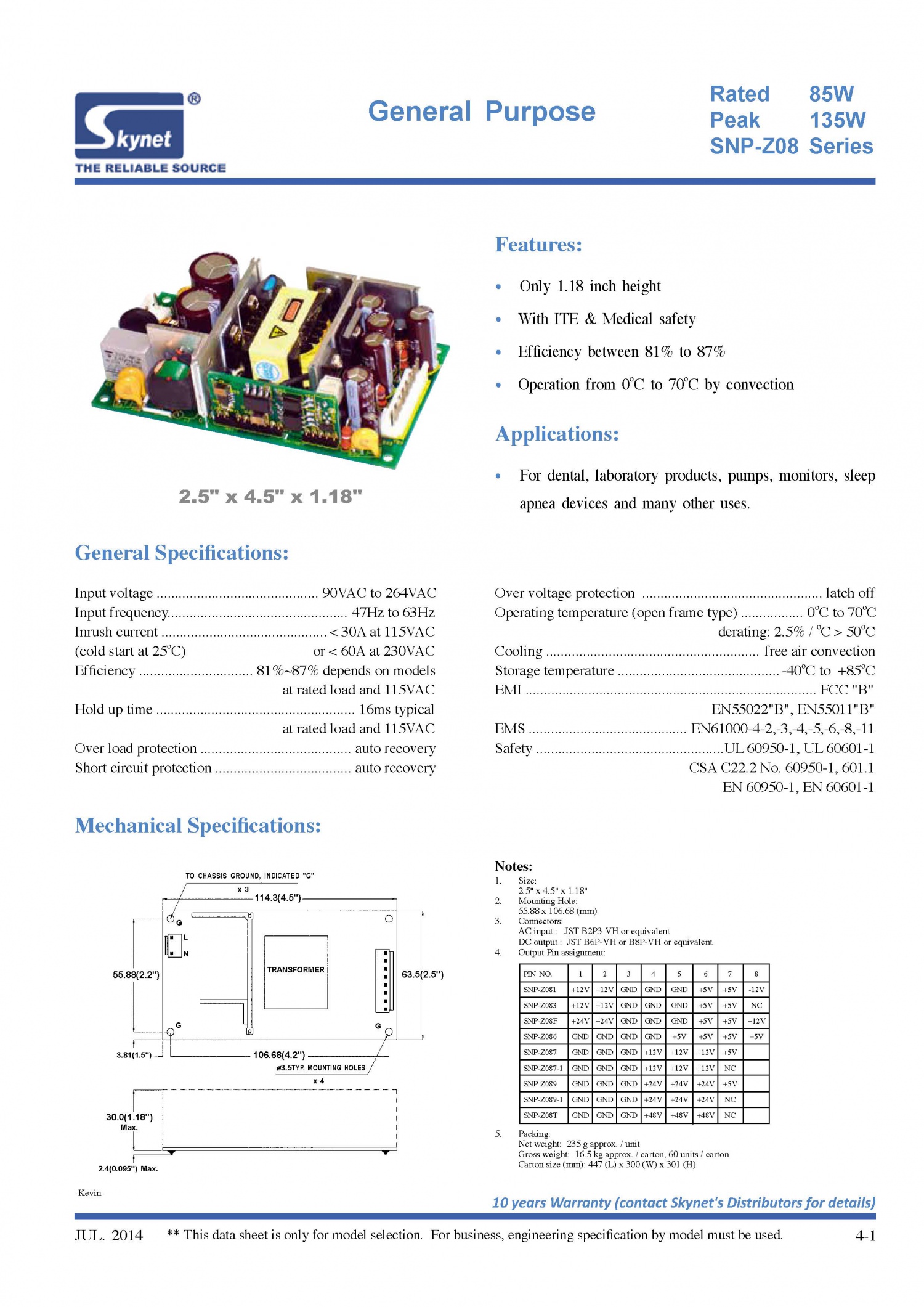

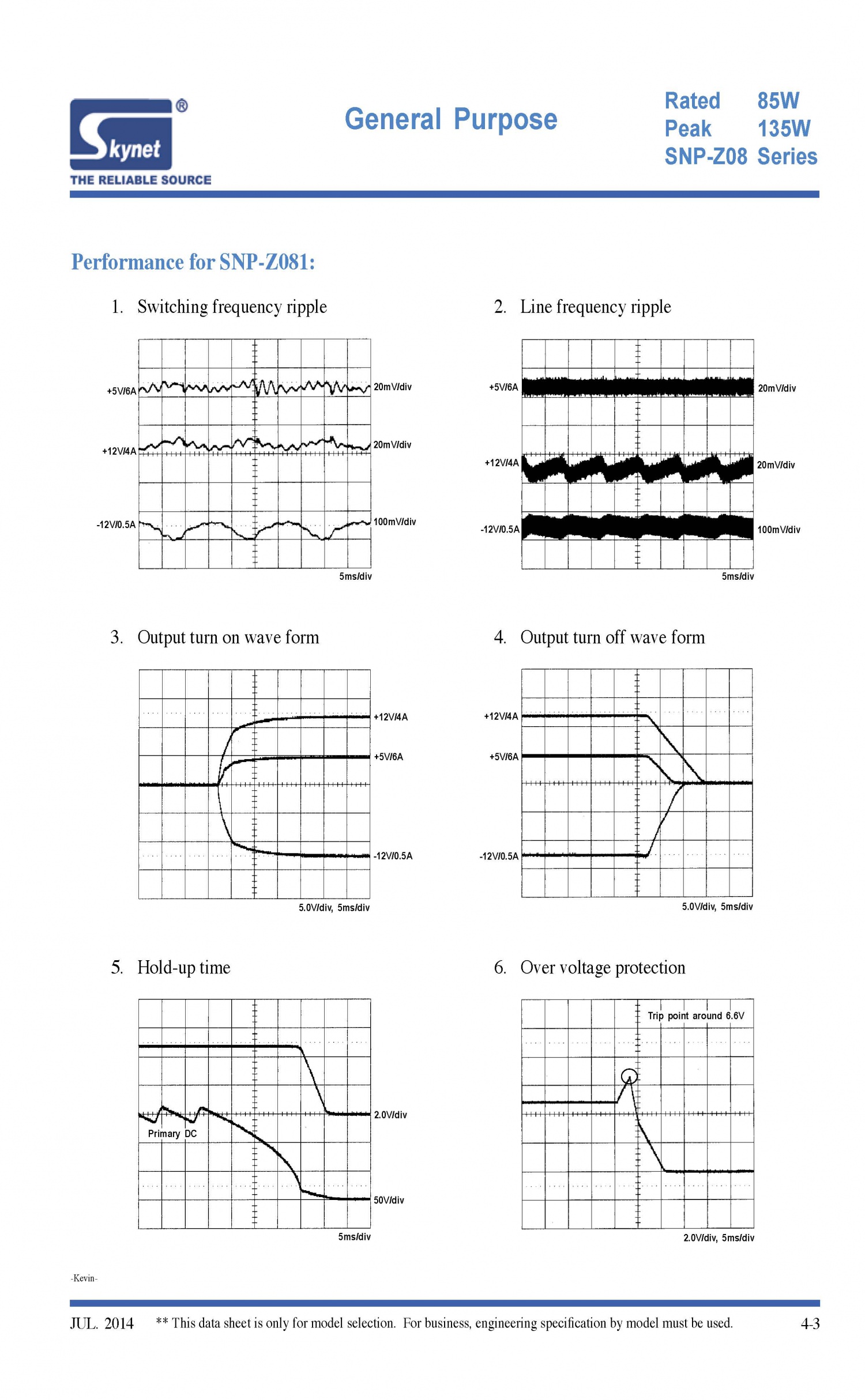

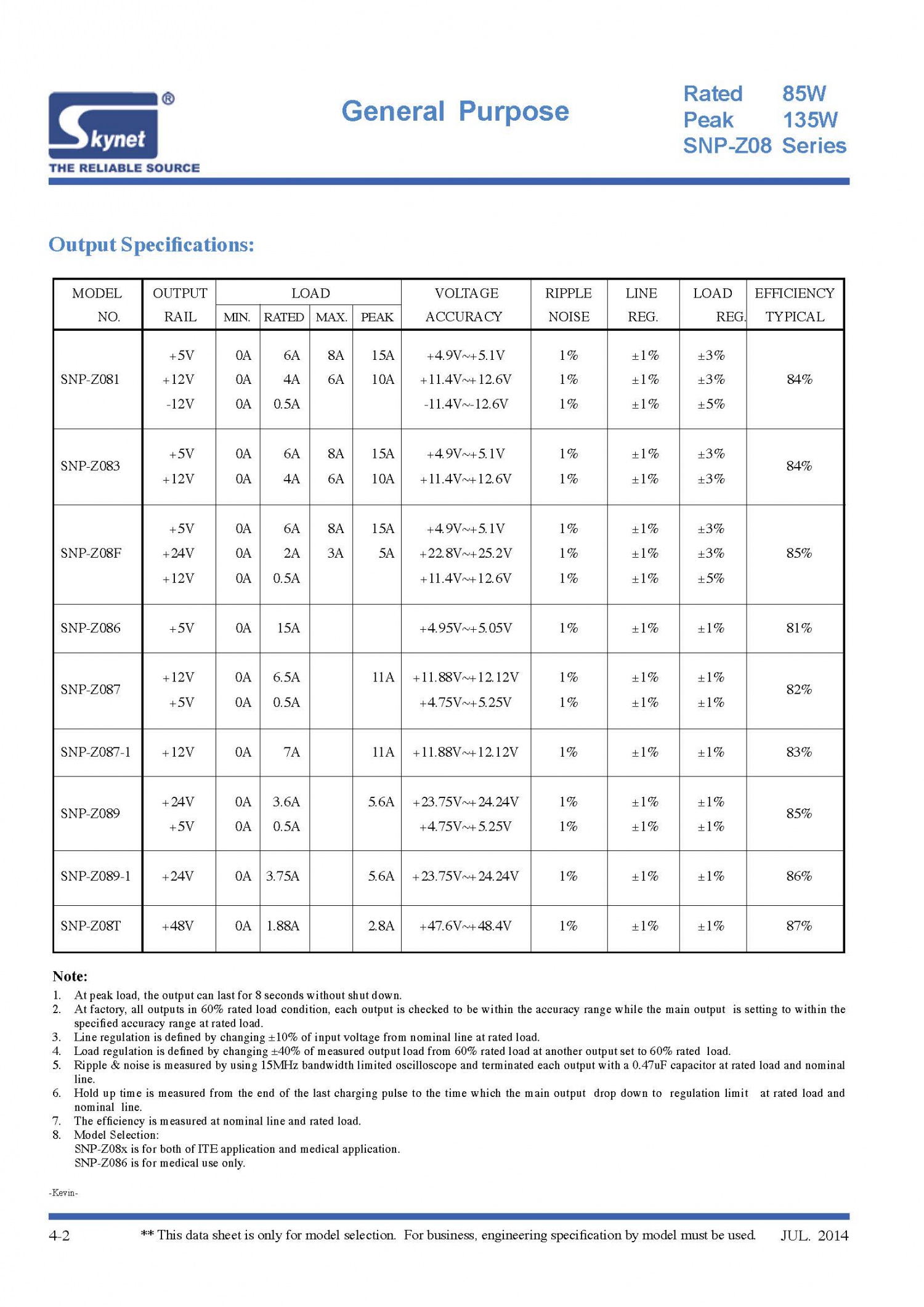

85W SNP-Z081 +5V/6A, +12V/4A, -12V/0.5A 2.5"x4.5"x1.18"
85W SNP-Z083 +5V/6A, +12V/4A 2.5"x4.5"x1.18"
85W SNP-Z08F +5V/6A, +24V/2A, +12V/0.5A 2.5"x4.5"x1.18"
85W SNP-Z086 +5V/15A 2.5"x4.5"x1.18"
85W SNP-Z087 +12V/6.5A, +5V/0.5A 2.5"x4.5"x1.18"
85W SNP-Z087-1 +12V/7A 2.5"x4.5"x1.18"
85W SNP-Z089 +24V/3.6A,+5V/0.5A 2.5"x4.5"x1.18"
85W SNP-Z089-1 +24V/3.75A 2.5"x4.5"x1.18"
85W SNP-Z08T +48V/1.88A 2.5"x4.5"x1.18"

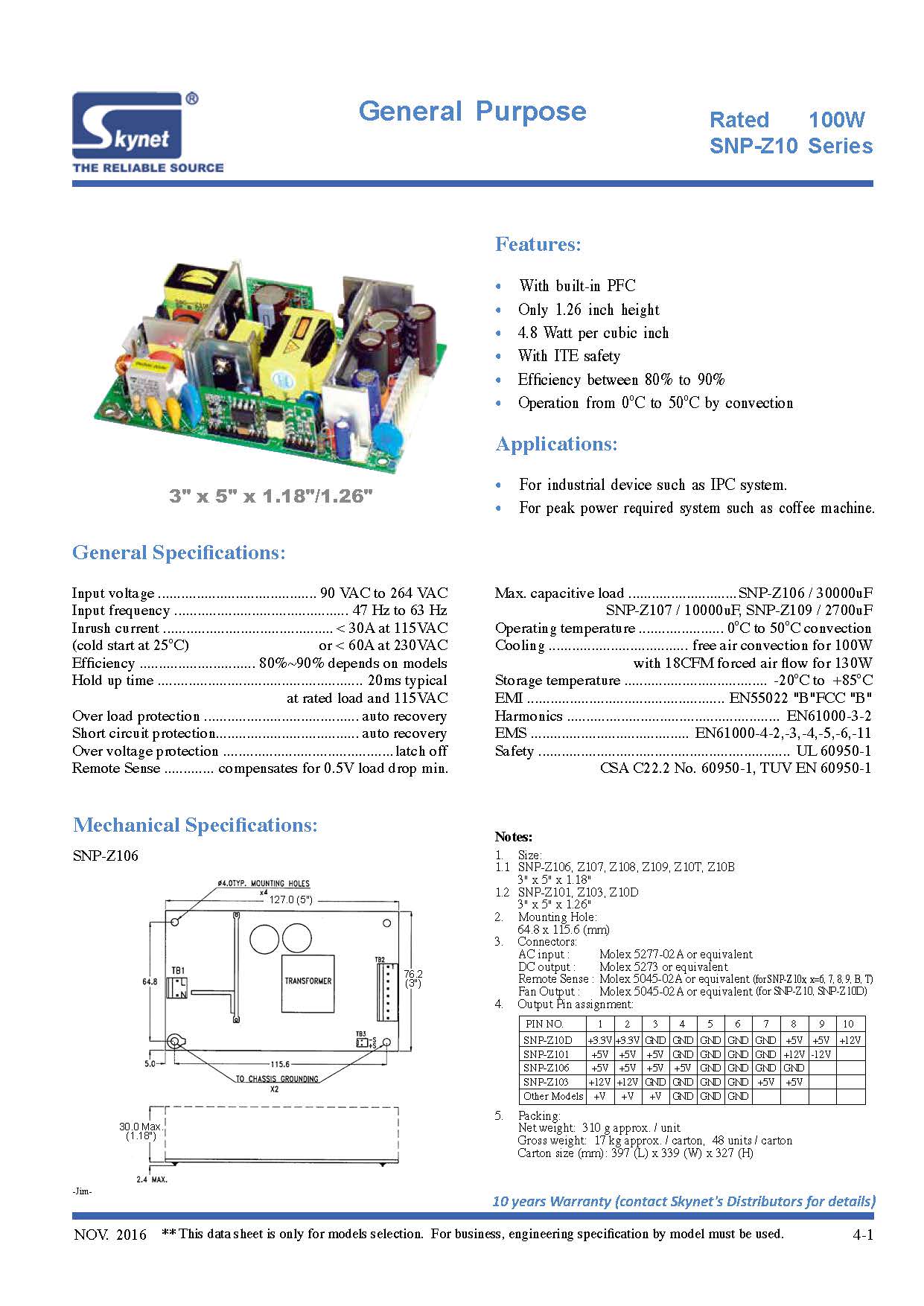

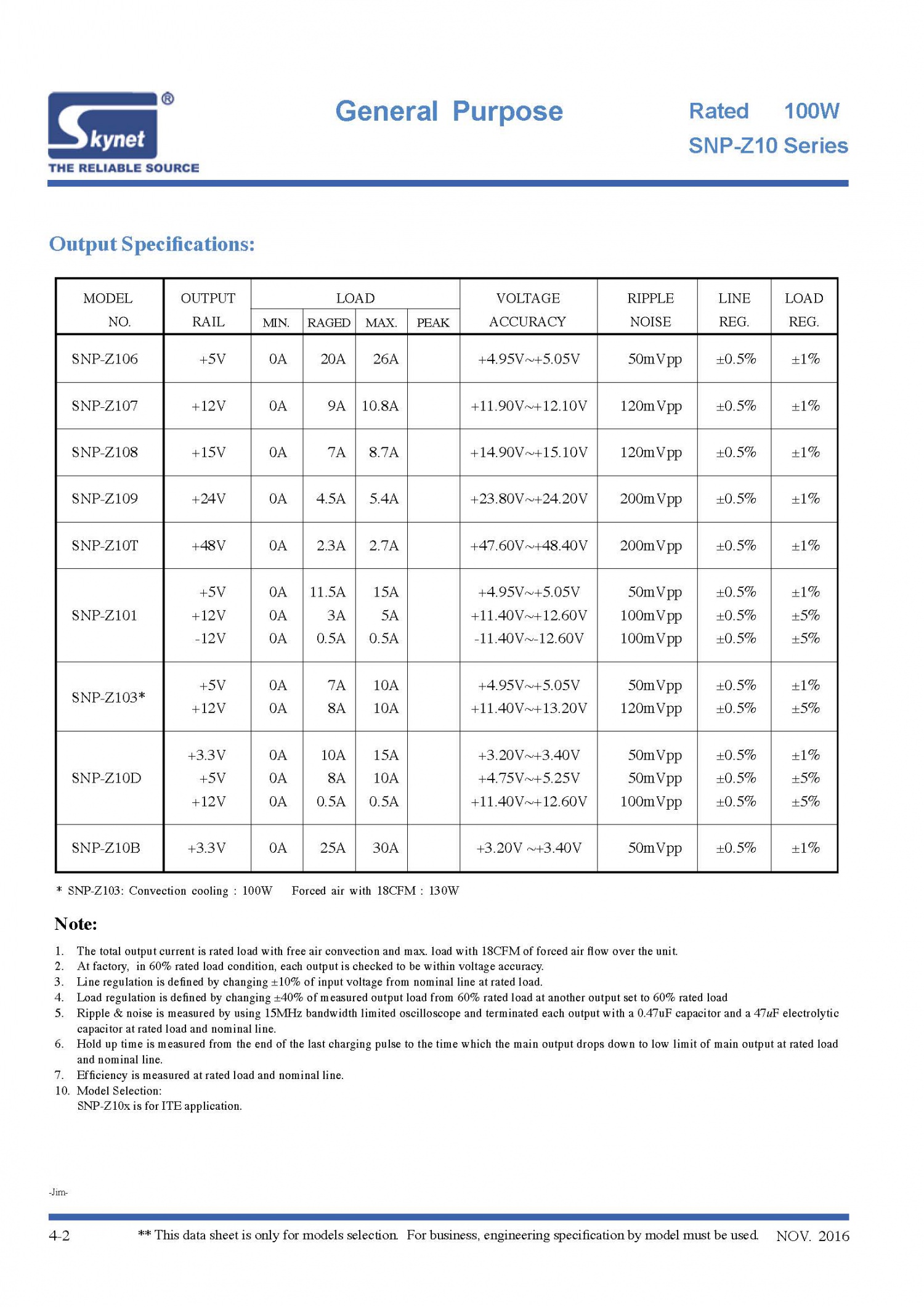

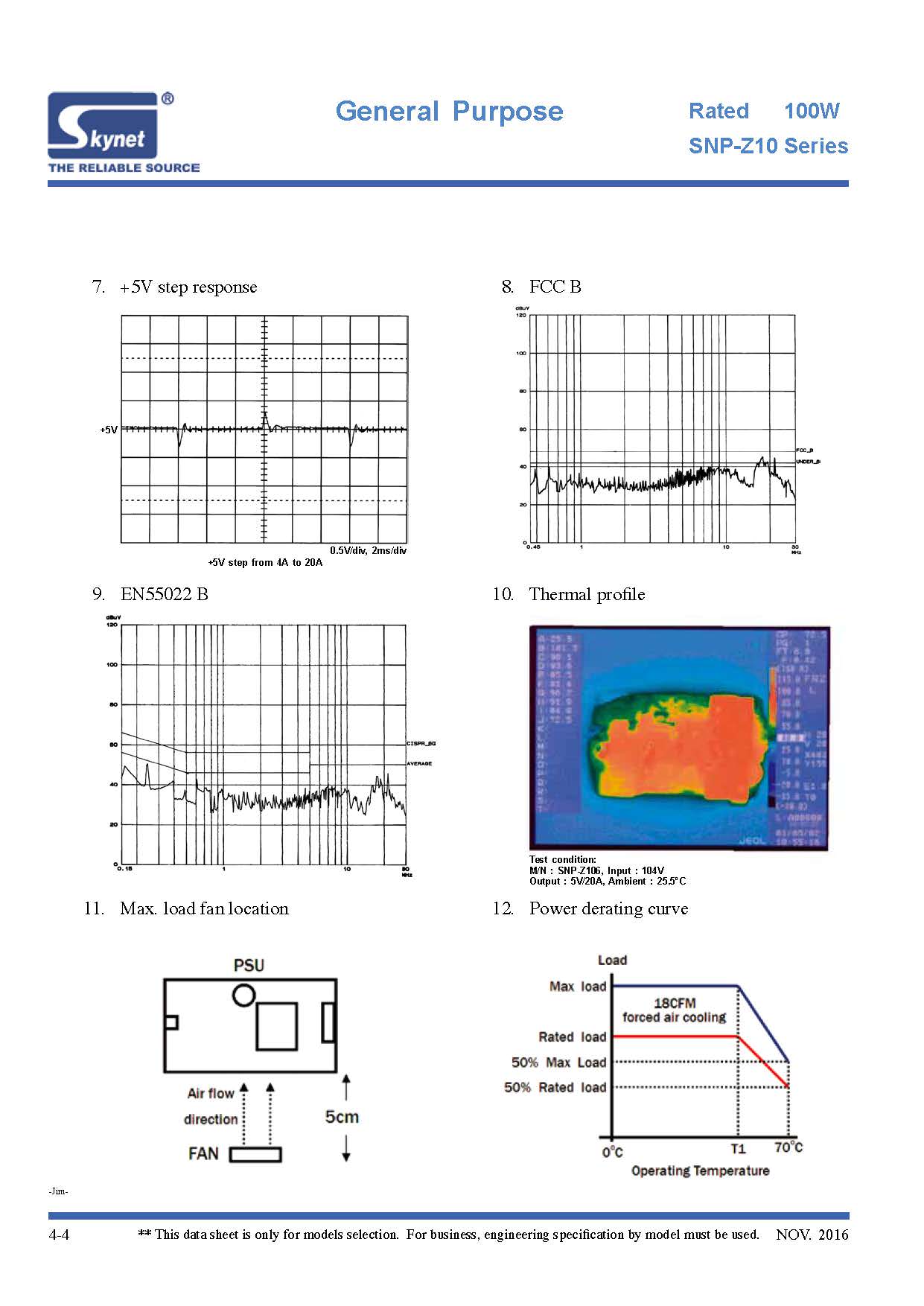

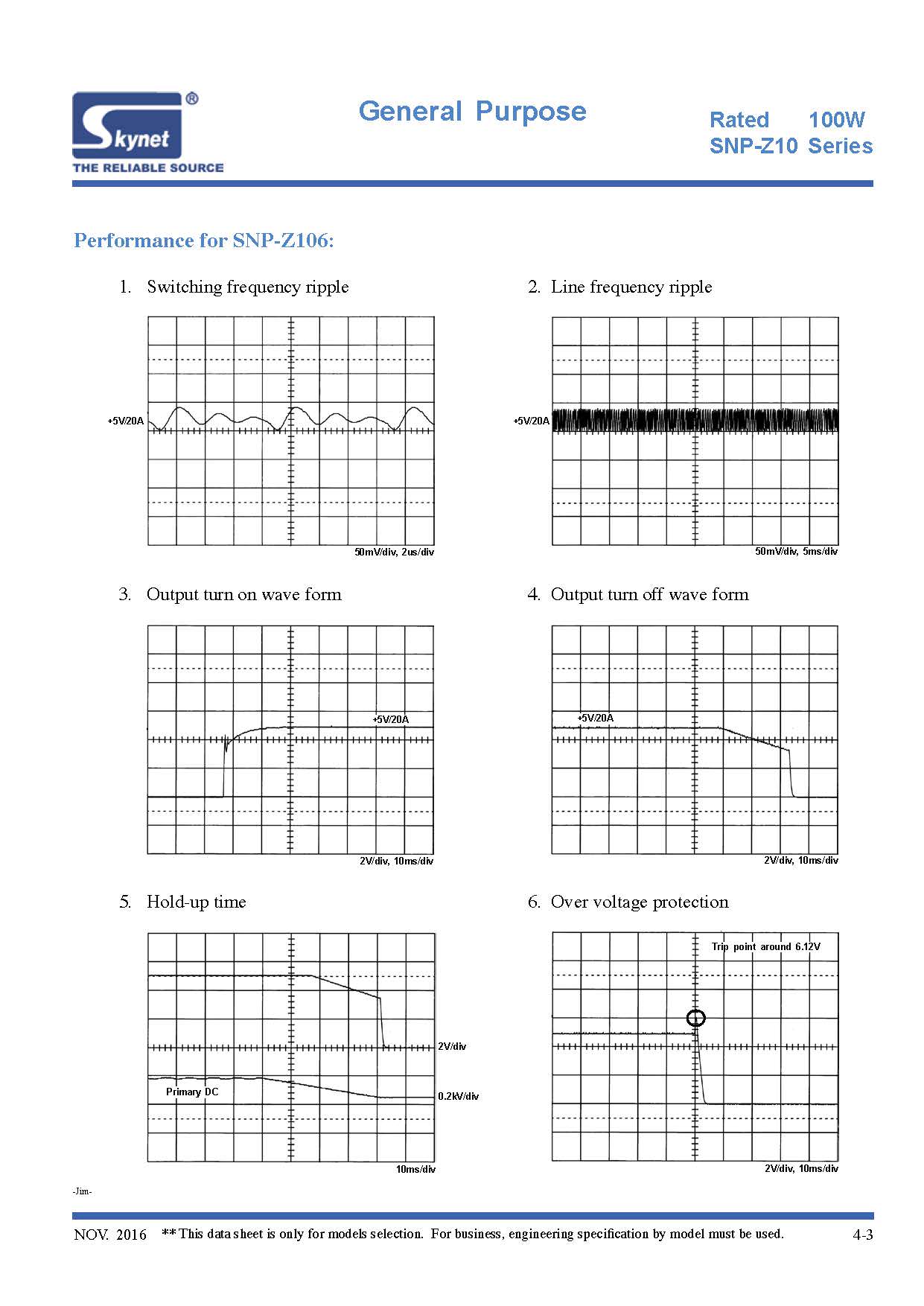

100W SNP-Z106 +5V/20A 3"x5"x1.18"
100W SNP-Z107 +12V/9A 3"x5"x1.18"
100W SNP-Z108 +15V/7A 3"x5"x1.18"
100W SNP-Z109 +24V/4.5A 3"x5"x1.18"
100W SNP-Z10T +48V/2.3A 3"x5"x1.18"
100W SNP-Z101 +5V/11.5A, +12V/3A, -12V/0.5A 3"x5"x1.26"
100W SNP-Z103 +5V/7A, +12V/8A 3"x5"x1.26"
100W SNP-Z10D +3.3V/10A, +5V/8A, +12V/0.5A 3"x5"x1.26"
100W SNP-Z10B +3.3V/25A 3"x5"x1.18"

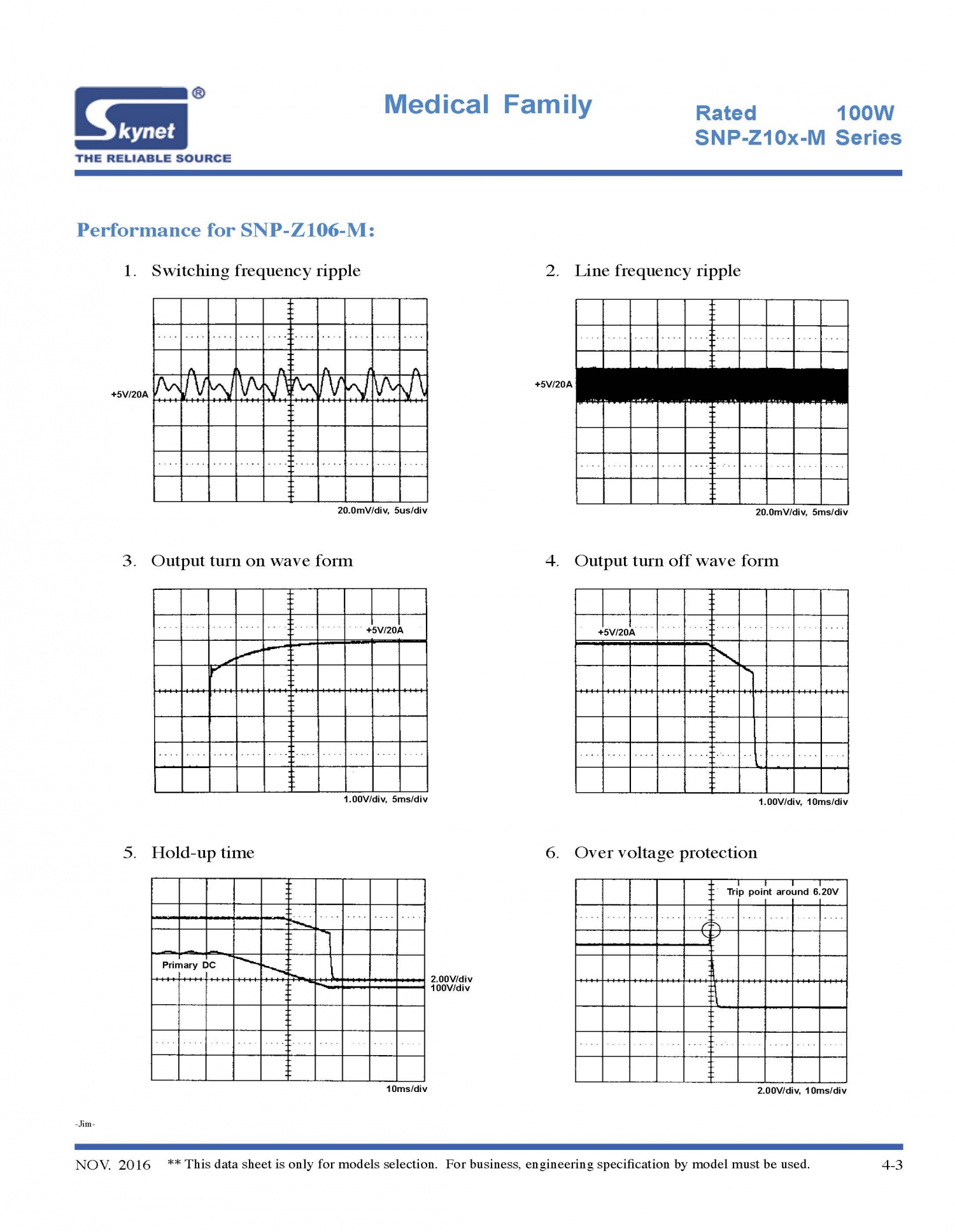

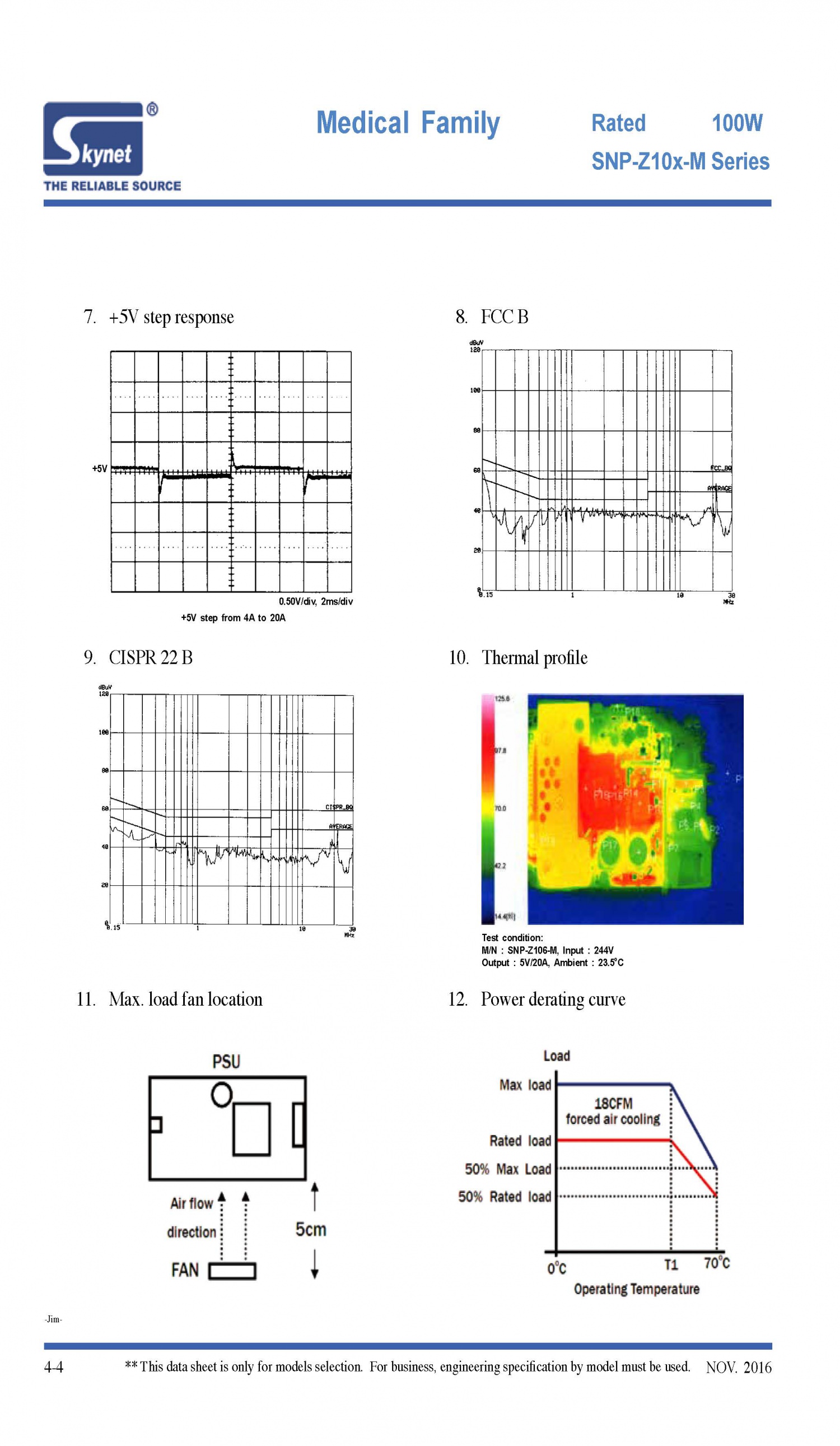

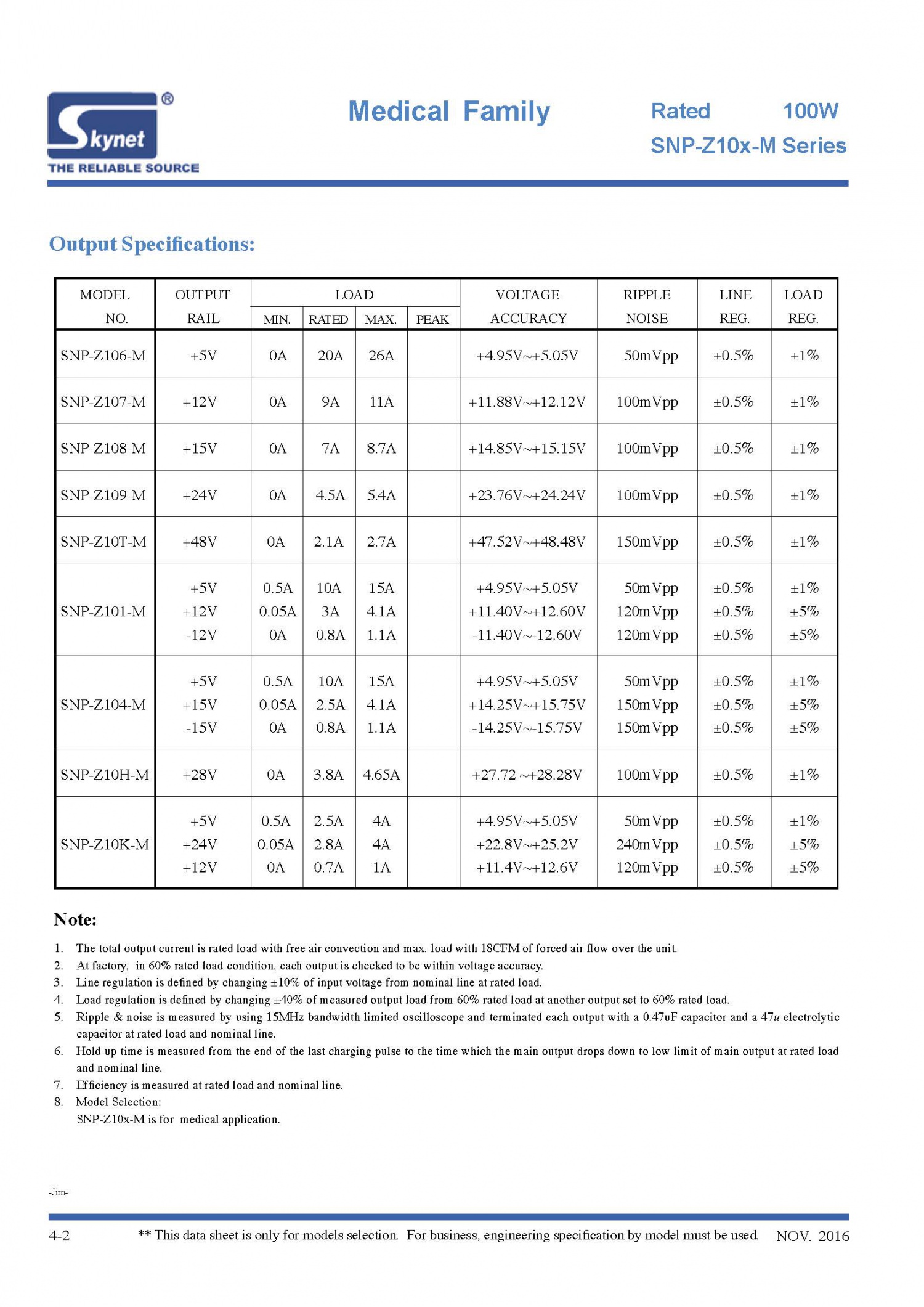

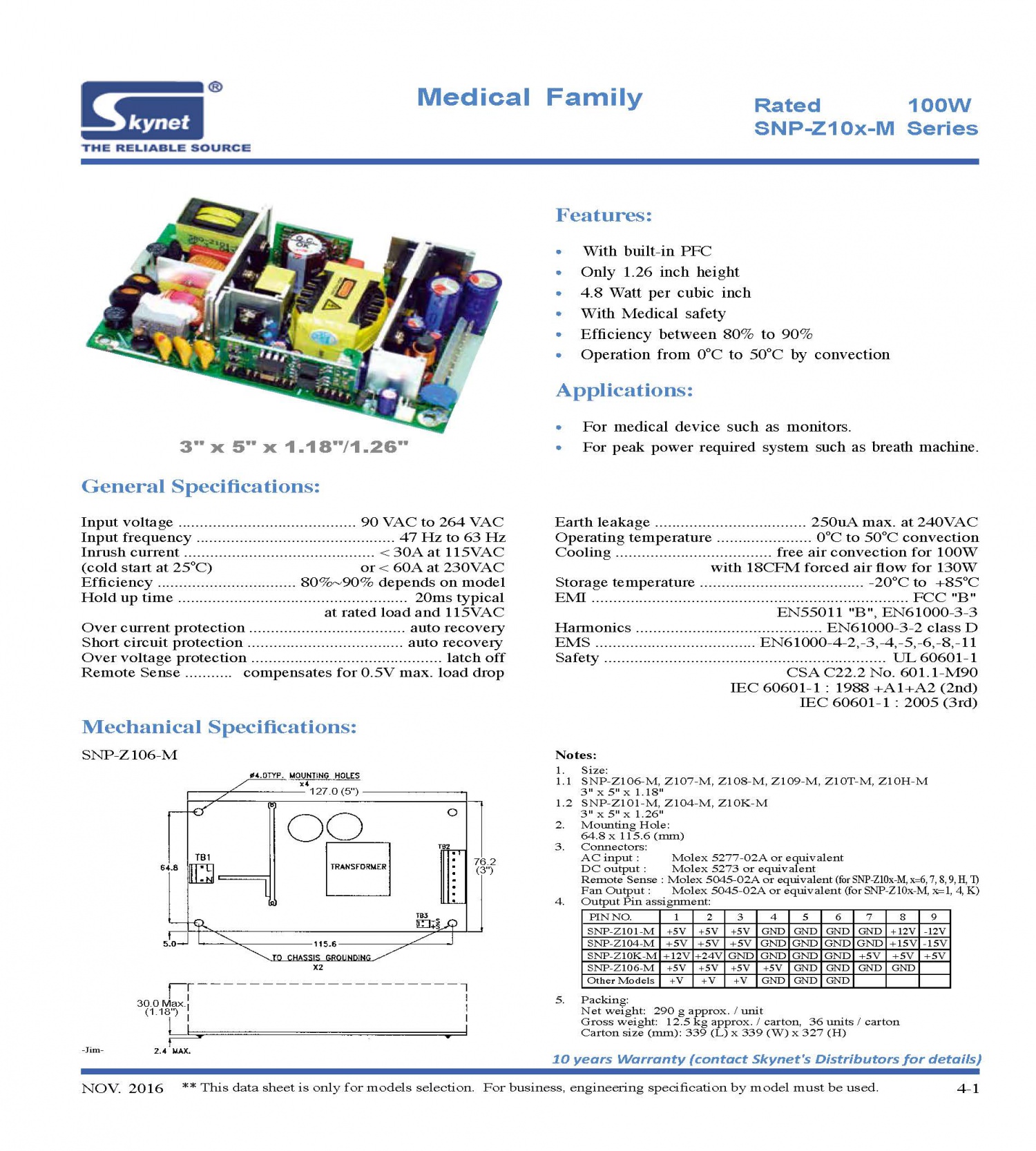

100W SNP-Z106-M +5V/20A 3"x5"x1.18"
100W SNP-Z107-M +12V/9A 3"x5"x1.18"
100W SNP-Z108-M +15V/7A 3"x5"x1.18"
100W SNP-Z109-M +24V/4.5A 3"x5"x1.18"
100W SNP-Z10T-M +48V/2.1A 3"x5"x1.18"
100W SNP-Z101-M +5V/10A, +12V/3A, -12V/0.8A 3"x5"x1.26"
100W SNP-Z104-M +5V/10A, +15V/2.5A, -15V/0.8A 3"x5"x1.26"
100W SNP-Z10H-M +28V/3.8A 3"x5"x1.18"
100W SNP-Z10K-M +5V/2.5A, +24V/2.8A, +12V/0.7A 3"x5"x1.26"

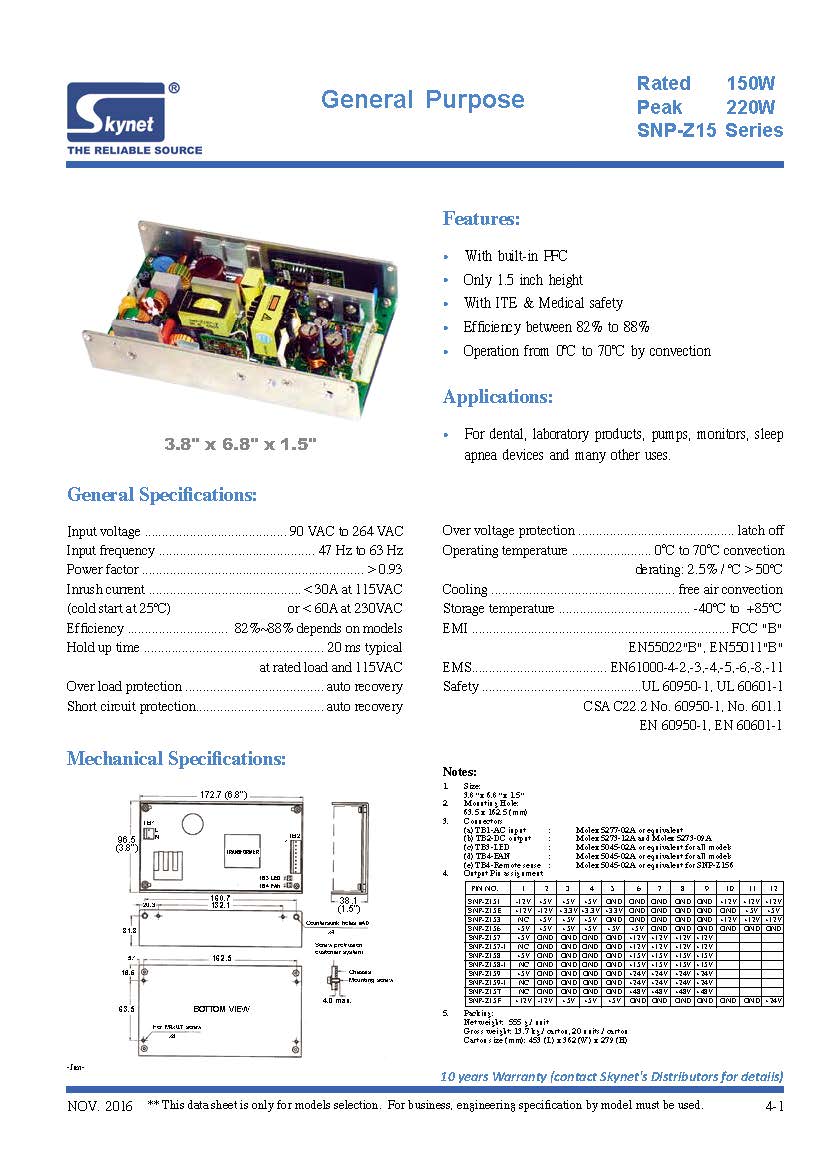

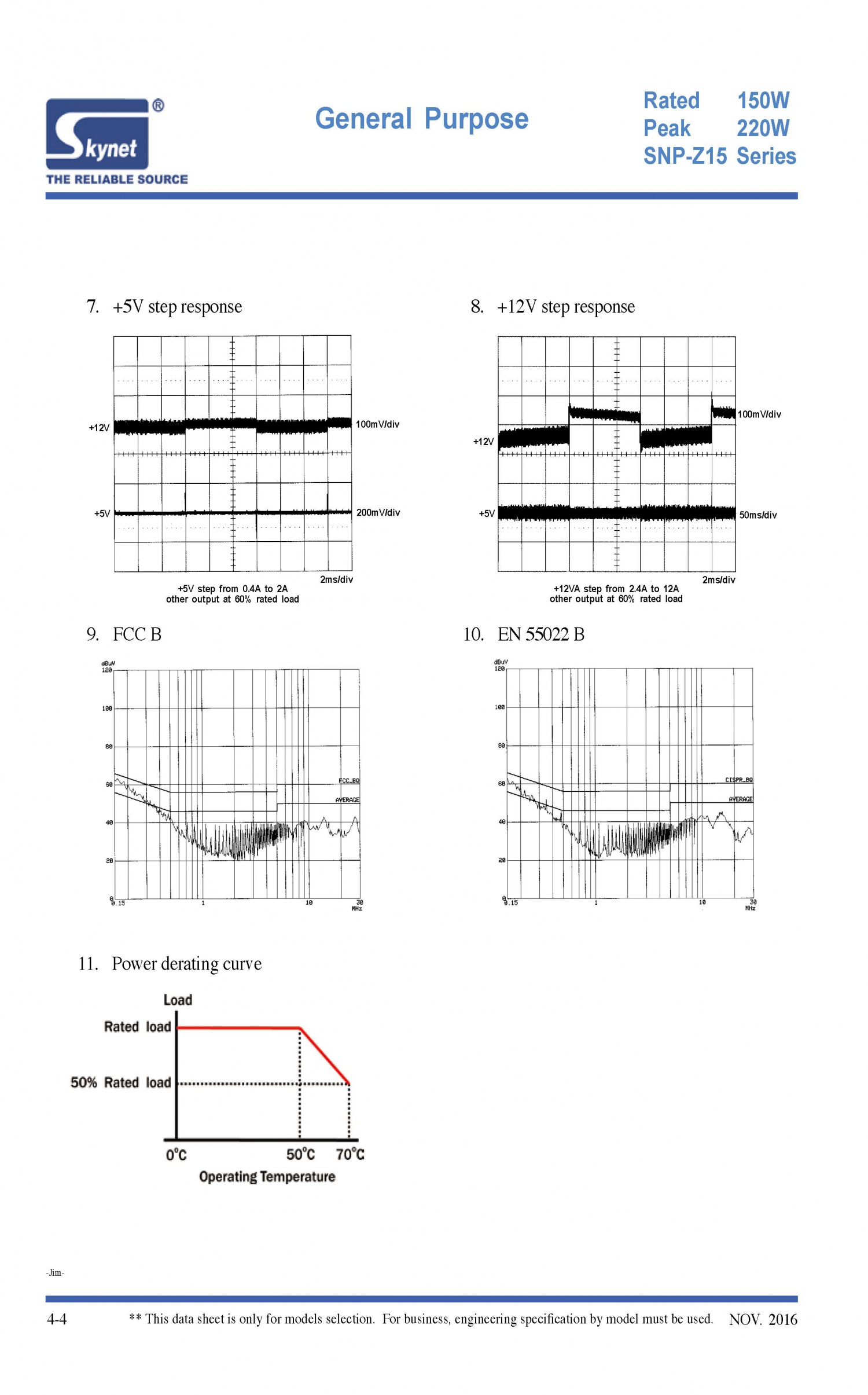

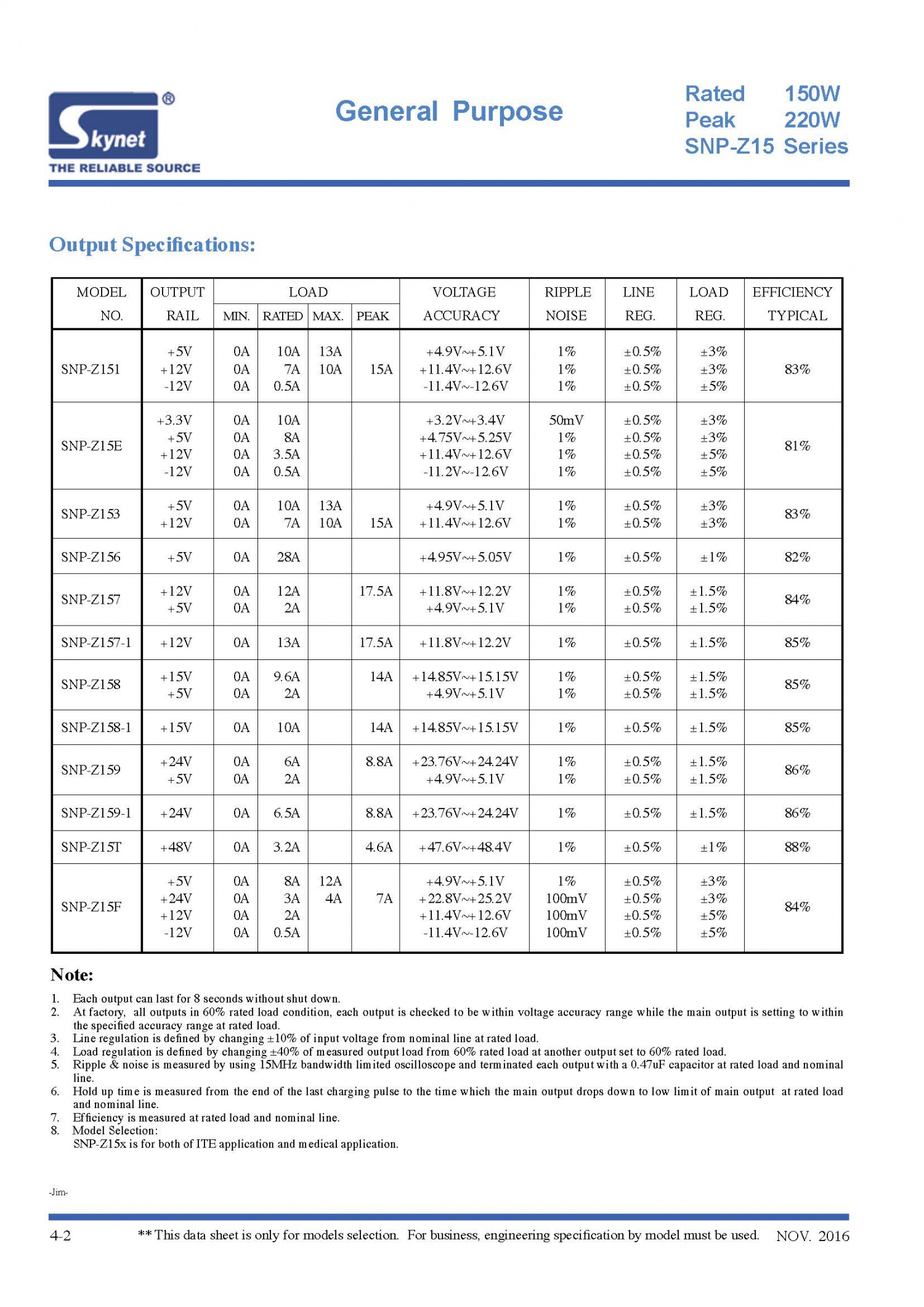

150W SNP-Z151 +5V/10A, +12V/7A, -12V/0.5A 3.8"x6.8"x1.5"
150W SNP-Z15E +3.3V/10A, +5V/8A, +12V/3.5A, -12V/0.5A 3.8"x6.8"x1.5"
150W SNP-Z153 +5V/10A, +12V/7A 3.8"x6.8"x1.5"
150W SNP-Z156 +5V/28A 3.8"x6.8"x1.5"

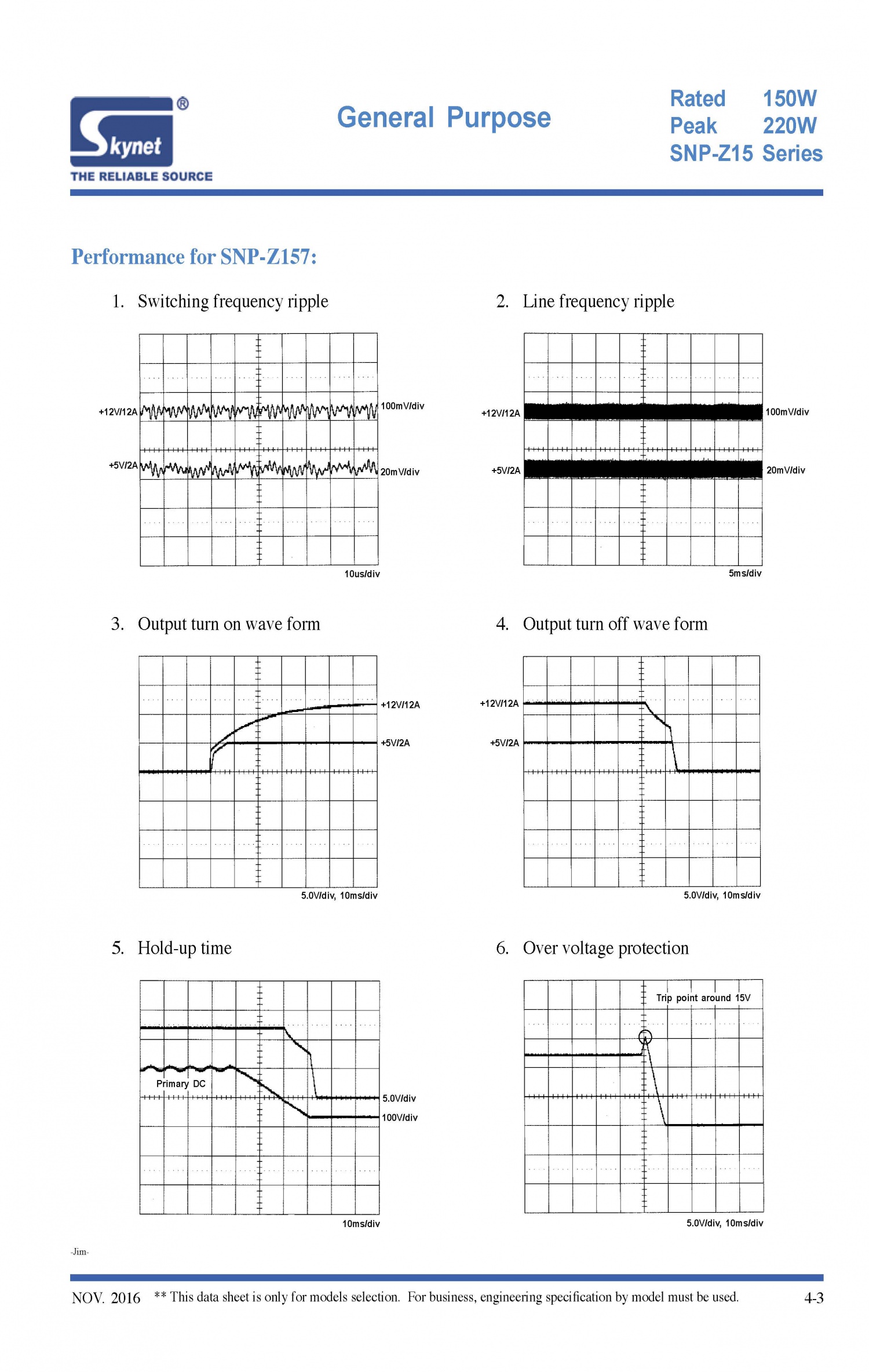

150W SNP-Z157 +12V/12A, +5V/2A 3.8"x6.8"x1.5"
150W SNP-Z157-1 +12V/13A 3.8"x6.8"x1.5"
150W SNP-Z158 +15V/9.6A, +5V/2A 3.8"x6.8"x1.5"
150W SNP-Z158-1 +15V/10A 3.8"x6.8"x1.5"
150W SNP-Z159 +24V/6A, +5V/2A 3.8"x6.8"x1.5"
150W SNP-Z159-1 +24V/6.5A 3.8"x6.8"x1.5"
150W SNP-Z15T +48V/3.2A 3.8"x6.8"x1.5"
150W SNP-Z15F +5V/8A, +24V/3A, +12V/2A, -12V/0.5A 3.8"x6.8"x1.5"

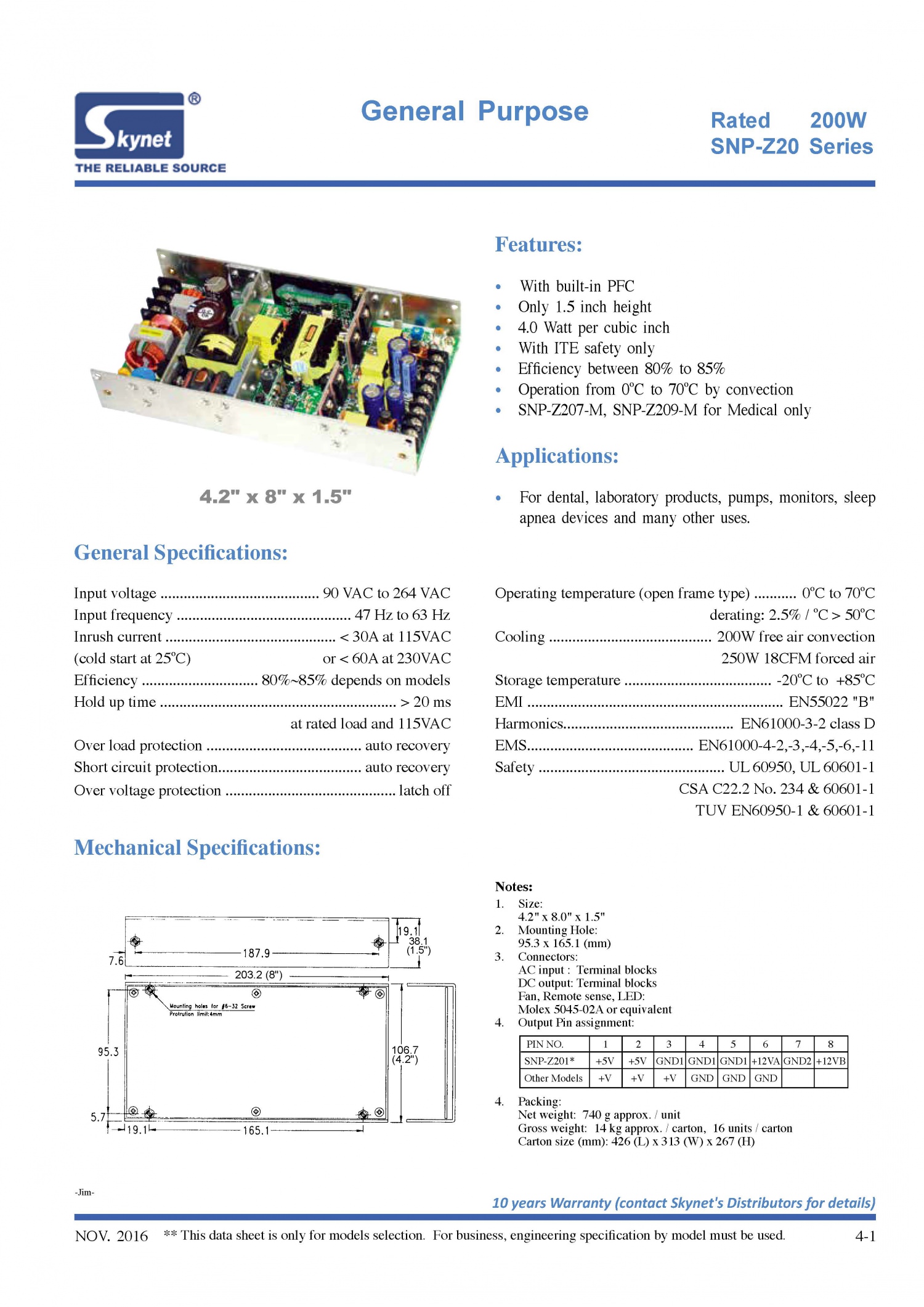

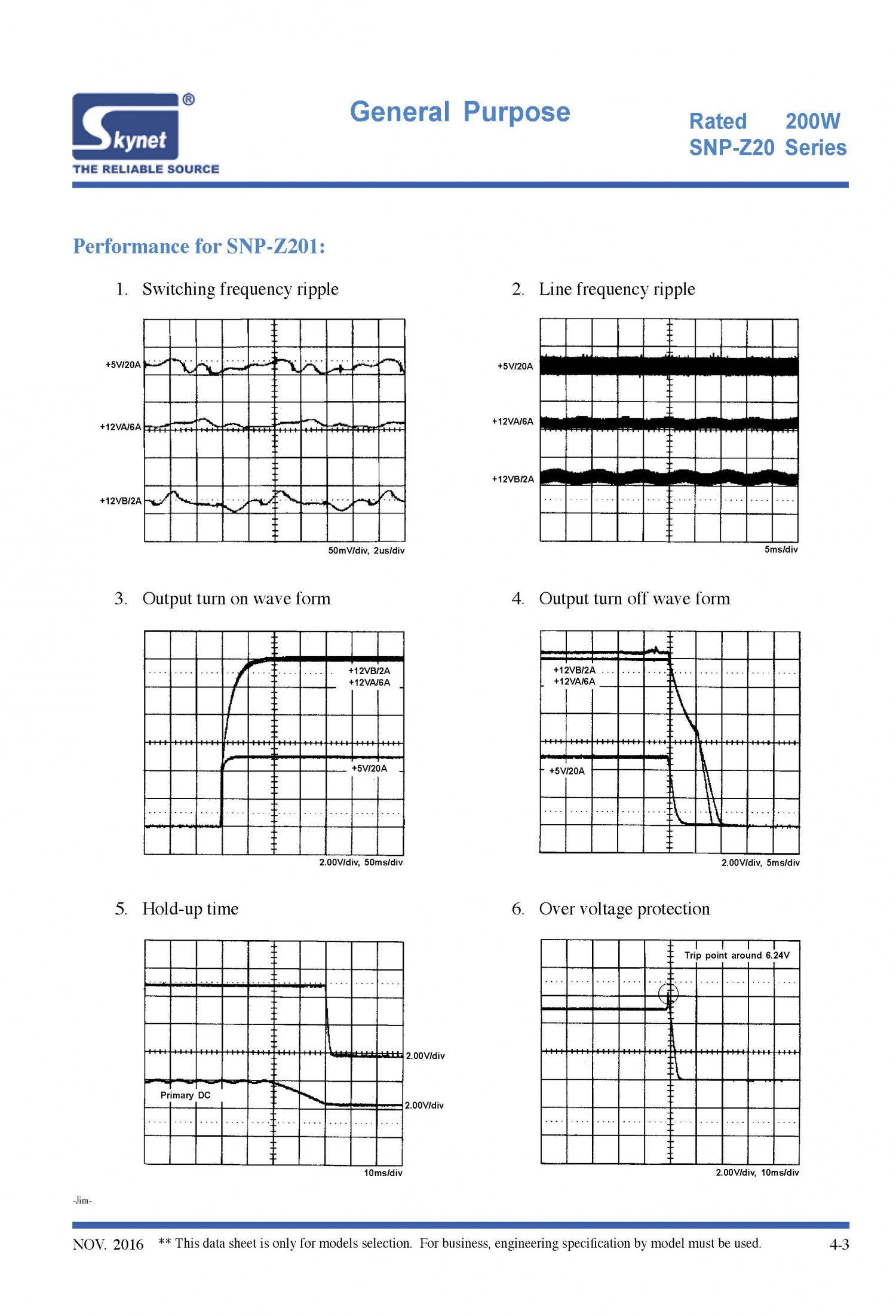

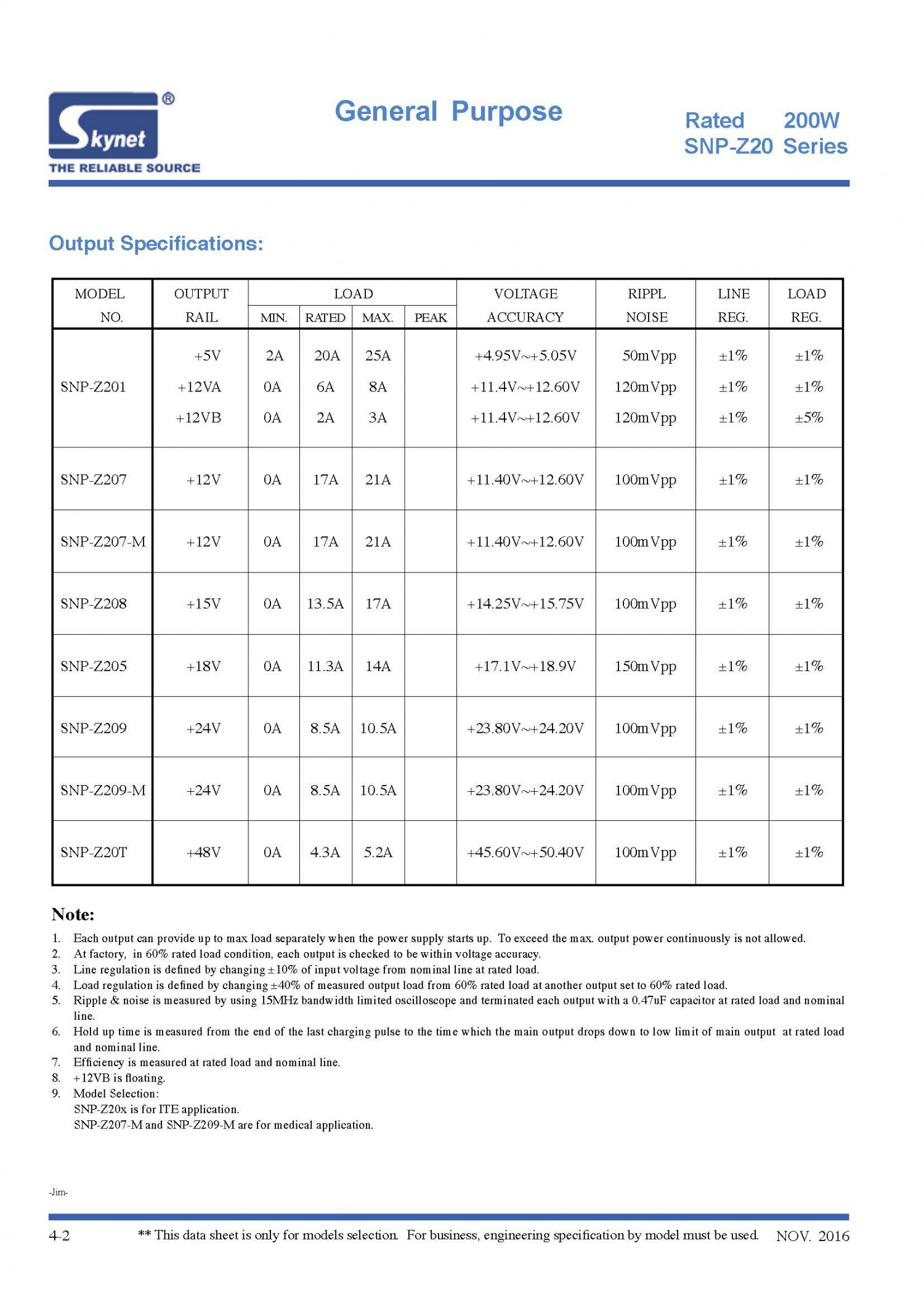

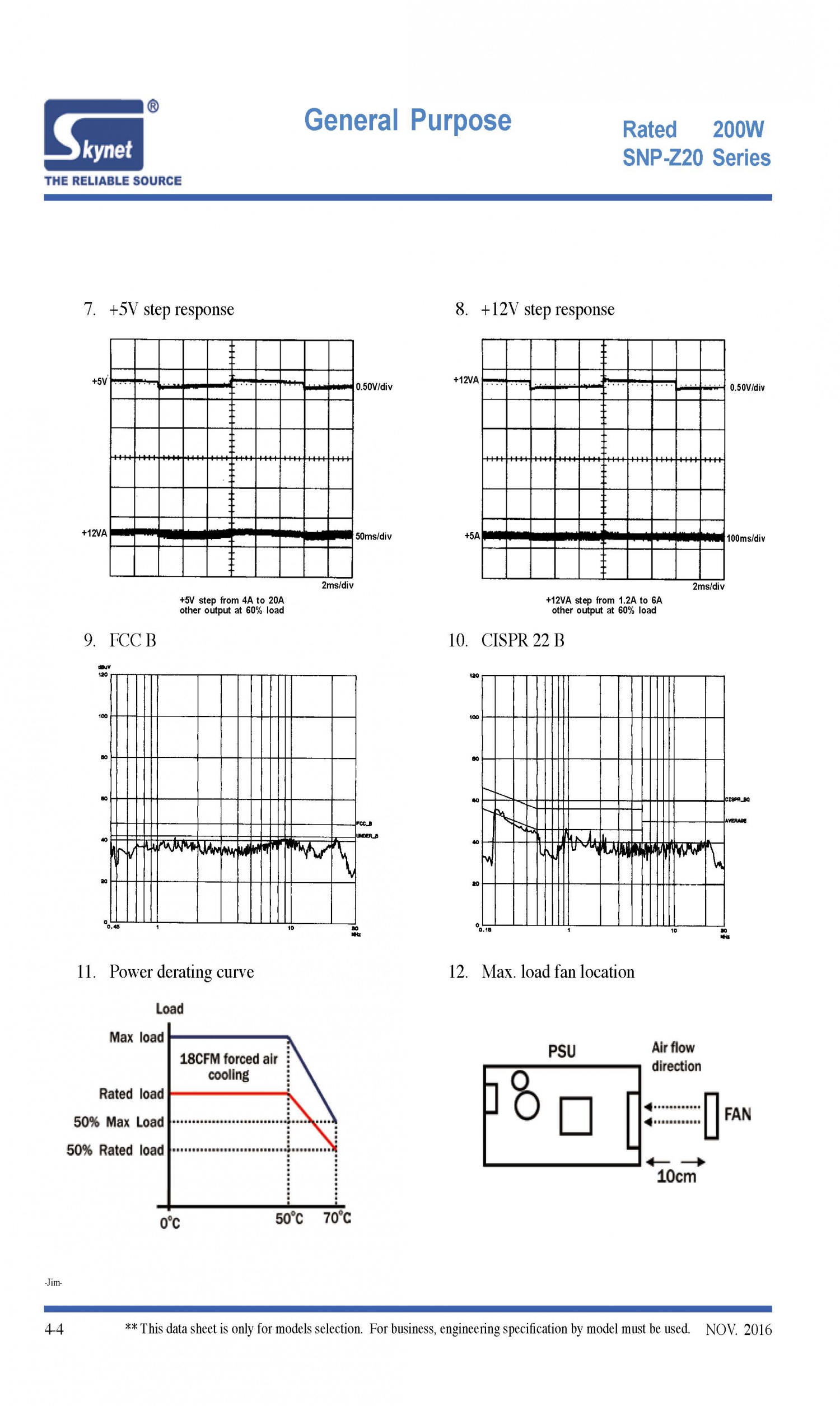

200W SNP-Z201 +5V/20A, +12VA/6A, +12VB/2A 4.2"x8"x1.5"
200W SNP-Z207 +12V/17A 4.2"x8"x1.5"
200W SNP-Z207-M +12V/17A 4.2"x8"x1.5"
200W SNP-Z208 +15V/13.5A 4.2"x8"x1.5"
200W SNP-Z205 +18V/11.3A 4.2"x8"x1.5"
200W SNP-Z209 +24V/8.5A 4.2"x8"x1.5"
200W SNP-Z209-M +24V/8.5A 4.2"x8"x1.5"
200W SNP-Z20T +48V/4.3A 4.2"x8"x1.5"

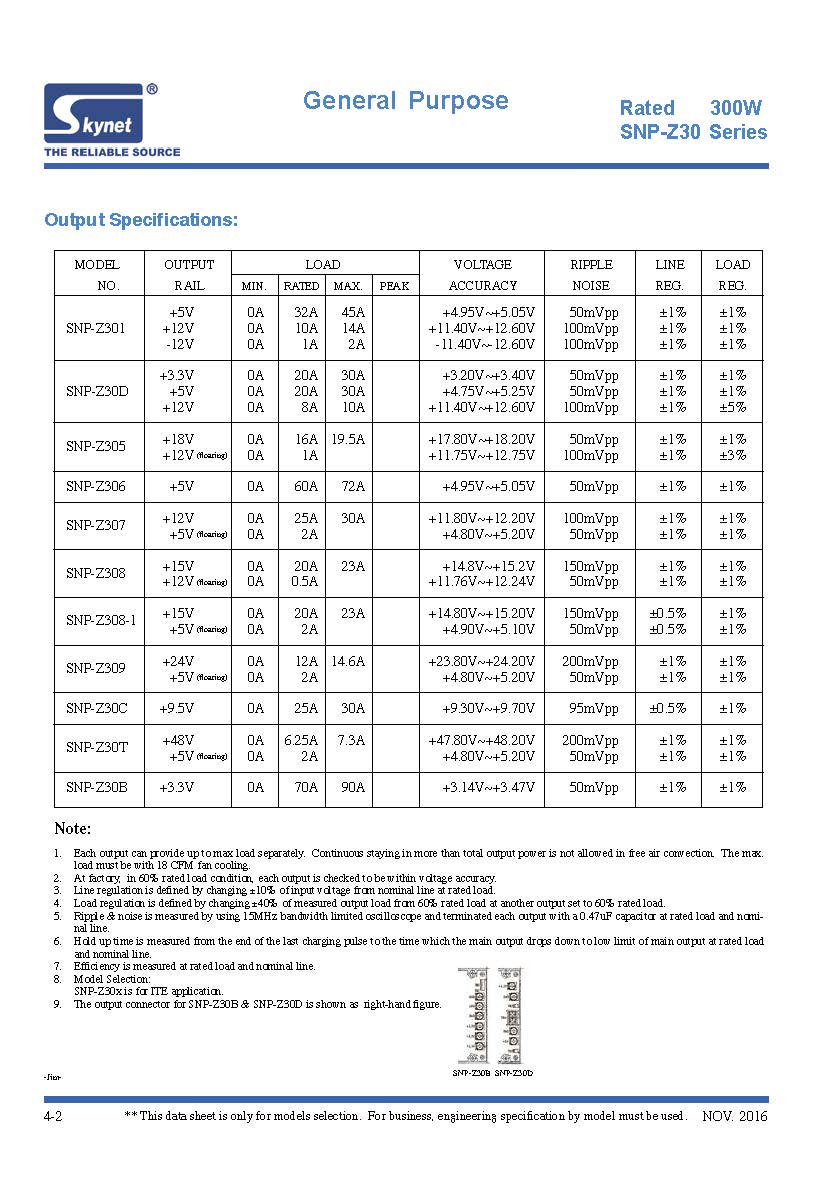

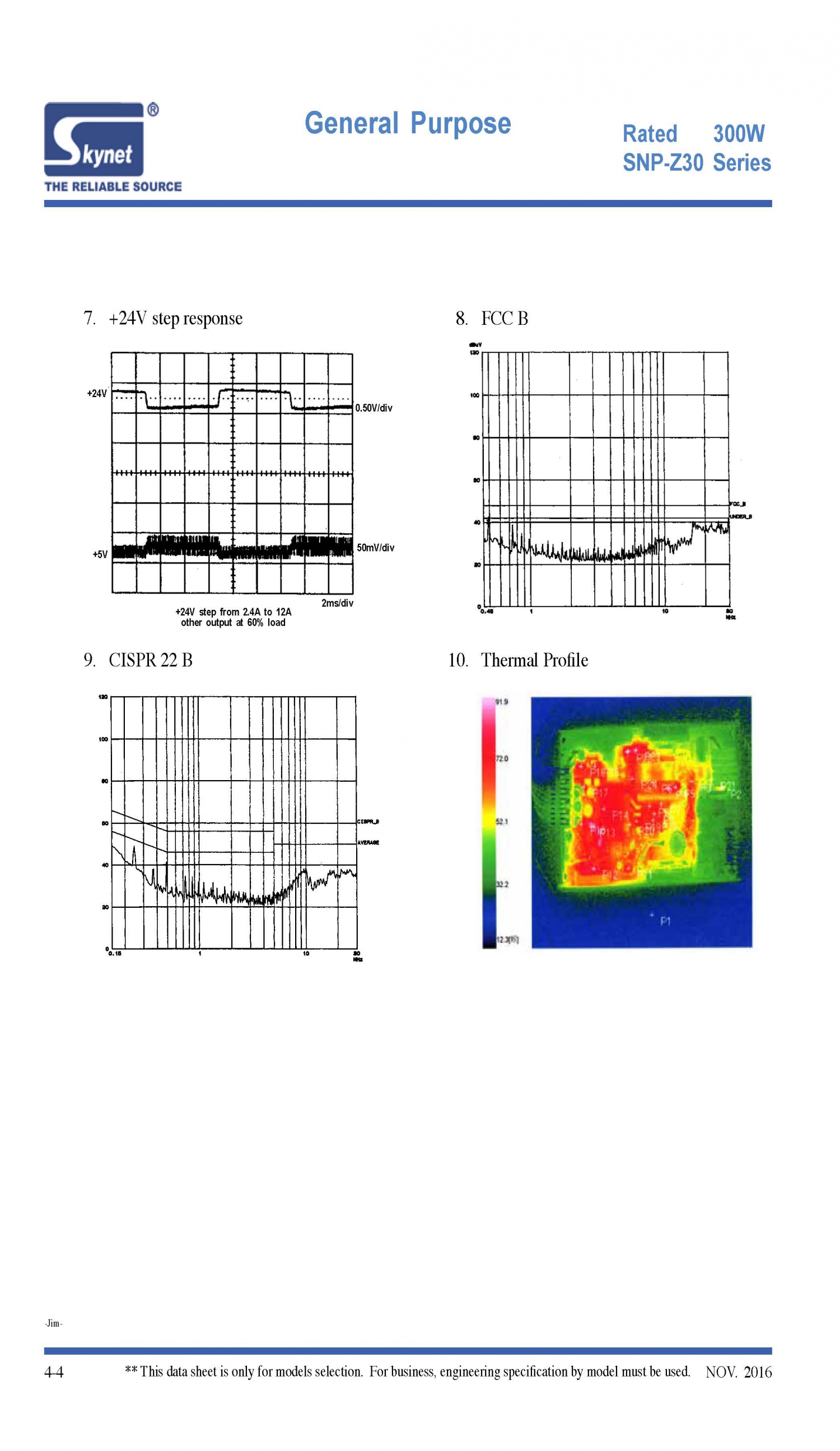

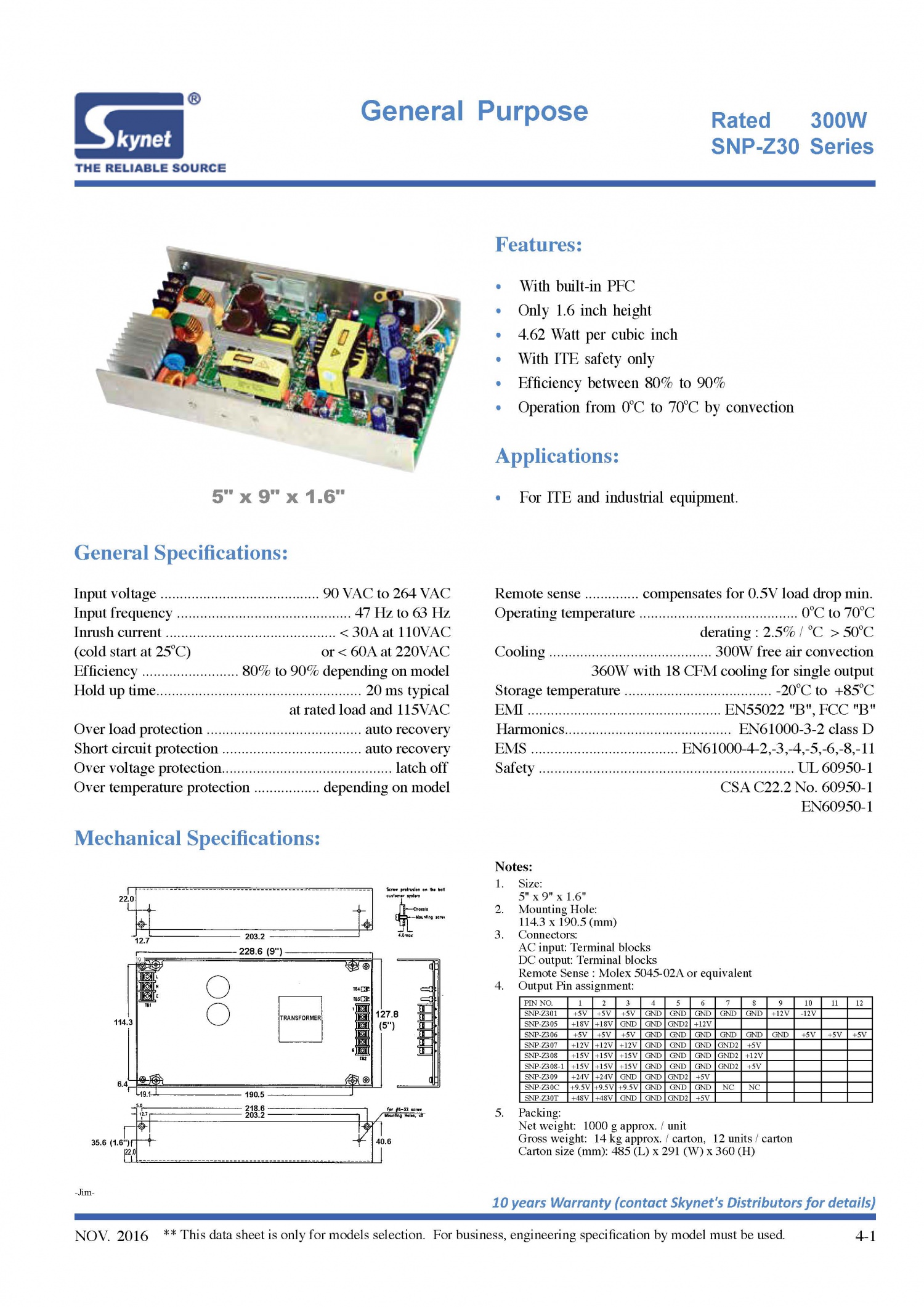

300W SNP-Z301 +5V/32A, +12V/10A, -12V/1A 5"x9"x1.6"
300W SNP-Z30D +3.3V/20A, +5V/20A, +12V/8A 5"x9"x1.6"
300W SNP-Z305 +18V/16A, +12V(floating)/1A 5"x9"x1.6"
300W SNP-Z306 +5V/60A 5"x9"x1.6"
300W SNP-Z307 +12V/25A, +5V(floating)/2A 5"x9"x1.6"
300W SNP-Z308 +15V/20A, +12V(floating)/0.5A 5"x9"x1.6"
300W SNP-Z308-1 +15V/20A, +5V(floating)/2A 5"x9"x1.6"
300W SNP-Z309 +24V/12A, +5V(floating)/2A 5"x9"x1.6"
300W SNP-Z30C +9.5V/25A 5"x9"x1.6"
300W SNP-Z30T +48V/6.25A, +5V(floating)/2A 5"x9"x1.6"
300W SNP-Z30B +3.3V/70A 5"x9"x1.6"
  Skynet PowerSwitching Power SupplyPower Supply for ITE and Medical applicaitons
