Product

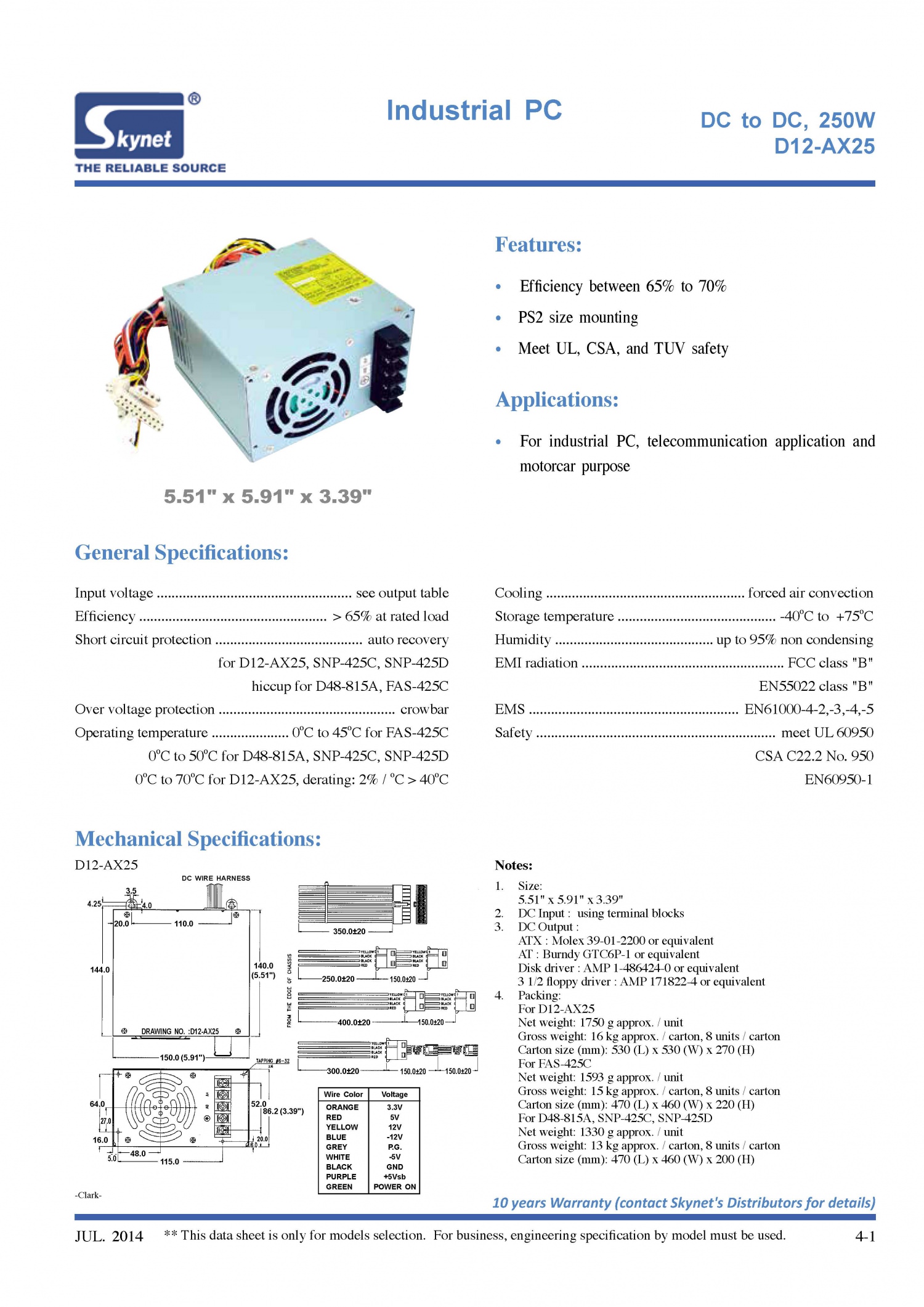

Features:

ITE application

D12-AX25 (DC to DC, 250W), SNP-AX40 (AC to DC, 400W)

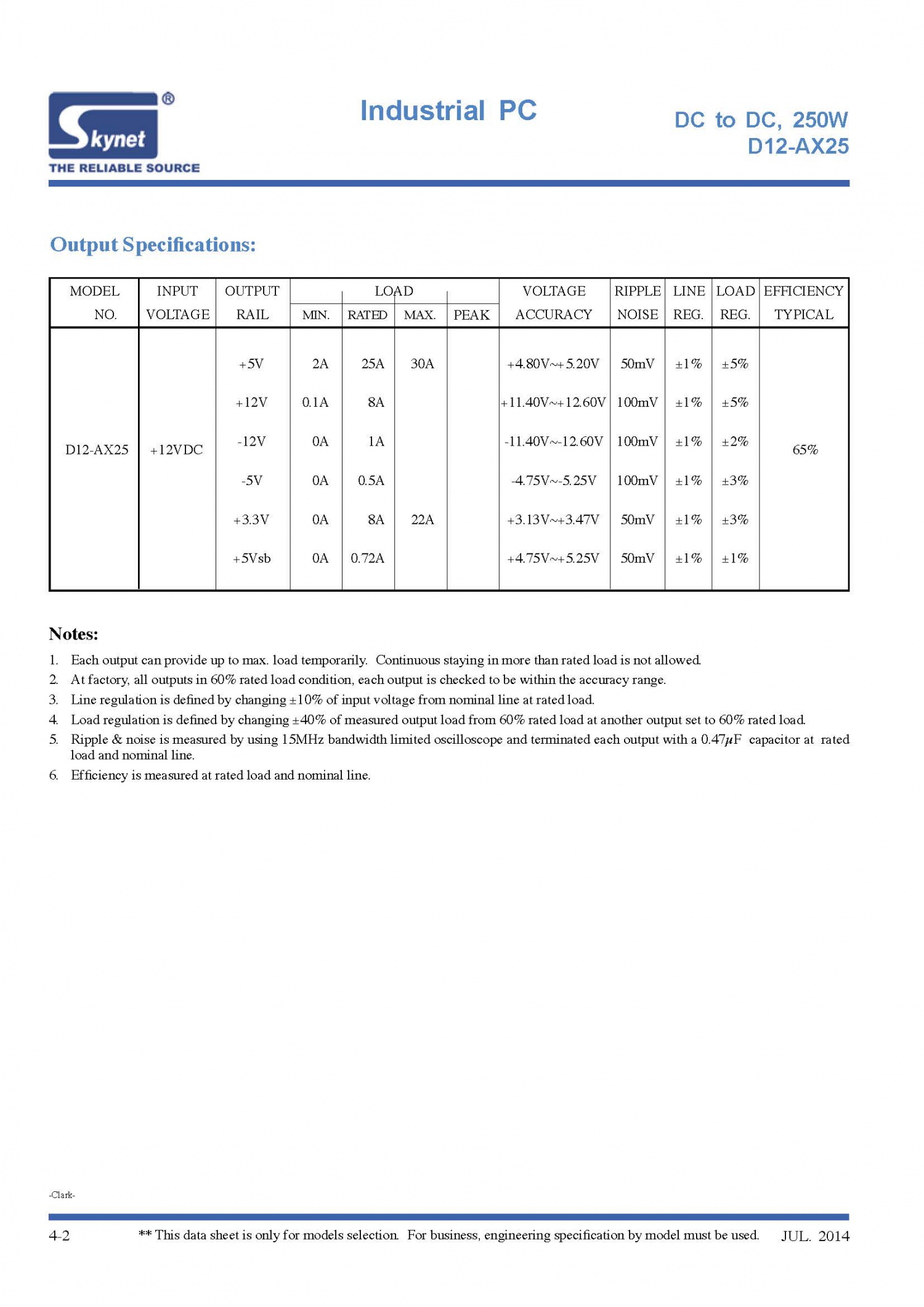

Output Specifications:
Rated Power Model No. OUTPUT Size WxLxH
250W D12-AX25 (12VDC) +5V/25A, +12V/8A, -12V/1A, -5V/0.5A, +3.3V/8A, +5Vsb/0.72A 5.51"x5.91"x3.39"
400W SNP-AX40 (90-264VAC) +5V/30A, +12V/12A, -12V/1A, -5V/0.5A, +3.3V/25A, +5Vsb/2A 5.51"x5.91"x3.39"

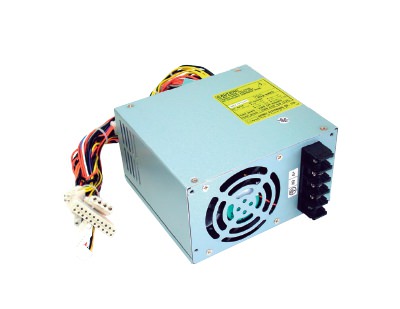

  Skynet PowerPC Power SupplyPower Supply for ITE application
