Product

Features:

Home Healthcare Application

ITE and Medical applications

SNP-S06 (60W), SNP-S09 (90W),

SNP-S12 (120W), SNP-S15 (150W)

Output Specifications:
Rated Power Model No. OUTPUT Size WxLxH
54W SNP-S061 +5V/4A, +12V/3A, -12V/0.3A 50.8x101.6x35.7 (mm)
60W SNP-S061-H +5V/4A, +12V/3A, -12V/0.3A 50.8x101.6x36 (mm)
54W SNP-S063 +5V/4A, +12V/3.33A 50.8x101.6x35.7 (mm)
60W SNP-S063-H +5V/4A, +12V/3.33A 50.8x101.6x36 (mm)
60W SNP-S066 +5V/12A 50.8x101.6x32.4 (mm)
81W SNP-S091 +5V/6A, +12V/4.5A, -12V/0.45A 76.2x127x41.1 (mm)
90W SNP-S091-H +5V/6A, +12V/4.5A, -12V/0.45A 76.2x127x41.4 (mm)
81W SNP-S093 +5V/6A, +12V/5A 76.2x127x41.1 (mm)
90W SNP-S093-H +5V/6A, +12V/5A 76.2x127x41.4 (mm)

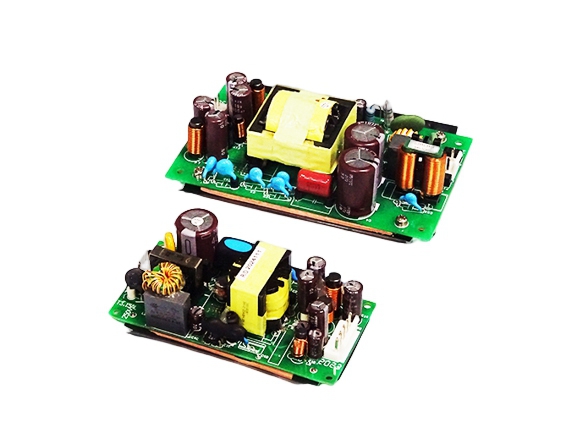

  Skynet PowerSwitching Power SupplySPSPower Supply for Home Healthcare application
