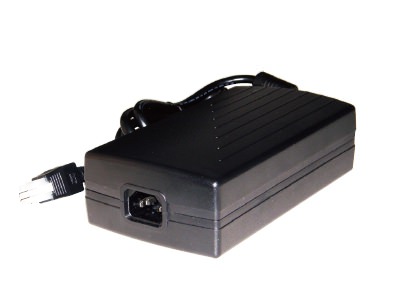

Product

Features:

100~350W, with PFC

ITE and Medical applications

SNP-A10 (100W), SNP-A10X-Y (100W),
SNP-A12 (120W), SNP-A12X-Y (120W),

SNP-A15 (150W), SNP-A15X-G (150W),
SNP-A20 (200W), SNP-A25X-G (250W),

SNP-A35X-G (350W)

Output Specifications:
Rated Power Model No. OUTPUT Size WxLxH

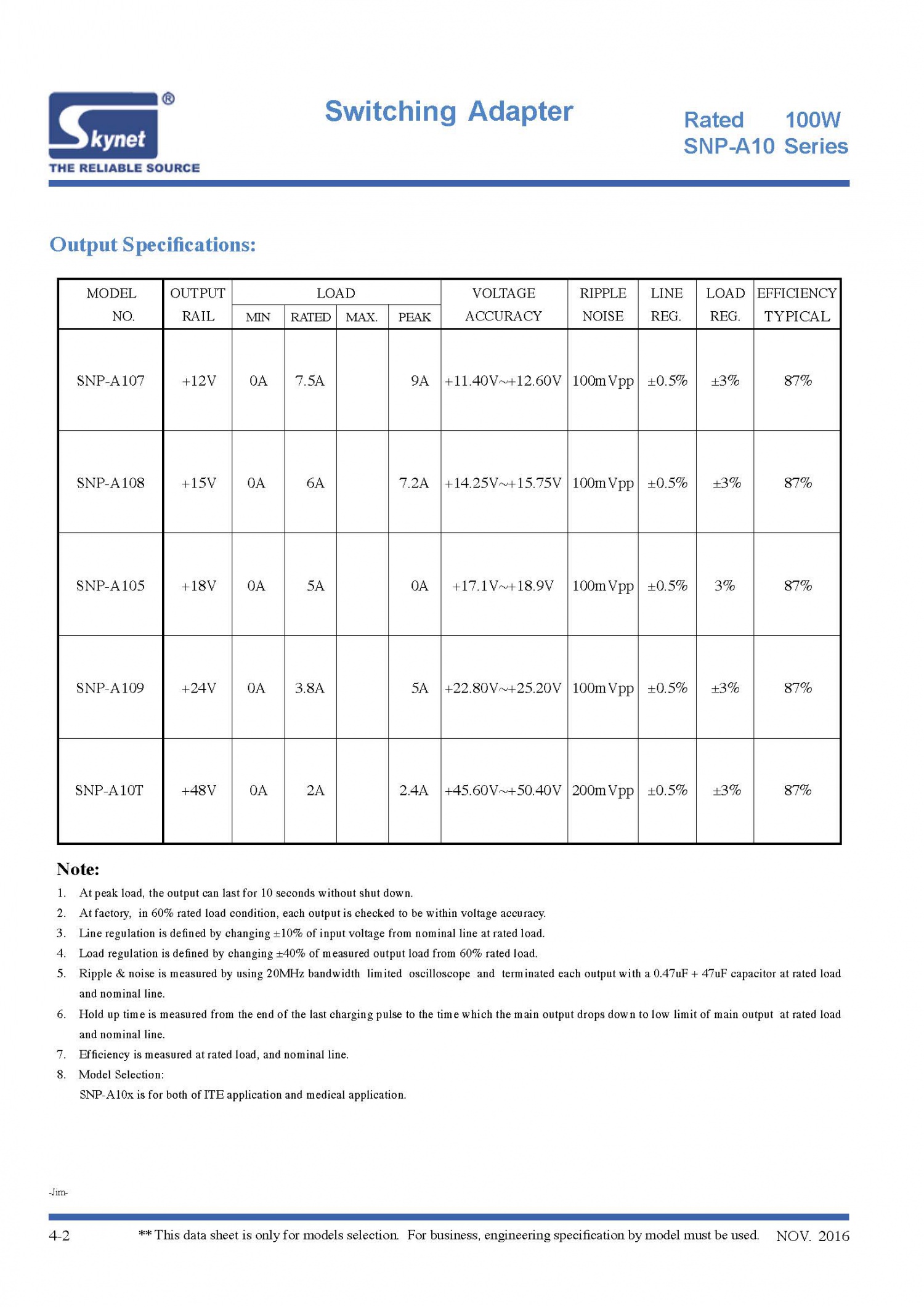

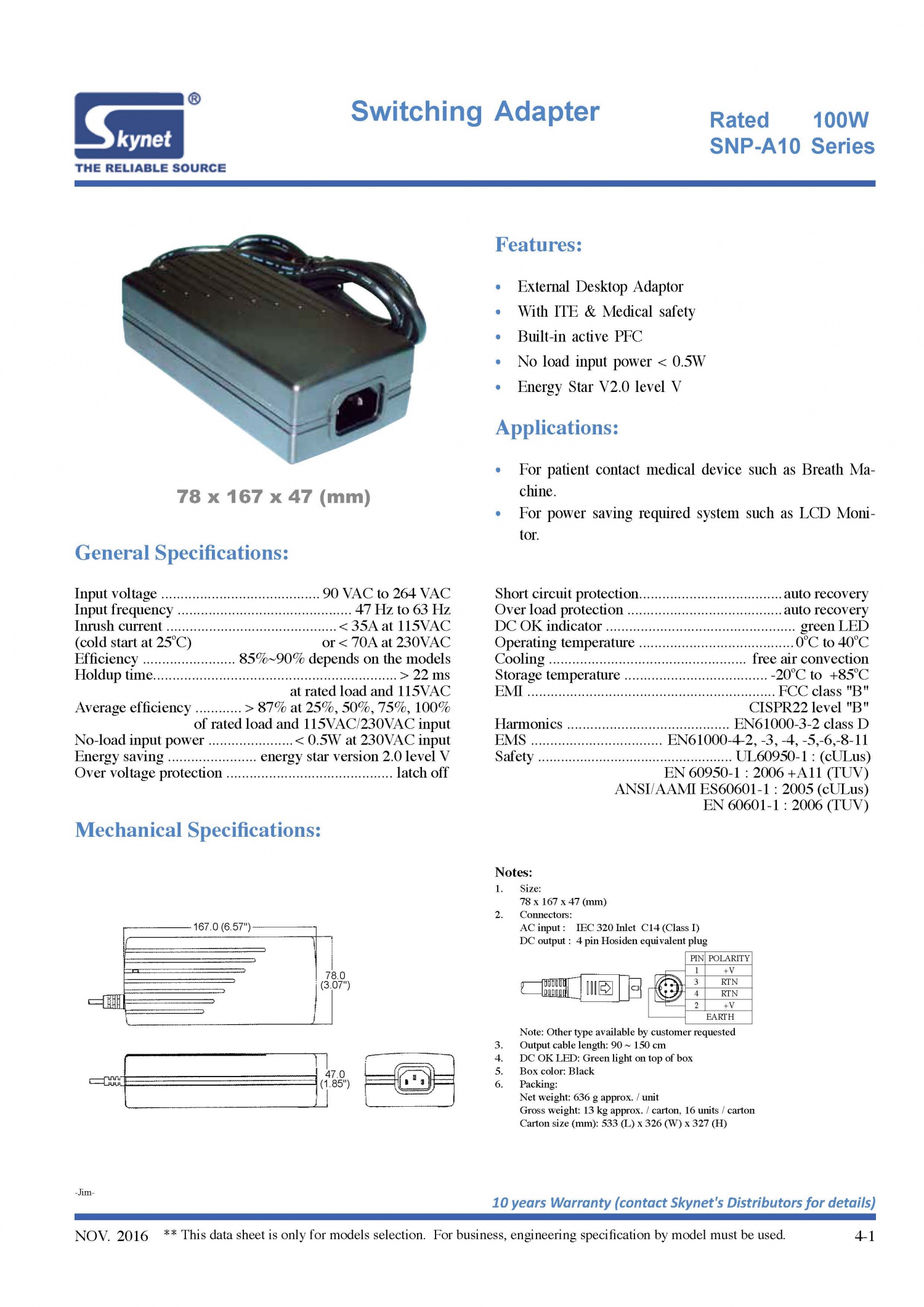

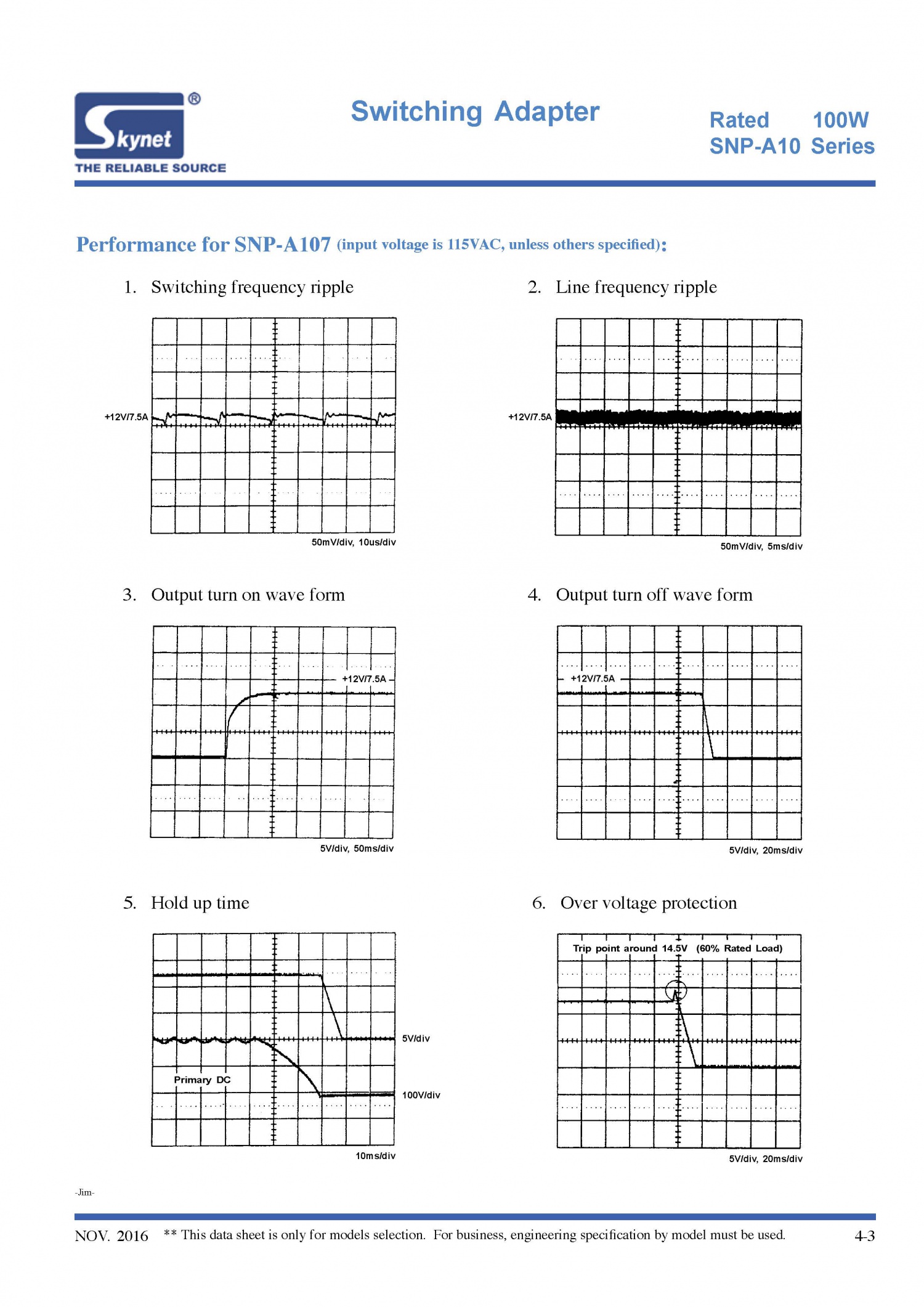

100W SNP-A107 +12V/7.5A 78x167x47
100W SNP-A108 +15V/6A 78x167x47
100W SNP-A105 +18V/5A 78x167x47
100W SNP-A109 +24V/3.8A 78x167x47
100W SNP-A10T +48V/2A 78x167x47
100W SNP-A107-Y +12V/8.30A 72x145x42
100W SNP-A109-Y +24V/4.16A 72x145x42
100W SNP-A10T-Y +48V/2.10A 72x145x42

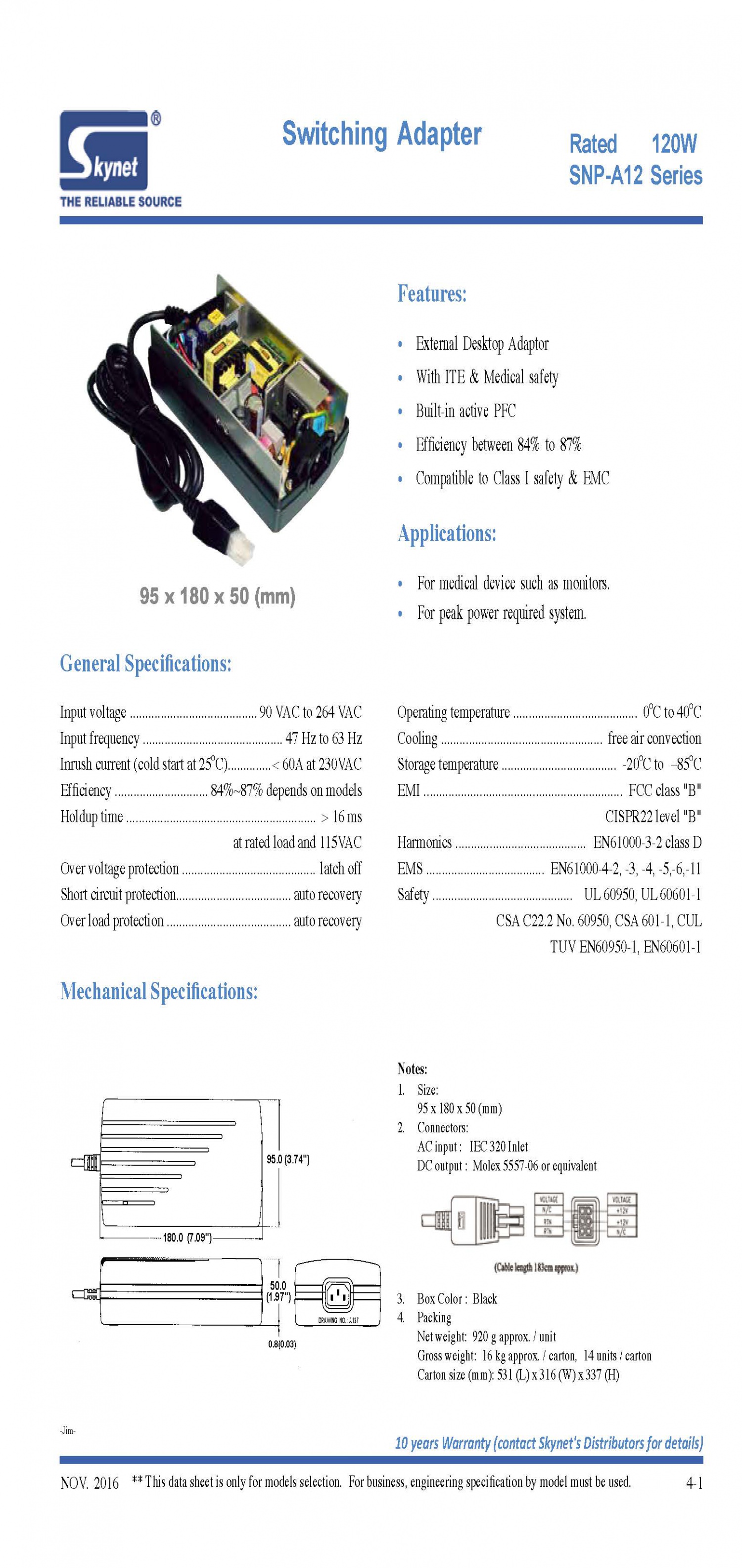

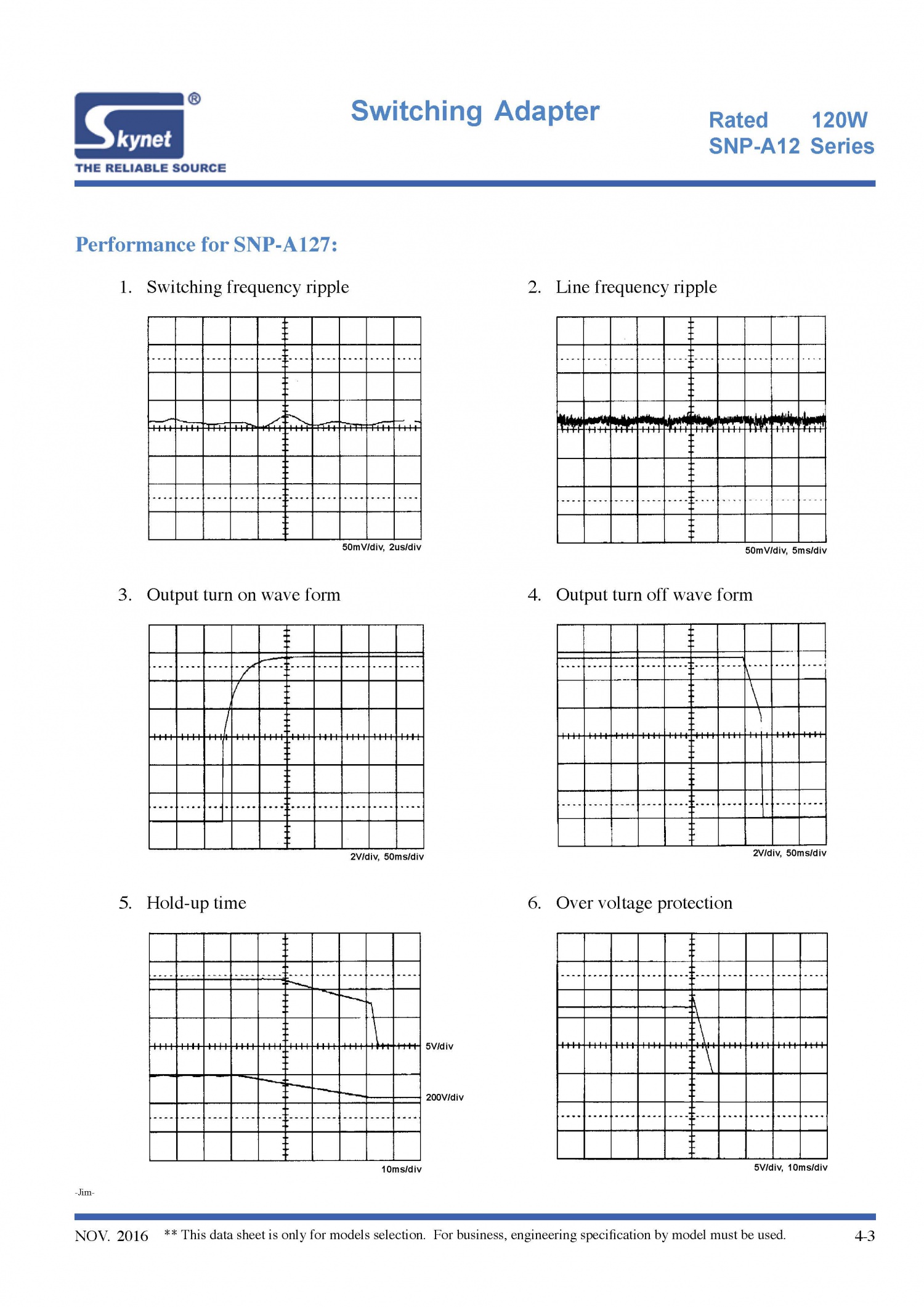

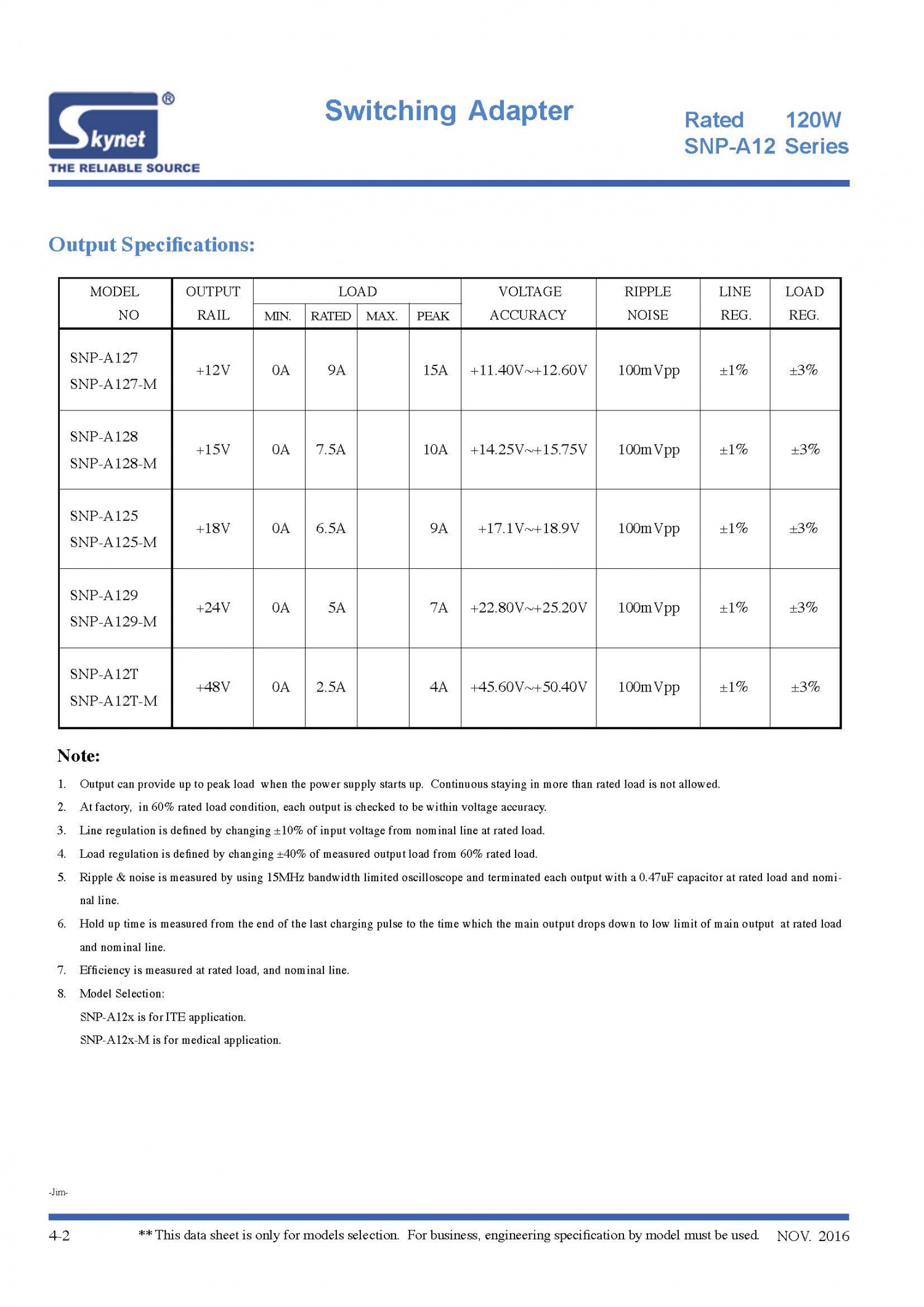

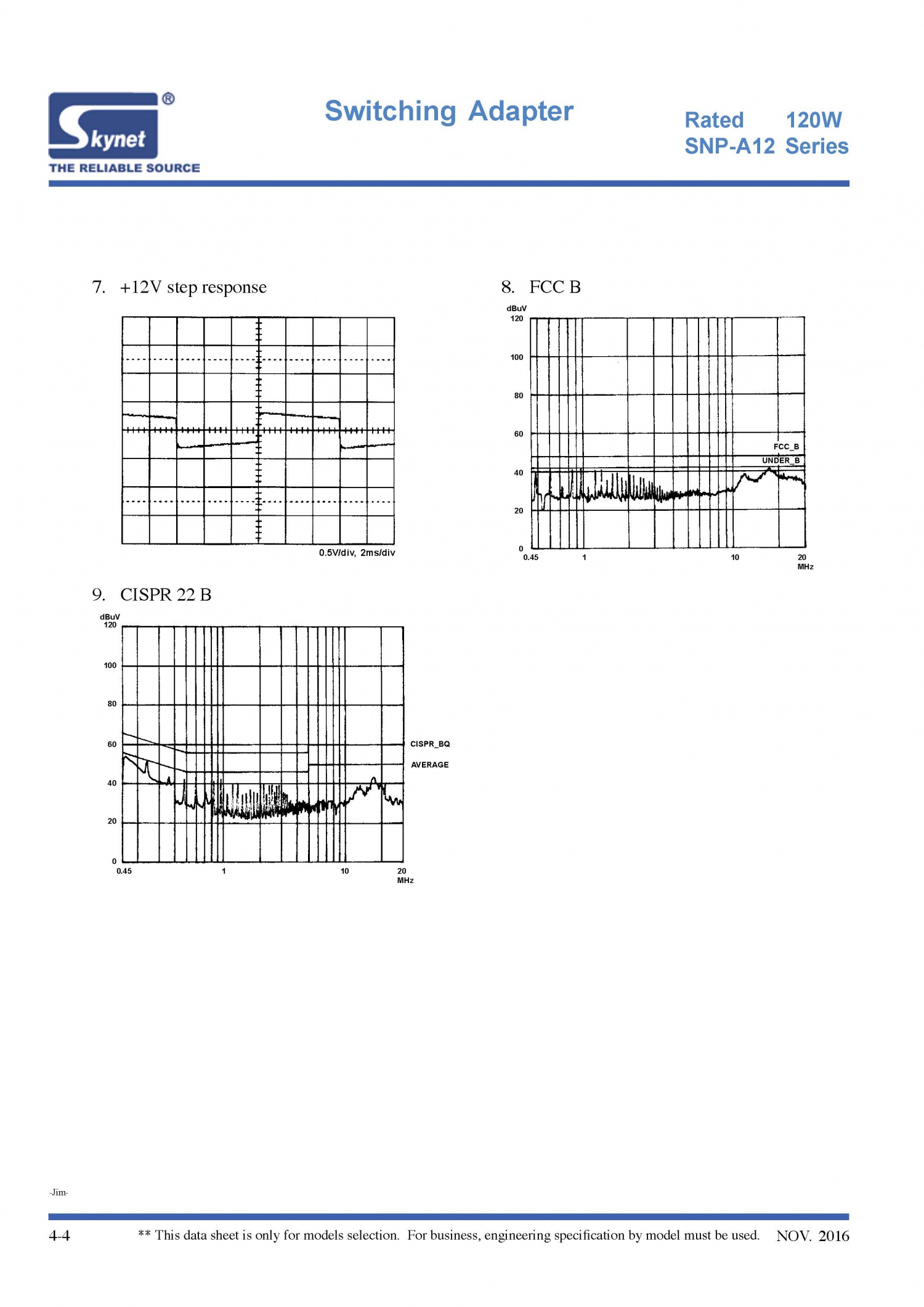

120W SNP-A127 +12V/9A 95x180x50
120W SNP-A127-M +12V/9A 95x180x50
120W SNP-A128 +15V/7.5A 95x180x50
120W SNP-A128-M +15V/7.5A 95x180x50
120W SNP-A125 +18V/6.5A 95x180x50
120W SNP-A125-M +18V/6.5A 95x180x50
120W SNP-A129 +24V/5.00A 95x180x50
120W SNP-A129-M +24V/5A 95x180x50
120W SNP-A12T +48V/2.5A 95x180x50
120W SNP-A127-Y +12V/10.00A 78x167x47
120W SNP-A129-Y +24V/5.00A 78x167x47
120W SNP-A12T-Y +48V/2.50A 76x167x47

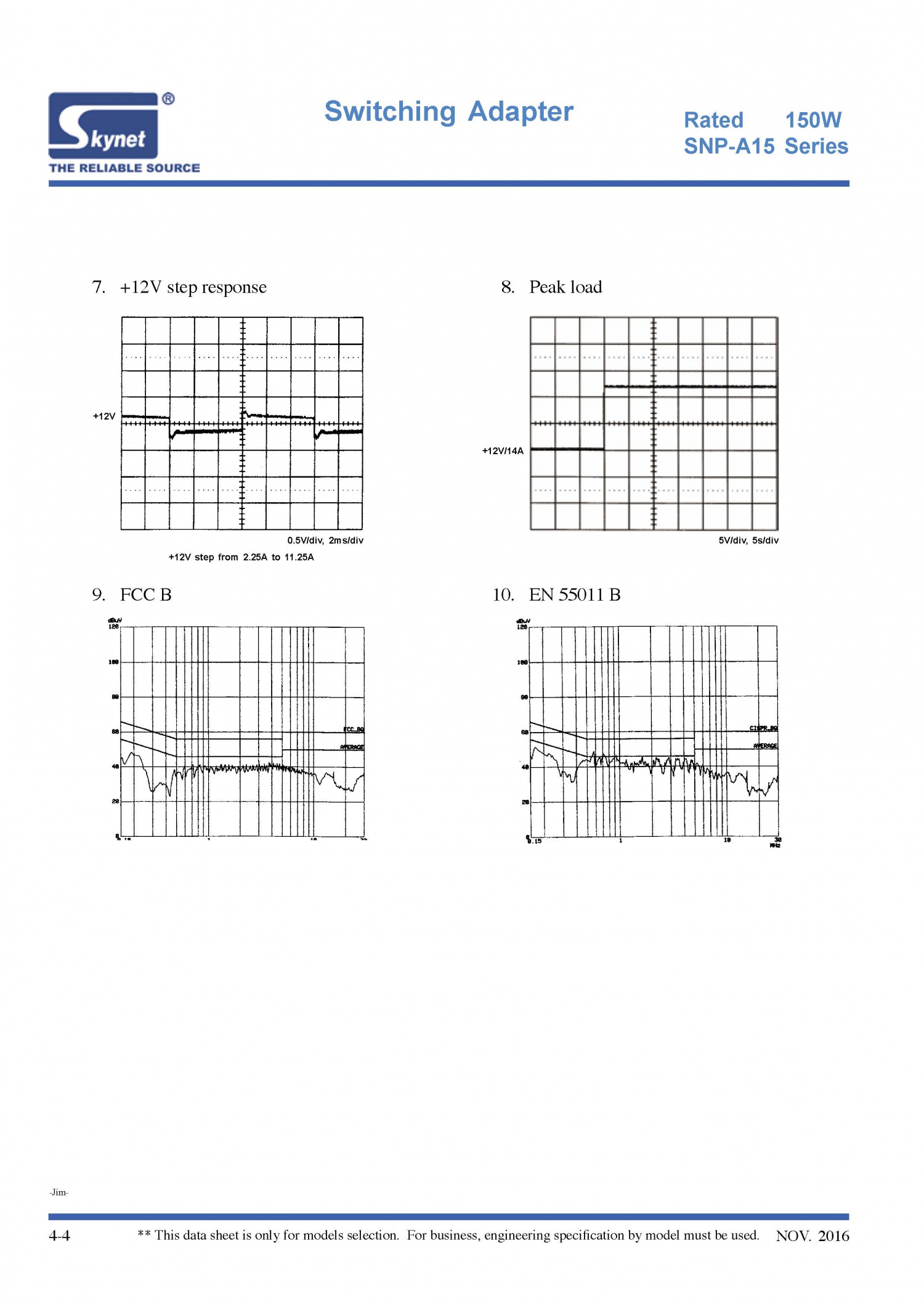

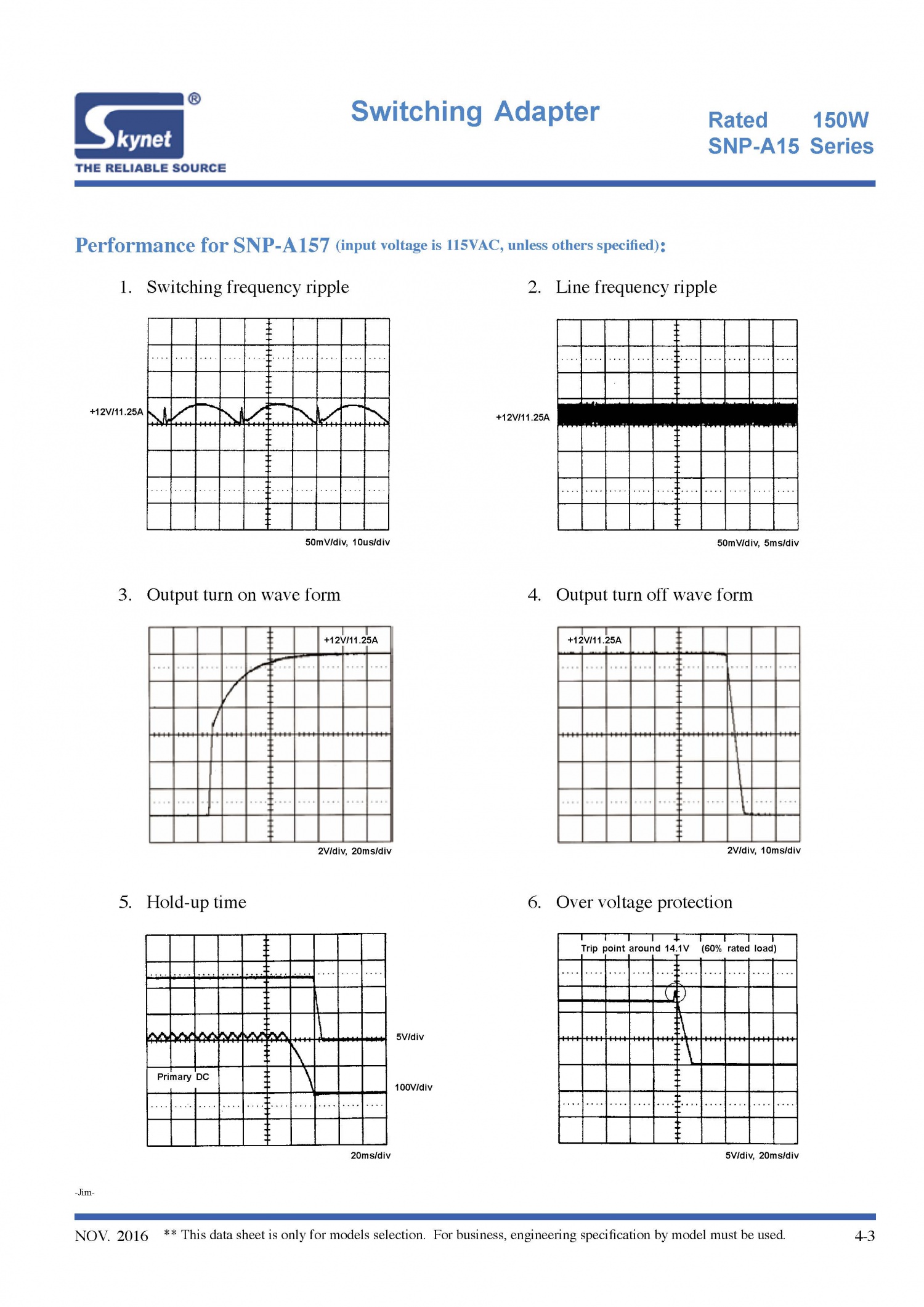

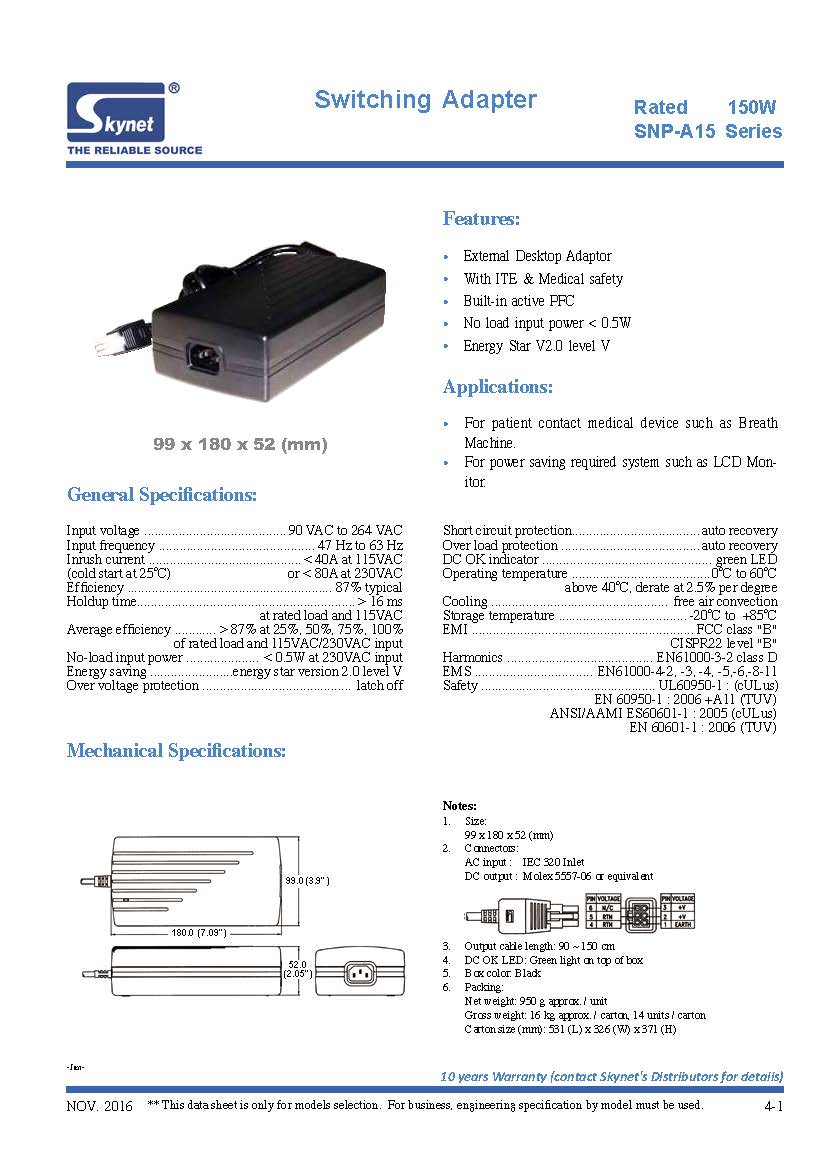

150W SNP-A157 +12V/11.25A 99x180x52
150W SNP-A157-M +12V/11.25A 99x180x52
150W SNP-A158 +15V/9.3A 99x180x52
150W SNP-A158-M +15V/9.3A 99x180x52
150W SNP-A155 +18V/7.8A 99x180x52
150W SNP-A155-M +18V/7.8A 99x180x52
150W SNP-A159 +24V/6.00A 99x180x52
150W SNP-A159-M +24V/6A 99x180x52
150W SNP-A15T +48V/3.00A 99x180x52
150W SNP-A15T-M +48V/3A 99x180x52
150W SNP-A159-G +24V/6.25A 95x180x55
150W SNP-A15T-G +48V/3.125A 95x180x55

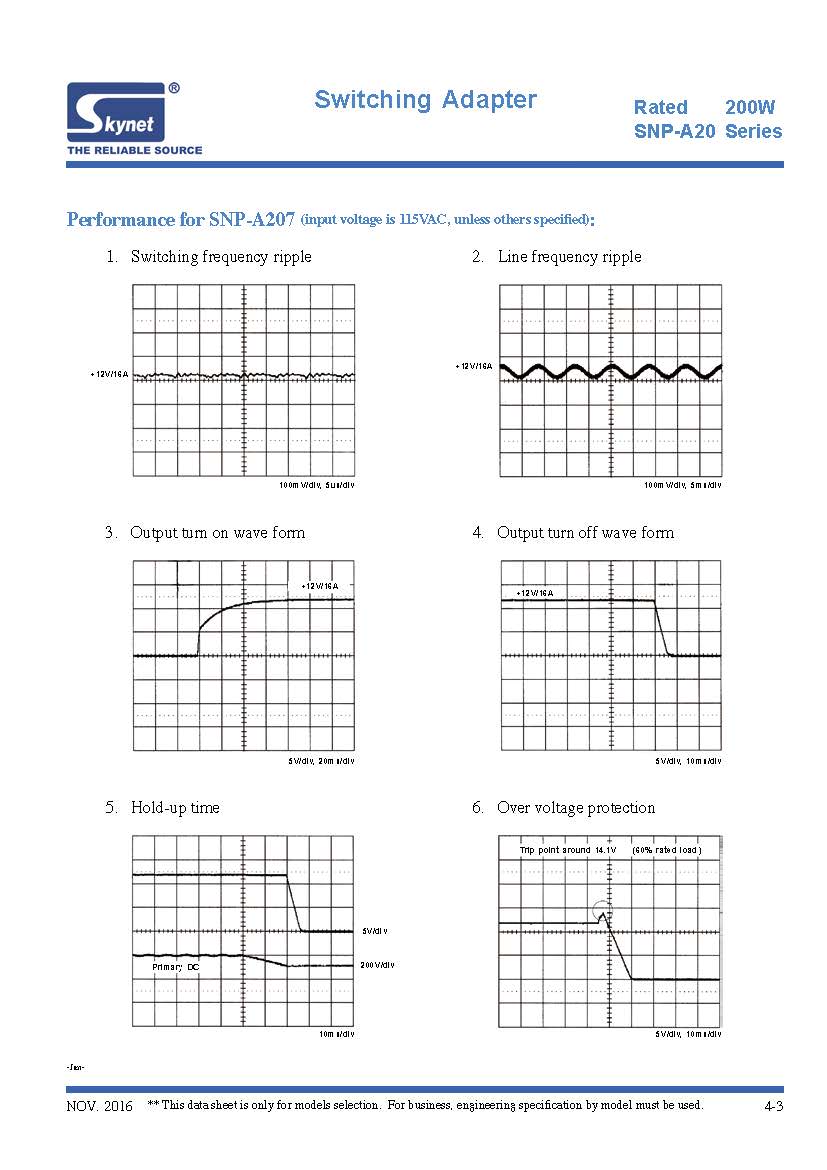

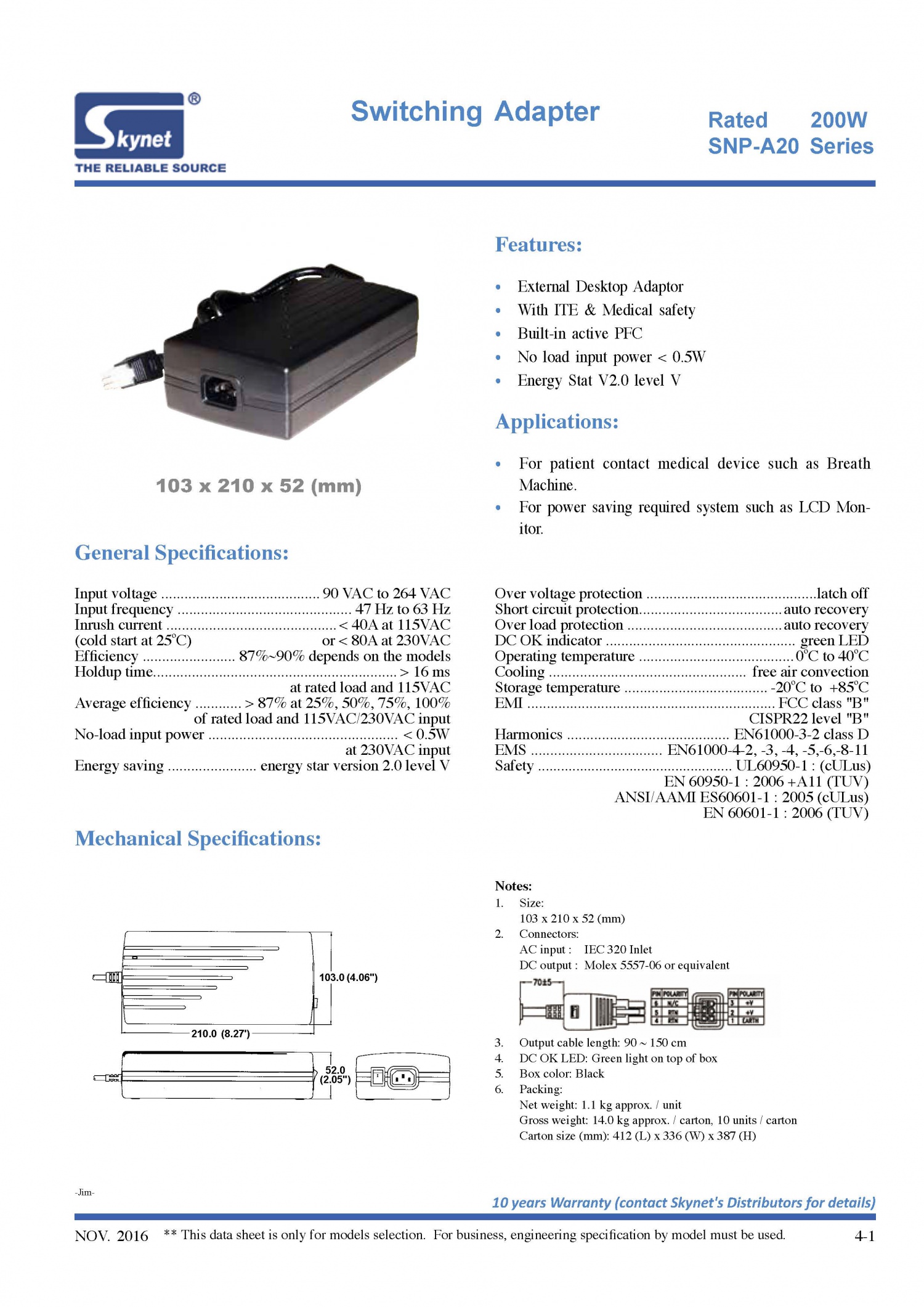

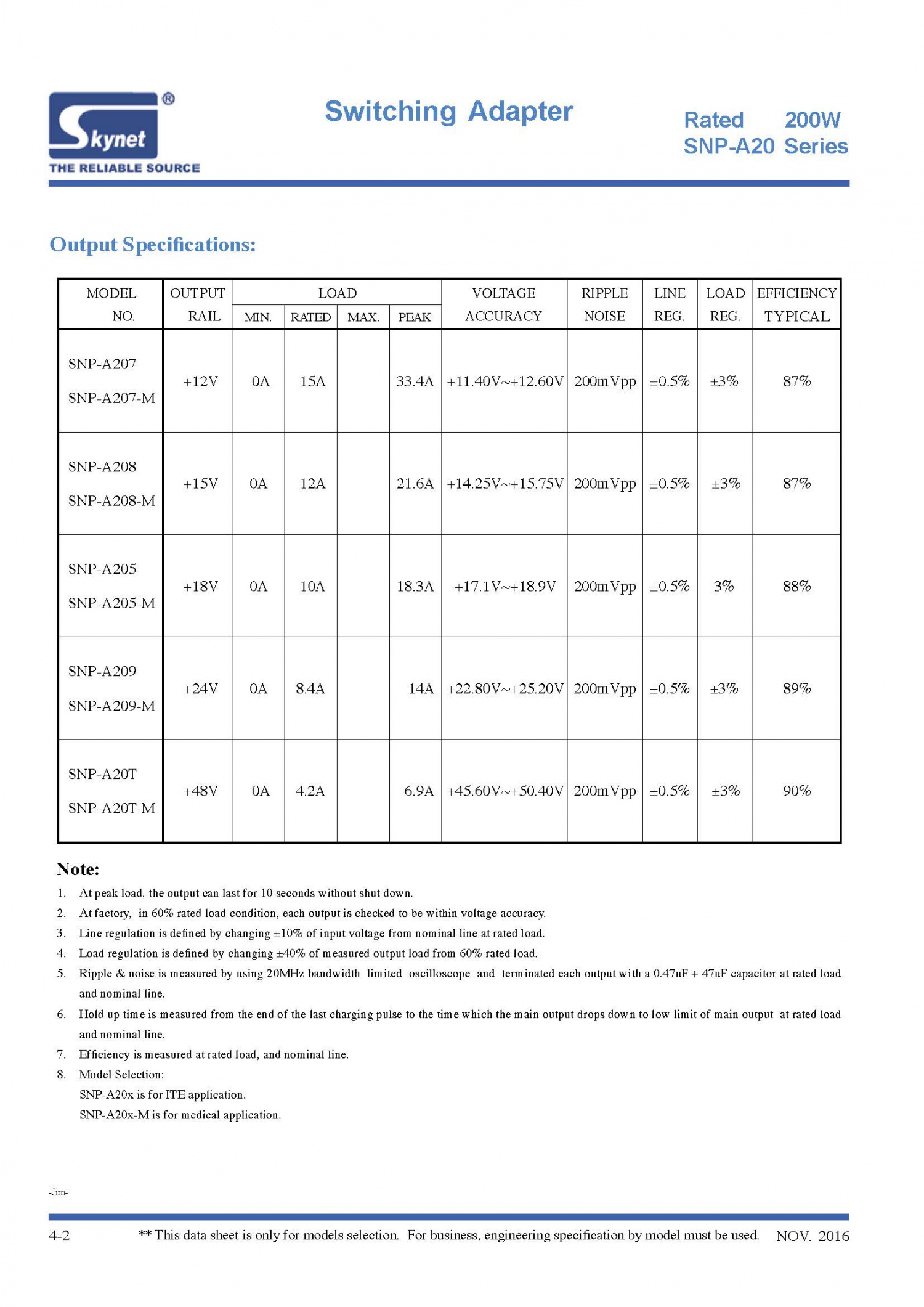

200W SNP-A207 +12V/15A 103x210x52
200W SNP-A207-M +12V/15A 103x210x52
200W SNP-A208 +15V/12A 103x210x52
200W SNP-A208-M +15V/12A 103x210x52
200W SNP-A205 +18V/10A 103x210x52
200W SNP-A205-M +18V/10A 103x210x52
200W SNP-A209 +24V/8.4A 103x210x52
200W SNP-A209-M +24V/8.4A 103x210x52
200W SNP-A20T +48V/4.2A 103x210x52
200W SNP-A20T-M +48V/4.2A 103x210x52

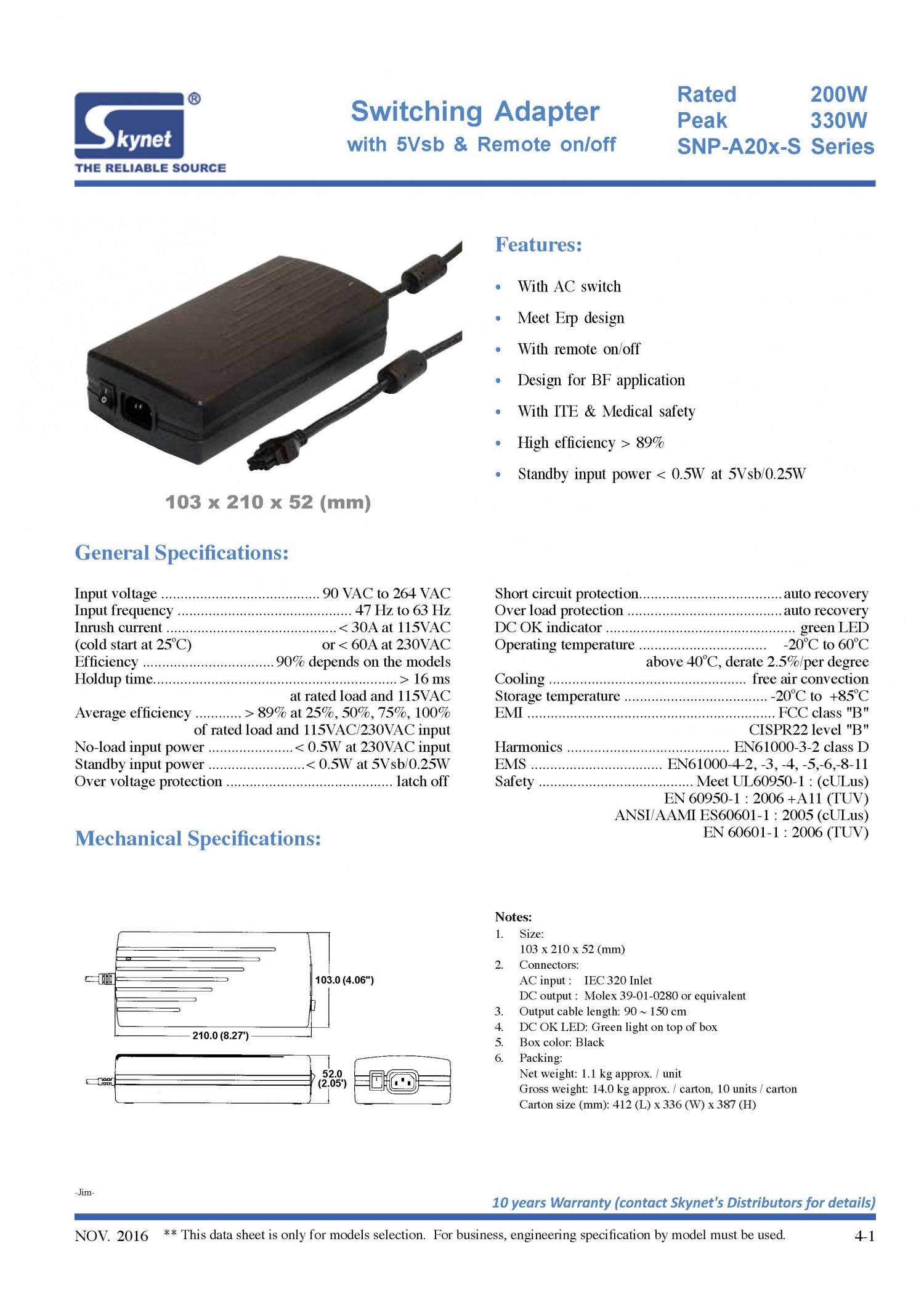

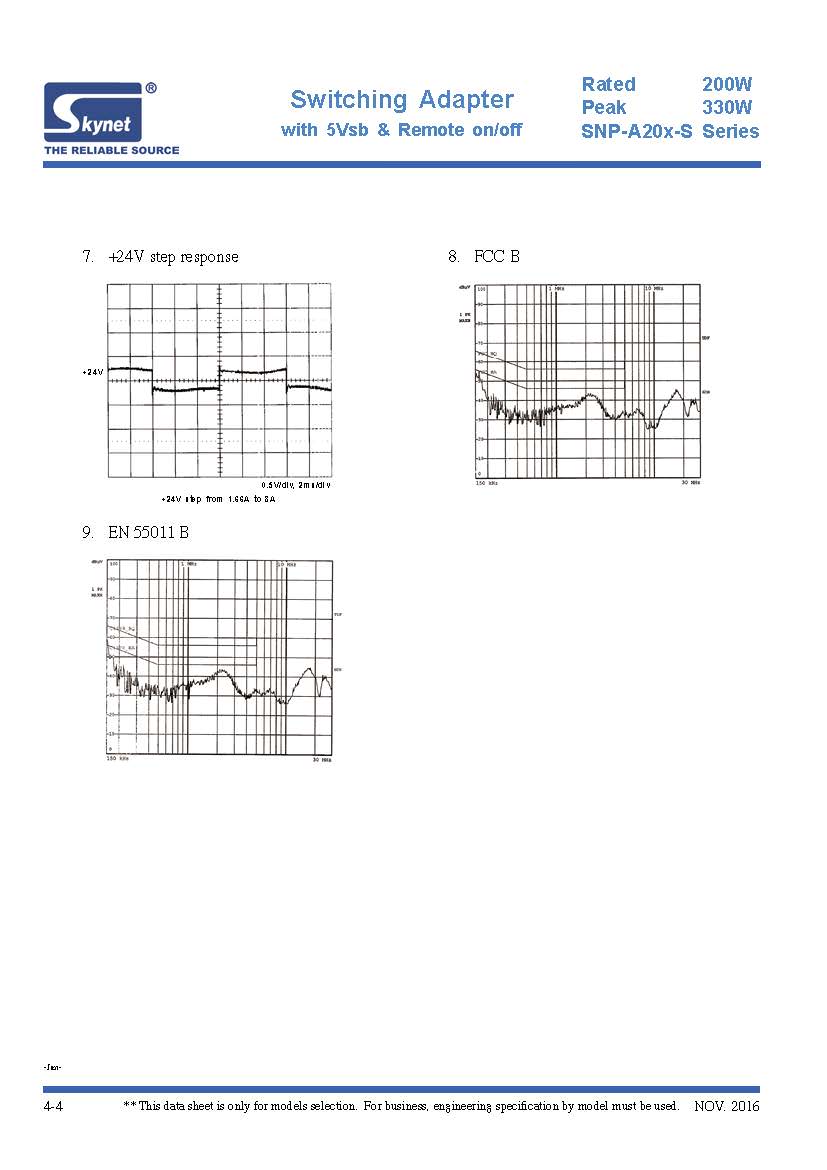

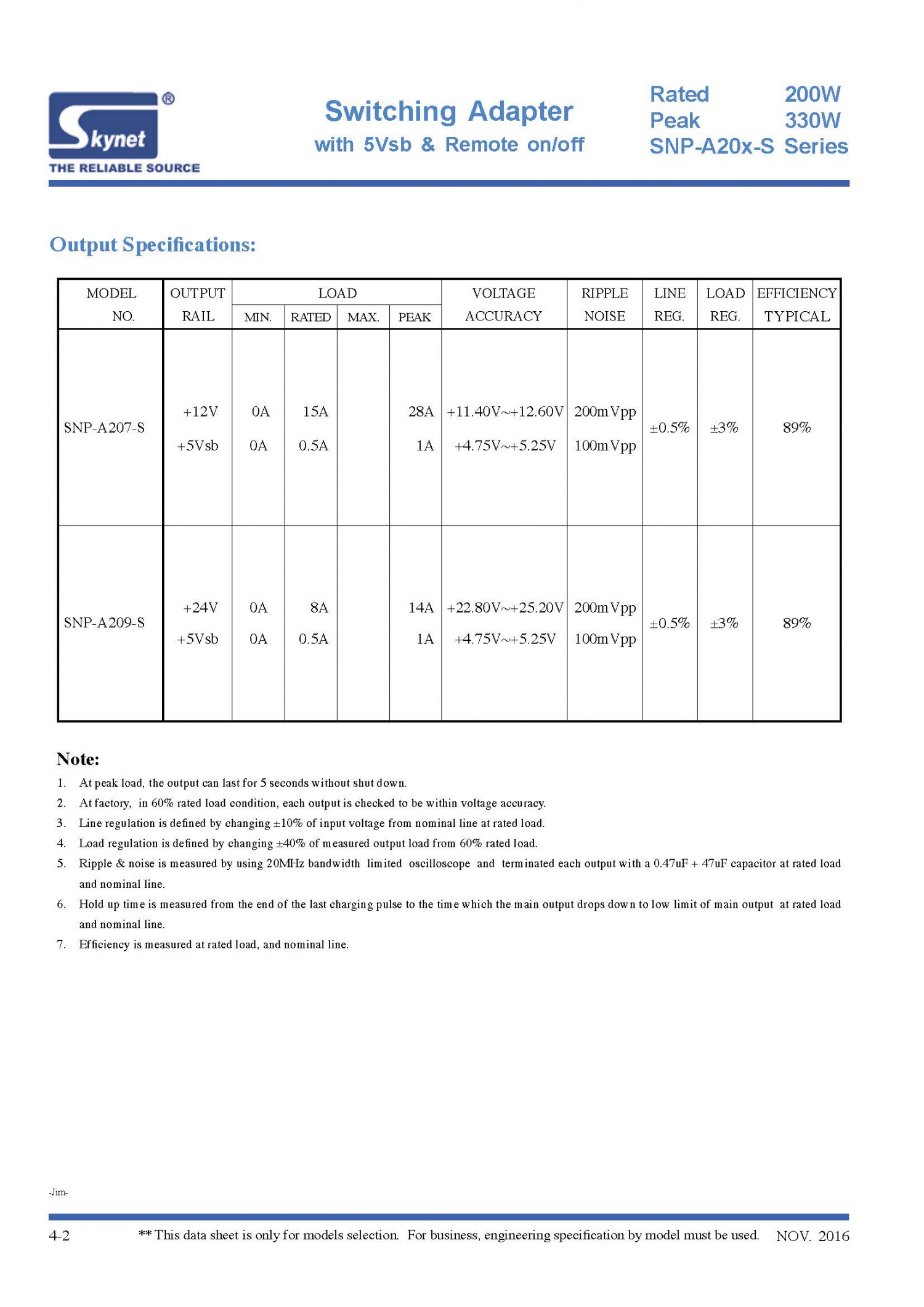

200W SNP-A207-S +12V/15A, +5Vsb/0.5A 103x210x52

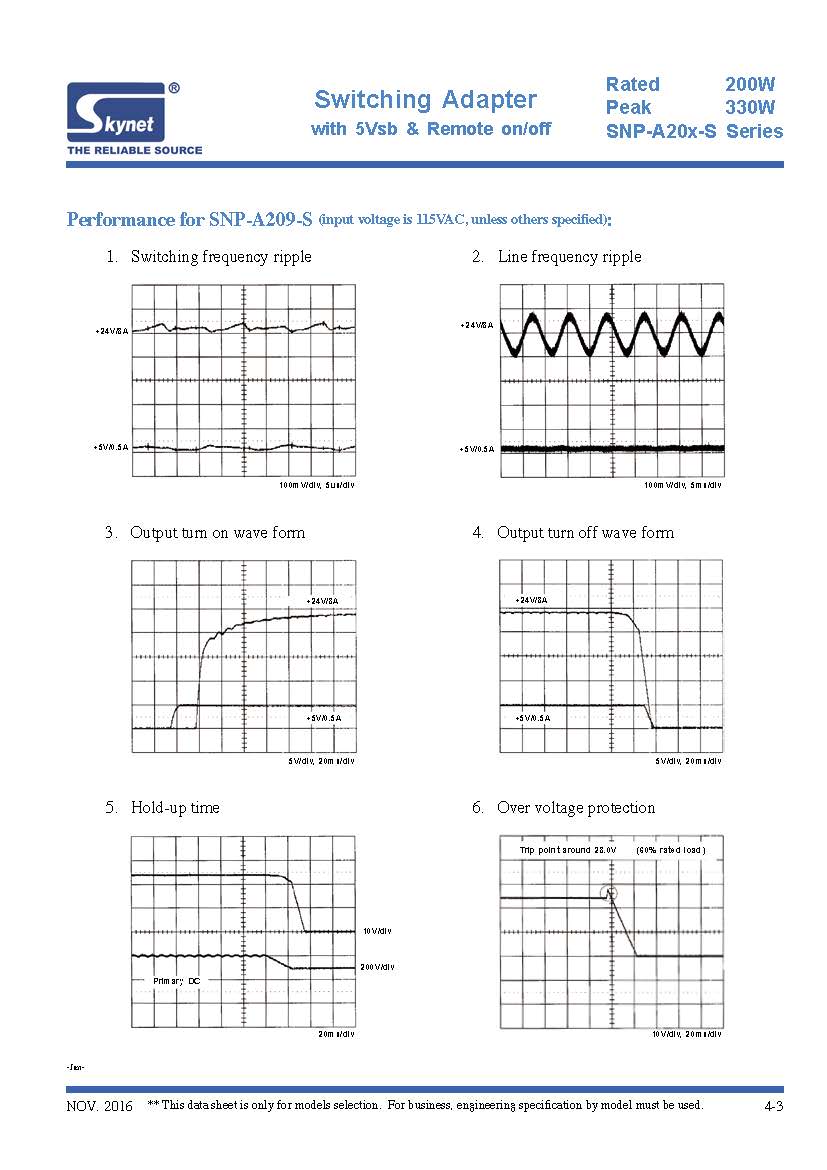

200W SNP-A209-S +24V/8A, +5Vsb/0.5A 103x210x52
250W SNP-A259-G +24V/10.42A 95x210x55
250W SNP-A25T-G +48V/5.21A 95x210x55
350W SNP-A359-G +24V/14.58A 95x250x55
350W SNP-A35T-G +48V/7.29A 95x250x55
  Skynet PowerSkynet AdapterAdapter for ITE and Medical applications
