Features:

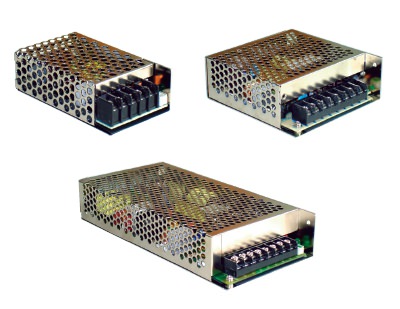

ITE application

SNP-C03 (30W), SNP-C04 (40W), SNP-C06 (60W),

SNP-C08 (80W), SNP-C10 (100W), SNP-C15 (150W)

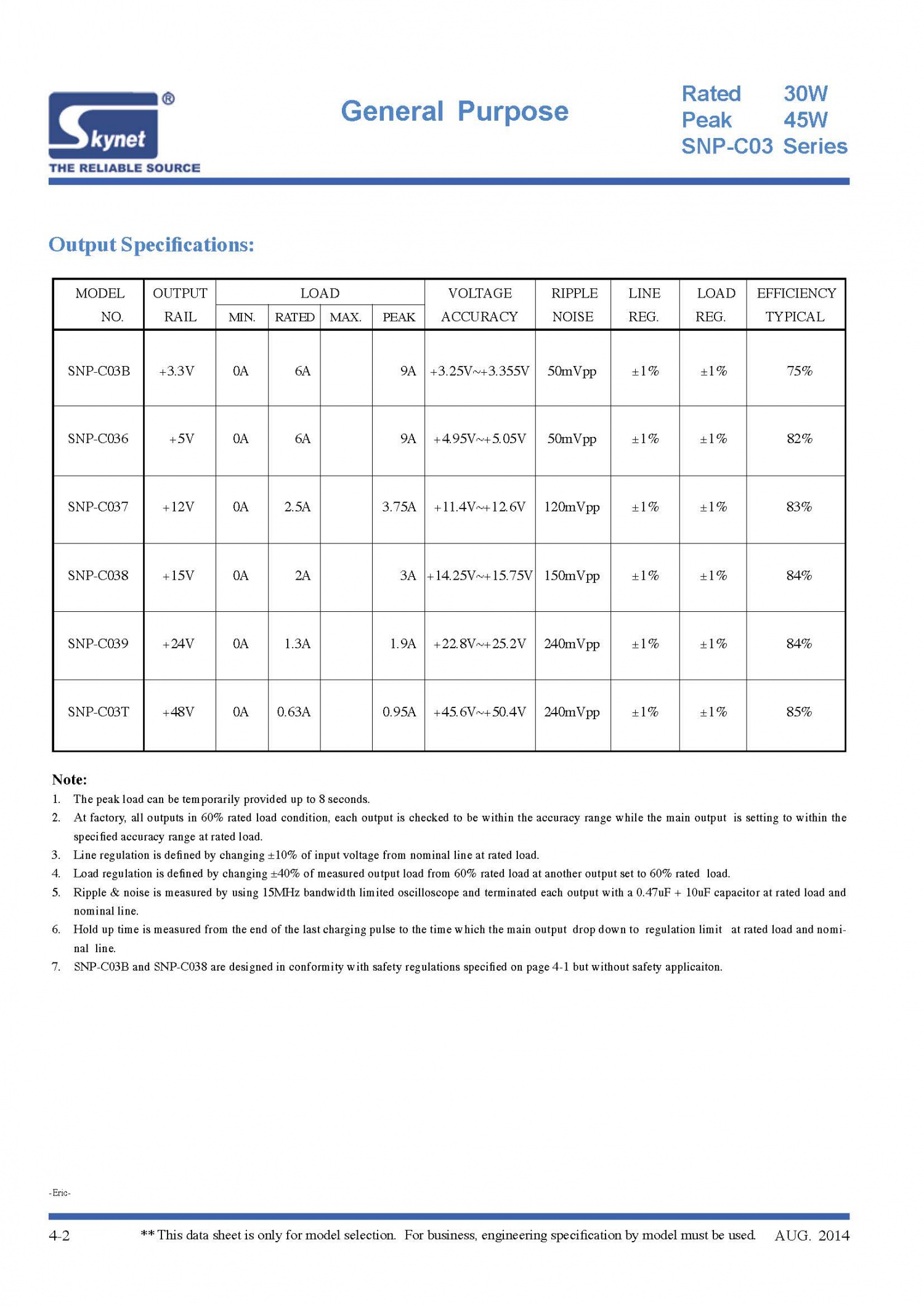

Output Specifications:
Rated Power Model No. OUTPUT Size WxLxH

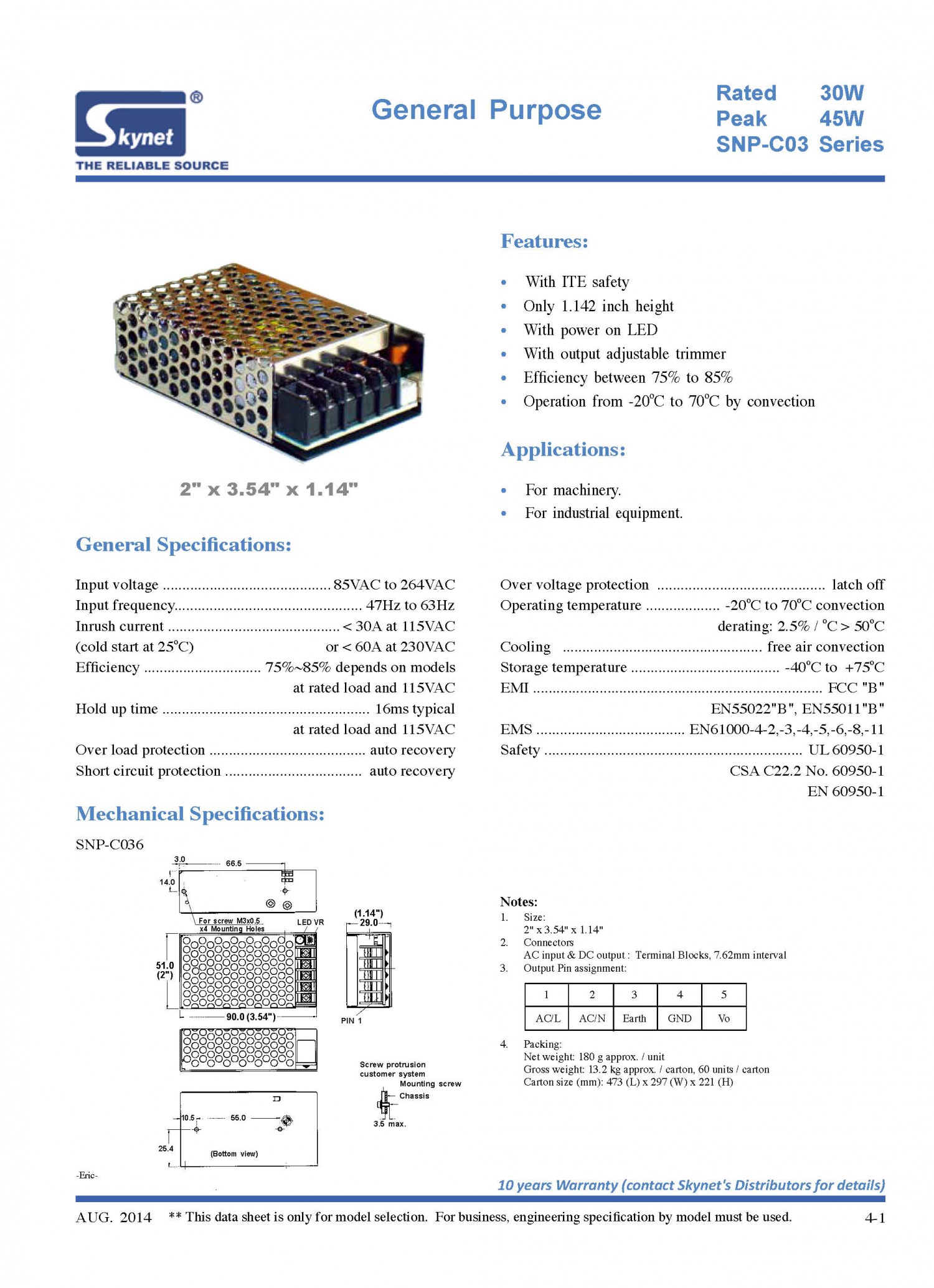

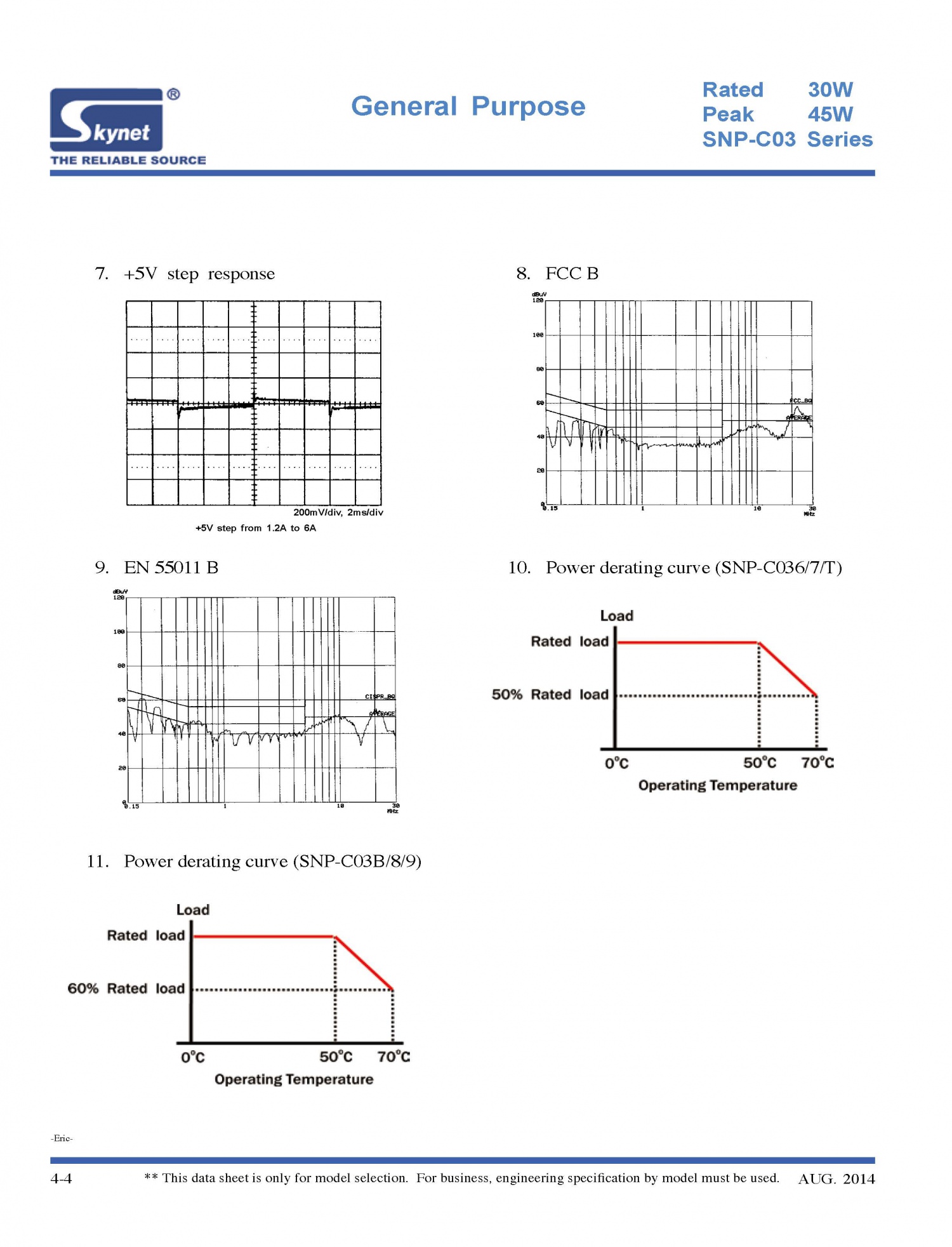

30W SNP-C03B +3.3V/6.00A 2"x3.54"x1.14"

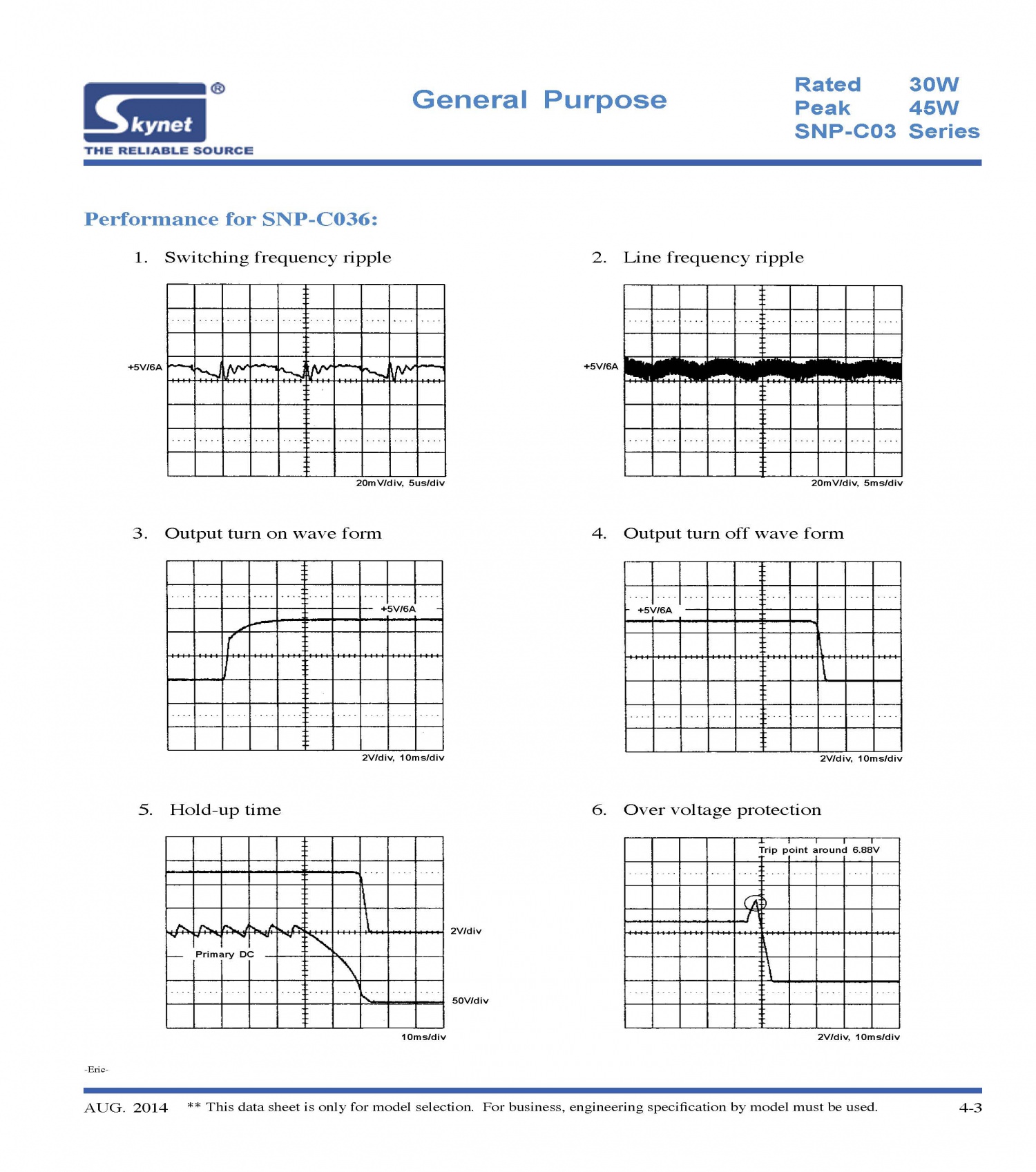

30W SNP-C036 +5V/6.00A 2"x3.54"x1.14"
30W SNP-C037 +12V/2.50A 2"x3.54"x1.14"
30W SNP-C038 +15V/2.00A 2"x3.54"x1.14"
30W SNP-C039 +24V/1.30A 2"x3.54"x1.14"
30W SNP-C03T +48V/0.63A 2"x3.54"x1.14"

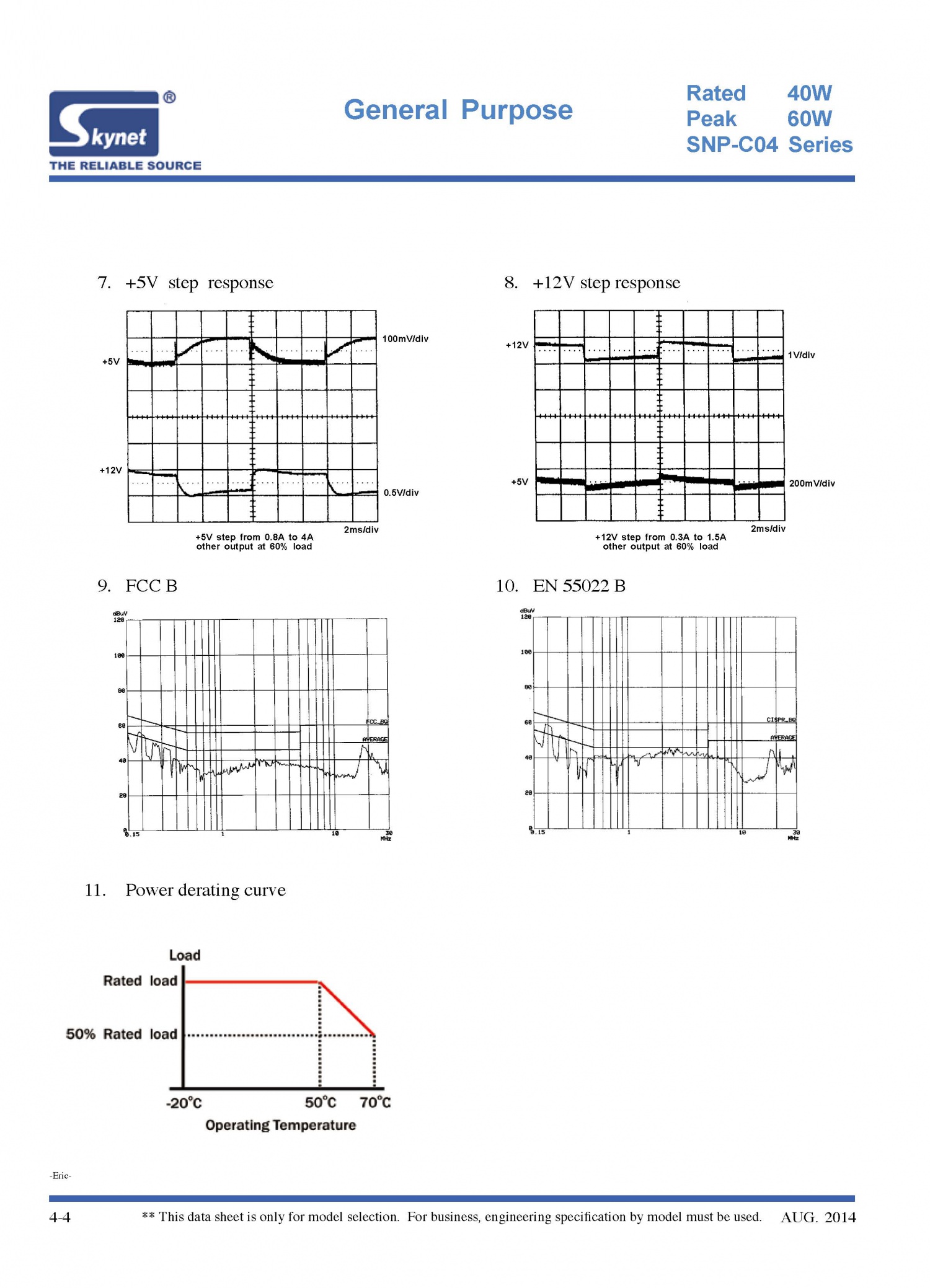

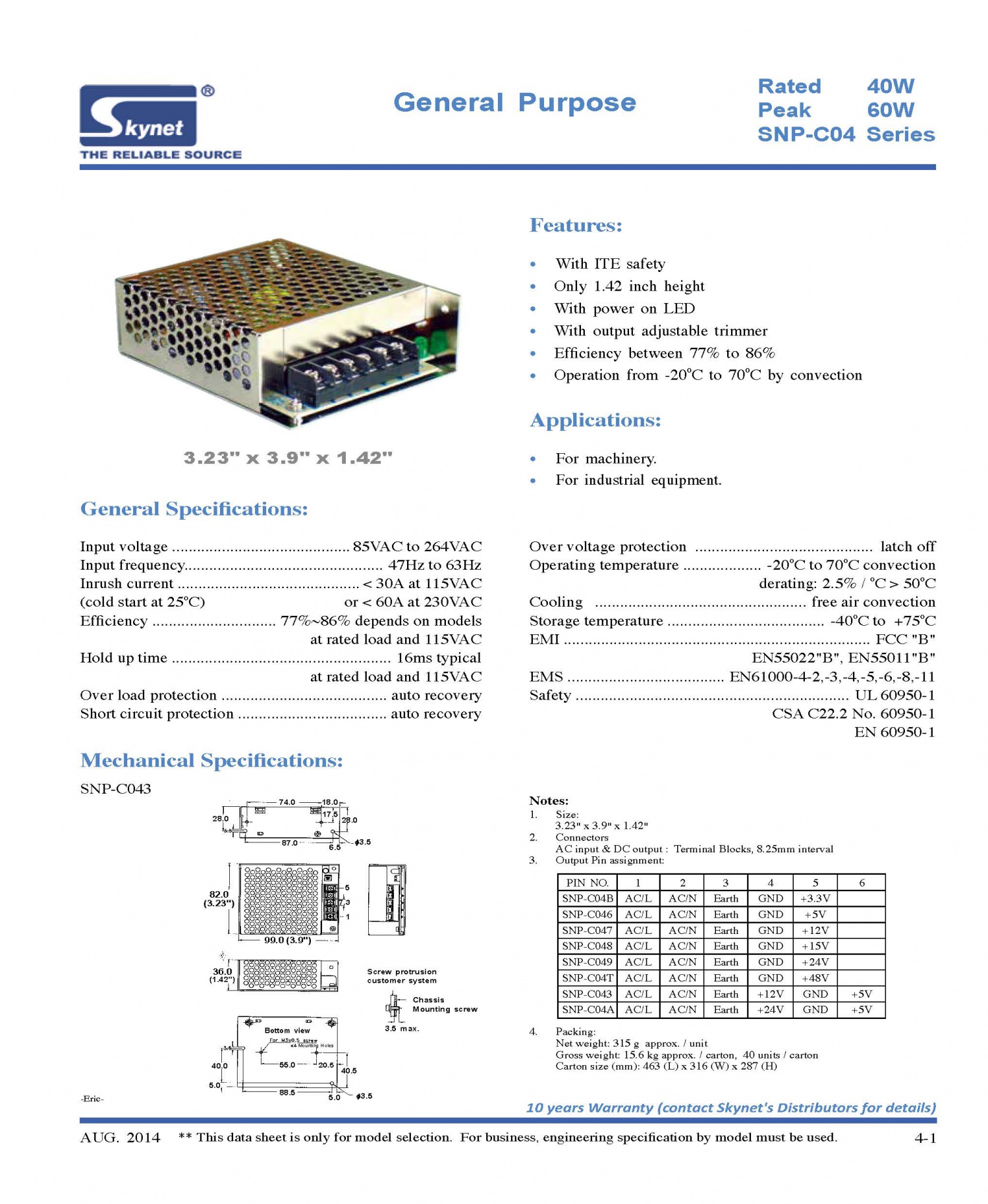

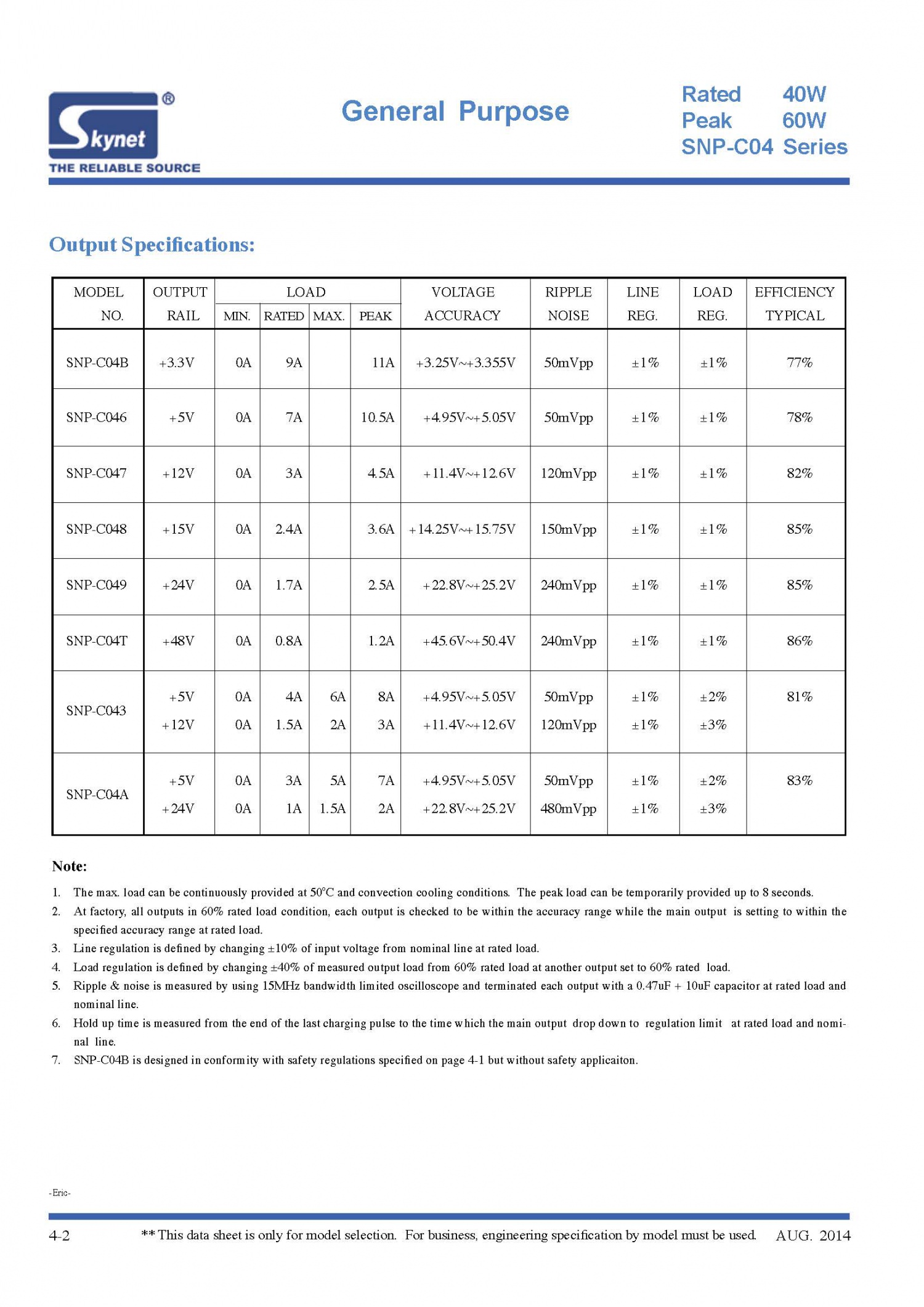

40W SNP-C04B +3.3V/9.00A 3.23"x3.9"x1.42"
40W SNP-C046 +5V/7.00A 3.23"x3.9"x1.42"
40W SNP-C047 +12V/3.00A 3.23"x3.9"x1.42"
40W SNP-C048 +15V/2.40A 3.23"x3.9"x1.42"
40W SNP-C049 +24V/1.70A 3.23"x3.9"x1.42"
40W SNP-C04T +48V/0.80A 3.23"x3.9"x1.42"

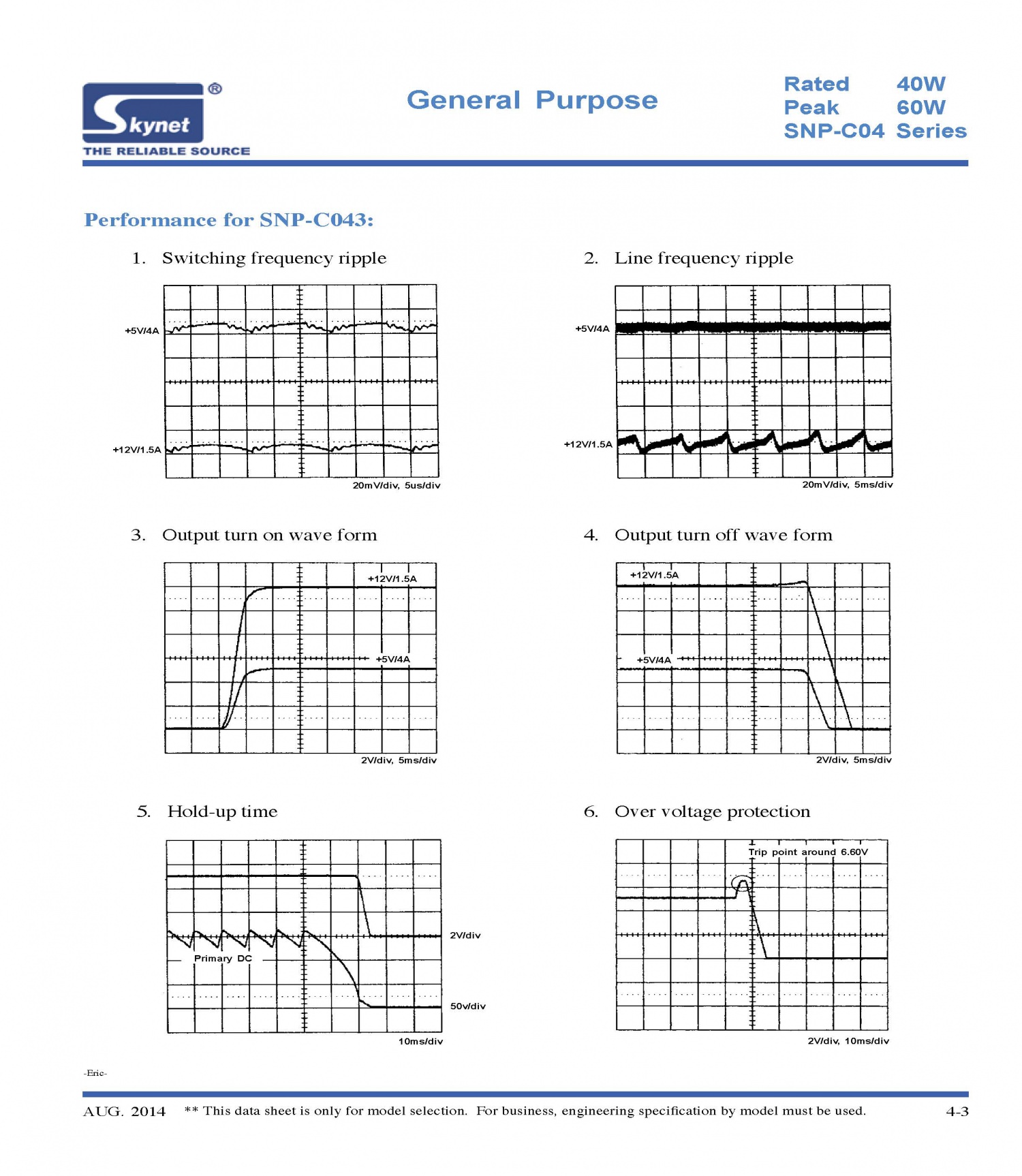

40W SNP-C043 +5V/4.00A, +12V/1.50A 3.23"x3.9"x1.42"
40W SNP-C04A +5V/3.00A, +24V/1.00A 3.23"x3.9"x1.42"

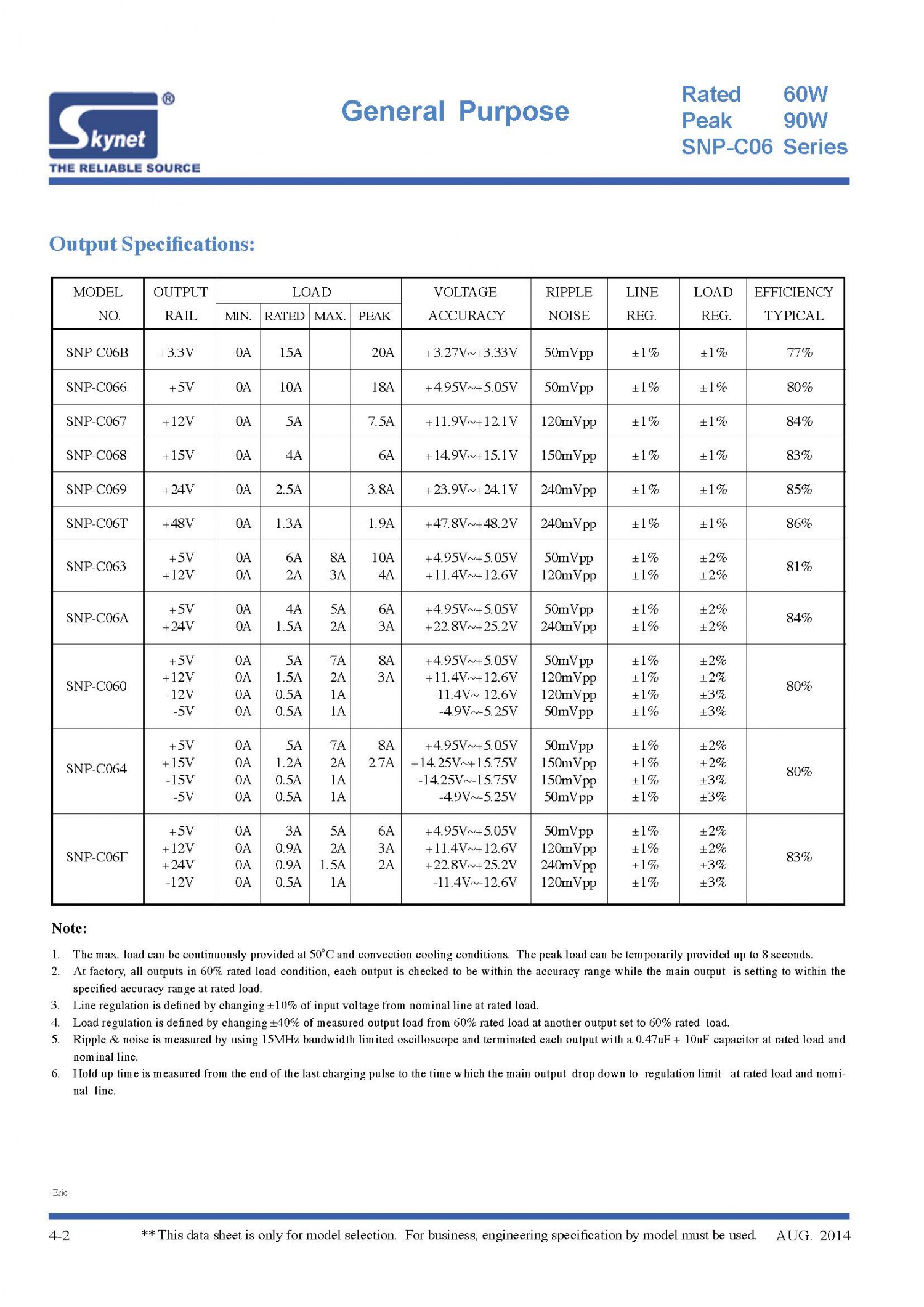

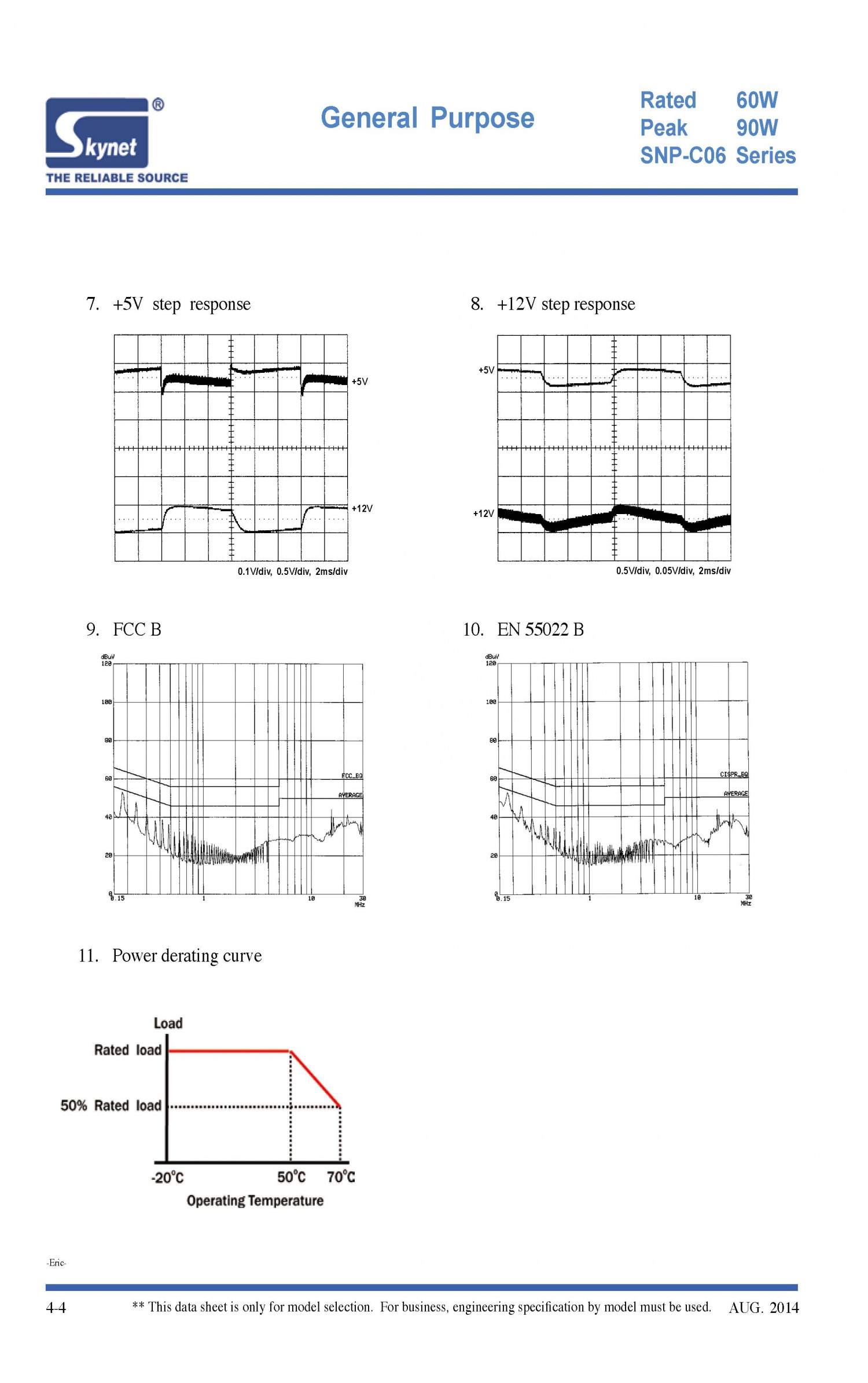

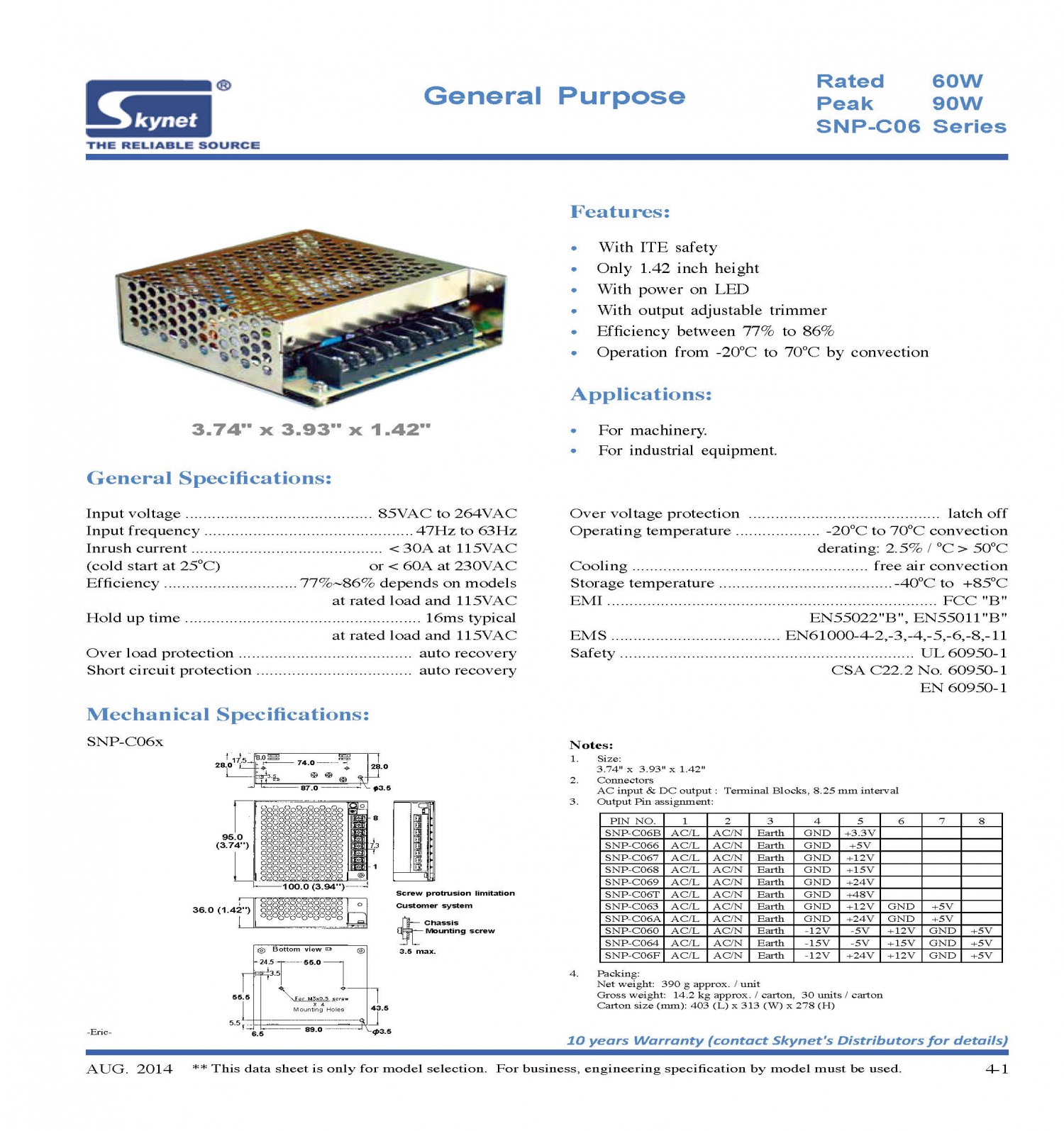

60W SNP-C06B +3.3V/15A 3.74"x3.93"x1.42"
60W SNP-C066 +5V/10A 3.74"x3.93"x1.42"
60W SNP-C067 +12V/5A 3.74"x3.93"x1.42"
60W SNP-C068 +15V/4A 3.74"x3.93"x1.42"
60W SNP-C069 +24V/2.5A 3.74"x3.93"x1.42"
60W SNP-C06T +48V/1.3A 3.74"x3.93"x1.42"
60W SNP-C063 +5V/6A, +12V/2A 3.74"x3.93"x1.42"
60W SNP-C06A +5V/4A, +24V/1.5A 3.74"x3.93"x1.42"

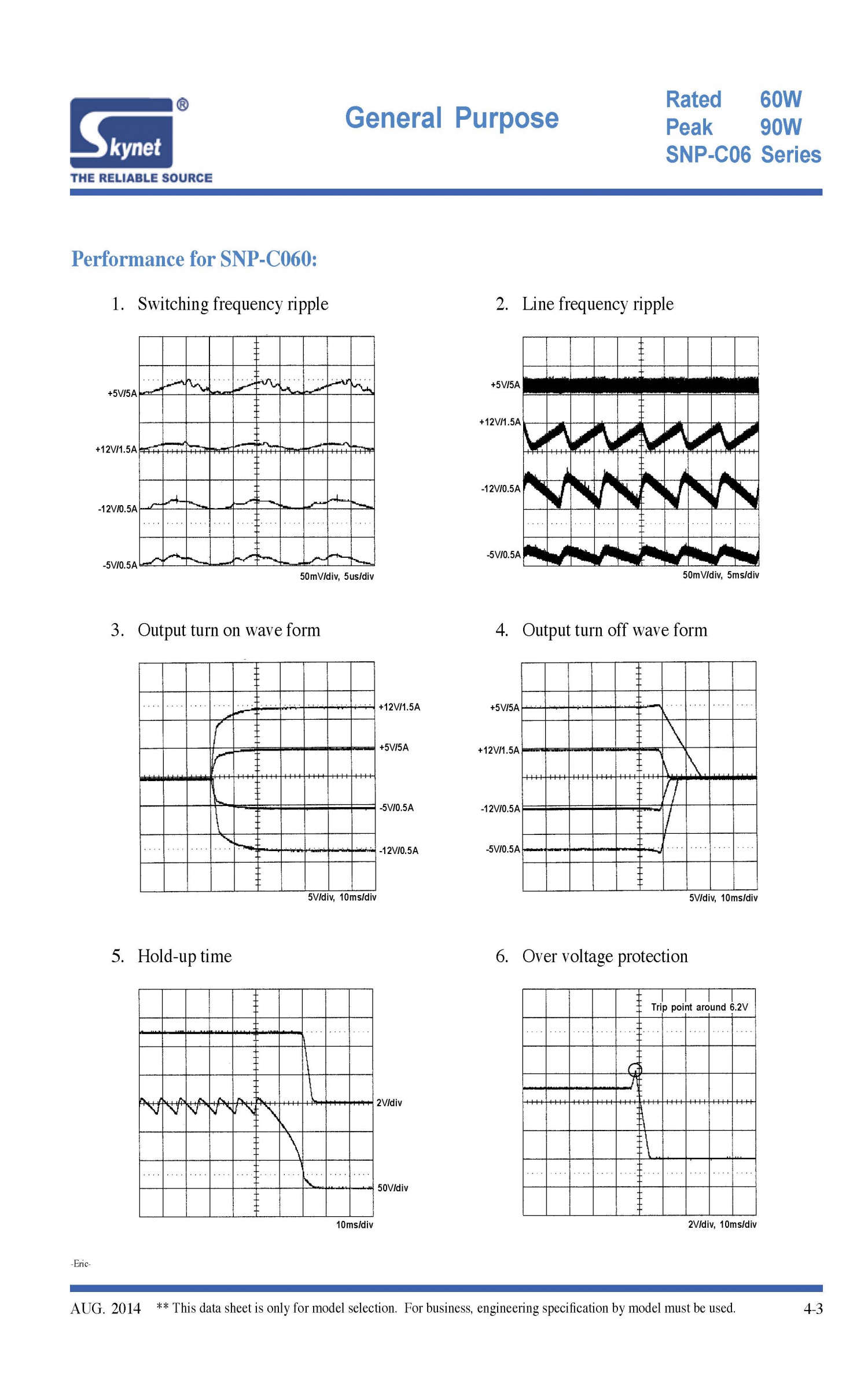

60W SNP-C060 +5V/5A, +12V/1.5A, -12V/0.5A, -5V/0.5A 3.74"x3.93"x1.42"
60W SNP-C064 +5V/5A, +15V/1.2A, -15V/0.5A, -5V/0.5A 3.74"x3.93"x1.42"
60W SNP-C06F +5V/3A, +12V/0.9A, +24V/0.9A, -12V/0.5A 3.74"x3.93"x1.42"

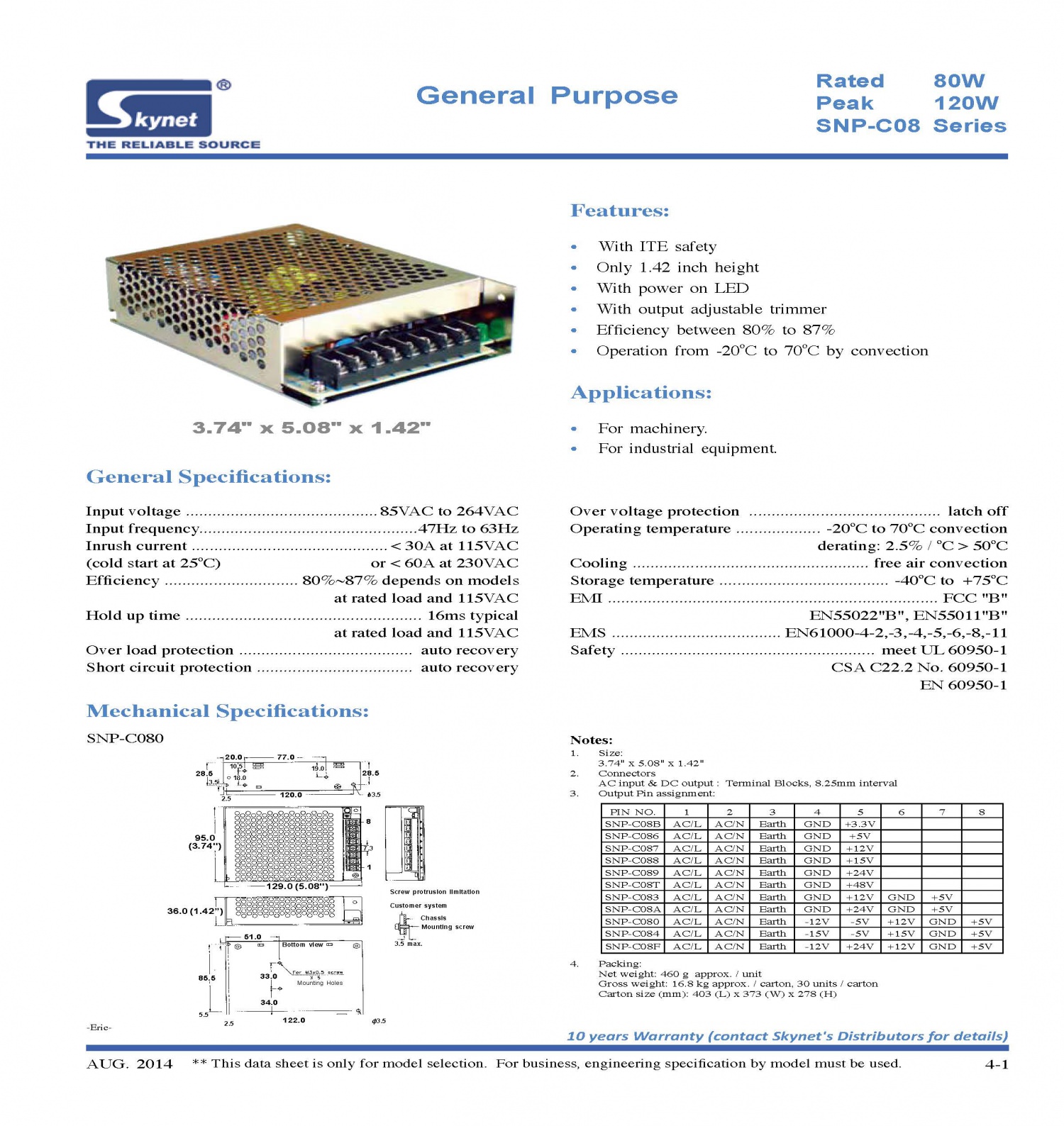

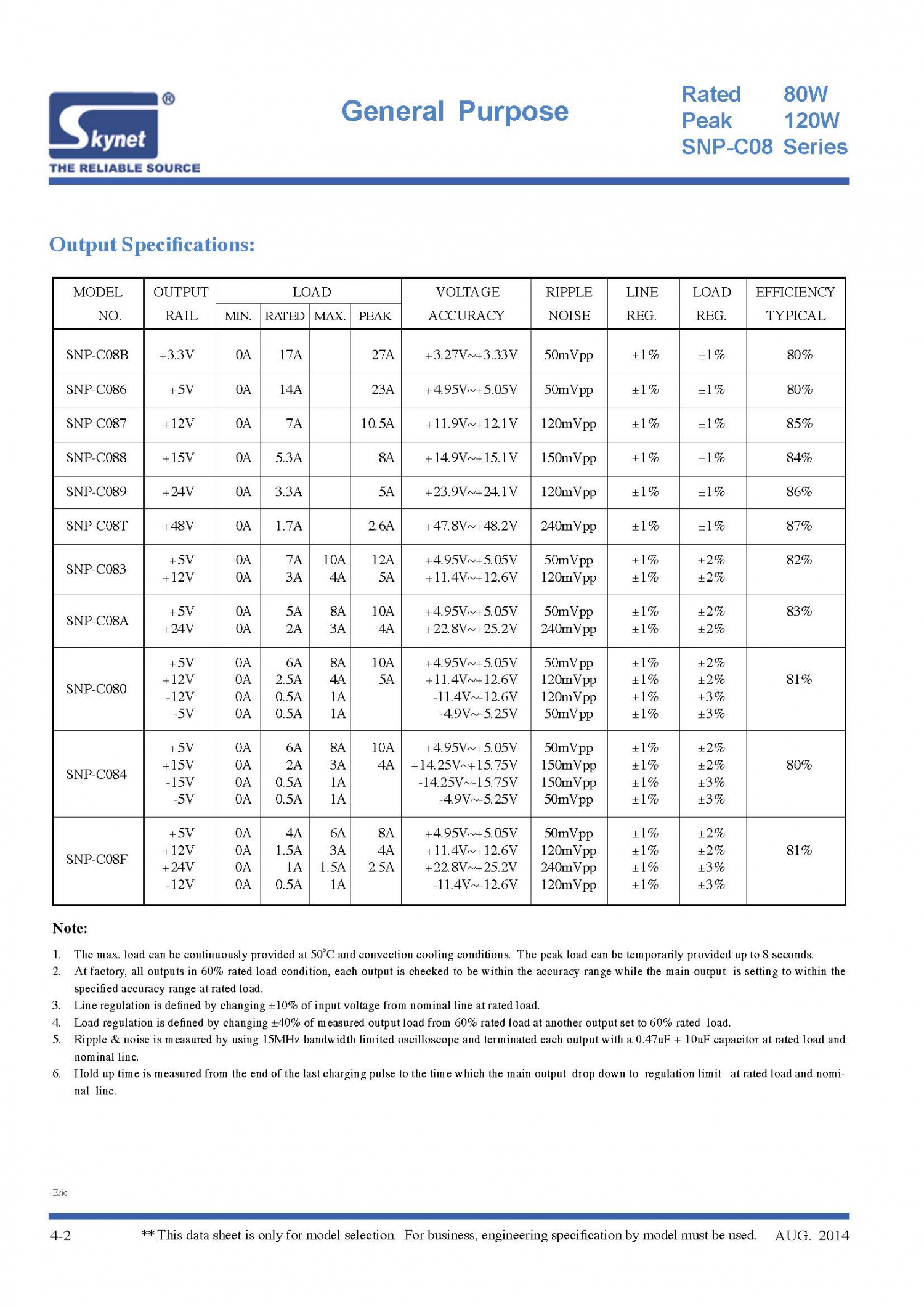

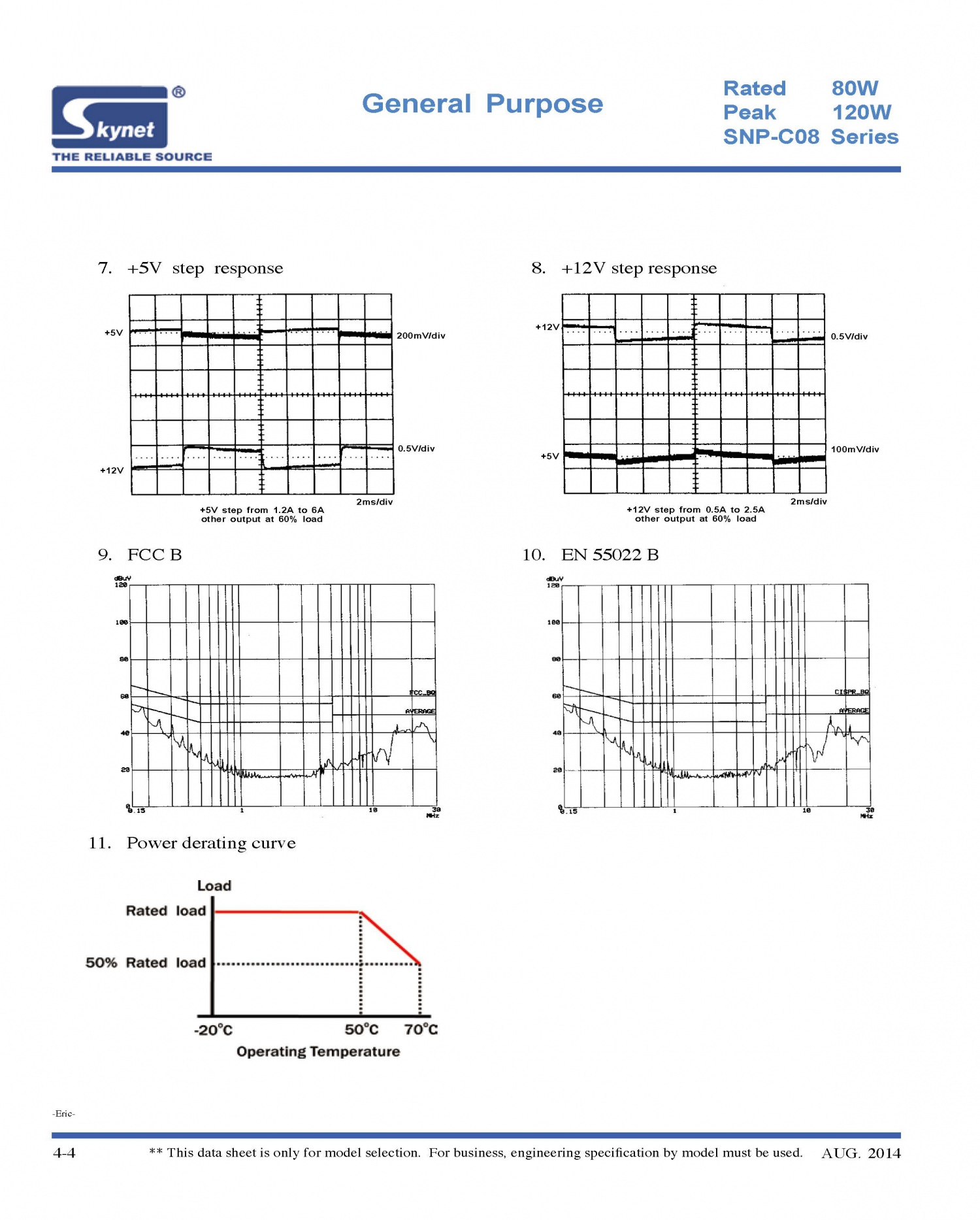

80W SNP-C08B +3.3V/17A 3.74"x5.08"x1.42"
80W SNP-C086 +5V/14A 3.74"x5.08"x1.42"
80W SNP-C087 +12V/7A 3.74"x5.08"x1.42"
80W SNP-C088 +15V/5.3A 3.74"x5.08"x1.42"
80W SNP-C089 +24V/3.3A 3.74"x5.08"x1.42"
80W SNP-C08T +48V/1.7A 3.74"x5.08"x1.42"
80W SNP-C083 +5V/7A, +12V/3A 3.74"x5.08"x1.42"
80W SNP-C08A +5V/5A, +24V/2A 3.74"x5.08"x1.42"

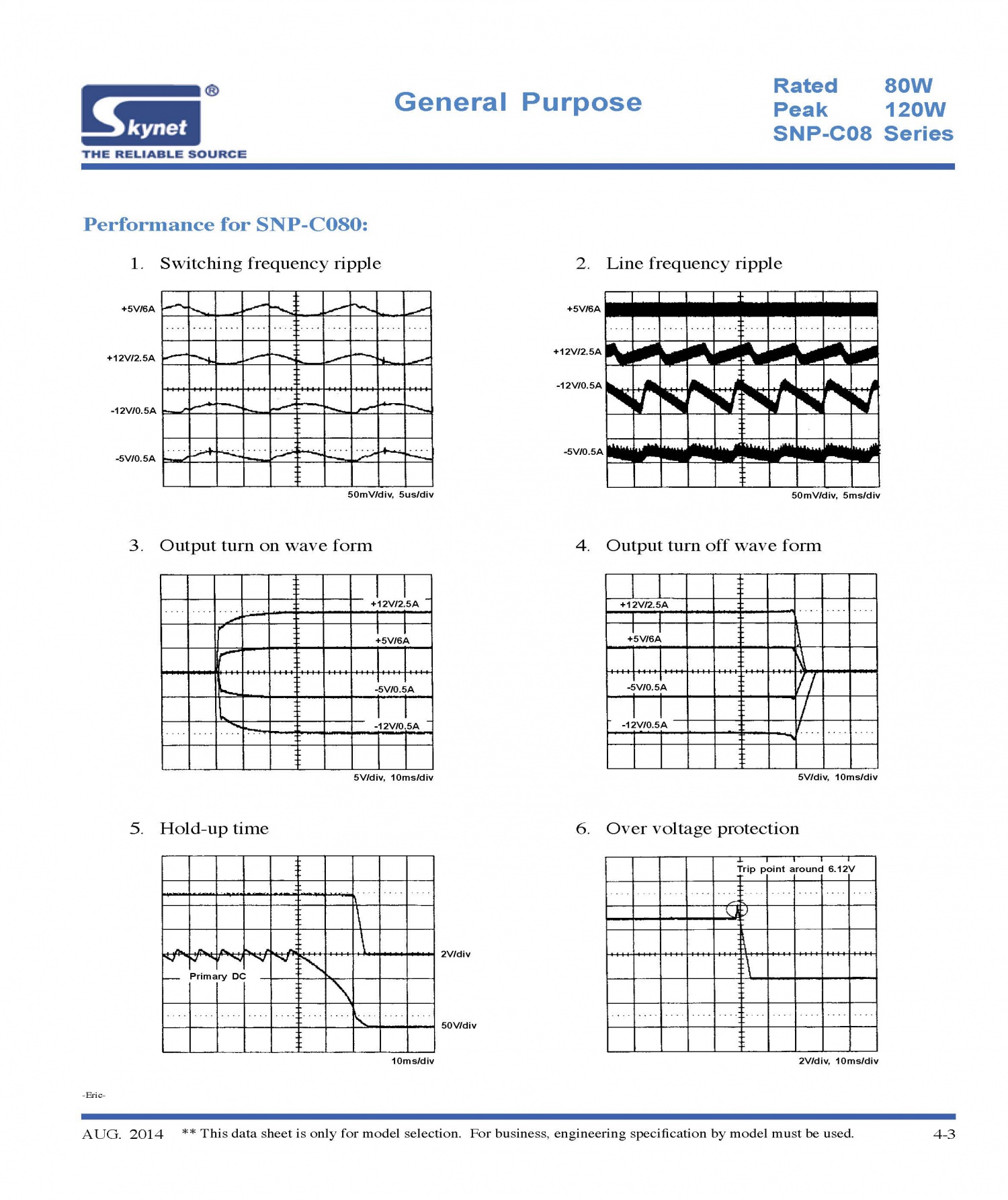

80W SNP-C080 +5V/6A, +12V/2.5A, -12V/0.5A, -5V/0.5A 3.74"x5.08"x1.42"
80W SNP-C084 +5V/6A, +15V/2A, -15V/0.5A, -5V/0.5A 3.74"x5.08"x1.42"
80W SNP-C08F +5V/4A, +12V/1.5A, +24V/1A, -12V/0.5A 3.74"x5.08"x1.42"

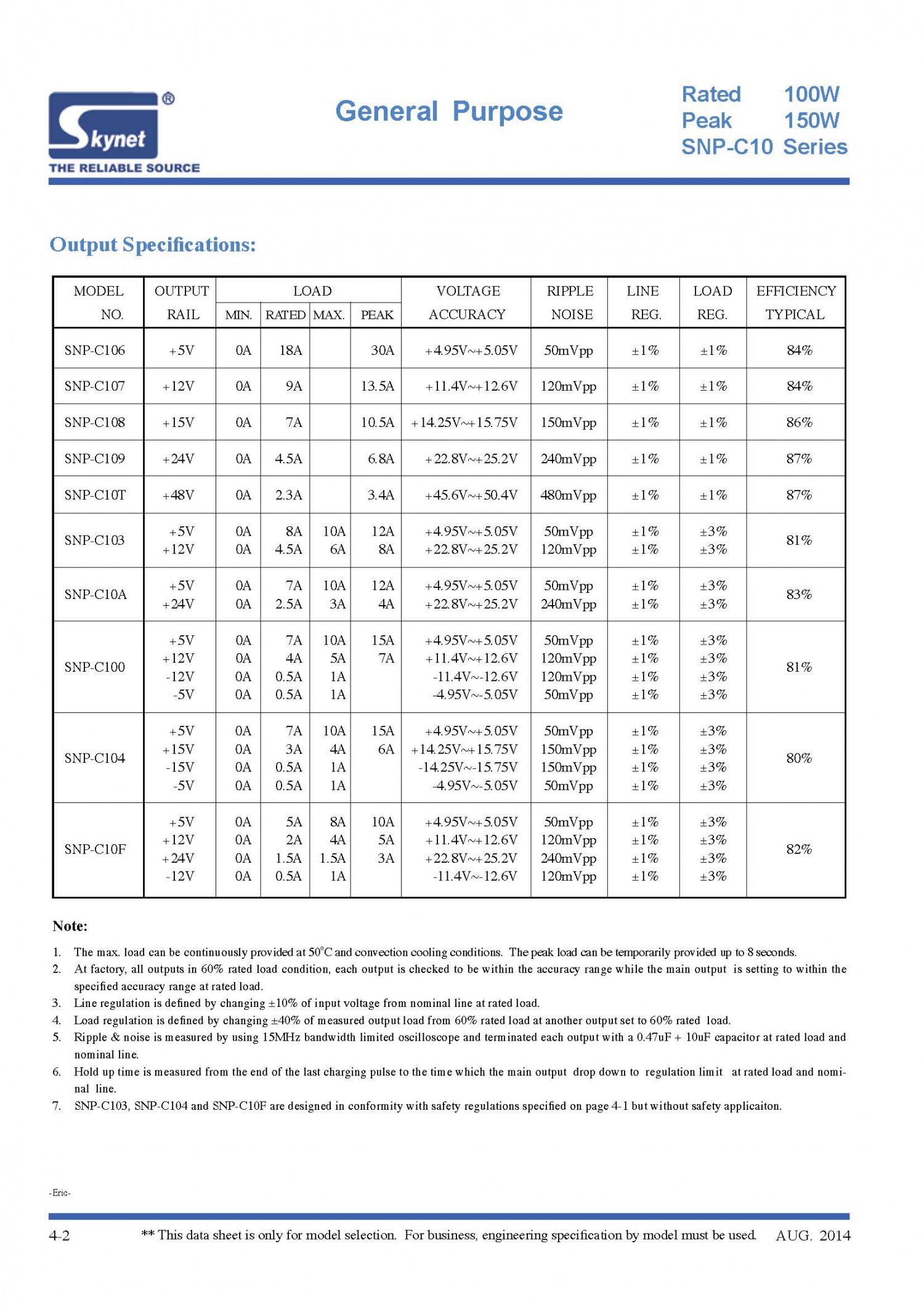

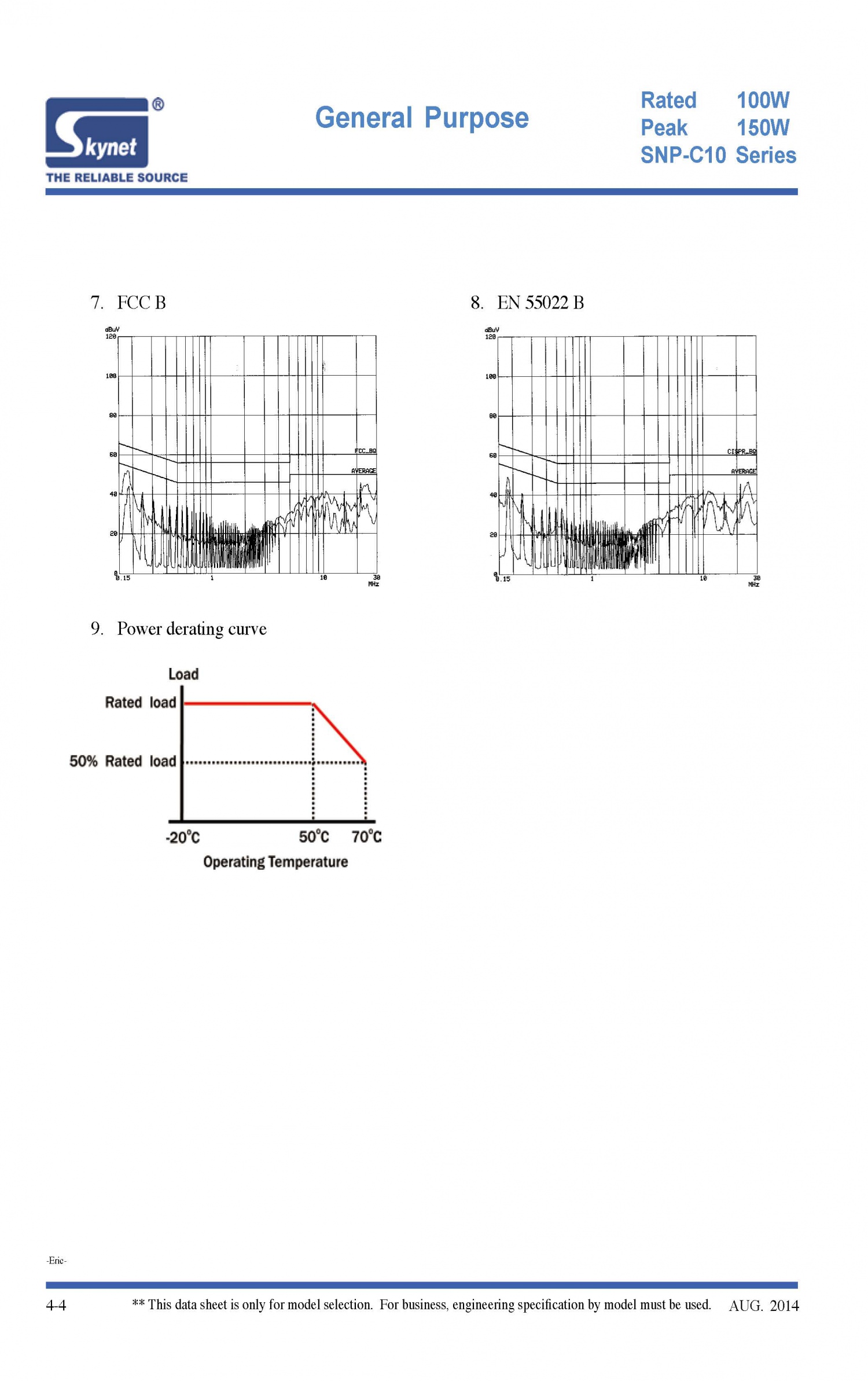

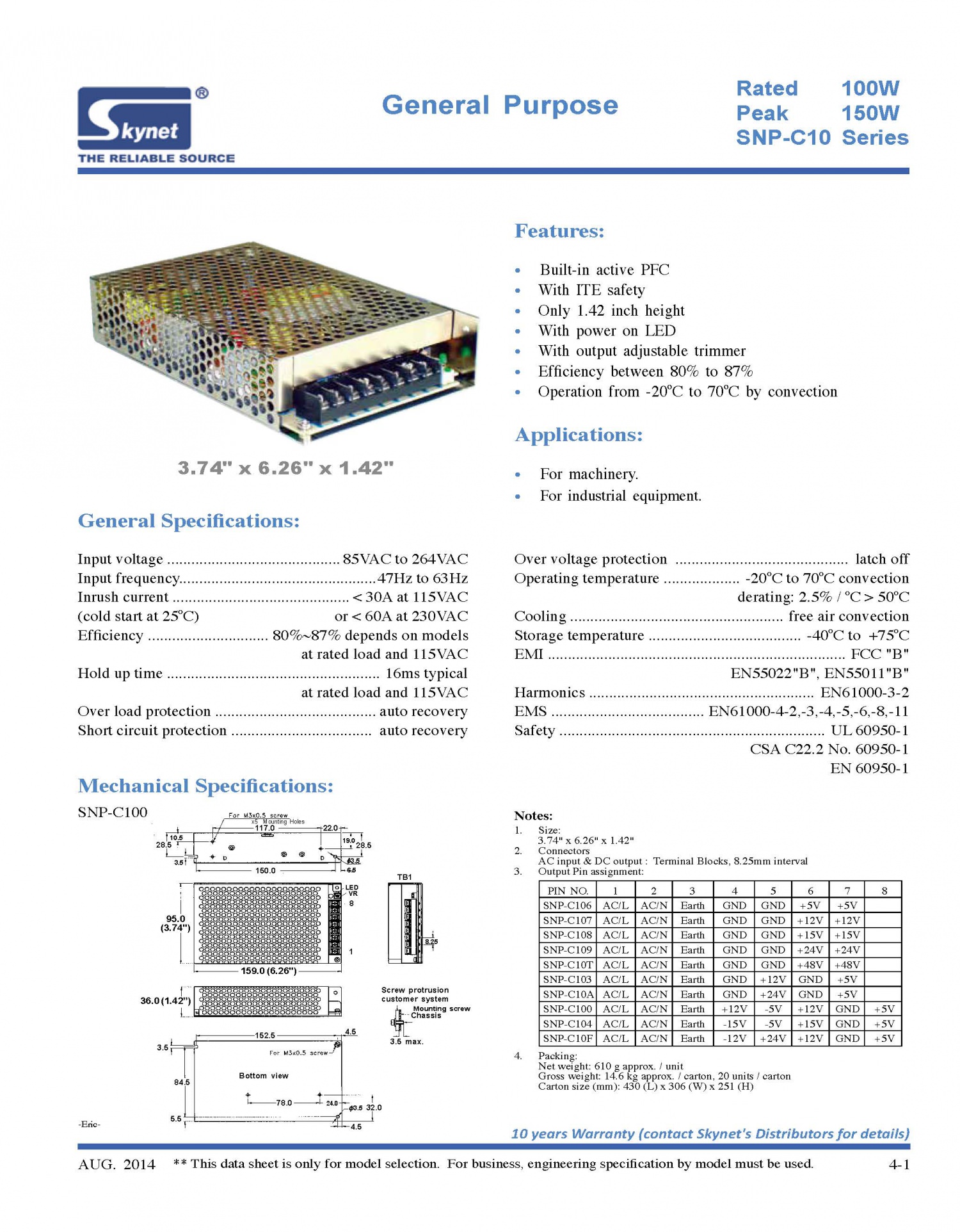

100W SNP-C106 +5V/18A 3.74"x6.26"x1.42"
100W SNP-C107 +12V/9A 3.74"x6.26"x1.42"
100W SNP-C108 +15V/7A 3.74"x6.26"x1.42"
100W SNP-C109 +24V/4.5A 3.74"x6.26"x1.42"
100W SNP-C10T +48V/2.3A 3.74"x6.26"x1.42"
100W SNP-C103 +5V/8A, +12V/4.5A 3.74"x6.26"x1.42"
100W SNP-C10A +5V/7A, +24V/2.5A 3.74"x6.26"x1.42"

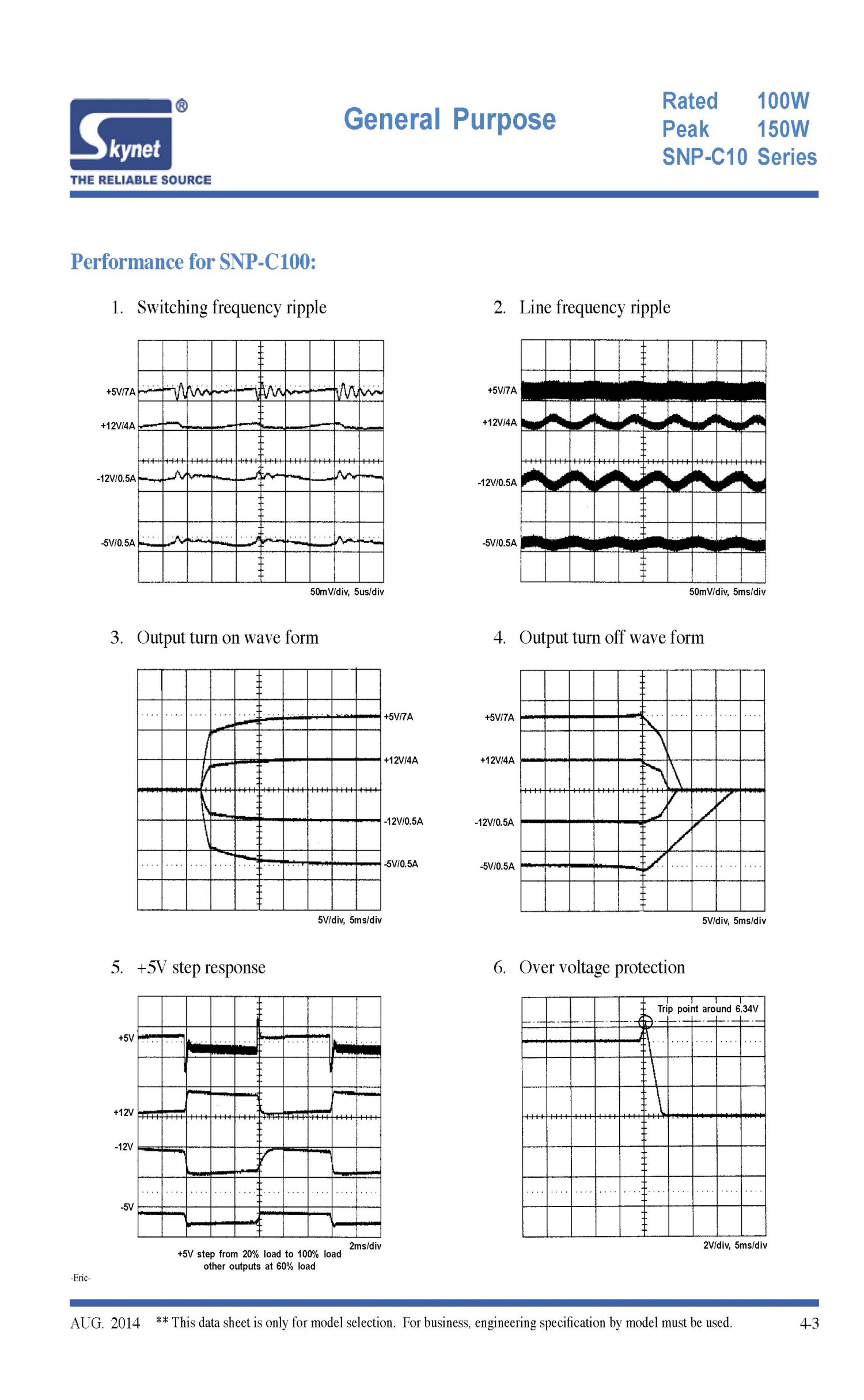

100W SNP-C100 +5V/7A, +12V/4A, -12V/0.5A, -5V/0.5A 3.74"x6.26"x1.42"
100W SNP-C104 +5V/7A, +15V/3A, -15V/0.5A, -5V/0.5A 3.74"x6.26"x1.42"
100W SNP-C10F +5V/5A, +12V/2A, +24V/1.5A, -12V/0.5A 3.74"x6.26"x1.42"

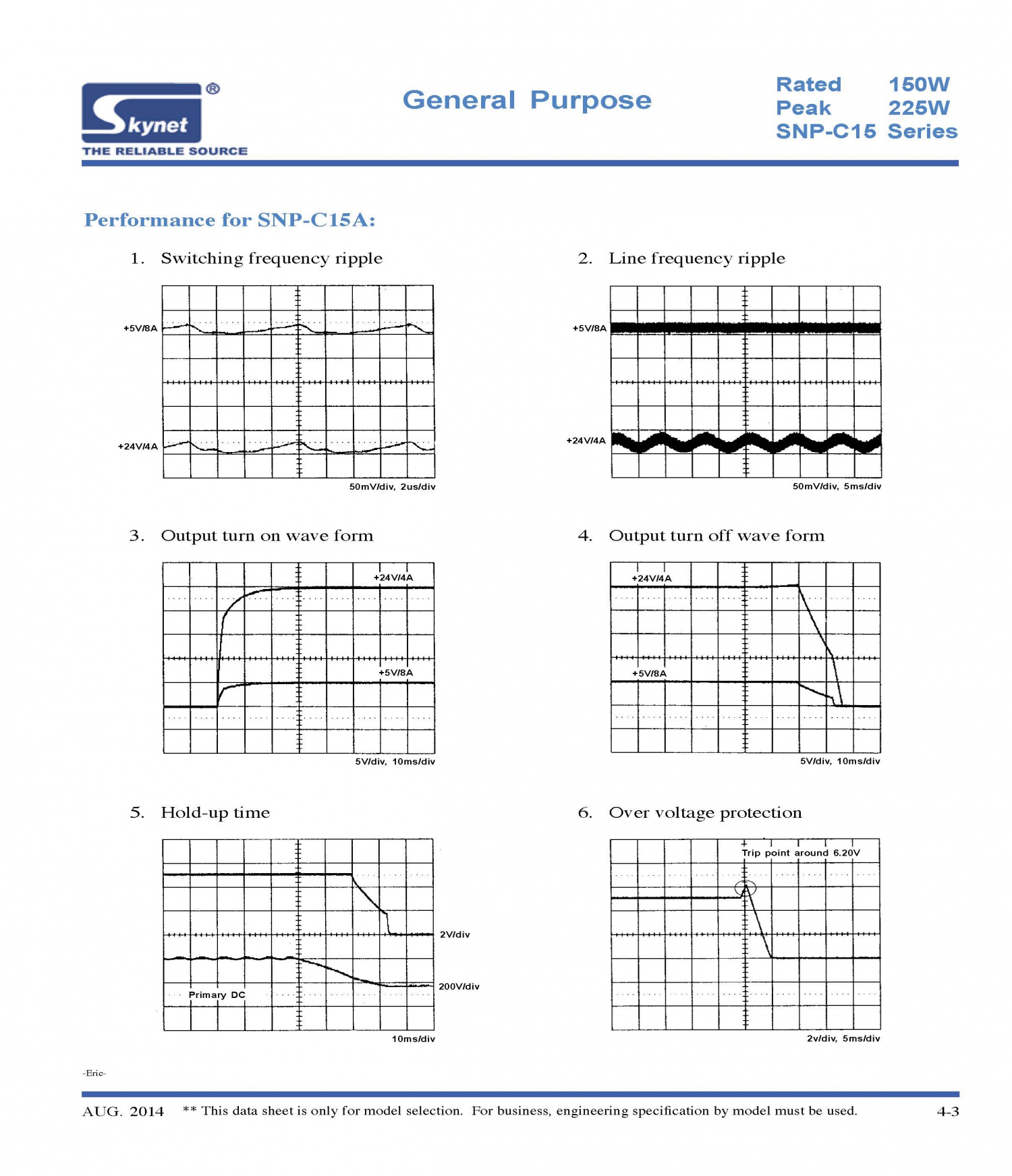

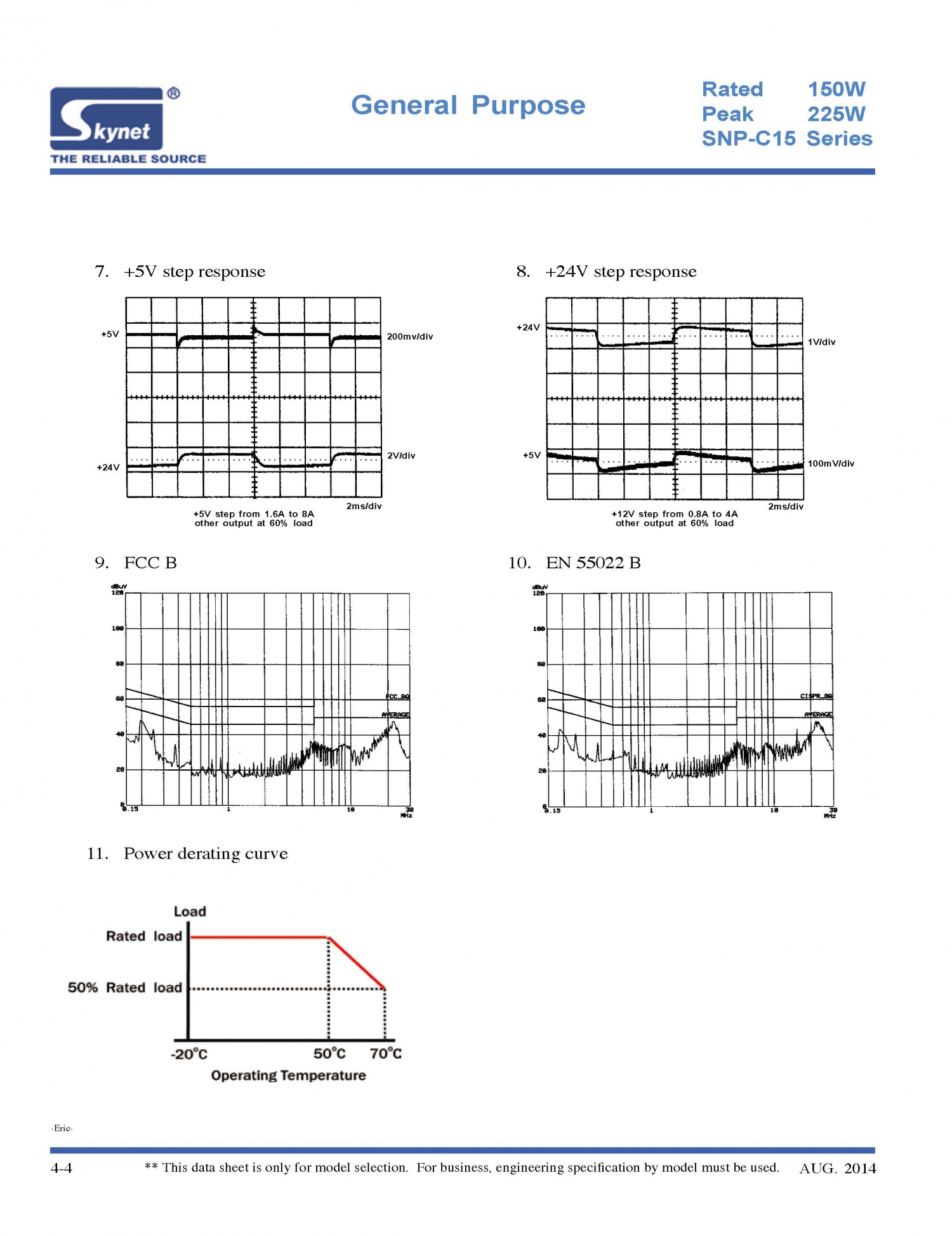

150W SNP-C157 +12V/12.5A 3.74"x7.83"x1.5"
150W SNP-C158 +15V/10A 3.74"x7.83"x1.5"
150W SNP-C159 +24V/6.5A 3.74"x7.83"x1.5"
150W SNP-C15T +48V/3.2A 3.74"x7.83"x1.5"
150W SNP-C153 +5V/12A, +12V/6A 3.74"x7.83"x1.5"
150W SNP-C15A +5V/8A, +24V/4A 3.74"x7.83"x1.5"
150W SNP-C150 +5V/12A, +12V/5A, -12V /0.5A, -5V/1A 3.74"x7.83"x1.5"
150W SNP-C154 +5V/11A, +15V/4A, -15V/0.5A, -5V/1A 3.74"x7.83"x1.5"
150W SNP-C15F +5V/6A, +12V/3A, +24V/2.5A, -12V/0.5A 3.74"x7.83"x1.5"
