Product

Features:

ITE and Medical Applications

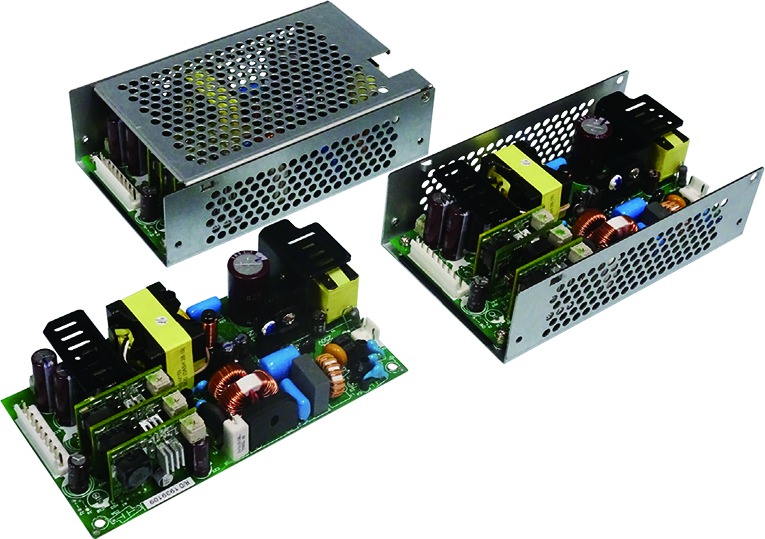

SNP-M159-X (150W, Open Frame)

SNP-M159-XU (150W, with metal U-shape P.S.)

SNP-M159-XC (150W, with metal Enclosure P.S.)

SNP-M20 (200W), SNP-M30 (300W)





Output Specifications:
Rated Power Model No. OUTPUT Size WxLxH
150W SNP-M159-1 +24V/3.2A, +5V/4.5A, +12V/4A, -12V/1.25A 3.15"x5.9"x1.4"
150W SNP-M159-1U +24V/3.2A, +5V/4.5A, +12V/4A, -12V/1.25A 3.15"x5.9"x1.4"
150W SNP-M159-1C +24V/3.2A, +5V/4.5A, +12V/4A, -12V/1.25A 3.15"x5.9"x1.4"
150W SNP-M159-2 +24V/3.5A, +5V/4.5A, +36V/1.3A, -12V/0.6A 3.15"x5.9"x1.4"
150W SNP-M159-2U +24V/3.5A, +5V/4.5A, +36V/1.3A, -12V/0.6A 3.15"x5.9"x1.4"
150W SNP-M159-2C +24V/3.5A, +5V/4.5A, +36V/1.3A, -12V/0.6A 3.15"x5.9"x1.4"
150W SNP-M159-3 +24V/3.5A, +12V/4A, +36V/1.3A, -12V/0.6A 3.15"x5.9"x1.4"
150W SNP-M159-3U +24V/3.5A, +12V/4A, +36V/1.3A, -12V/0.6A 3.15"x5.9"x1.4"
150W SNP-M159-3C +24V/3.5A, +12V/4A, +36V/1.3A, -12V/0.6A 3.15"x5.9"x1.4"
150W SNP-M159-4 +24V/3.5A, +5V/4.5A, +48V/1A, -12V/0.6A 3.15"x5.9"x1.4"
150W SNP-M159-4U +24V/3.5A, +5V/4.5A, +48V/1A, -12V/0.6A 3.15"x5.9"x1.4"
150W SNP-M159-4C +24V/3.5A, +5V/4.5A, +48V/1A, -12V/0.6A 3.15"x5.9"x1.4"
150W SNP-M159-5 +24V/3.5A, +12V/4A, +48V/1A, -12V/0.6A 3.15"x5.9"x1.4"
150W SNP-M159-5U +24V/3.5A, +12V/4A, +48V/1A, -12V/0.6A 3.15"x5.9"x1.4"
150W SNP-M159-5C +24V/3.5A, +12V/4A, +48V/1A, -12V/0.6A 3.15"x5.9"x1.4"
300W SNP-M309-1 +24V/7A, +5V/9A, +12V/8A, -12V/2.5A 4"x6"x1.49"
