Features:

20~80W, w/o PFC

ITE and Medical applications

SNP-A02 (20W), SNP-A03 (30W),
SNP-A04 (40W), SNP-A06 (60W),
SNP-A07 (70W), SNP-A08 (80W)

Output Specifications:
Rated Power Model No. OUTPUT Size WxLxH

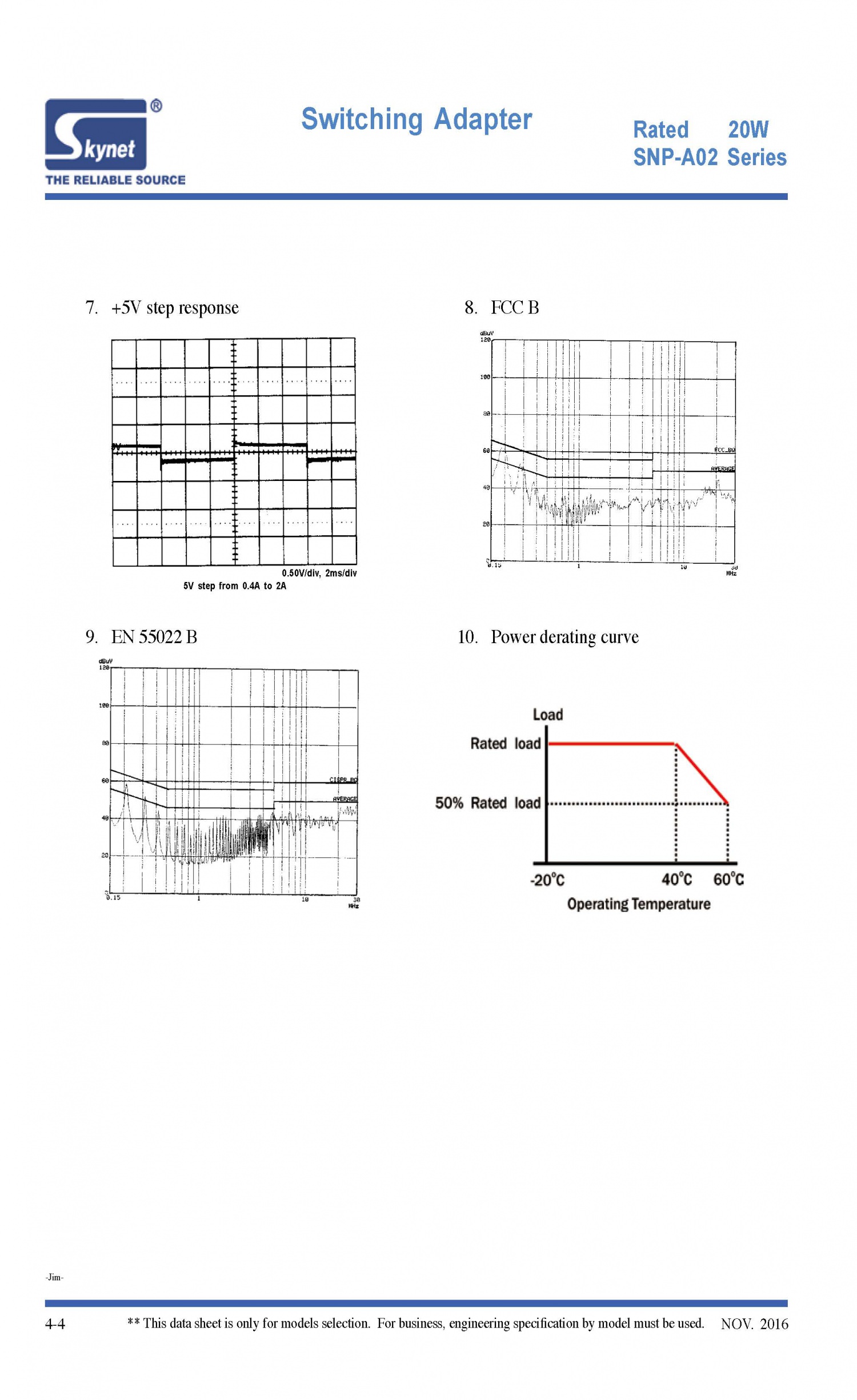

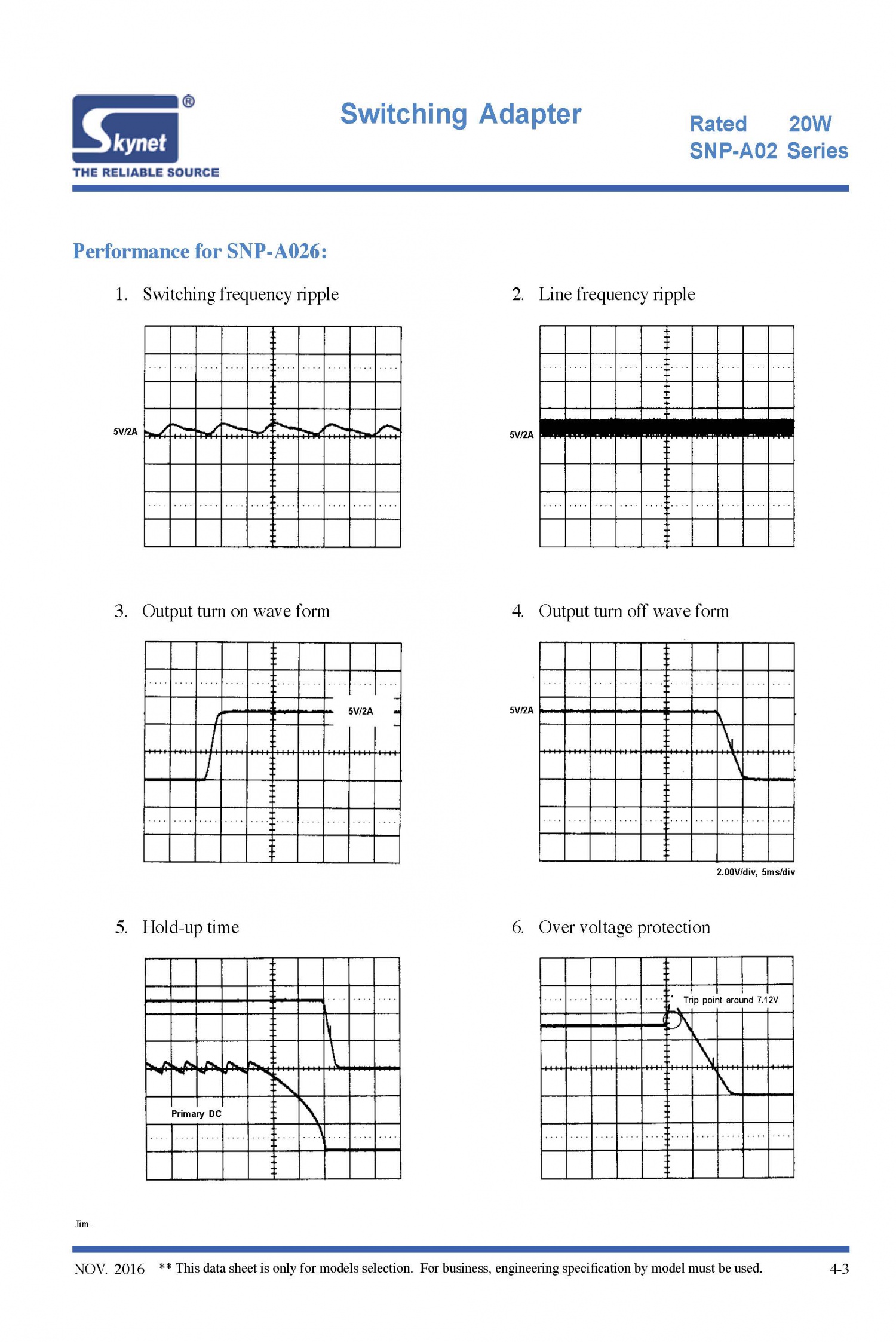

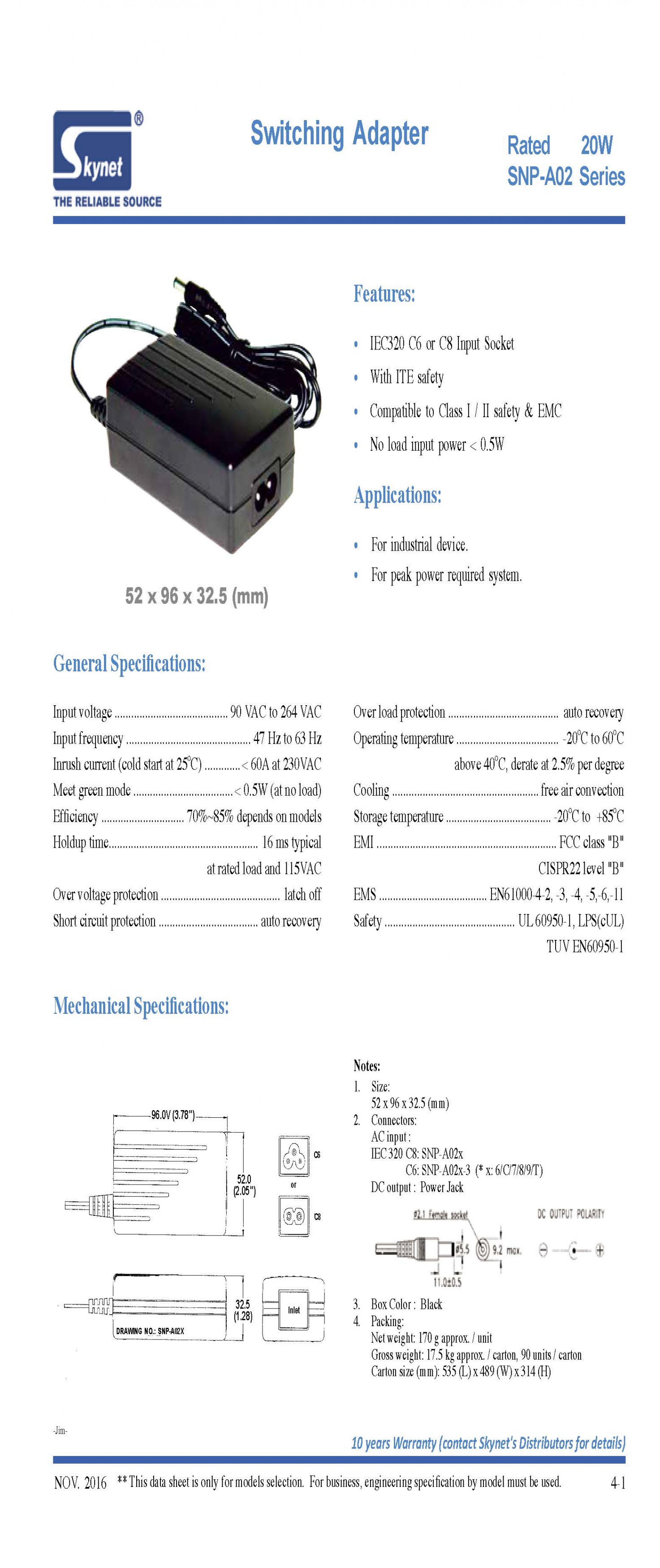

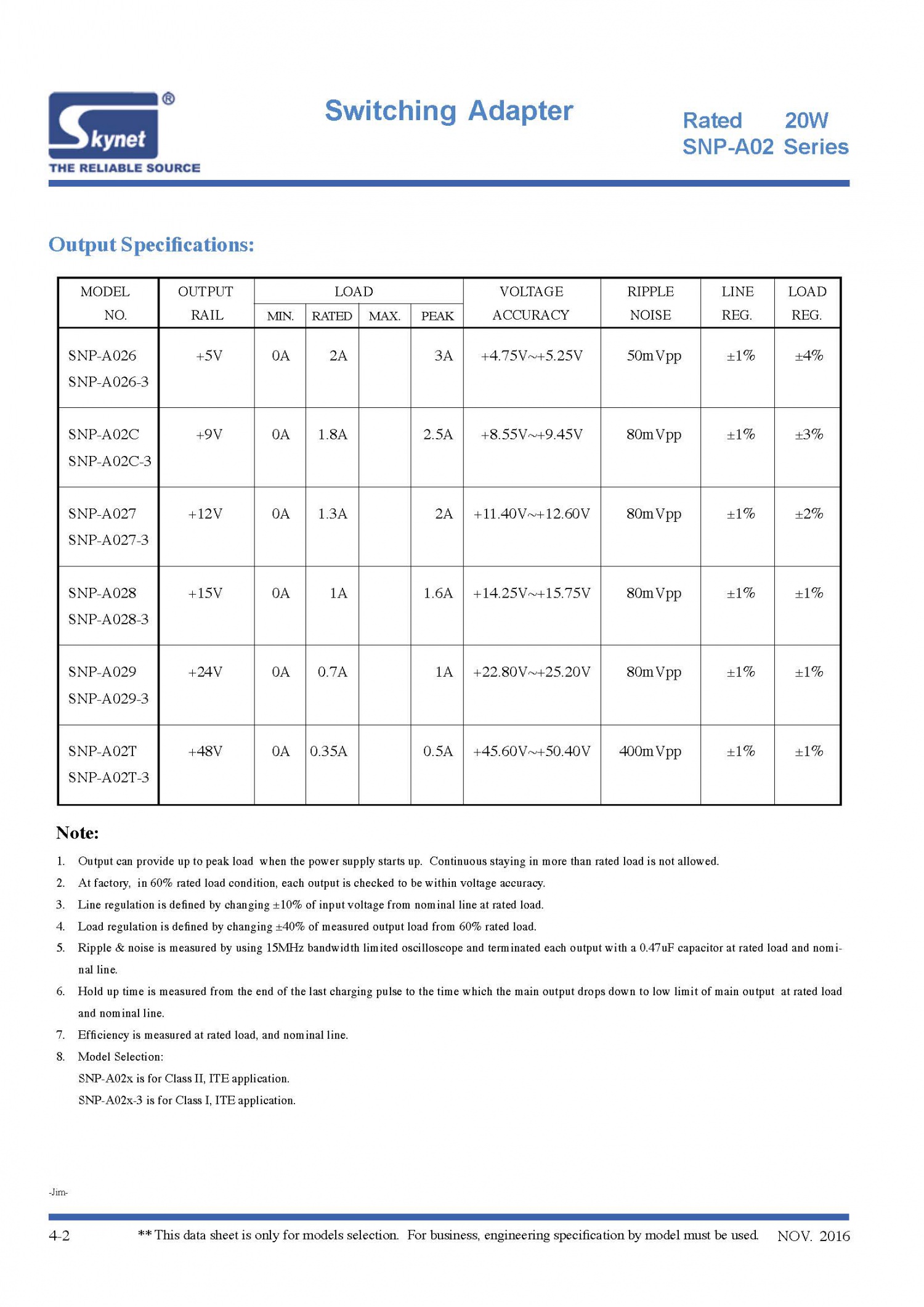

20W SNP-A026 +5V/2A 52x96x32.5
20W SNP-A026-3 +5V/2A 52x96x32.5
20W SNP-A02C +9V/1.8A 52x96x32.5
20W SNP-A02C-3 +9V/1.8A 52x96x32.5
20W SNP-A027 +12V/1.3A 52x96x32.5
20W SNP-A027-3 +12V/1.3A 52x96x32.5
20W SNP-A028 +15V/1A 52x96x32.5
20W SNP-A028-3 +15V/1A 52x96x32.5
20W SNP-A029 +24V/0.7A 52x96x32.5
20W SNP-A029-3 +24V/0.7A 52x96x32.5
20W SNP-A02T +48V/0.35A 52x96x32.5
20W SNP-A02T-3 +48V/0.35A 52x96x32.5
20W SNP-A026-M +5V/2.2A 52x96x32.5
20W SNP-A026-M3 +5V/2.2A 52x96x32.5
20W SNP-A027-M +12V/1.3A 52x96x32.5
20W SNP-A027-M3 +12V/1.3A 52x96x32.5
20W SNP-A028-M +15V/1A 52x96x32.5
20W SNP-A028-M3 +15V/1A 52x96x32.5
20W SNP-A029-M +24V/0.7A 52x96x32.5
20W SNP-A029-M3 +24V/0.7A 52x96x32.5

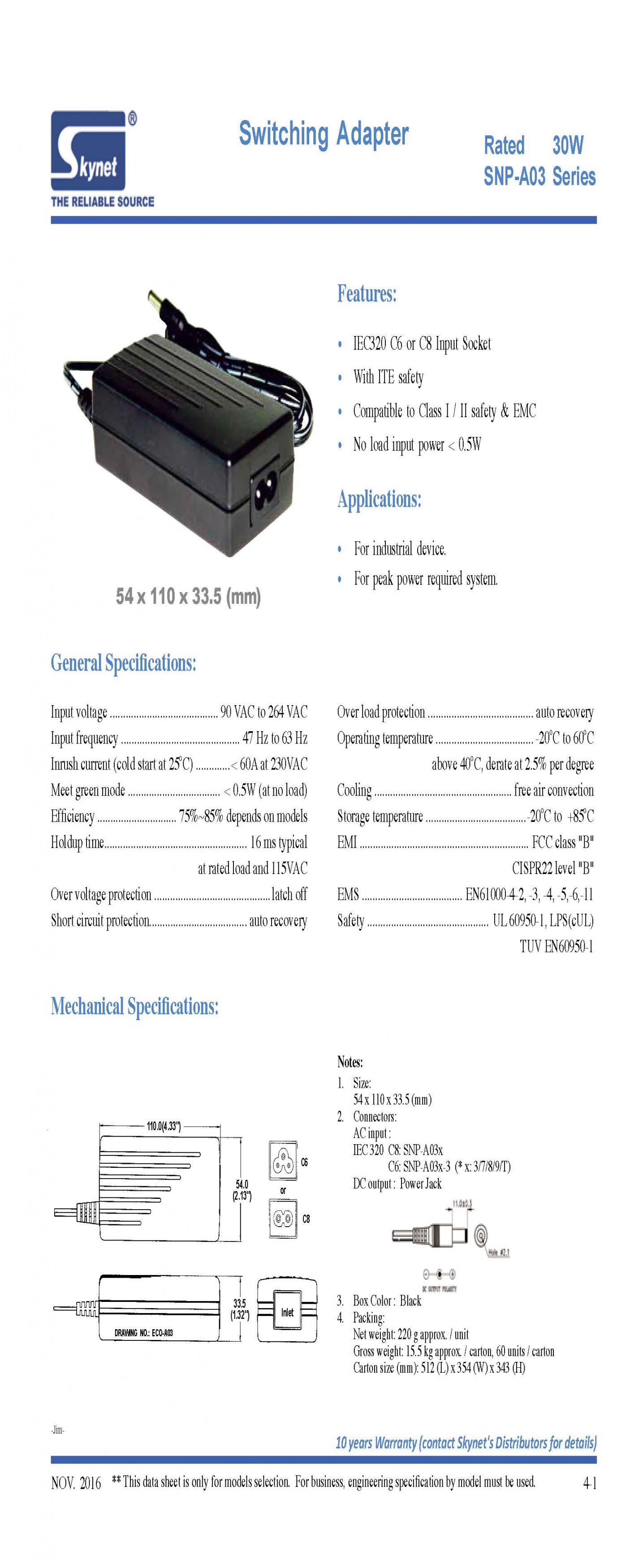

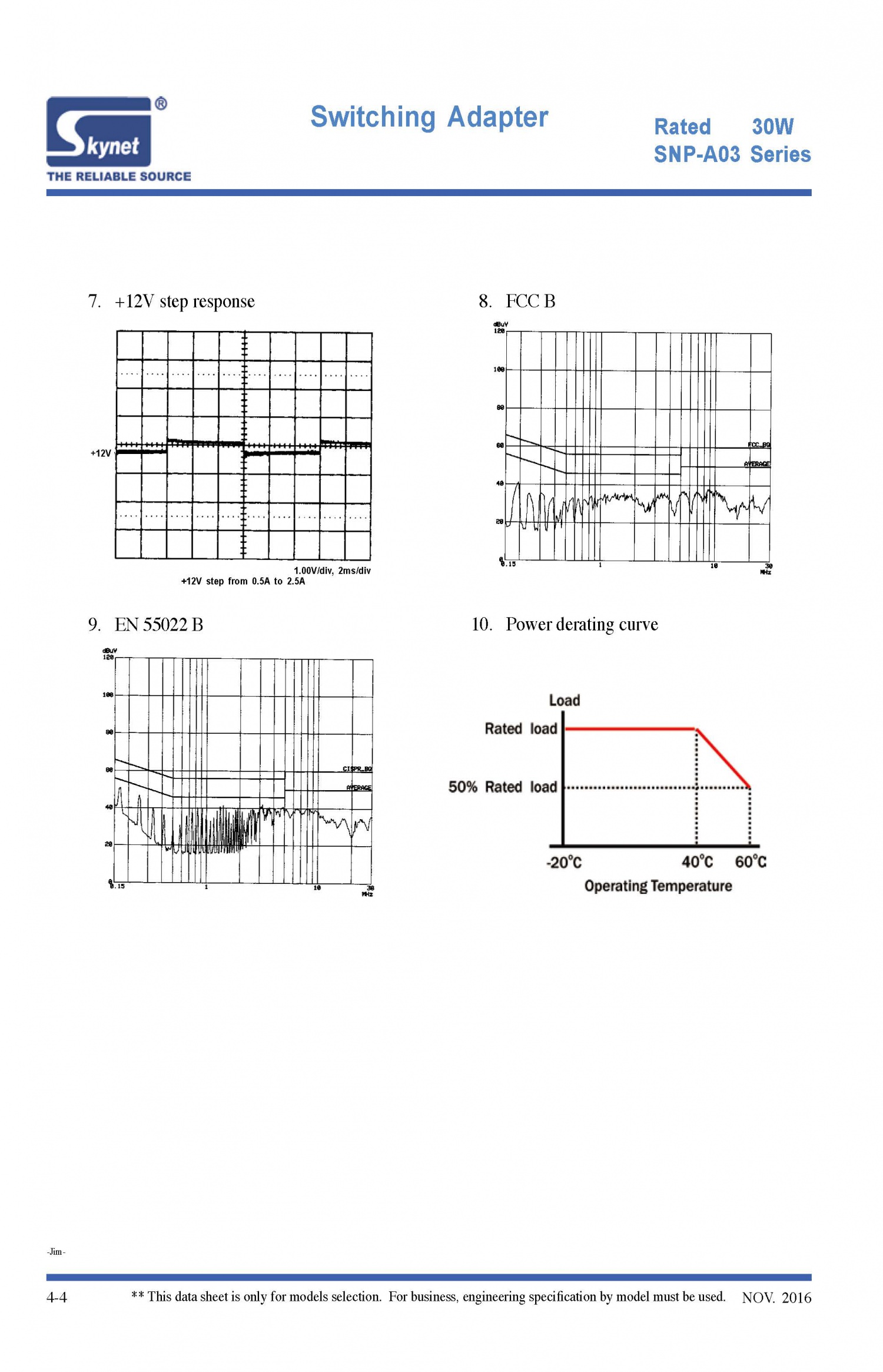

30W SNP-A03C +9V/3.3A 54x110x33.5
30W SNP-A03C-3 +9V/3.3A 54x110x33.5

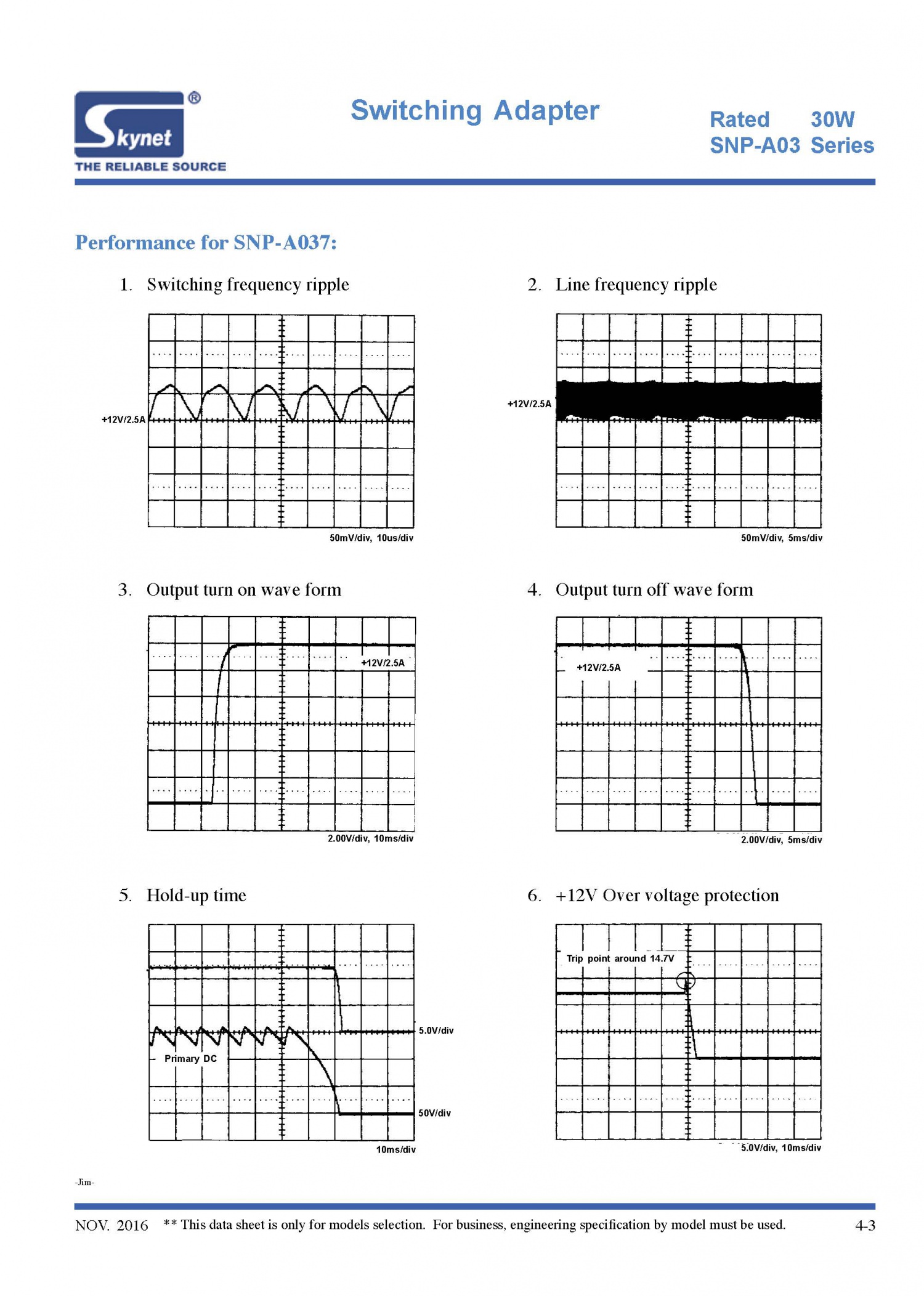

30W SNP-A037 +12V/2.5A 54x110x33.5
30W SNP-A037-3 +12V/2.5A 54x110x33.5
30W SNP-A038 +15V/2A 54x110x33.5
30W SNP-A038-3 +15V/2A 54x110x33.5
30W SNP-A039 +24V/1.3A 54x110x33.5
30W SNP-A039-3 +24V/1.3A 54x110x33.5
30W SNP-A03T +48V/0.75A 54x110x33.5
30W SNP-A03T-3 +48V/0.75A 54x110x33.5
30W SNP-A037-M +12V/2.5A 54x110x33.5
30W SNP-A037-M3 +12V/2.5A 54x110x33.5
30W SNP-A038-M +15V/2A 54x110x33.5
30W SNP-A038-M3 +15V/2A 54x110x33.5
30W SNP-A039-M +24V/1.3A 54x110x33.5
30W SNP-A039-M3 +24V/1.3A 54x110x33.5

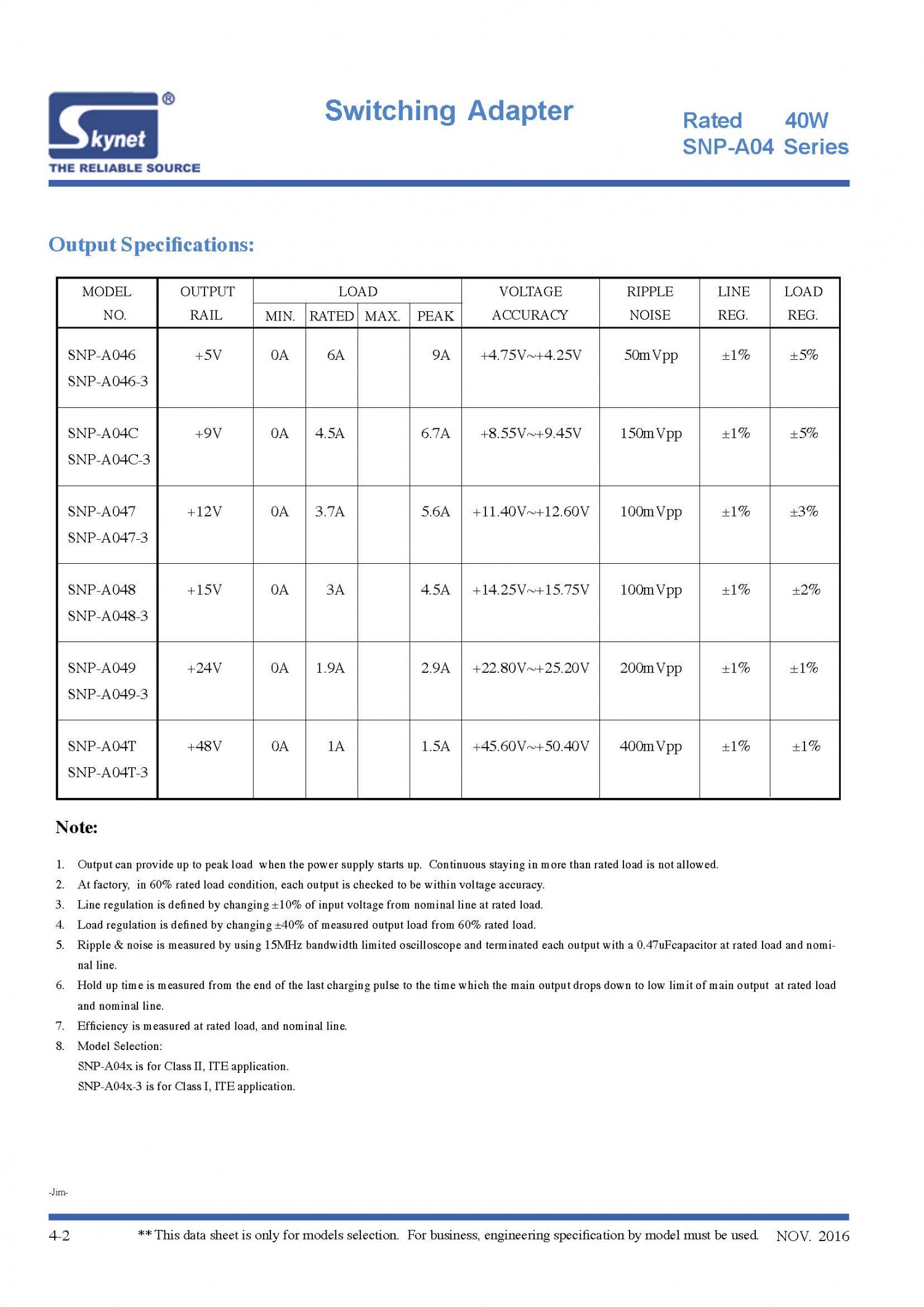

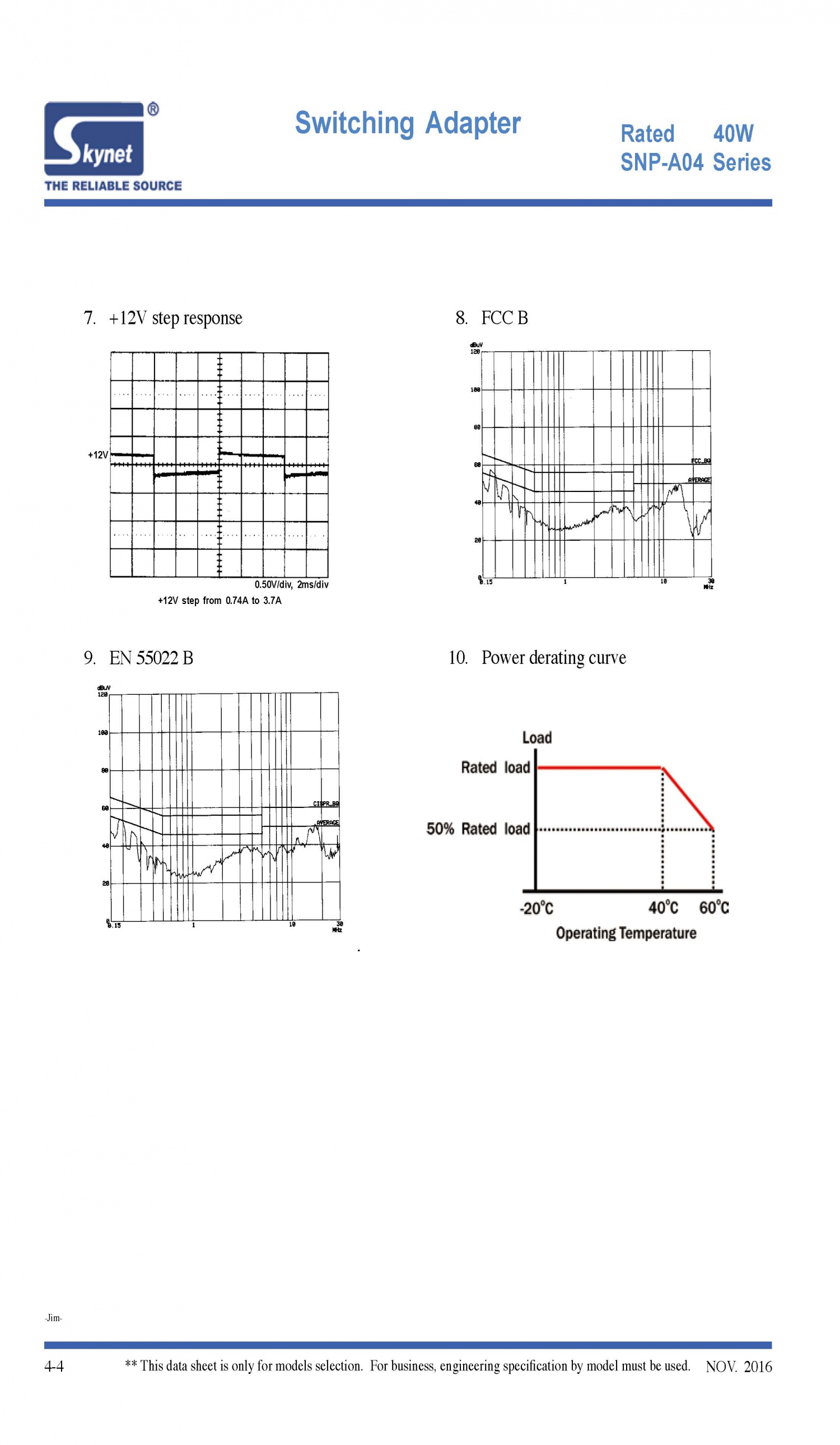

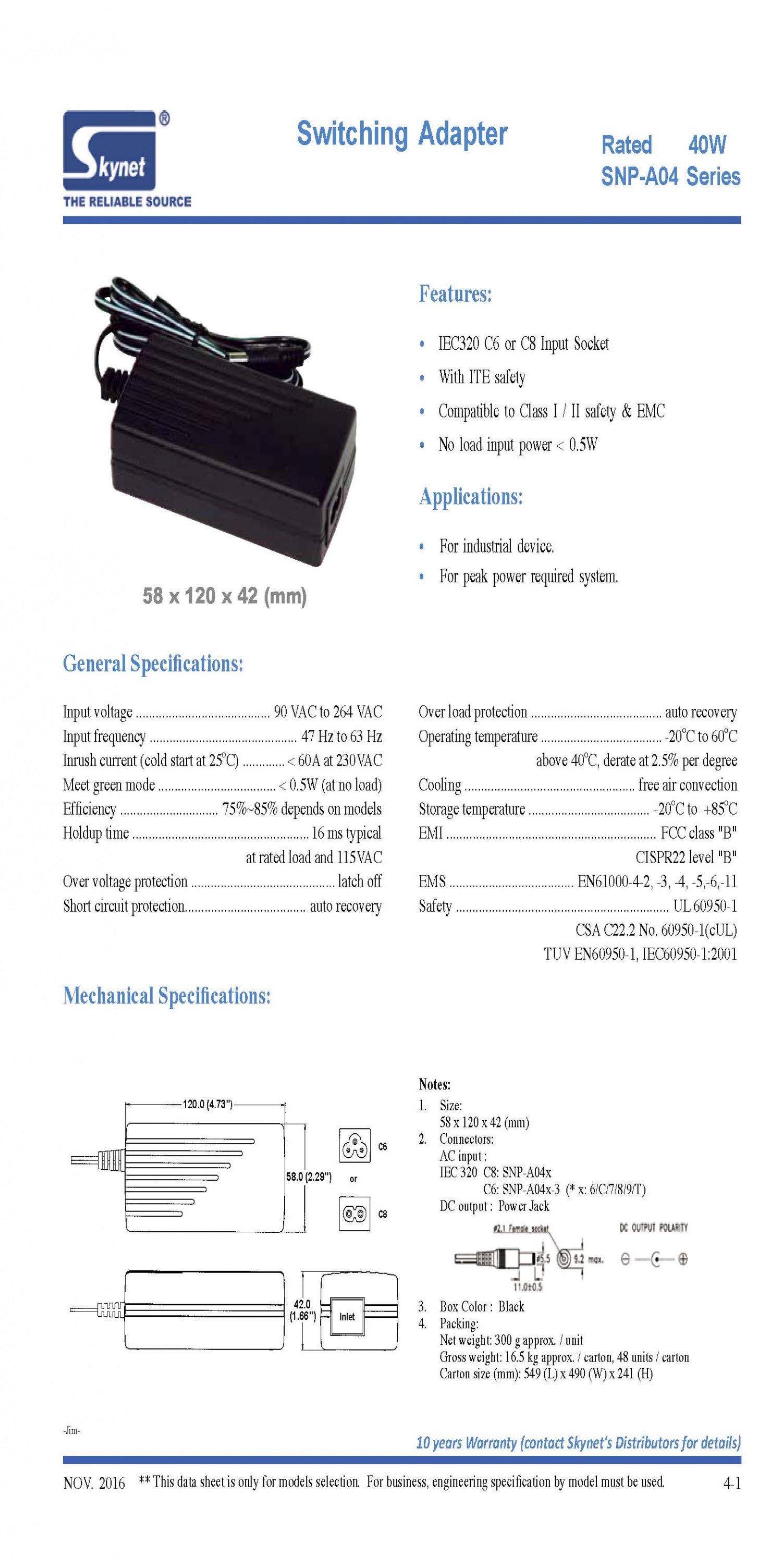

40W SNP-A046 +5V/6A 58x120x42
40W SNP-A046-3 +5V/6A 58x120x42
40W SNP-A04C +9V/4.5A 58x120x42
40W SNP-A04C-3 +9V/4.5A 58x120x42

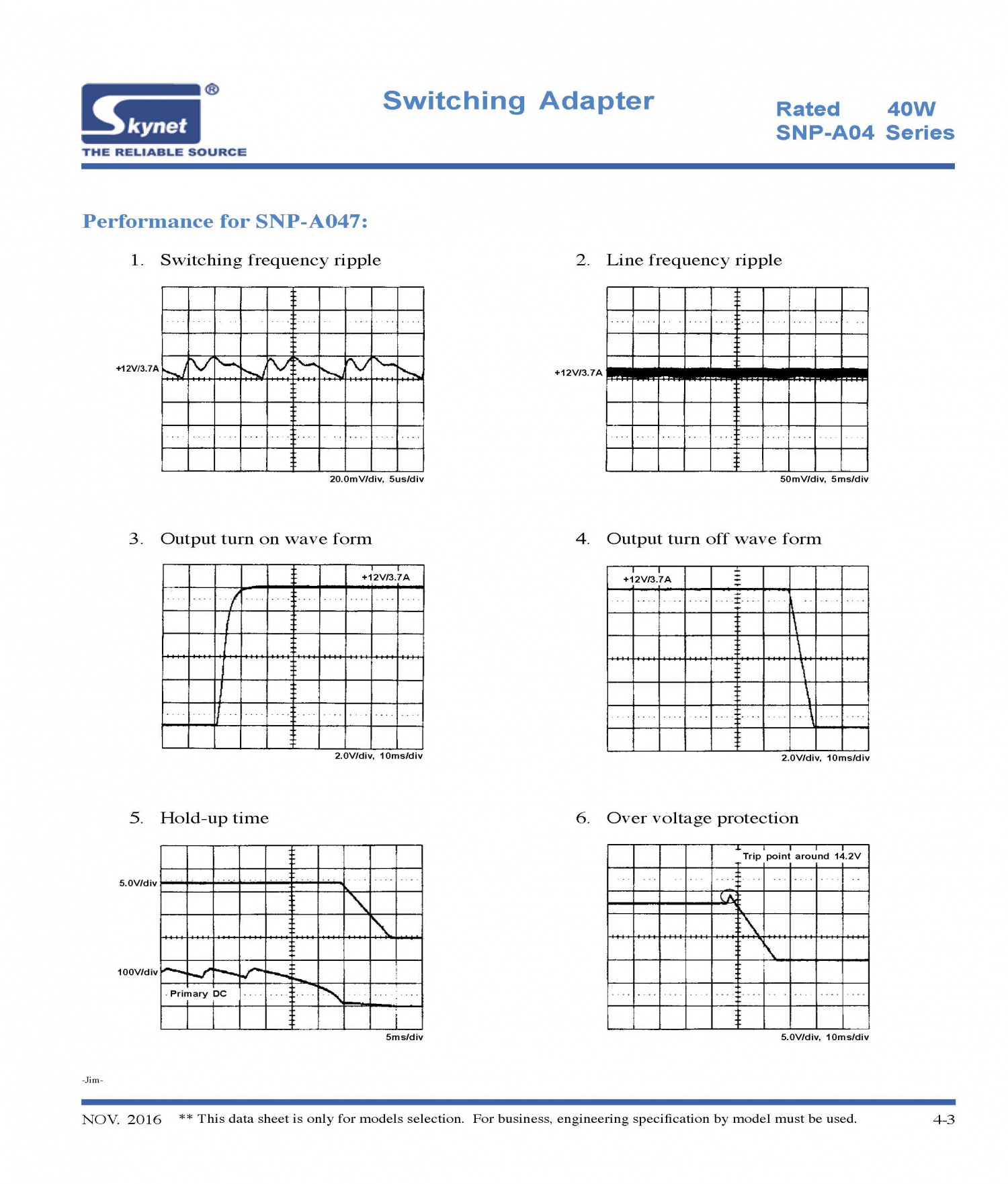

40W SNP-A047 +12V/3.7A 58x120x42
40W SNP-A047-3 +12V/3.7A 58x120x42
40W SNP-A048 +15V/3A 58x120x42
40W SNP-A048-3 +15V/3A 58x120x42
40W SNP-A049 +24V/1.9A 58x120x42
40W SNP-A049-3 +24V/1.9A 58x120x42
40W SNP-A04T +48V/1A 58x120x42
40W SNP-A04T-3 +48V/1A 58x120x42
40W SNP-A047-M +12V/3.5A 58x120x42
40W SNP-A047-M3 +12V/3.5A 58x120x42
40W SNP-A048-M +15V/2.8A 58x120x42
40W SNP-A048-M3 +15V/2.8A 58x120x42
40W SNP-A049-M +24V/1.9A 58x120x42
40W SNP-A049-M3 +24V/1.9A 58x120x42

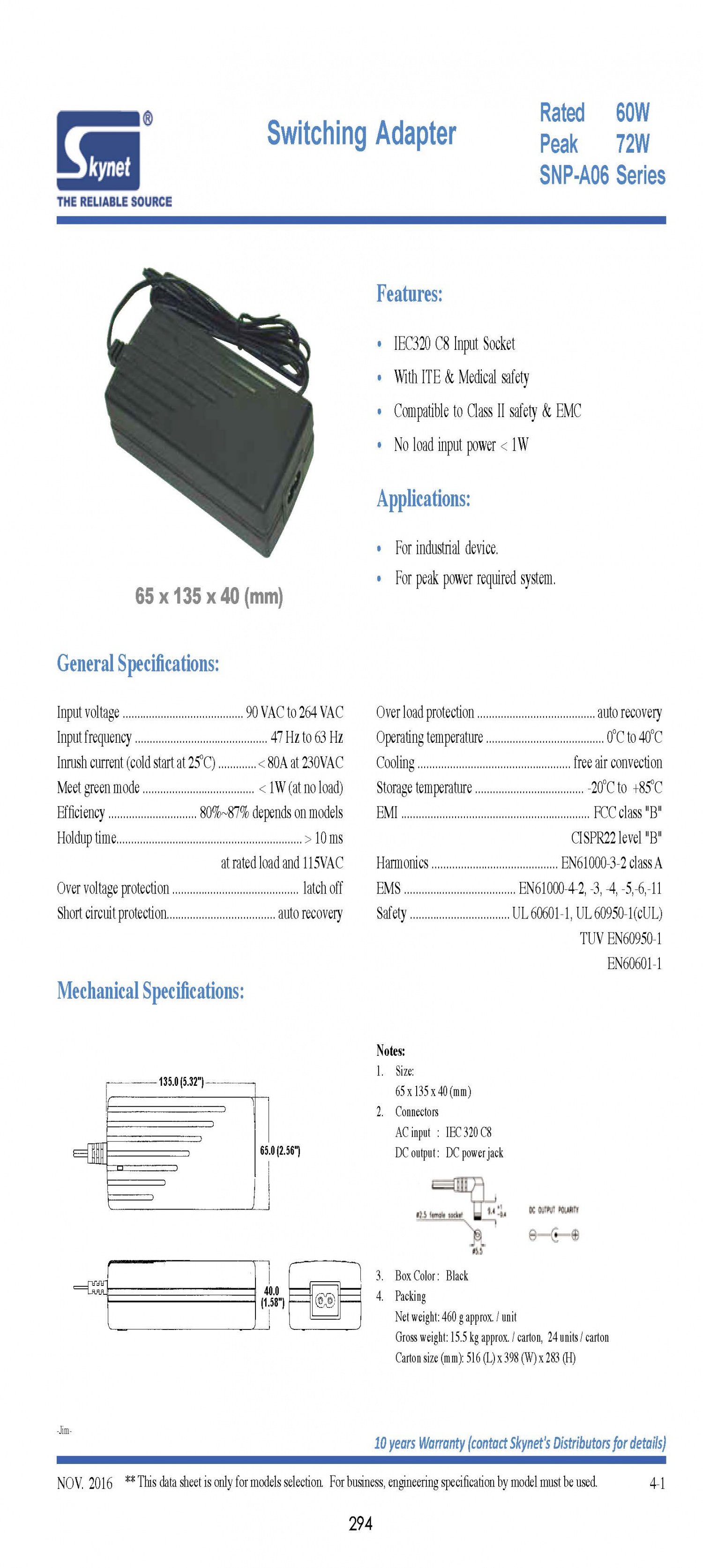

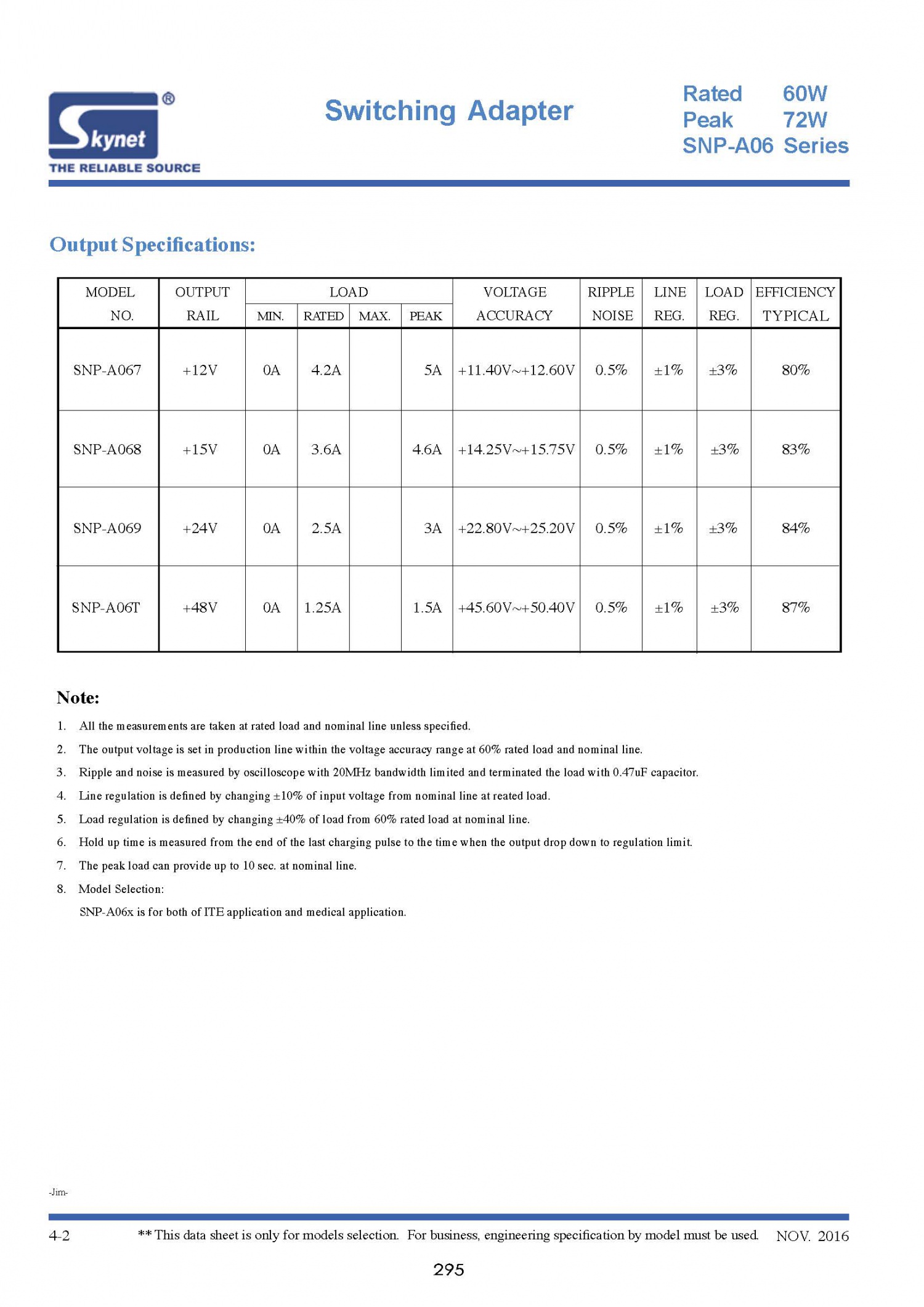

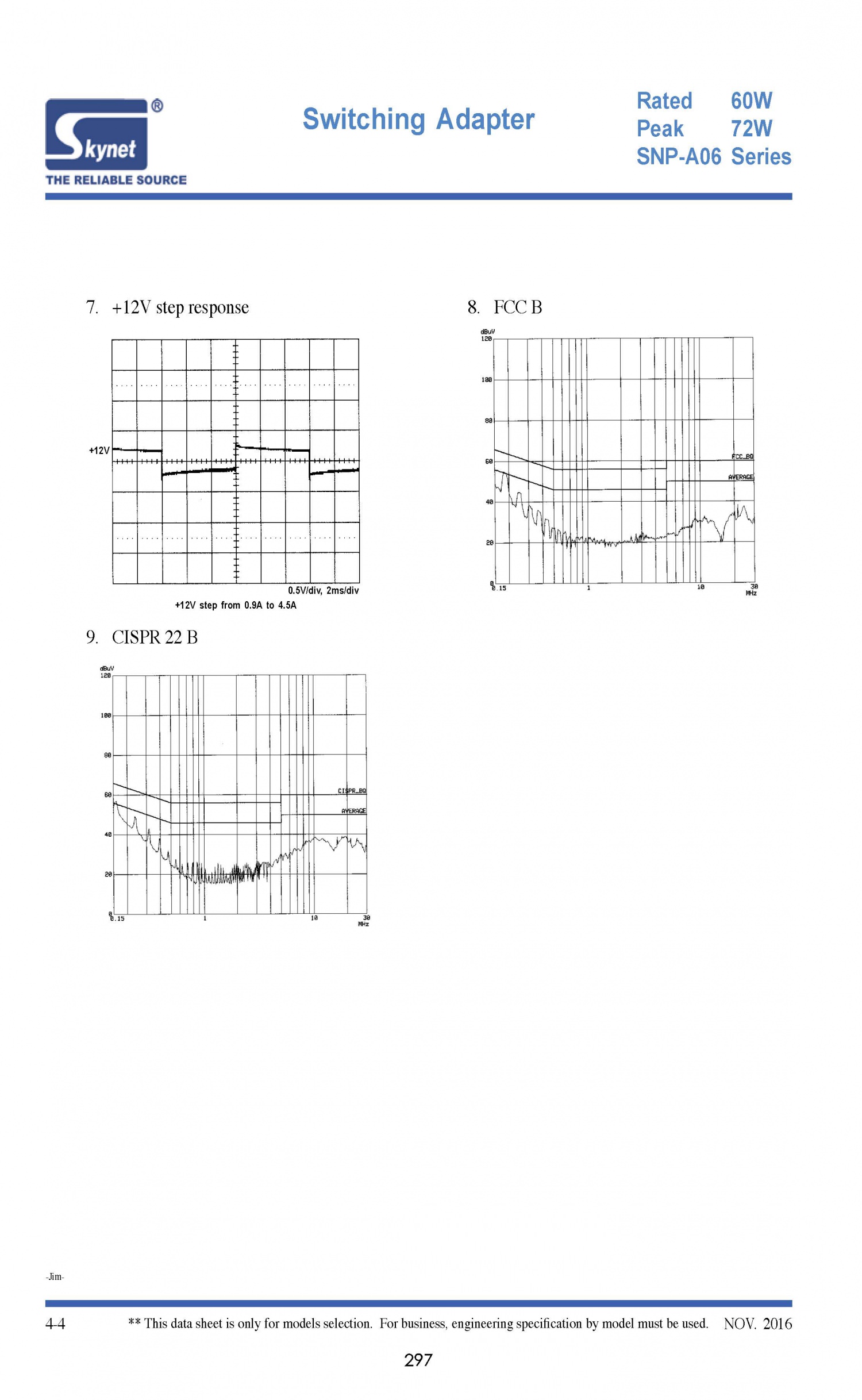

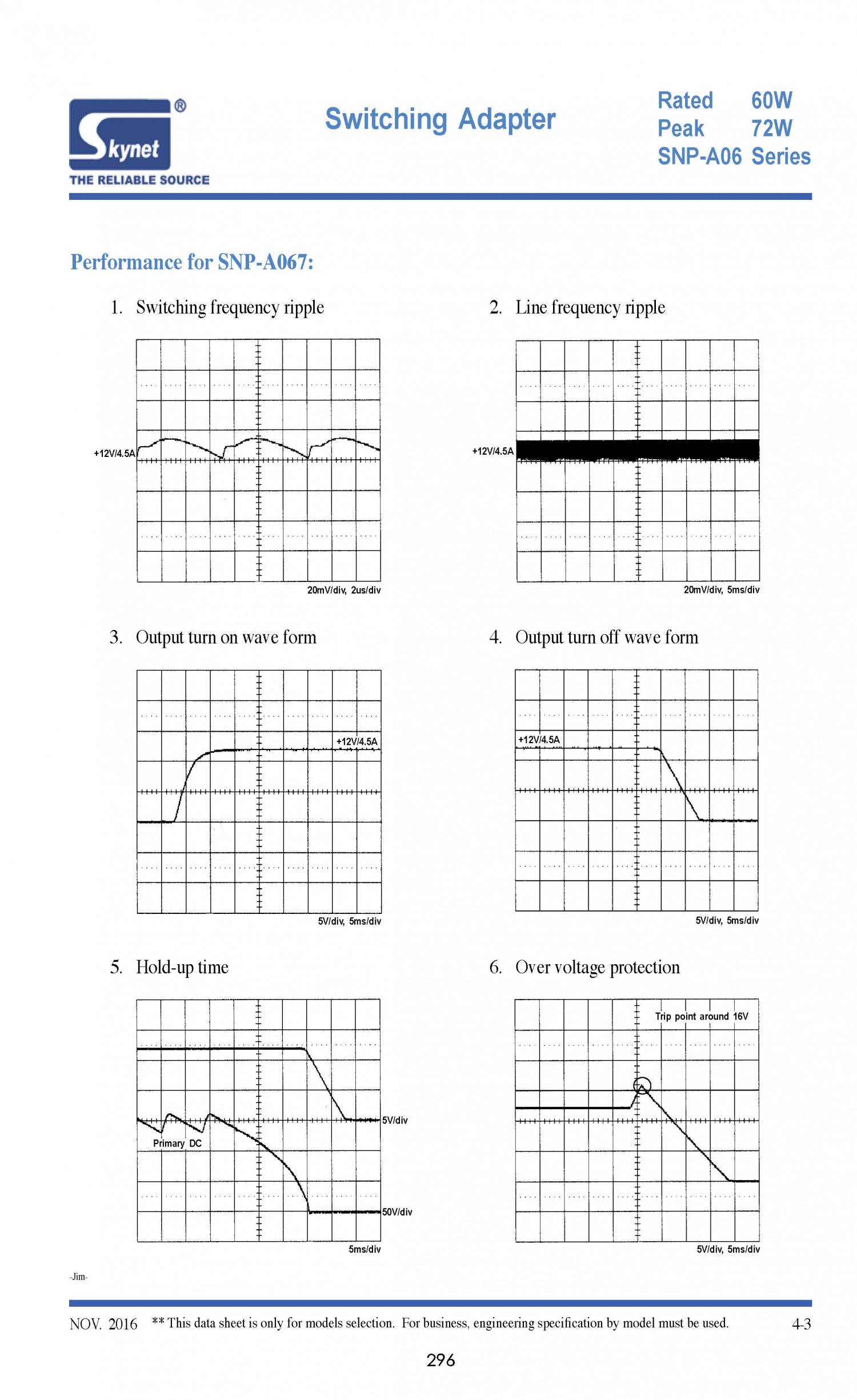

60W SNP-A067 +12V/4.2A 65x135x40
60W SNP-A068 +15V/3.6A 65x135x40
60W SNP-A069 +24V/2.5A 65x135x40
60W SNP-A06T +48V/1.25A 65x135x40
70W SNP-A077 +12V/6A 95x180x63
70W SNP-A078 +15V/5A 95x180x63
70W SNP-A079 +24V/3.2A 95x180x63
70W SNP-A07T +48V/1.5A 95x180x63

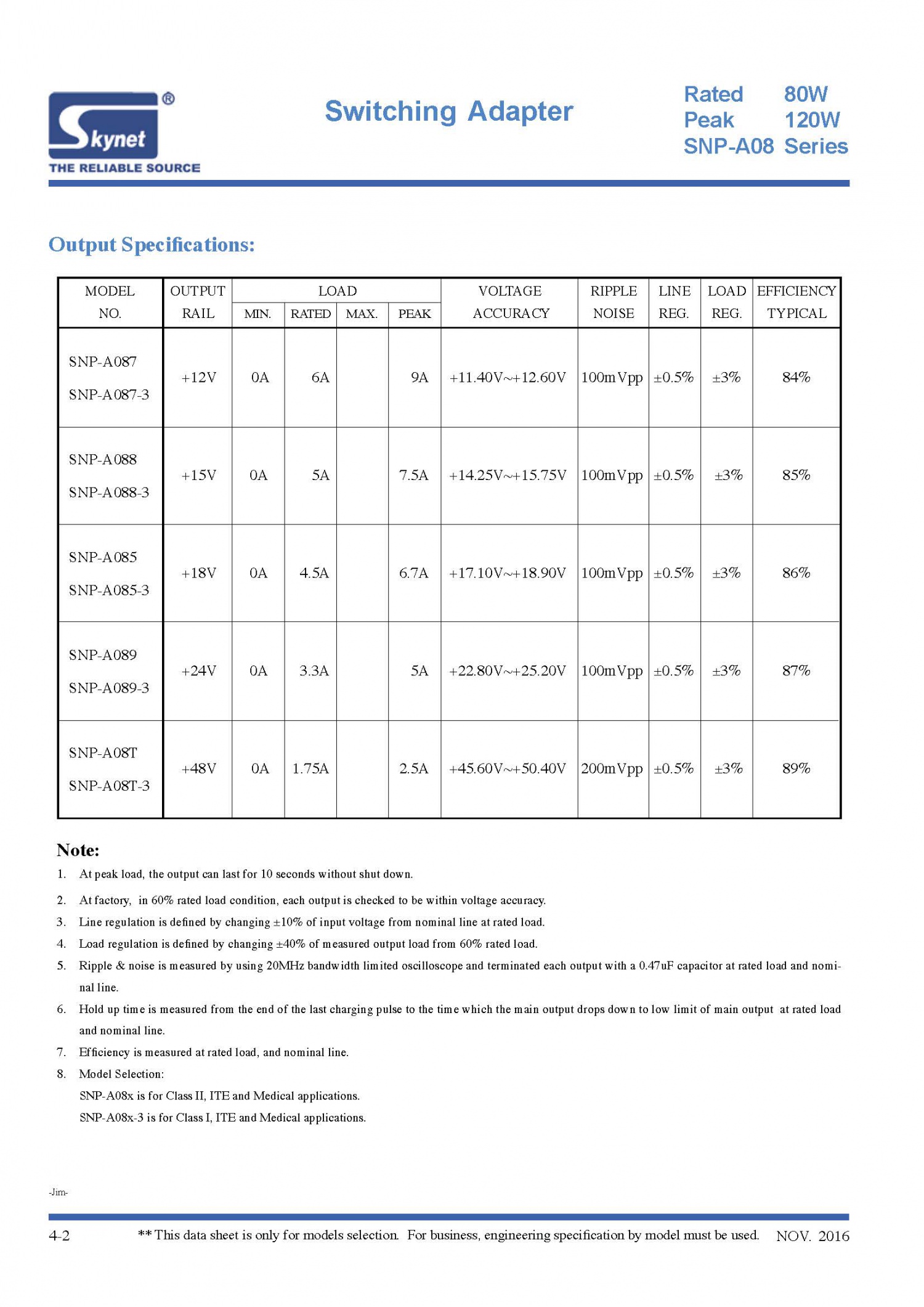

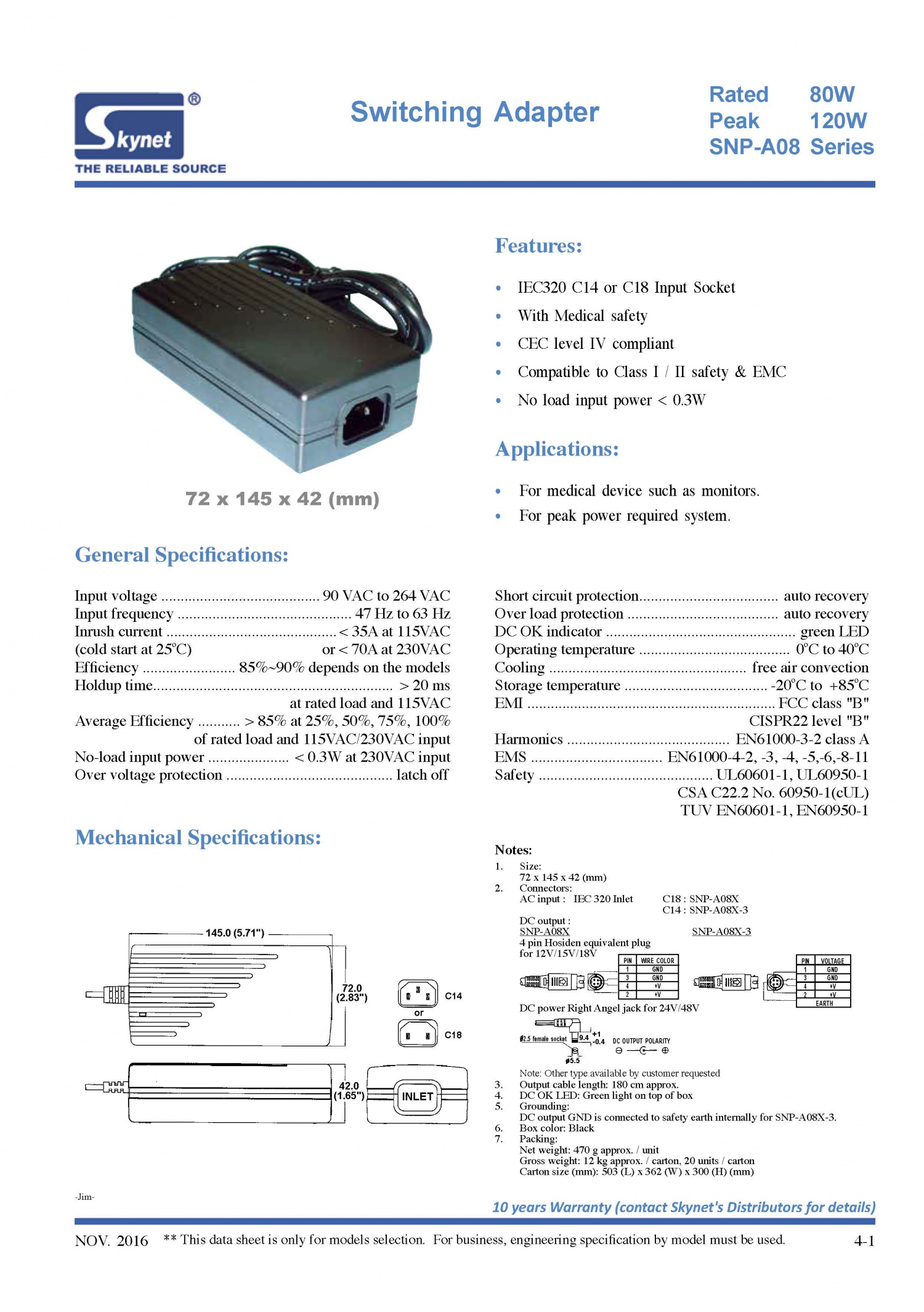

80W SNP-A087 +12V/6A 72x145x42
80W SNP-A087-3 +12V/6A 72x145x42
80W SNP-A088 +15V/5A 72x145x42
80W SNP-A088-3 +15V/5A 72x145x42
80W SNP-A085 +18V/4.5A 72x145x42
80W SNP-A085-3 +18V/4.5A 72x145x42

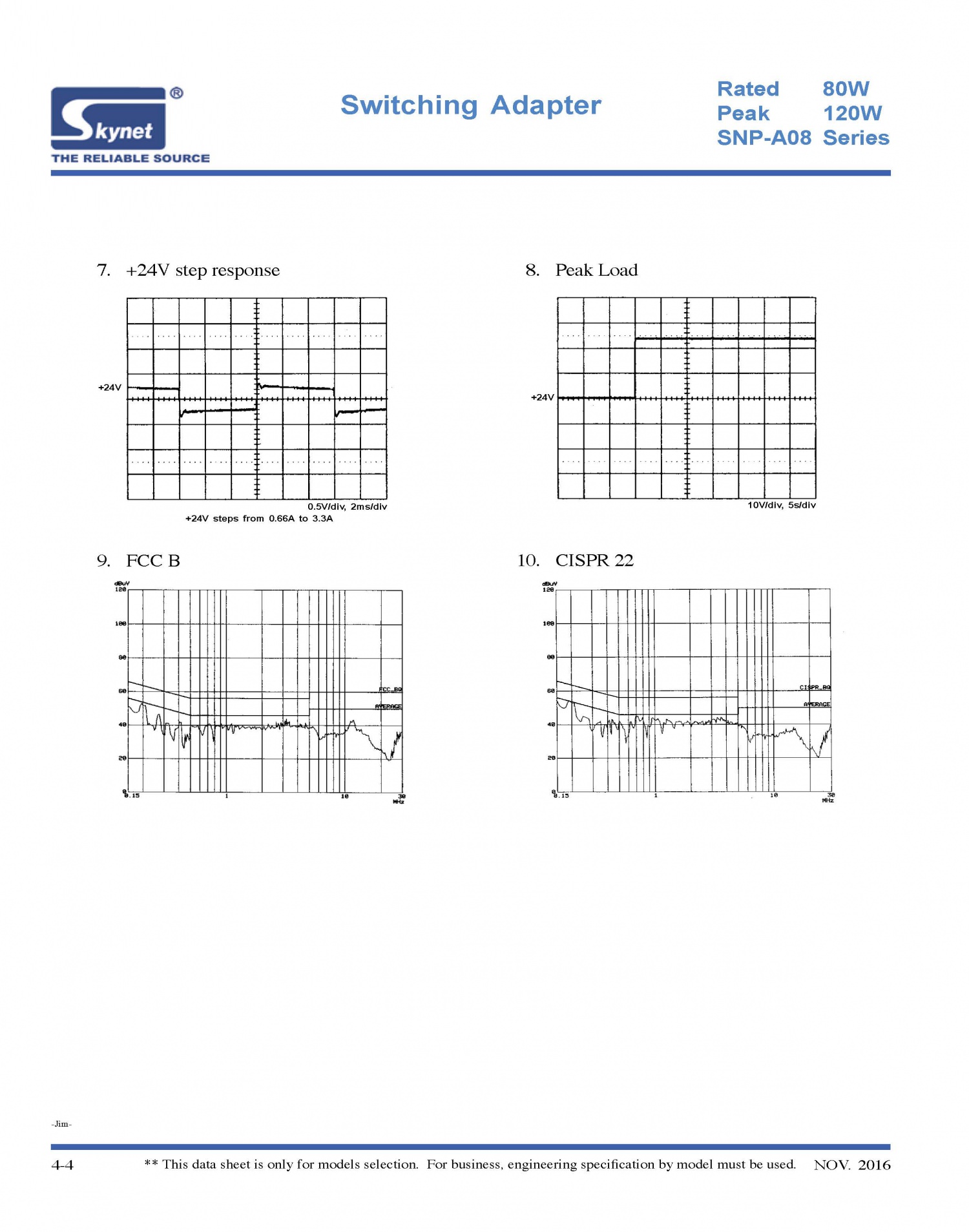

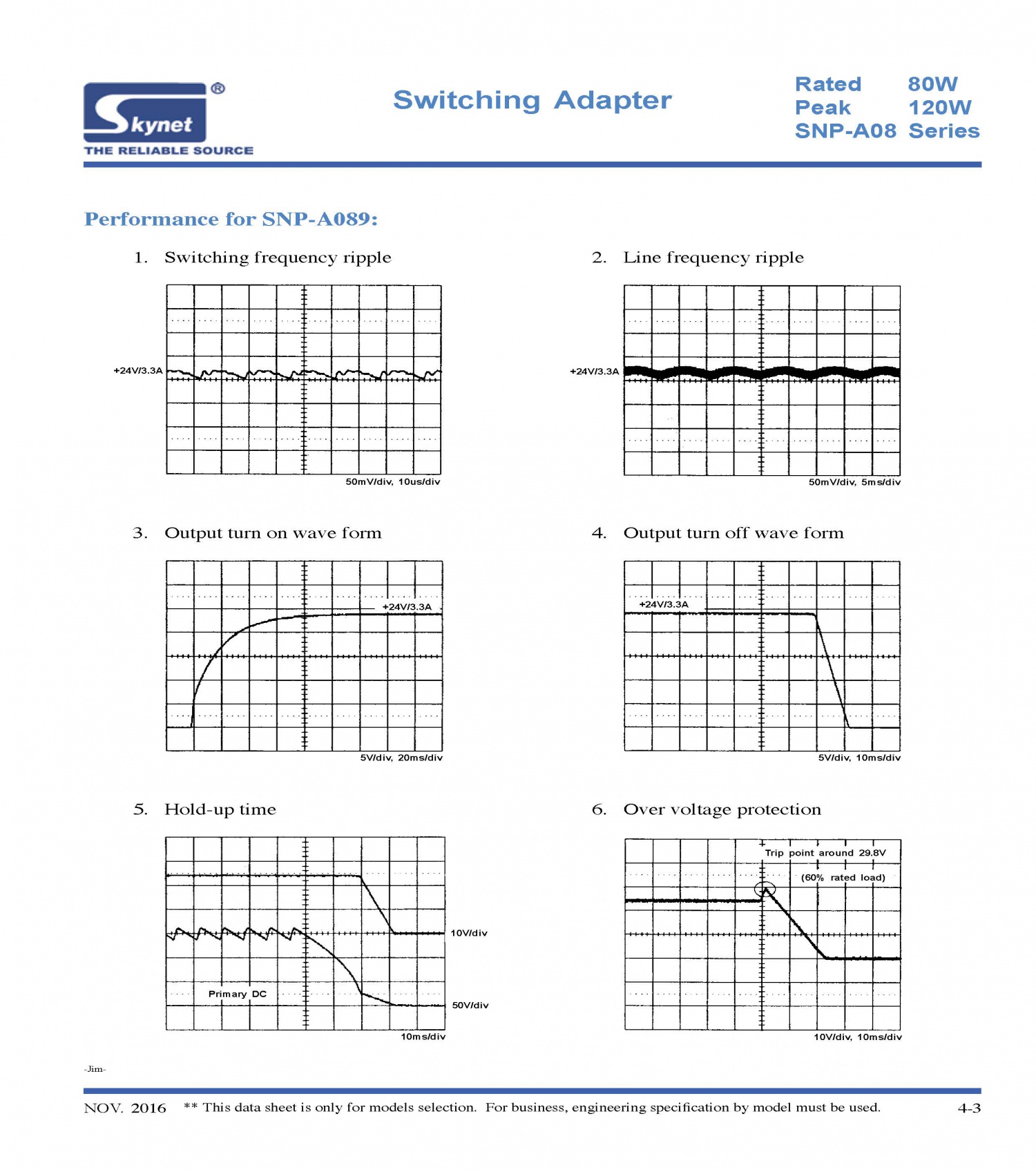

80W SNP-A089 +24V/3.3A 72x145x42
80W SNP-A089-3 +24V/3.3A 72x145x42
80W SNP-A08T +48V/1.75A 72x145x42
80W SNP-A08T-3 +48V/1.75A 72x145x42

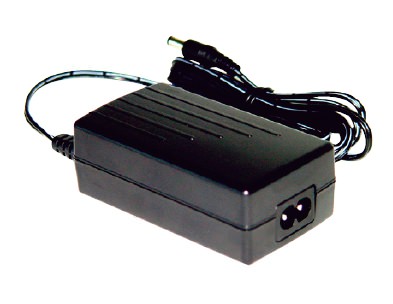

  Skynet PowerSwitching AdapterAdapter for ITE and Medical applications
