Features:

SURGE LOAD

ITE and Medical applications

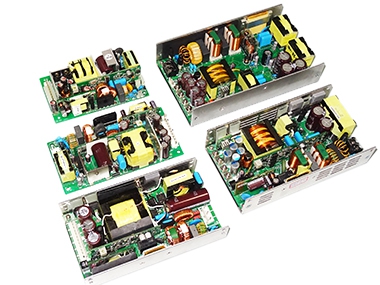

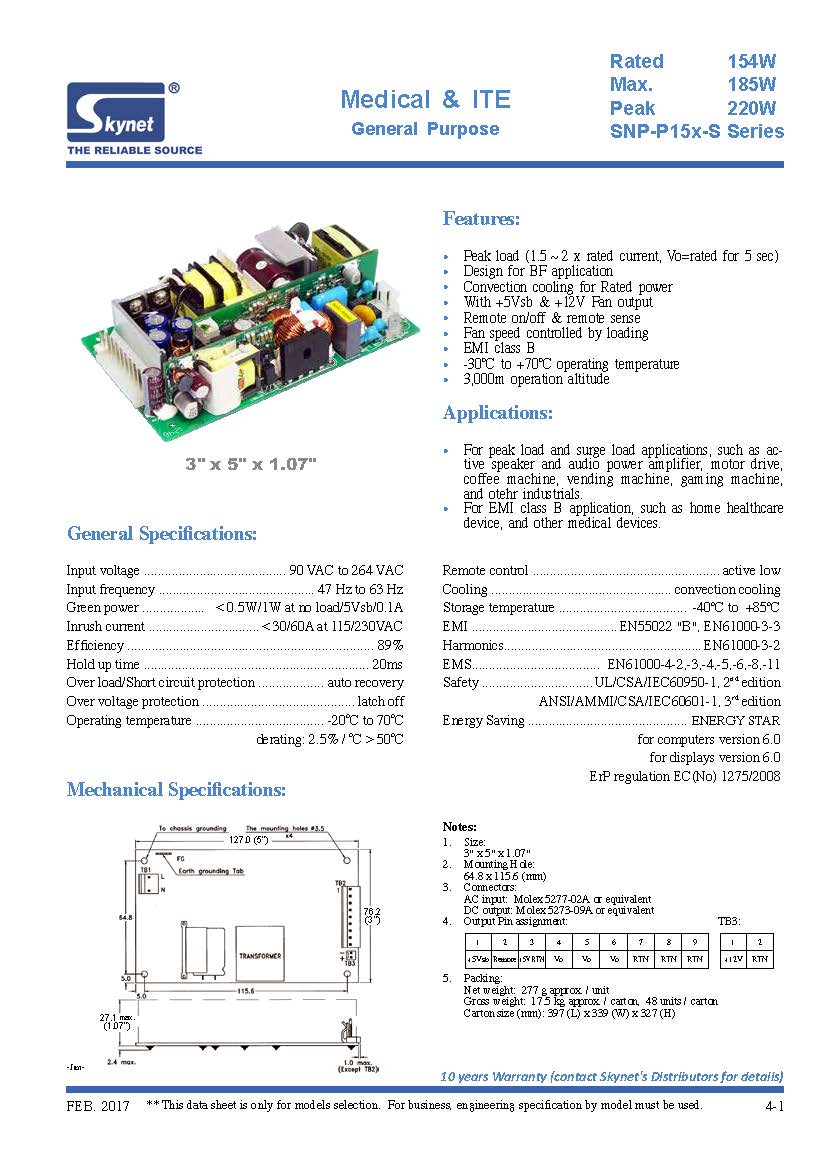

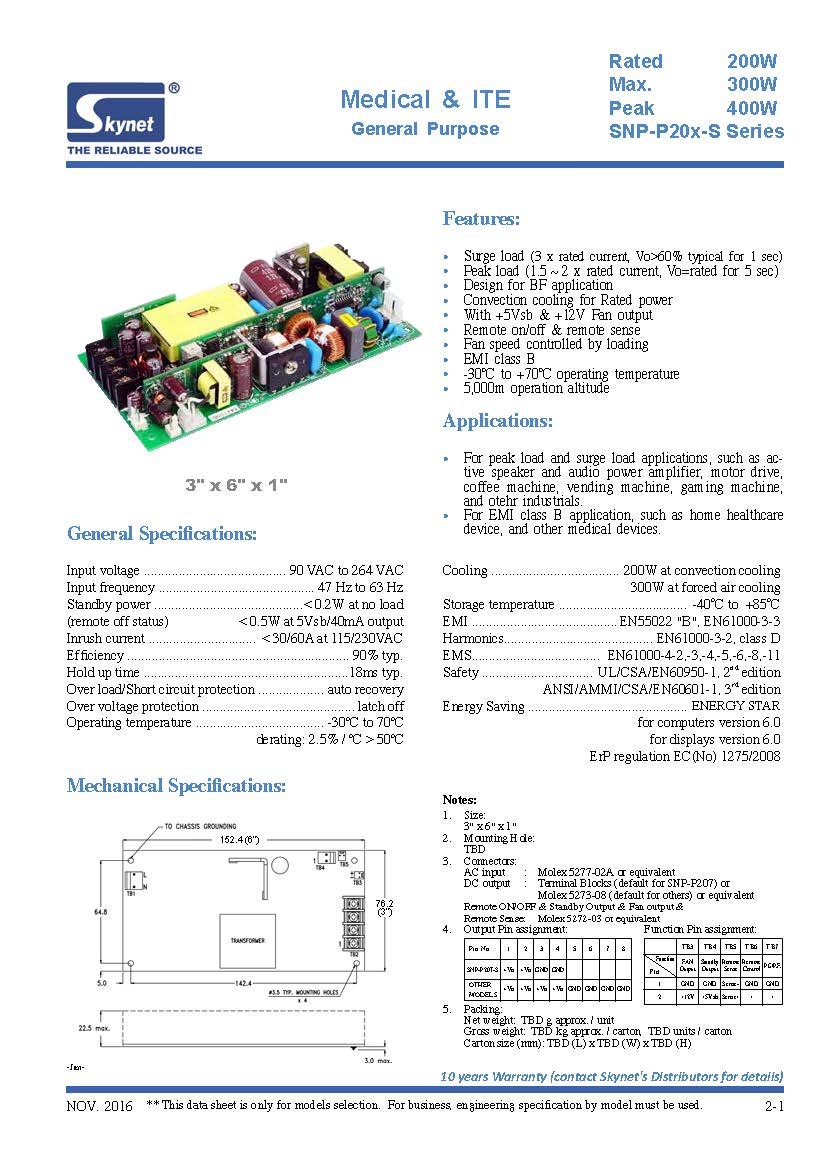

SNP-P15 (154W), SNP-P20 (200W), SNP-P30 (300W),

SNP-P40 (400W)

Output Specifications:
Rated Power Model No. OUTPUT Size WxLxH

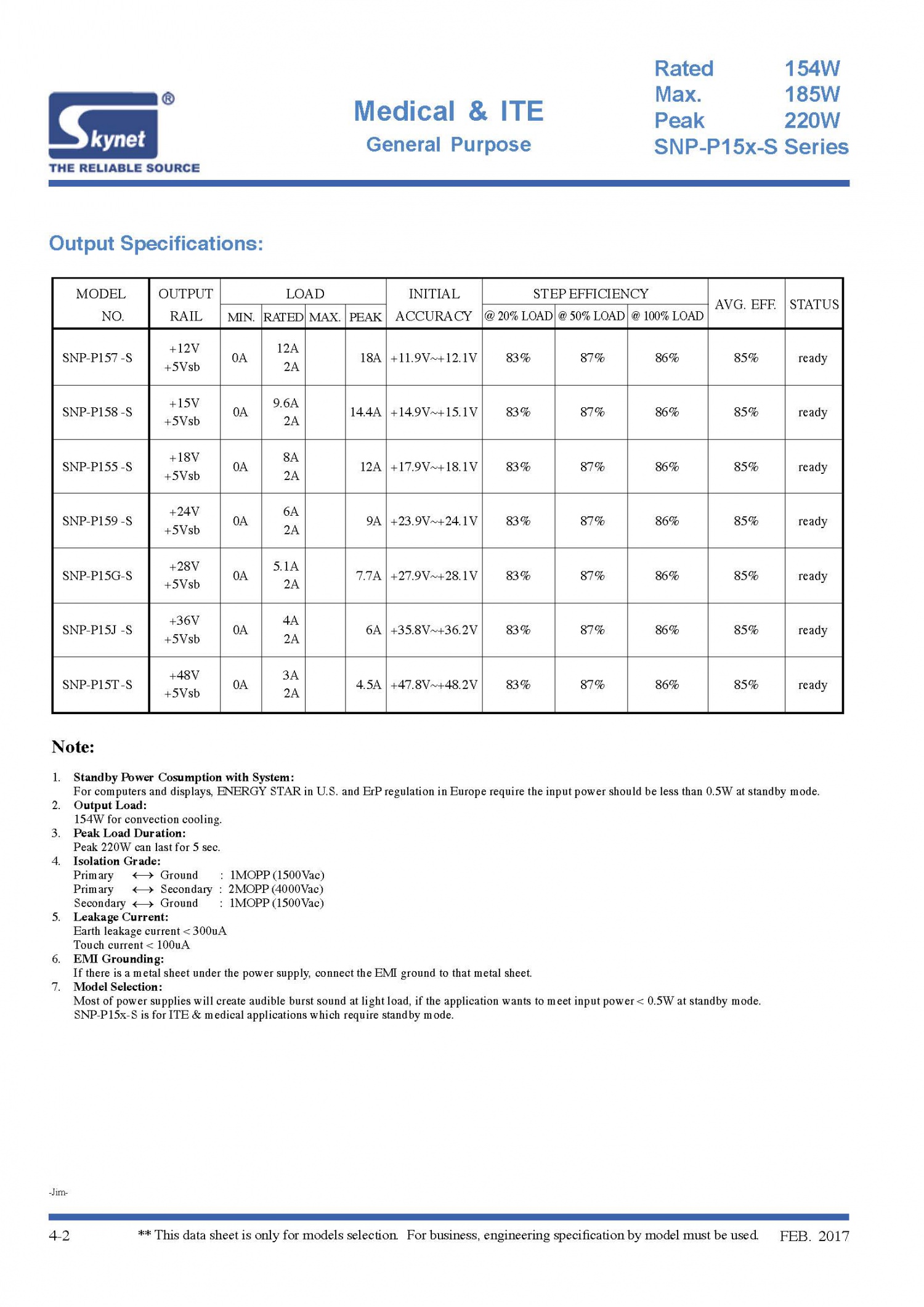

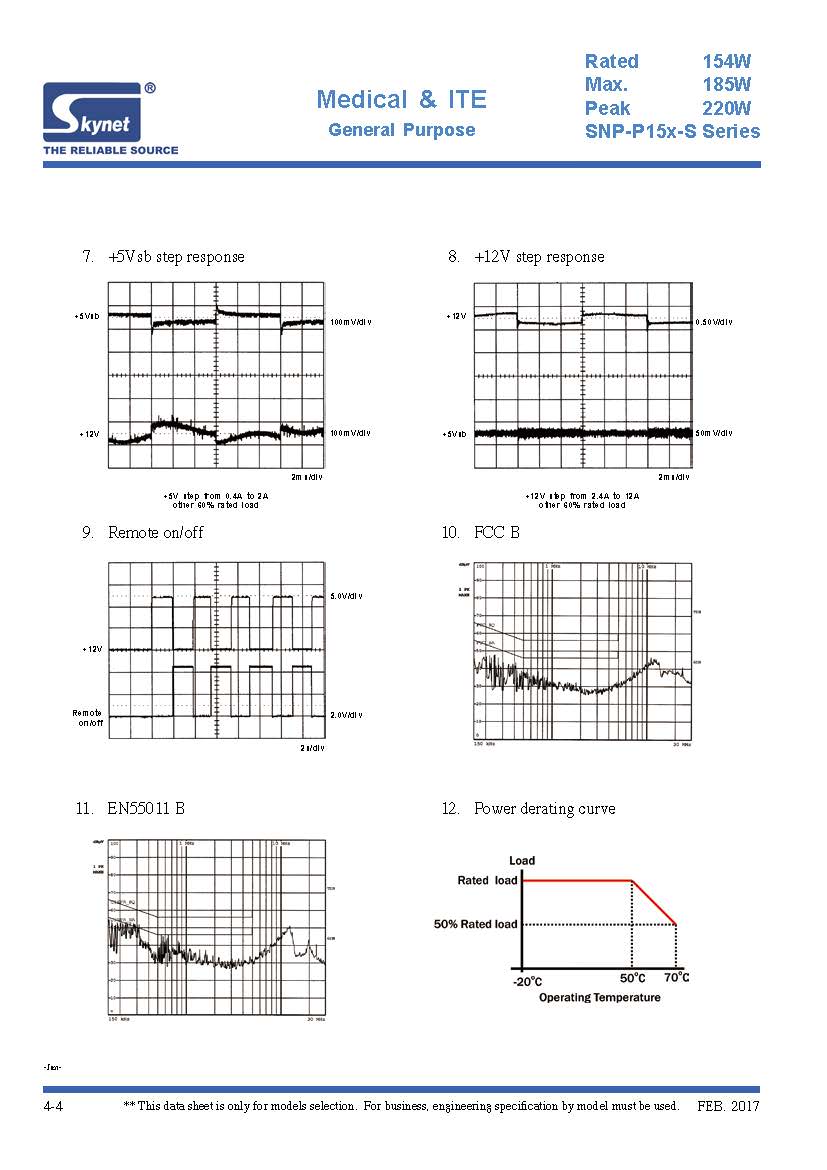

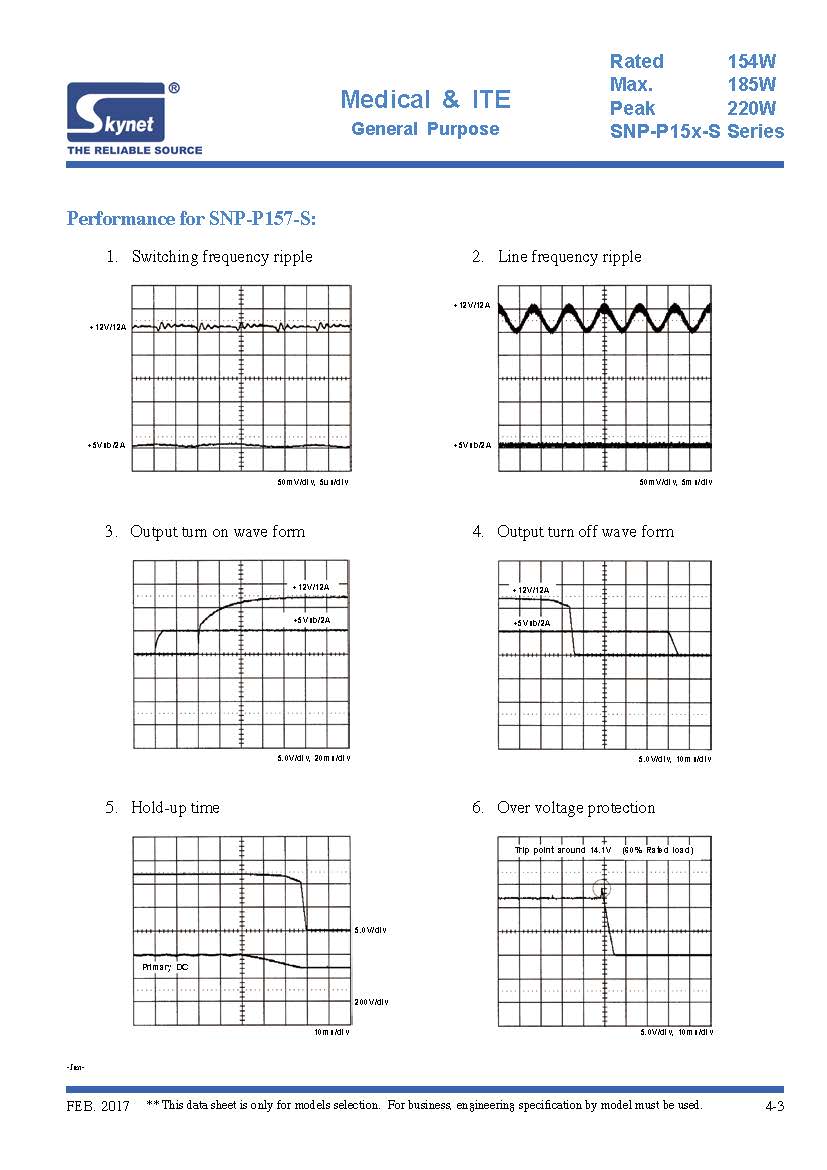

154W SNP-P157-S +12V/12A, +5Vsb/2A 3"x5"x1.07"
154W SNP-P158-S +15V/9.6A, +5Vsb/2A 3"x5"x1.07"
154W SNP-P155-S +18V/8A, +5Vsb/2A 3"x5"x1.07"
154W SNP-P159-S +24V/6A, +5Vsb/2A 3"x5"x1.07"
154W SNP-P15G-S +28V/5.1A, +5Vsb/2A 3"x5"x1.07"
154W SNP-P15J-S +36V/4A, +5Vsb/2A 3"x5"x1.07"
154W SNP-P15T-S +48V/3A, +5Vsb/2A 3"x5"x1.07"

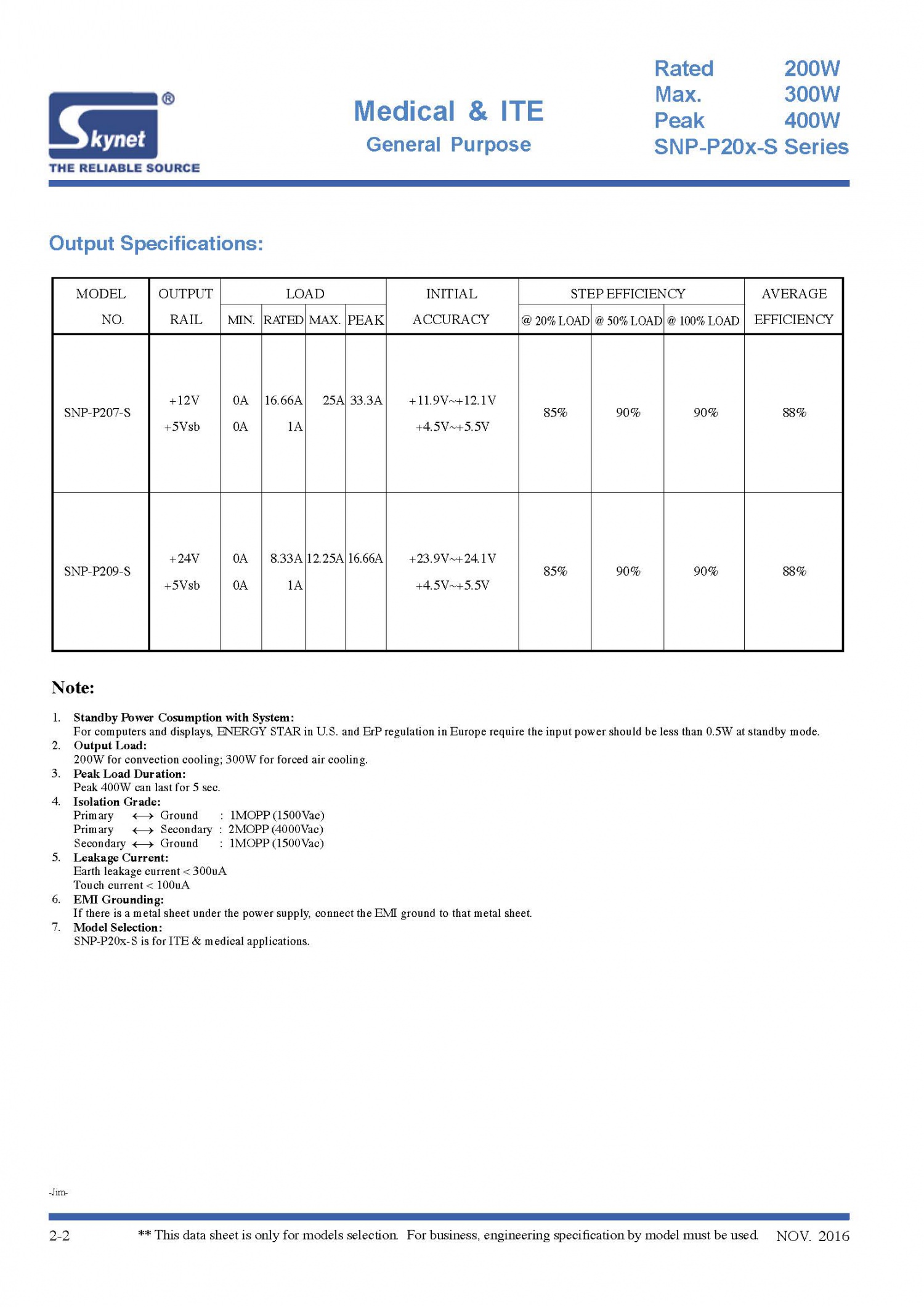

200W SNP-P207-S +12V/16.66A, +5Vsb/1A 3"x6"x1.28"
200W SNP-P209-S +24V/8.33A, +5Vsb/1A 3"x6"x1.28"

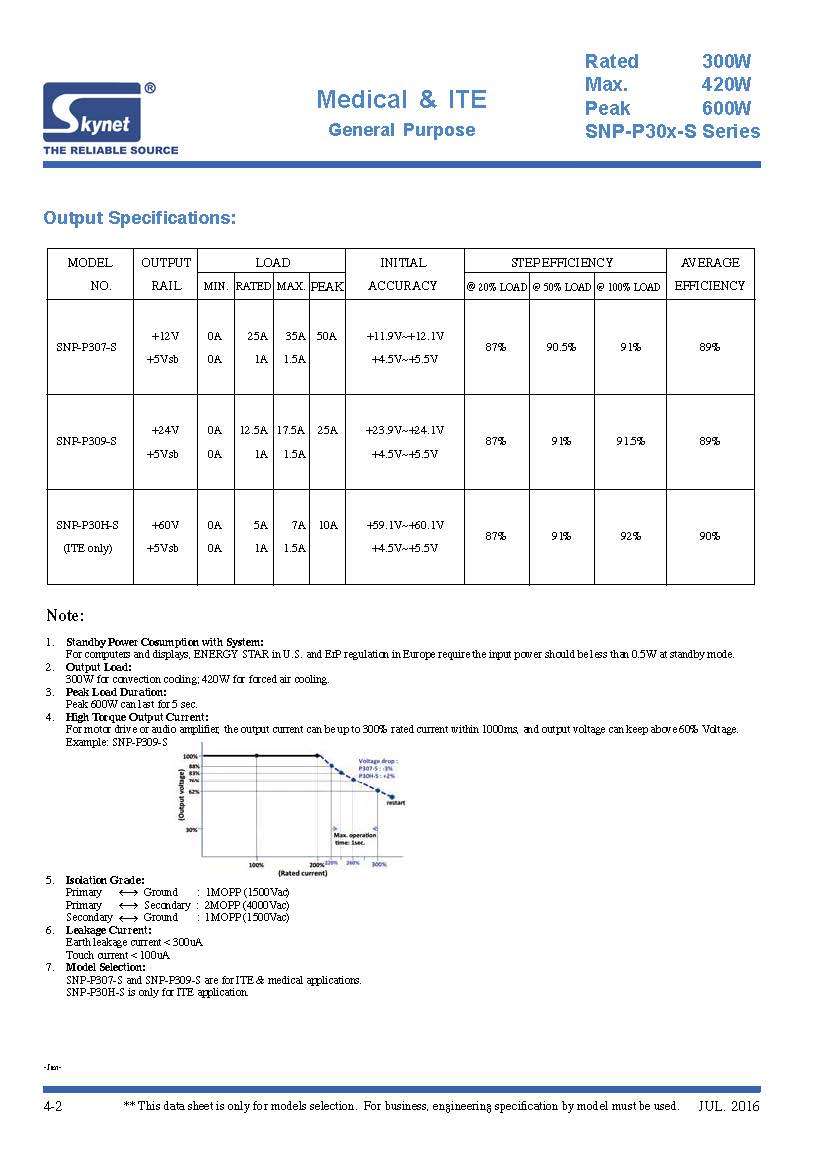

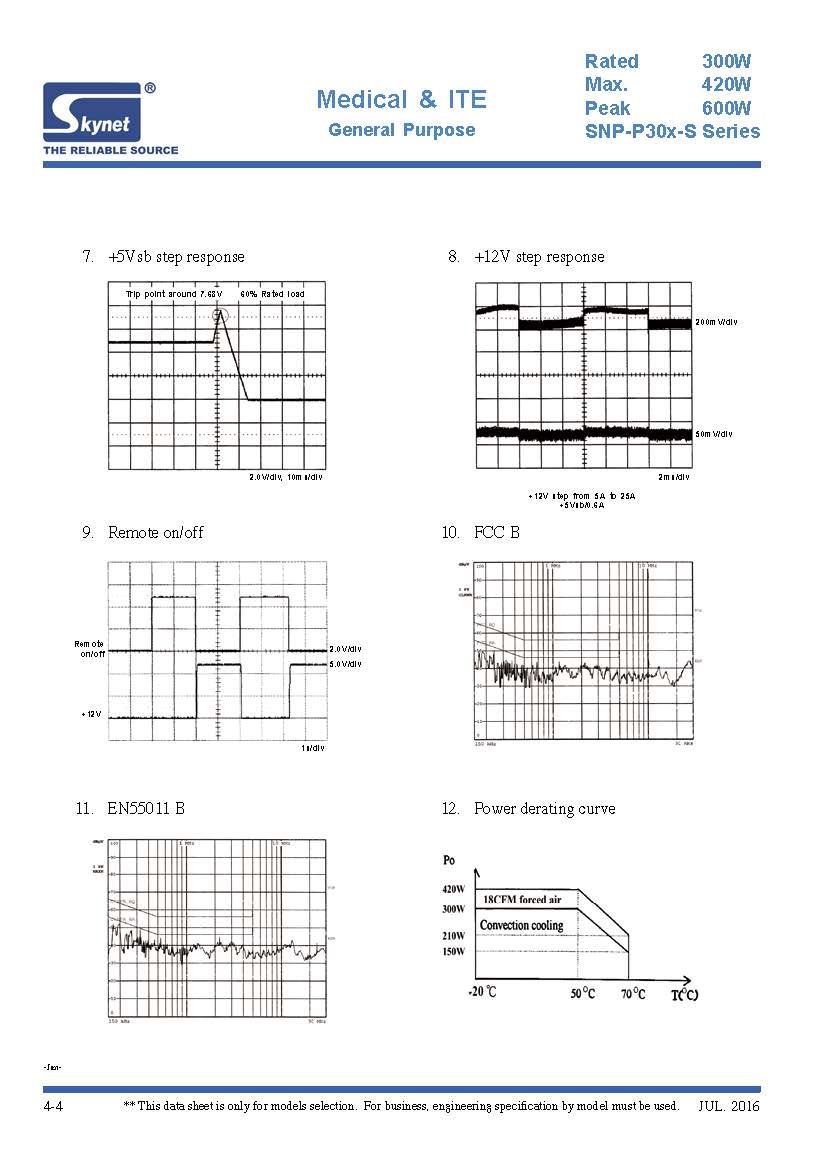

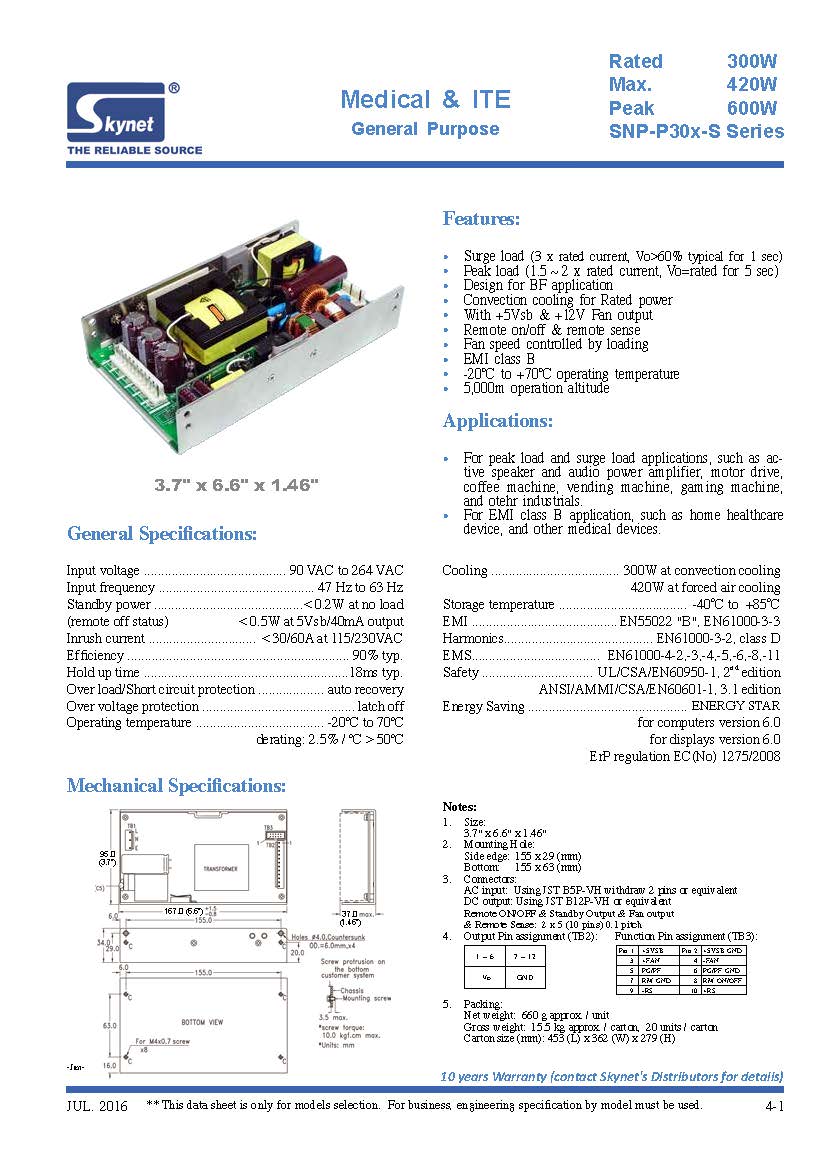

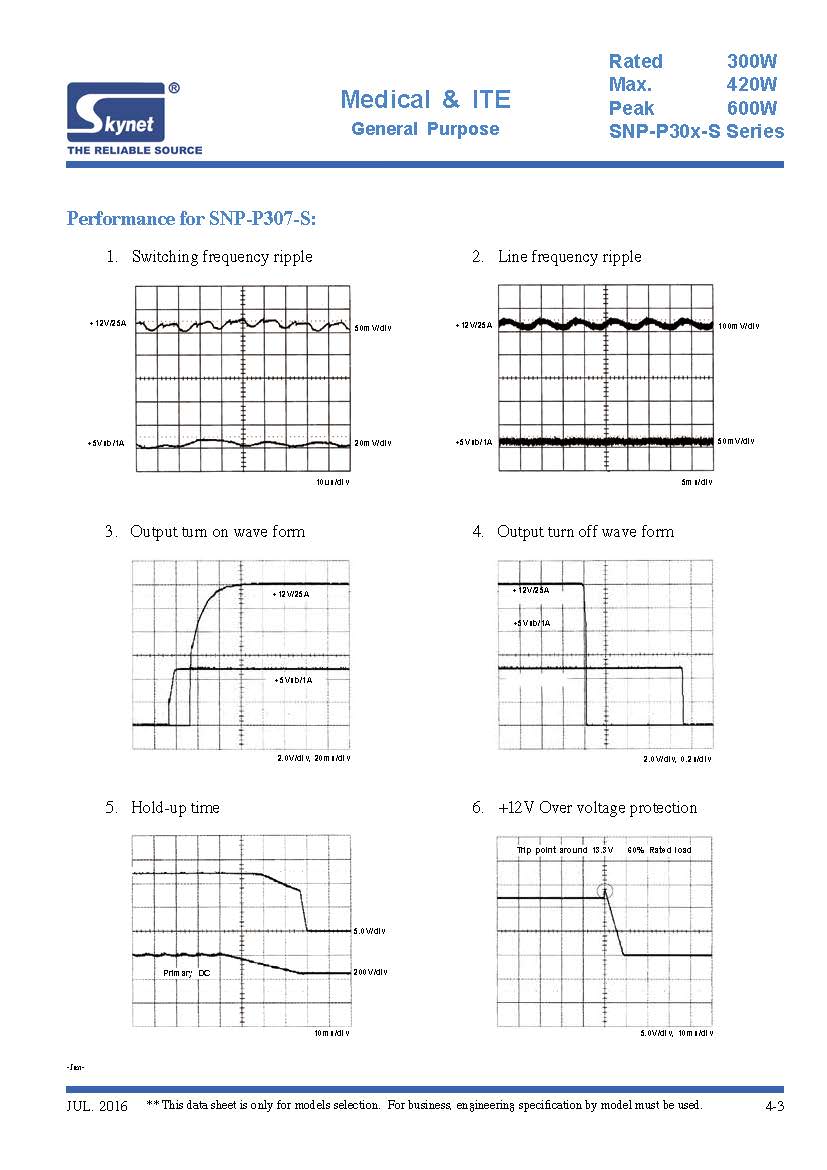

300W SNP-P307-S +12V/25A, +5Vsb/1A 3.7"x6.6"x1.46"
300W SNP-P309-S +24V/12.5A, +5Vsb/1A 3.7"x6.6"x1.46"
300W SNP-P30H-S (ITE only) +60V/5A, +5Vsb/1A 3.7"x6.6"x1.46"

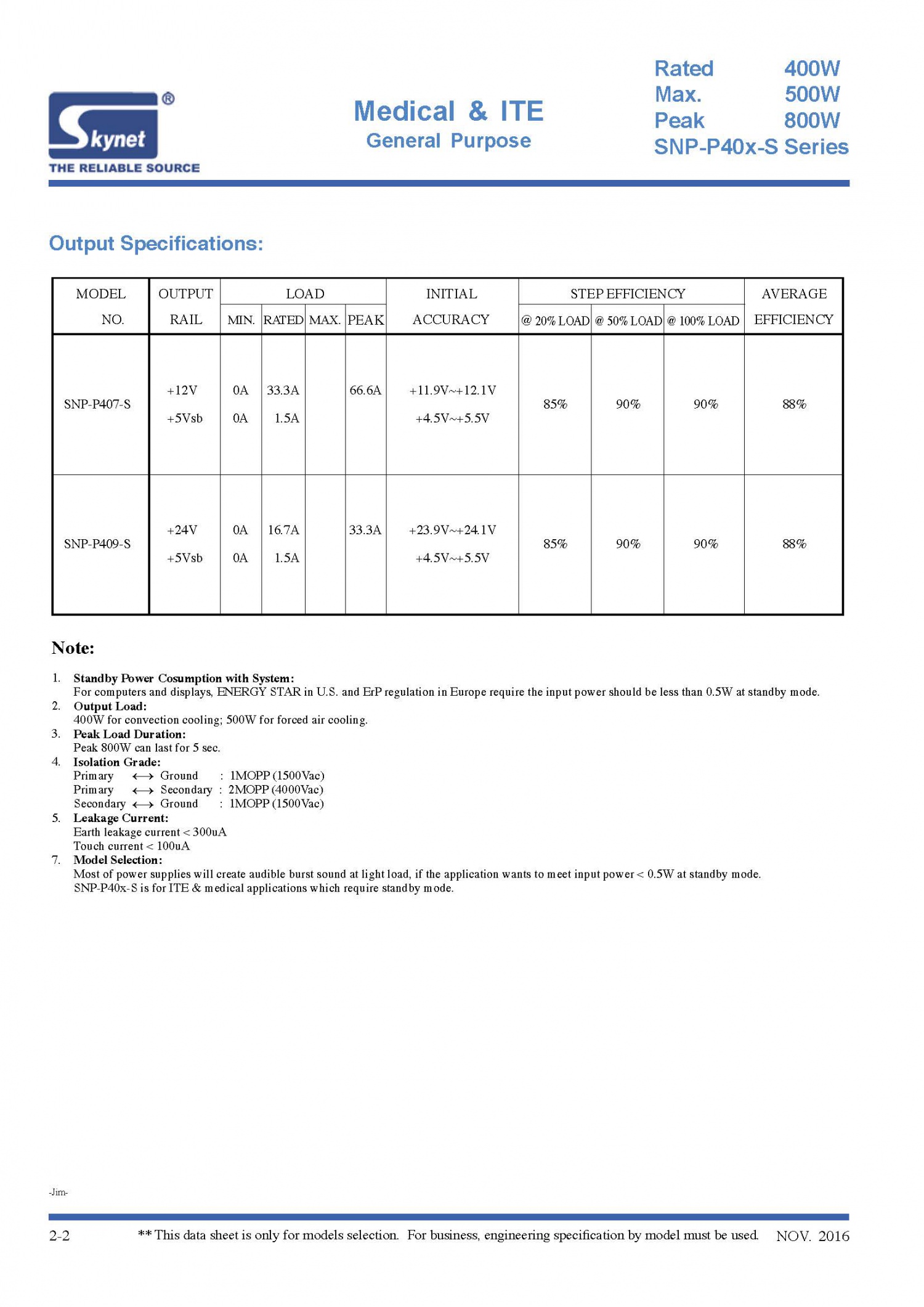

400W SNP-P407-S +12V/33.3A, +5Vsb/1.5A 4"x7"x1.5"
400W SNP-P409-S +24V/16.7A, +5Vsb/1.5A 4"x7"x1.5"
